Introduzzjoni
Thank you for choosing the Toboli Foldable Handcart. This manual provides essential information for the safe and efficient use, assembly, and maintenance of your handcart. Please read this manual thoroughly before first use and keep it for future reference.
The Toboli Foldable Handcart is designed for versatile transport needs, offering a maximum load capacity of 100 kg. Its foldable design ensures easy storage and portability, making it ideal for various activities such as excursions, shopping, and gardening.
Istruzzjonijiet tas-Sigurtà
- Do not exceed the maximum load capacity of 100 kg. Overloading can cause damage to the handcart and lead to injury.
- Ensure all parts are securely assembled before use. Regularly check for loose screws or damaged components.
- Distribute the load evenly within the handcart to maintain stability.
- Be cautious when pulling the handcart on uneven terrain or inclines.
- Keep hands and fingers clear of moving parts, especially during folding and unfolding.
- Do not allow children to play with or ride in the handcart.
- Store the handcart in a dry place away from extreme temperatures.
Prodott Overview
The Toboli Foldable Handcart features a robust design with a telescopic handle and durable wheels, making it suitable for various surfaces.
Image: The Toboli Foldable Handcart in its open configuration, loaded with bags and other items, demonstrating its capacity for transport.
Image: A person pulling the Toboli Handcart, which is loaded with camping gear, through a grassy area near tents, highlighting its use for outdoor activities.
Setup u Assemblea
The Toboli Foldable Handcart comes largely pre-assembled. Follow these steps to prepare it for use:
- Unfolding the Handcart: Place the folded handcart on a flat surface. Gently pull the sides apart until the frame fully extends. Press down on the center base to lock it into place.
- Estensjoni tal-Manku: Locate the telescopic handle. Press the release button (if present) and pull the handle upwards to extend it to your desired height. Ensure it locks securely in position.
- Checking Wheels: Verify that all four wheels are securely attached and rotate freely.
Image: A visual guide showing the three steps for easily transporting and storing the handcart: from open (Step 1), to partially folded (Step 2), to fully folded (Step 3) for compact storage in a car boot.
Istruzzjonijiet Operattivi
Loading the Handcart
- Place items evenly across the base of the handcart to maintain balance and prevent tipping.
- Do not stack items higher than the fabric walls unless they are securely fastened.
- Ensure the total weight does not exceed the 100 kg maximum load capacity.
Image: The handcart filled with various items, illustrating its high load capacity and large volume, with icons indicating 100L volume and 100kg maximum load.
Trasport
- Hold the telescopic handle firmly.
- Pull the handcart smoothly, avoiding sudden jerks or turns, especially when heavily loaded.
- The 360° rotatable wheels provide excellent maneuverability on various surfaces.

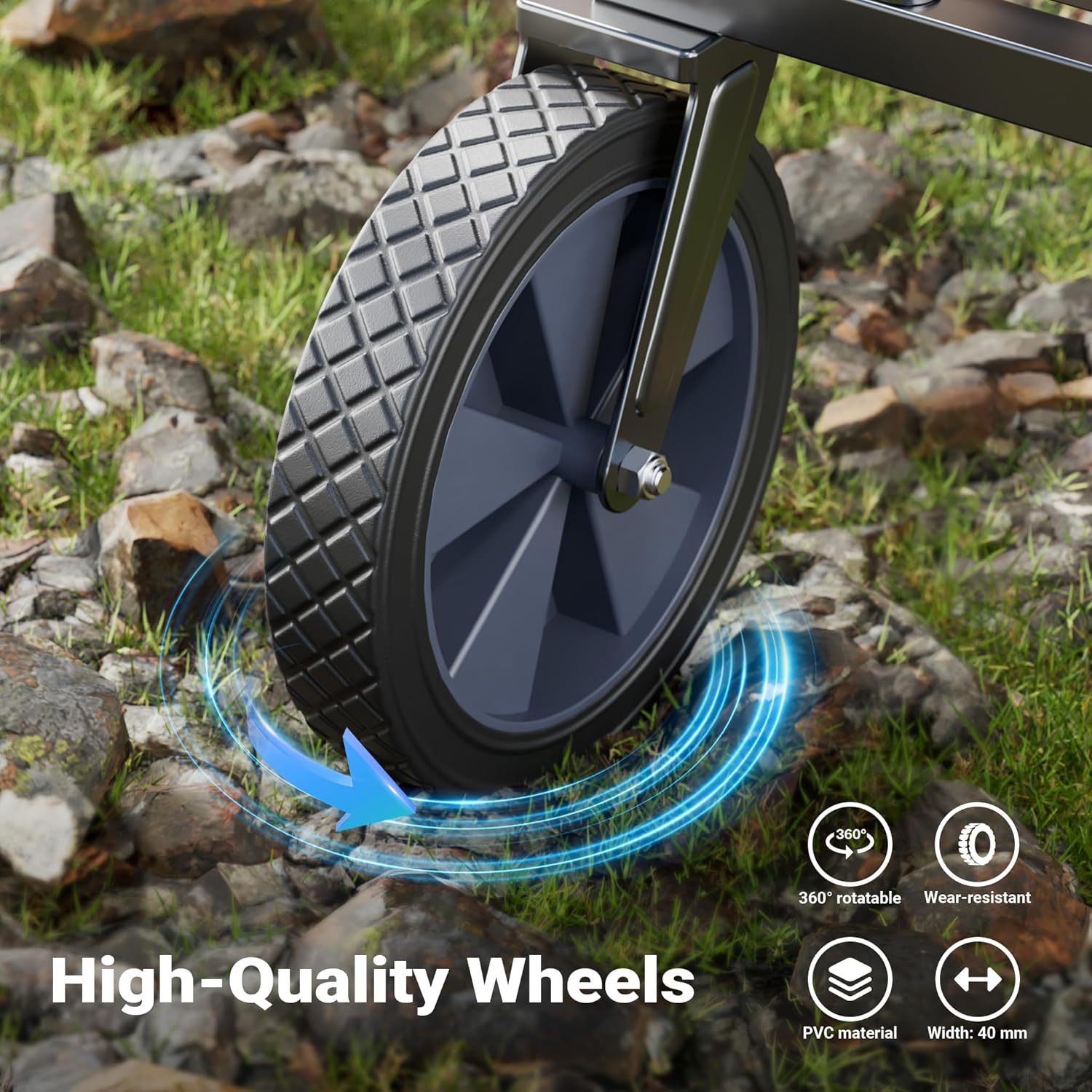

Immaġni: Close-up view of one of the handcart's wheels, emphasizing its high-quality construction, 360° rotatability, wear-resistant PVC material, and 40mm width, suitable for various terrains.
Image: A graphic demonstrating the handcart's suitability for various surfaces, including grass, gravel, asphalt, and wooden floors, highlighting its versatile wheel design.
Image: A diagram illustrating the adjustable handle of the handcart, capable of rotating 90 degrees for ergonomic pulling and compact storage.
Tiwi għall-Ħażna
- Empty the handcart completely.
- Push the center base upwards to release the locking mechanism.
- Push the sides of the handcart together until it is fully collapsed.
- Retract the telescopic handle to its shortest position.
Manutenzjoni
- Tindif: Imsaħ id-drapp u l-qafas b'reklamaramp cloth. For stubborn dirt, use mild soap and water. Do not use harsh chemicals or abrasive cleaners.
- Lubrikazzjoni: Periodically apply a small amount of lubricant to the wheel axles and handle mechanism to ensure smooth operation.
- Spezzjoni: Regularly inspect the frame for any signs of bending or cracks. Check the wheels for wear and tear. Ensure all screws and fasteners are tight.
- Ħażna: Store the handcart in a dry, cool place to prevent rust and material degradation.
Image: Details highlighting the handcart's reliable and durable construction, including the water-resistant 600D Oxford fabric and the sturdy metal frame.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Handcart difficult to fold/unfold | Il-mekkaniżmu huwa iebes jew maħmuġ. | Clean and lubricate the folding joints. Ensure no debris is obstructing the mechanism. |
| Roti ma jdurux bla xkiel | Dirt or debris in axles; lack of lubrication; damaged wheel. | Clean wheels and axles. Apply lubricant. Inspect for damage and replace if necessary. |
| Handle not extending/retracting smoothly | Dirt or debris in telescopic tubes; locking pin issues. | Clean the telescopic sections. Ensure the locking pin engages correctly. Lubricate if needed. |
| Handcart unstable during transport | Overloaded; unevenly distributed load; damaged frame/wheels. | Reduce load. Redistribute items evenly. Inspect frame and wheels for damage. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Toboli |
| Numru tal-Mudell | 63854 |
| Kulur | Griż |
| Dimensjonijiet tal-Prodott (L x W x H) | 102 x 50.5 x 101 ċm |
| Materjal | Polyvinyl Chloride (PVC) fabric, Metal frame |
| Piż tal-oġġett | 9.1 kg |
| Kapaċità massima tat-Tagħbija | 100 kg |
| Tip ta' Manku | Teleskopiku |
| Karatteristiċi tar-rota | 360° rotatable, Wear-resistant, PVC material, 40mm width |
Image: A technical drawing illustrating the precise dimensions of the Toboli Foldable Handcart, including height, width, length, and wheel diameter, in both folded and unfolded states.
Garanzija u Appoġġ
For warranty information or technical support, please refer to the seller's policy or contact Toboli customer service directly. Keep your purchase receipt as proof of purchase.
Bejjiegħ: Wiltec Wildanger Technik GmbH
Għal aktar għajnuna, jekk jogħġbok żur il- Toboli Store on Amazon.
