EVERSTEIN M6612BI-10BL Shower System with Tub Spout User Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Please read all instructions carefully before installation and use. Failure to follow these instructions may result in personal injury or property damage. Retain this manual for future reference.

• Dejjem itfi l-provvista prinċipali tal-ilma qabel tibda kwalunkwe xogħol tal-plumbing.
• Ilbes tagħmir protettiv personali xieraq, inklużi nuċċalijiet u ingwanti tas-sigurtà.
• Kun żgur li l-konnessjonijiet kollha huma siguri u ma jgħaddix ilma minnhom biex tevita t-tnixxijiet.
• Jekk m'intix ċert dwar xi parti tal-proċess tal-installazzjoni, ikkonsulta plamer kwalifikat.
• Adhere to all local plumbing and building codes.
• Do not use abrasive cleaners or harsh chemicals on the finish, as this may cause damage.

2. Komponenti tal-Prodott

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra qabel ma tipproċedi bl-installazzjoni.

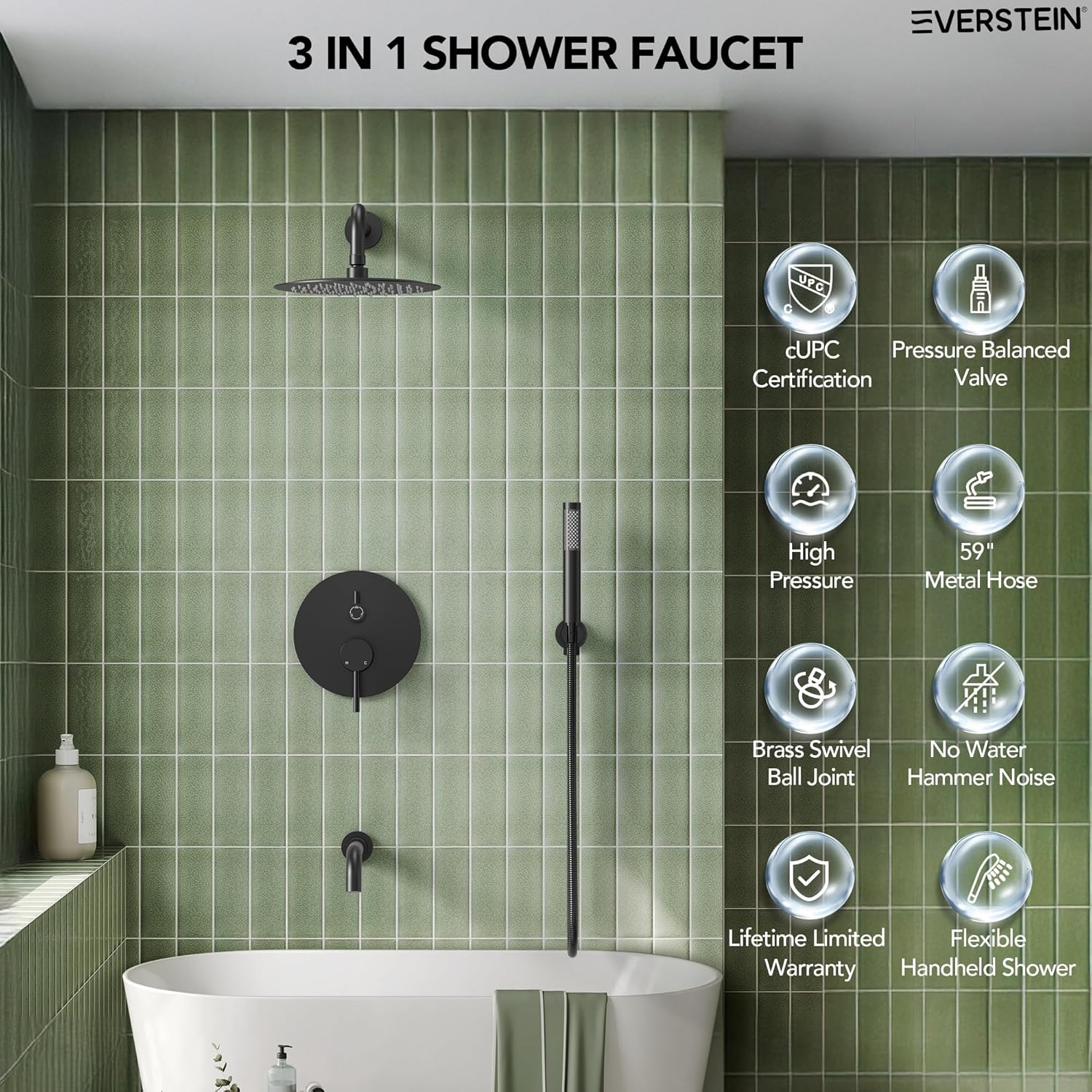

Figura 2.1: Aktarview of the EVERSTEIN M6612BI-10BL Shower System components, including the 10-inch rain shower head, handheld sprayer, tub spout, and control valve.

• 10-inch Round Rainfall Shower Head
• Handheld Sprayer with 59-inch Stretchable Metal Hose
• Żennuna tat-Tub
• Pressure-Balanced Mixer Valve Body
• Driegħ tad-Doċoċ
• Handheld Shower Holder
• Mounting Hardware (screws, anchors, gaskets)
• Manwal ta' Istruzzjoni

Figure 2.2: Detailed dimensions of the shower head, shower arm, control trim, handheld shower, and tub spout.

3. Speċifikazzjonijiet

4. Istruzzjonijiet ta 'installazzjoni

Before starting, ensure the main water supply is turned off. This manual provides general guidance; professional installation is recommended.

4.1. Gwida bil-Vidjo għall-Installazzjoni

4.2. Valve & Trim Installation

1. Ipprepara l-Ħajt: Ensure the wall framing is ready for the valve body. The valve should be positioned at a height of 43 5/8" - 51 3/16" (1100-1300mm) from the floor for the main control.
2. Qabbad il-Linji tal-Ilma: Connect the hot water inlet (left) and cold water inlet (right) to the valve body. The rainfall shower outlet is at the top, handheld shower outlet on the right, and tub spout outlet at the bottom. Standard connections are 1/2-14 NPT for USA/Canada and G1/2" for Europe.
3. Pajpijiet tat-Tlaħliħ: Before connecting to the valve, flush the inlet pipes for at least two minutes to remove any debris and prevent blockage.
4. Secure Valve Body: Mount the valve body securely to the wall framing. Ensure the built-in lever is properly balanced. Make marks for drilling anchors.
5. Test tal-Pressjoni: After connecting all pipes, perform a pressure test. Flush the outlet pipes for one minute to check for appropriate water pressure.
6. Test tat-Tnixxija: Insert plugs for a water test. Ensure there is no leakage at any joint.
7. Installazzjoni tal-madum: When cutting tiles, ensure the size of the cut does not exceed the dimensions of the trim. The embedded box should be cut flush with the tile surface.
8. Installa t-Trim: Remove the plastic protective case from the valve. Install the decorative trim plate and secure it.

Figure 4.1: Diagram illustrating the recommended pipe replacement and connections for the rainfall shower, handheld shower, and tub spout.

Figura 4.2: Dettaljat view of the pressure balancing valve, showing hot water inlet, cold water inlet, rainfall shower outlet, handheld shower outlet, tub spout outlet, brass body, and ceramic valve core.

4.3. Rainfall Shower Installation

1. Prepare Shower Arm: Ensure the distance from the tiled surface to the brass fitting is 7/8" (22mm). Wrap Teflon tape around the threads of the shower arm for at least 12 turns to prevent leaks.
2. Installa d-Driegħ tad-Doċċa: Install the cover to the shower arm, then screw the shower arm clockwise into the wall fitting until secure.
3. Waħħal ir-ras tad-doċċa: Insert a gasket into the shower head connection. Connect the 10-inch rainfall shower head to the shower arm.

Figure 4.3: The wall-mounted shower arm, ready for installation.

4.4. Installazzjoni ta' Doċċa li tinżamm fl-idejn

1. Ipprepara d-Detentur: Ensure the distance from the tiled surface to the brass fitting is 3/4" (20mm). Use an Allen key to remove the brass piece from the handheld shower holder by turning it counterclockwise.
2. Install Brass Fitting: Wrap Teflon tape around the brass fitting for at least 12 turns. Mount the brass fitting into the wall.
3. Attach Holder: Use the Allen key to turn clockwise and connect the shower bracket to the brass parts.
4. Connect Hose and Sprayer: Insert a gasket into the hose connection. Connect the 59-inch metal hose to the handheld shower holder and then to the handheld sprayer.

Figure 4.4: The stainless steel handheld shower, ready for connection.

Figure 4.5: The 59-inch stretchable metal hose for the handheld shower.

4.5. Tub Spout Installation

1. Prepare Spout: Ensure the distance from the tiled surface to the brass fitting is 7/8" (21mm). Wrap Teflon tape around the threads of the tub spout for at least 12 turns to prevent leaks.
2. Installa l-Ispout: Install the cover to the tub spout, then screw the tub spout clockwise into the wall fitting until secure.

Figure 4.6: The brass tub spout, designed for efficient water flow.

5. Istruzzjonijiet Operattivi

The EVERSTEIN M6612BI-10BL shower system features a single handle for temperature control and a diverter for selecting water outlets.

Figure 5.1: The shower mixer valve control, showing the main handle for temperature and flow, and the diverter knob for selecting shower functions.

• Kontroll tat-temperatura: The main handle controls both water flow and temperature. Rotate the handle counter-clockwise for hot water and clockwise for cold water. Push the handle in or pull it out to adjust water flow.
• Funzjoni tad-Deviatur: The smaller knob above the main handle is the diverter.
  • Turn to the top position to activate the rainfall shower head.
  • Turn to the middle position to activate the handheld sprayer.
  • Turn to the bottom position to activate the tub spout.
• Pressure-Balanced Valve: The integrated pressure-balanced valve maintains a consistent water temperature, preventing sudden changes due to fluctuations in hot or cold water pressure.

6. Manutenzjoni

Regular cleaning and maintenance will ensure the longevity and optimal performance of your shower system.

• Tindif tal-Finitura: Naddaf il-finitura sewda matta b'drapp artab u damp drapp u sapun ħafif. Evita prodotti tat-tindif li joborxu, kimiċi ħarxa, jew sponġi tal-għorik, għax dawn jistgħu jagħmlu ħsara lill-finitura. Laħlaħ sewwa u nixxef b'ċarruta ratba biex tevita tbajja' tal-ilma.
• Tindif taż-Żennuni tar-Ras tad-Doċċa: The silicone nozzles on the rainfall shower head and handheld sprayer are designed for easy cleaning. Simply rub the nozzles with your finger or a soft brush to dislodge any mineral deposits (calcium buildup). This helps maintain consistent water flow.
• Iċċekkja għal Tnixxijiet: Periodically inspect all connections for any signs of leakage. Tighten connections if necessary, but do not overtighten.

7 Issolvi l-problemi

Irreferi għat-tabella li ġejja għal kwistjonijiet komuni u s-soluzzjonijiet potenzjali tagħhom.

8. Garanzija u Appoġġ

The EVERSTEIN M6612BI-10BL Shower System is backed by a Garanzija tul il-ħajja, which includes free parts replacement.

For technical support, warranty claims, or any questions regarding your product, please contact EVERSTEIN customer service. Our technical support team is available 24/7 to assist you.

Informazzjoni ta' Kuntatt: Please refer to the contact details provided on the EVERSTEIN official website or your purchase documentation for the most up-to-date support information.

Tista 'wkoll iżżur il- EVERSTEIN Store on Amazon għal aktar informazzjoni dwar il-prodott u riżorsi ta' appoġġ.
