1. Prodott Aktarview
This manual provides essential information for the safe and effective use of the Linak LA36 Series Electric Linear Actuator, part number 362397-01. This actuator is designed for various applications, commonly found in marine environments, such as on Chaparral Boats. It is a robust device constructed from a plastic motor body, aluminum housing, and a stainless steel shaft, engineered for reliable linear motion.
Figure 1: Linak LA36 Series Linear Actuator (Model 362397-01)
This image displays the overall appearance of the Linak LA36 Series Linear Actuator, showcasing its black motor housing and silver aluminum shaft.
2. Informazzjoni dwar is-Sigurtà
Always read and understand all safety instructions before installing, operating, or maintaining the linear actuator. Failure to follow these instructions may result in property damage, serious injury, or death.
- Sigurtà Elettrika: Ensure power is disconnected before making any electrical connections or performing maintenance. This actuator operates on 12V DC. Verify correct polarity.
- Sigurtà Mekkanika: Keep hands, clothing, and tools clear of moving parts during operation. The actuator can exert significant force (1700N push/pull).
- Installazzjoni: Securely mount the actuator using appropriate hardware. Ensure mounting surfaces are strong enough to withstand the actuator's maximum load.
- Ambjent: This actuator is designed for marine environments but should be protected from excessive moisture and corrosive substances where possible.
- Persunal kwalifikat: Installation and maintenance should be performed by qualified personnel familiar with electrical and mechanical systems.
3. Speċifikazzjonijiet
| Speċifikazzjoni | Valur |
|---|---|
| Part Manufacturer | Linak |
| Numru tal-Parti | 362397-01 |
| Numru tat-Tip | 365ADB+902051X0 |
| Serje | LA36 |
| Materjal | Plastic (motor body) / Aluminum (housing) / Stainless Steel (shaft) |
| Kulur | Iswed / Fidda |
| Dimensjonijiet ġenerali | 17 1/4" T x 5 3/4" W |
| Max Load (Push) | 1700N |
| Max Load (Pull) | 1700N |
| VoltagKlassifikazzjoni e | 12V DC |
| Klassifikazzjoni kurrenti | 26A (Mass) |
| Toqob tal-Immuntar | (2) 1/2" Dia. holes, approx. 16 1/2" apart (center-to-center) |
| Konnessjonijiet | (2) 6-pin male connectors |
| Klassifikazzjoni tal-Protezzjoni tad-Dħul (IP). | IP66 |
| Iċ-Ċiklu tax-Xogħol | 20%, Max. 4 min./16 min. |
Figure 2: Overall Dimensions of the Linak LA36 Actuator
This image illustrates the overall length of the actuator, which is approximately 17 1/4 inches.
Figure 3: Linak LA36 Actuator Specification Label
This image shows the product label with detailed specifications including Type Number, Item Number, Max Load, Power Rate, and Duty Cycle.
4. Setup u Installazzjoni
Proper installation is crucial for the performance and longevity of your Linak linear actuator.
4.1 Immuntar
- Identifika l-Punti tal-Immuntar: The actuator features two 1/2" diameter mounting holes. These holes are spaced approximately 16 1/2 inches apart, center-to-center.
- Ipprepara l-Wiċċ tal-Immuntar: Ensure the surfaces where the actuator will be mounted are flat, stable, and capable of supporting the actuator's maximum push/pull load (1700N).
- Secure Actuator: Use appropriate 1/2" diameter bolts, washers, and nuts (not included) to securely fasten the actuator to your application. Do not overtighten, but ensure a firm connection to prevent movement during operation.
4.2 Konnessjonijiet elettriċi
The actuator requires a 12V DC power supply. It is equipped with two 6-pin male connectors.
- Provvista tal-Enerġija: Connect the actuator to a stable 12V DC power source capable of supplying up to 26A.
- Wiring: Connect the appropriate 6-pin female connectors (not included) to the actuator's male connectors. Ensure correct polarity for desired extension/retraction. Reversing polarity will reverse the direction of motion.
- Protezzjoni taċ-Ċirkwit: It is highly recommended to install an appropriate fuse or circuit breaker (e.g., 30A) in line with the power supply to protect the actuator and electrical system from overcurrent.

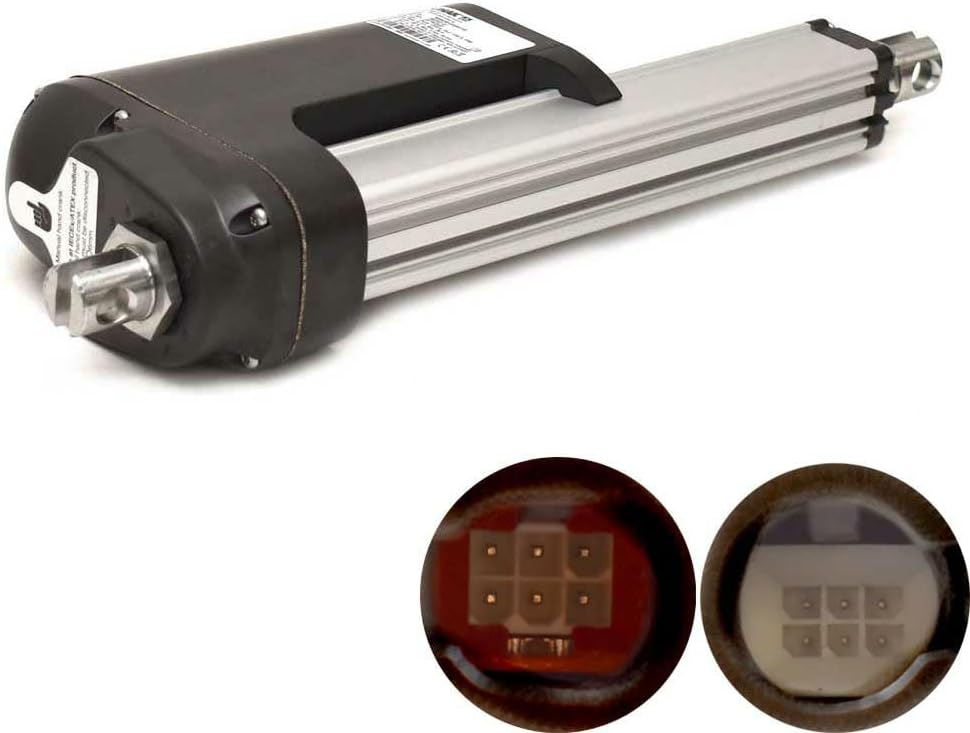

Figure 4: Linak LA36 Actuator showing connection points
Din l-immaġni tipprovdi view of the actuator, highlighting the end where the electrical connections are made.
5. Operazzjoni
Once properly installed and connected, the Linak LA36 actuator can be operated.
- Kontroll tad-Direzzjoni: The direction of the actuator's movement (extension or retraction) is controlled by the polarity of the 12V DC input. Reversing the polarity will reverse the direction of the shaft.
- Kapaċità tat-Tagħbija: Do not exceed the maximum rated load of 1700N (382 lbs) for both push and pull applications. Overloading can damage the actuator and void any potential warranty.
- Ċiklu ta' ħidma: Adhere to the specified duty cycle of 20%, with a maximum continuous operation of 4 minutes followed by a 16-minute rest period. Exceeding the duty cycle can lead to overheating and premature failure of the motor.
- Swiċċijiet tal-limitu: The actuator is equipped with internal limit switches that automatically stop the shaft at its fully extended and fully retracted positions. Do not attempt to force the actuator beyond these limits.
6. Manutenzjoni
The Linak LA36 linear actuator is designed for low maintenance. However, periodic checks can help ensure optimal performance and extend its lifespan.
- Tindif: Keep the actuator body and shaft clean from dirt, debris, and corrosive substances. Use a damp cloth; avoid harsh chemicals or abrasive cleaners.
- Spezzjona Konnessjonijiet: Regularly check all electrical connections for corrosion, looseness, or damage. Ensure the 6-pin connectors are securely seated.
- Spezzjona l-Immuntar: Verify that the mounting bolts are tight and that the actuator is securely fastened to its application. Check for any signs of wear or damage to the mounting points.
- Kundizzjoni tax-Xaft: Periodically inspect the stainless steel shaft for any signs of bending, scoring, or excessive wear.
- Lubrikazzjoni: The actuator is factory-lubricated and generally does not require additional lubrication. If the shaft appears dry or sticky, consult Linak's official documentation or a qualified technician.
7 Issolvi l-problemi
If you encounter issues with your Linak LA36 linear actuator, refer to the following common problems and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-attwatur ma jiċċaqlaqx | Ebda provvista ta 'enerġija Incorrect wiring/polarity Fjus minfuħ / tripped breaker Kondizzjoni ta 'tagħbija żejda Internal limit switch engaged | Check 12V DC power source Verify correct wiring and polarity Check and replace fuse or reset breaker Reduce load; ensure free movement Ensure actuator is not at full extension/retraction |
| Actuator moves slowly or weakly | Vol baxxtage/insufficient current Tagħbija eċċessiva Friction/obstruction | Iċċekkja l-provvista tal-enerġija voltage u l-kapaċità kurrenti Naqqas it-tagħbija Inspect for obstructions or binding in the application |
| L-attwatur jagħmel ħoss mhux tas-soltu | Ilbies intern Allinjament ħażin Oġġett barrani | Discontinue use and consult a qualified technician Check mounting alignment Inspect for debris near the shaft or motor housing |
| Actuator overheats | Ċiklu ta' dazju li jaqbeż Tagħbija eċċessiva Ventilazzjoni insuffiċjenti | Allow actuator to cool down; adhere to duty cycle Naqqas it-tagħbija Ensure adequate airflow around the motor housing |
For issues not listed above or if troubleshooting steps do not resolve the problem, contact a qualified technician or the manufacturer for assistance.
8. Garanzija u Appoġġ
This product is a Linak LA36 series electric linear actuator, part number 362397-01. Please note that hardware and instruction/installation manuals are not included with the product as sold by some retailers.
For specific warranty information, technical support, or cross-referencing compatibilities for boat brands, models, or years, it is recommended to contact Linak directly or an authorized Linak dealer. They can provide the most accurate and up-to-date information regarding product support and service.
You may find more information on the official Linak websit jew billi jikkuntattjaw is-servizz tal-konsumatur tagħhom.
