1. Introduzzjoni
This manual provides essential instructions for the safe and efficient operation of your RONGTA SE4770 Rugged PDA Barcode Scanner. This device is a high-performance mobile handheld terminal designed for various applications including retail, warehouse management, logistics, and inventory control. It combines the functionality of an Android 11 smartphone with an integrated Zebra SE4770 barcode scanner, offering robust performance and durability.
Jekk jogħġbok aqra dan il-manwal bir-reqqa qabel ma tuża l-apparat u żommu għal referenza futura.
2. Prodott Aktarview
2.1 Komponenti tal-Apparat
The RONGTA SE4770 features a rugged design with a 6-inch HD touch screen and an integrated barcode scanner. Key components include:
- Wiri ta' Quddiem: 6-inch FHD+ 1080P HD screen for clear visual interaction.
- Panel ta 'wara: Integrated Zebra SE4770 barcode scanner, camera, and battery compartment.
- Buttuni tal-ġenb: Power button, volume controls, and dedicated scan buttons.
- Portijiet: Port USB-C għall-iċċarġjar u t-trasferiment tad-dejta.
Figura 2.1: Quddiem u wara view of the RONGTA SE4770 PDA Barcode Scanner, showing the display and rear scanner module.
2.2 Karatteristiċi ewlenin
- Sistema Operattiva: Android 11 for a familiar and versatile user experience.
- Proċessur: Octa-core 2.0GHz CPU for high performance and stability.
- Memorja u Ħażna: 4GB RAM + 64GB ROM, expandable via microSD card (not included).
- Wiri: 6-inch FHD+ (1080P) HD touch screen, visible in strong outdoor light, supports multi-touch with gloves or wet hands.
- Skaner tal-barcode: Integrated Zebra SE4770 for fast and accurate scanning of 1D, 2D, and QR barcodes, even if blurred, dirty, or worn.
- Durabilità: IP68 rated for water and dust resistance, and 1.5m drop resistance.
- Batterija: 5000mAh large capacity battery with QC3.0 18W fast charging. Features a SuperCap power change solution for seamless battery swaps without shutdown.
- Konnettività: 2.4G/5G Dual-band Wi-Fi, 4G Full Network support, and Bluetooth 5.1.
- Kamera: 1600W+500W Pixel Camera (details on usage in Operating Instructions).

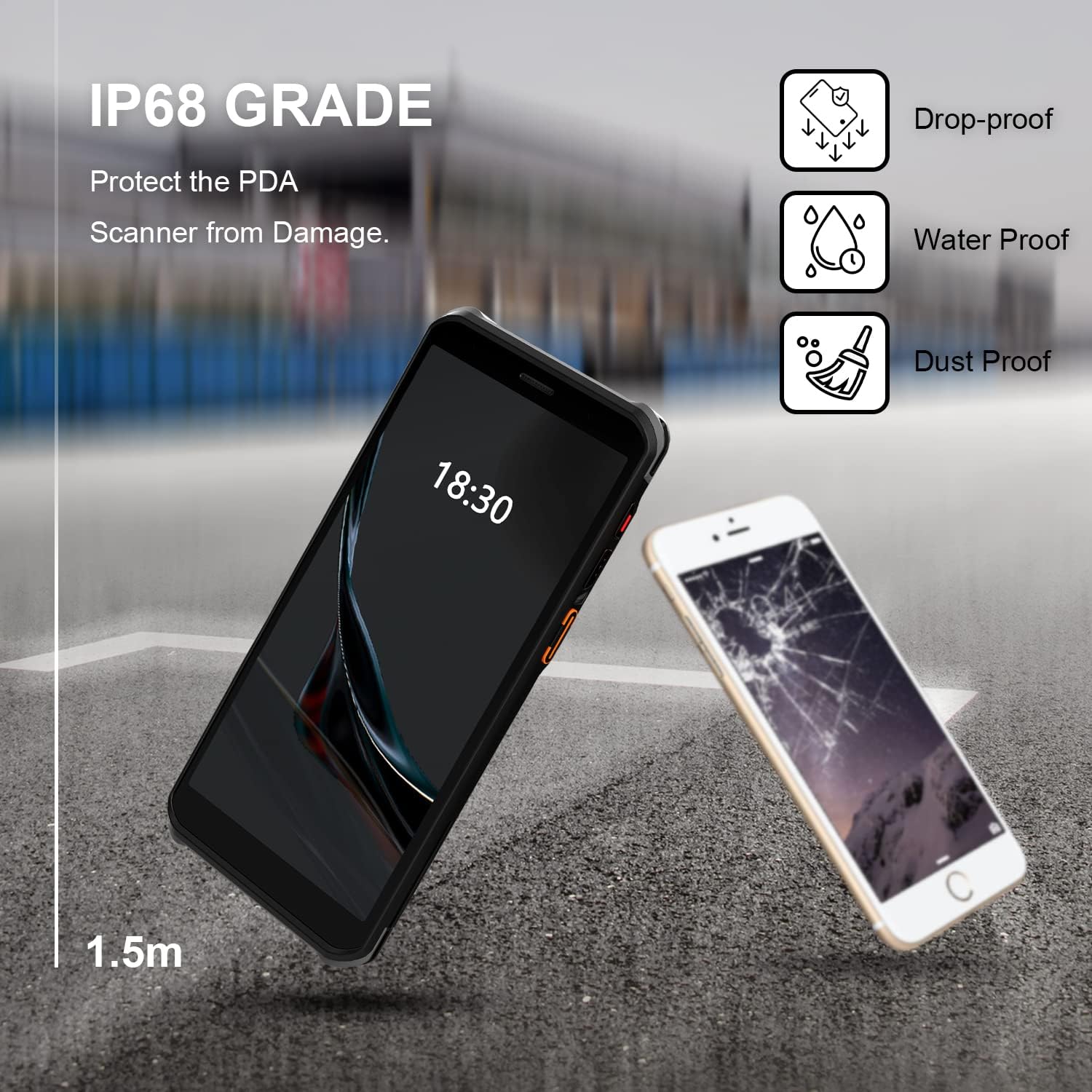

Figure 2.2: The RONGTA SE4770 PDA is designed with IP68 water and dust resistance and 1.5m drop protection, ensuring durability in demanding environments.
Figure 2.3: The device supports 2.4G/5G Dual-band WIFI and Bluetooth 5.1 for reliable wireless connectivity.
3. Setup
3.1 Tneħħija tal-kaxxa u Spezzjoni Inizjali
Carefully remove all components from the packaging. Verify that all items are present and undamaged. The package should include the RONGTA SE4770 PDA, a USB-C cable, a power adapter, and a hand-strap belt.
3.2 Installazzjoni u Iċċarġjar tal-Batterija
- Sib il-kompartiment tal-batterija fuq wara tal-apparat.
- If the battery is not pre-installed, insert the 5000mAh Lithium-Ion battery, ensuring correct orientation.
- Agħlaq il-kompartiment tal-batterija sew.
- Connect the USB-C cable to the device's charging port and the other end to the power adapter. Plug the adapter into a power outlet.
- Allow the device to charge fully before first use. The 18W fast charging feature will expedite this process.
Figure 3.1: The device charging, indicating battery status.
3.3 Tixgħel/Jitfi
- Biex Tixgħel: Press and hold the Power button on the side of the device until the RONGTA logo appears on the screen.
- Biex Tifi: Press and hold the Power button until the power options menu appears. Select 'Power Off'.
- Biex terġa' tibda: Press and hold the Power button until the power options menu appears. Select 'Restart'.
3.4 Konfigurazzjoni Inizjali tal-Android
Upon first power-on, follow the on-screen prompts to complete the initial Android 11 setup. This typically includes selecting your language, connecting to a Wi-Fi network, setting up a Google account (optional), and configuring security settings.
4. Istruzzjonijiet Operattivi
4.1 L-użu tal-Barcode Scanner
The RONGTA SE4770 is equipped with a high-performance Zebra SE4770 scanner capable of reading various 1D, 2D, and QR barcodes.
- Open an application that requires barcode input (e.g., inventory management software, POS application).
- Point the scanner window, located on the top rear of the device, towards the barcode.
- Press one of the dedicated scan buttons on the side of the device. A red aiming beam will appear.
- Align the aiming beam with the center of the barcode. The device will emit a beep or vibrate upon successful scan, and the data will be entered into the active field of your application.
Figure 4.1: A user scanning a package barcode using the RONGTA SE4770 PDA.
Figure 4.2: The SE4770 Zebra scanner in use, demonstrating fast and accurate scanning in a warehouse environment.
4.2 Navigating Android 11
The device operates on Android 11, providing a familiar interface. Use touch gestures to navigate:
- Tektek: Biex tagħżel oġġett jew tiftaħ applikazzjoni.
- Swipe: Biex tiskrollja fil-listi jew taqleb bejn l-iskrins ewlenin.
- Agħfas biex Tiżżumja: Biex tkabbar jew tkabbar l-immaġnijiet u web paġni.
- Notifiki: Skrolla 'l isfel minn fuq nett tal-iskrin biex taċċessa n-notifiki u s-settings rapidi.
4.3 Konnettività
L-apparat jappoġġja diversi għażliet ta' konnettività:
- Wi-Fi: Go to Settings > Network & internet > Wi-Fi to connect to available wireless networks. Supports 2.4GHz and 5GHz bands.
- Bluetooth: Go to Settings > Connected devices > Connection preferences > Bluetooth to pair with Bluetooth-enabled devices like headsets or printers.
- Dejta Mobbli (4G): If equipped with a SIM card slot (check device specifications), insert a compatible SIM card to access mobile data.
4.4 Użu tal-Kamera
The device includes a camera for capturing images or videos. Open the Camera application from the home screen or app drawer. Tap the screen to focus and press the shutter button to take a photo or start/stop video recording.
5. Manutenzjoni
5.1 Tindif tal-Apparat
Biex iżżomm prestazzjoni u dehra ottimali:
- Wipe the screen and device body with a soft, lint-free cloth.
- Għal tbajja' iebsa, ftit dampNaddaf id-drapp bl-ilma jew b'prodott tat-tindif tal-iskrin. Evita kimiċi ħarxa jew materjali li joborxu.
- Ensure the scanner window is clean and free of dust or debris for accurate scanning.
5.2 Kura tal-Batterija
Proper battery care extends the lifespan of your device:
- Charge the battery regularly using the provided charger.
- Evita li tiċċarġja l-batterija kompletament ta' spiss.
- Jekk taħżen l-apparat għal perjodu estiż, iċċarġja l-batterija sa madwar 50% u aħżen f'post frisk u niexef.
- The SuperCap power change solution allows for hot-swapping batteries without device shutdown, ensuring continuous operation.
5.3 Aġġornamenti tas-Software
Periodically check for software updates to ensure your device has the latest features and security patches. Go to Settings > System > System update.
6 Issolvi l-problemi
This section addresses common issues you might encounter with your RONGTA SE4770 PDA.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-apparat ma jixgħelx | Low or depleted battery; device malfunction. | Iċċarġja l-apparat għal mill-inqas 30 minuta. Jekk xorta ma jixgħelx, ikkuntattja l-appoġġ. |
| Scanner not reading barcodes | Dirty scanner window; incorrect aiming; unsupported barcode type; application issue. | Clean the scanner window. Ensure the aiming beam covers the entire barcode. Verify the barcode type is supported. Restart the scanning application or the device. |
| Problemi ta' konnettività Wi-Fi/Bluetooth | Out of range; incorrect password; interference. | Move closer to the Wi-Fi router or Bluetooth device. Re-enter the password. Restart Wi-Fi/Bluetooth on the device. |
| L-apparat huwa bil-mod jew ma jirrispondix | Too many applications running; low storage; software glitch. | Close unnecessary applications. Clear cache. Restart the device. Consider a factory reset if issues persist (backup data first). |
7. Speċifikazzjonijiet
Detailed technical specifications for the RONGTA SE4770 PDA Barcode Scanner:
- Dimensjonijiet tal-Prodott: 3.03 x 0.51 x 6.41 pulzieri
- Piż tal-oġġett: 10.6 uqija
- Batteriji: 1 batterija tal-jone tal-litju meħtieġa (inkluża)
- Sors tal-Enerġija: Mħaddma bil-batterija
- Manifattur: RONGTA
- Apparati Kompatibbli: Desktop, Laptop, Smartphone (for data transfer/management)
- Teknoloġija tal-Konnettività: Bluetooth, Wi-Fi (2.4G/5G Dual-band), 4G
- Sistema Operattiva: Android 11
- Proċessur: Octa-core 2.0GHz
- Memorja: 4GB RAM
- Ħażna: 64GB ROM
- Daqs tal-iskrin: 6 inches FHD+ (1080P) HD Touch Screen
- Skaner: Zebra SE4770 (1D, 2D, QR)
- Durabilità: IP68 Water and Dust Resistant, 1.5m Drop Protection
- Kapaċità tal-batterija: 5000mAh
- Iċċarġjar: QC3.0 18W Fast Charge
8. Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official RONGTA website. If you encounter any issues not covered in this manual, please contact RONGTA customer service for assistance.
