XPOtool Heavy Duty Jockey Wheel with Crank

1. Introduzzjoni u Prodott Fuqview

This manual provides essential instructions for the safe and efficient use of your XPOtool Heavy Duty Jockey Wheel. This robust jockey wheel is designed to support trailers and caravans, facilitating easy maneuvering and stable parking. It features a maximum static load capacity of 540 kg, a lift height of up to 280 mm, and is constructed from durable galvanized steel with a robust rubber wheel.

The side-mounted crank allows for convenient height adjustment, and the double-reinforced mounting bracket ensures secure attachment to your trailer's drawbar.

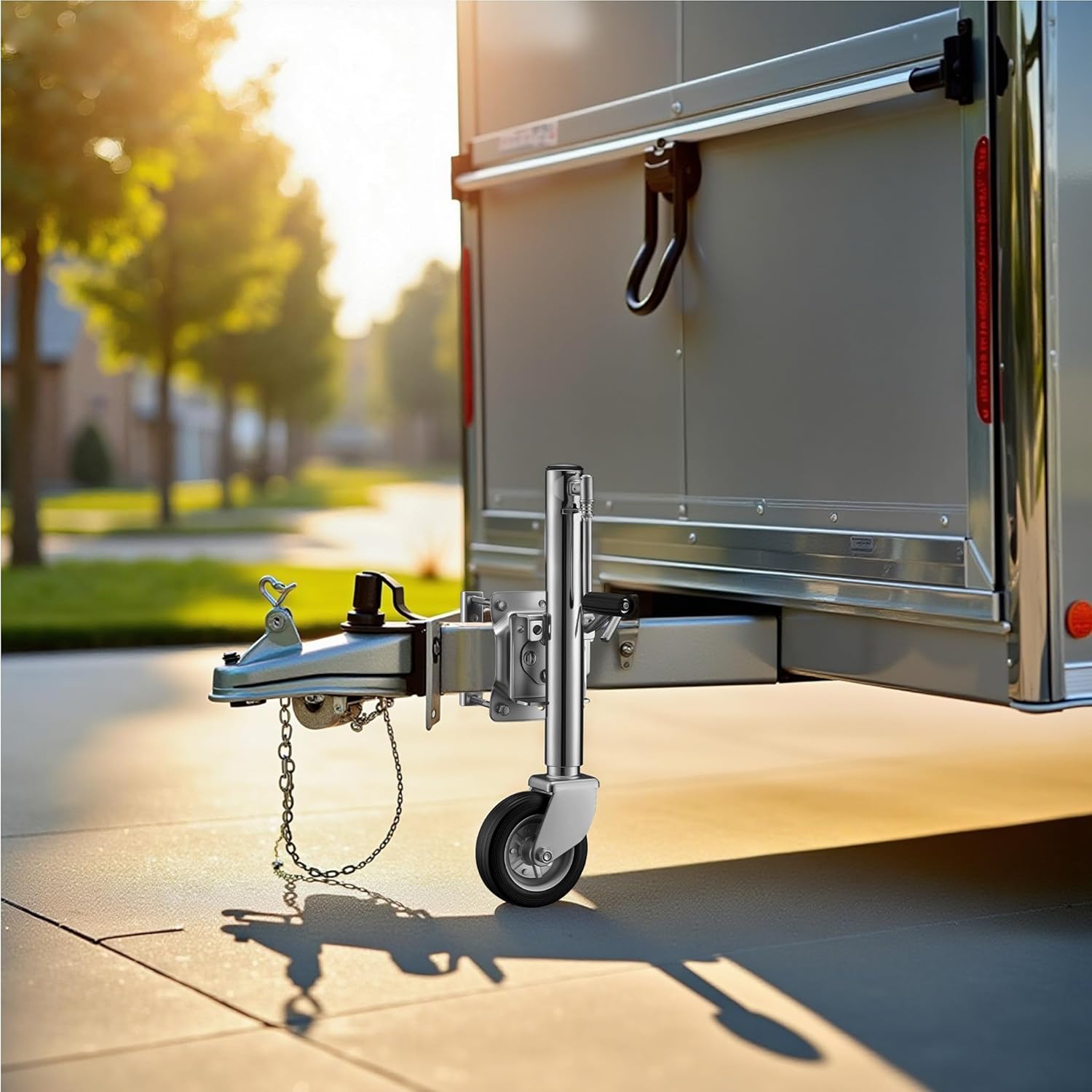

Image 1.1: XPOtool Heavy Duty Jockey Wheel installed on a trailer, ready for use.

2. Istruzzjonijiet tas-Sigurtà

Please read and understand all safety instructions before operating the jockey wheel. Failure to follow these instructions may result in injury or damage to property.

• Kapaċità massima tat-Tagħbija: Never exceed the maximum static load capacity of 540 kg. Overloading can cause structural failure and serious injury.
• Sekwestru Sikur: Always ensure the jockey wheel and its mounting bracket are securely attached to the trailer drawbar before use. Regularly check all fasteners for tightness.
• Art Stabbli: When parking or maneuvering a trailer, ensure the ground surface is level, firm, and stable. Avoid soft ground, slopes, or uneven surfaces that could cause the trailer to tip or roll.
• Partijiet li jiċċaqilqu: Keep hands, clothing, and other body parts clear of the crank mechanism and wheel during operation to prevent pinching or entanglement.
• Spezzjoni: Before each use, inspect the jockey wheel for any signs of wear, damage, corrosion, or loose components. Do not use if any damage is observed.
• Ħażna: When not in use, ensure the jockey wheel is retracted to its highest position and secured, or removed if necessary, to prevent accidental deployment or damage during transit.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra meta tiftaħ il-pakkett:

• 1x XPOtool Heavy Duty Jockey Wheel
• 1x Mounting Bracket (double-reinforced)
• Mounting hardware (bolts, nuts, washers - typically included with the bracket)

4. Setup u Installazzjoni

Follow these steps to properly install the jockey wheel on your trailer:

1. Poġġi l-Bracket: Select a suitable, strong location on your trailer's drawbar for the mounting bracket. Ensure it does not interfere with other trailer components or vehicle coupling.
2. Waħħal il-Bracket: Secure the double-reinforced mounting bracket to the drawbar using appropriate bolts, nuts, and washers. Tighten all fasteners firmly to prevent movement. Refer to Image 4.1 for bracket details and dimensions.
3. Insert the Jockey Wheel: Slide the main shaft of the jockey wheel into the bracket.
4. Secure with Pin: Align the holes in the jockey wheel shaft with the holes in the bracket. Insert the locking pin to secure the jockey wheel in place. Ensure the pin is fully engaged.
5. Kontroll Inizjali: Before first use, test the stability of the installed jockey wheel by applying some downward pressure. Ensure there is no excessive wobble or movement.

Image 4.1: Detailed dimensions of the jockey wheel and mounting bracket.

Immaġni 4.2: Mill-qrib view of the double-reinforced mounting bracket.

5. Istruzzjonijiet Operattivi

The jockey wheel allows for easy adjustment and maneuvering of your trailer.

1. Adjusting Height (Crank Operation):
   • To raise the trailer, turn the side-mounted crank clockwise.
   • To lower the trailer, turn the side-mounted crank counter-clockwise.
   • The adjustable height range is approximately 580-840 mm. Do not force the crank beyond its limits.
2. Maneuvering and Parking (Swivel Function):
   • To swivel the jockey wheel for maneuvering the trailer, ensure the locking pin is disengaged from the bracket's fixed position. This allows the wheel to rotate freely.
   • For stable parking, align the wheel straight and re-engage the locking pin into one of the fixed positions on the bracket. This prevents unintended movement.
   • Refer to Image 5.1 for visual guidance on height adjustment and Image 5.2 for the pin adjustment process.

Image 5.1: Adjustable height range (580-840 mm) and crank operation for various surfaces.

Image 5.2: Easy adjustment of the support by removing, turning, and replacing the pin.

6. Manutenzjoni

Regular maintenance ensures the longevity and safe operation of your jockey wheel.

• Tindif: Periodically clean the jockey wheel, shaft, and crank mechanism to remove dirt, mud, and debris. Use a damp drapp u deterġent ħafif jekk meħtieġ.
• Lubrikazzjoni: Apply a suitable grease or lubricant to the crank mechanism and the wheel axle at regular intervals (e.g., every 3-6 months, or more frequently with heavy use or exposure to harsh conditions). This ensures smooth operation and prevents corrosion.
• Spezzjoni: Regularly inspect all components for signs of wear, corrosion, cracks, or deformation. Pay close attention to the wheel, tire, shaft, crank, and mounting bracket.
• Iċċekkja tal-Qafliet: Ensure all bolts and nuts securing the mounting bracket and other components are tight. Re-tighten if any looseness is detected.
• Kundizzjoni tar-Rota: Check the rubber wheel for cuts, punctures, or excessive wear. A robust rubber wheel ensures good maneuverability. Refer to Image 6.1.
• Integrità tal-Materjal: The jockey wheel is made from galvanized steel for corrosion resistance. However, inspect for any signs of rust, especially if the galvanization layer is damaged. Refer to Image 6.2 for product details.

Image 6.1: The robust rubber wheel designed for easy maneuverability.

Image 6.2: Product details highlighting the practical handle, 50mm thick tube, and solid galvanized steel construction.

7 Issolvi l-problemi

If you encounter issues with your jockey wheel, refer to the following common problems and solutions:

• Problema: Jockey wheel is difficult to crank or feels stiff.
  • Soluzzjoni: The mechanism may require lubrication. Apply a suitable grease to the crank shaft and internal components. Check for any debris or corrosion obstructing the movement.
• Problema: Wheel does not turn smoothly or is jammed.
  • Soluzzjoni: Inspect the wheel and axle for obstructions (e.g., dirt, stones, tangled material). Clean thoroughly and lubricate the axle. Check for damage to the wheel or bearings.
• Problema: Jockey wheel feels unstable or wobbly when supporting the trailer.
  • Soluzzjoni: Ensure the mounting bracket is securely fastened to the drawbar and all bolts are tight. Verify that the locking pin is fully engaged. Check if the trailer's load exceeds the 540 kg static load capacity. Ensure the ground surface is firm and level.
• Problema: Corrosion or rust appearing on metal parts.
  • Soluzzjoni: While made of galvanized steel, prolonged exposure to harsh conditions or damage to the coating can lead to rust. Clean affected areas and apply a rust-inhibiting primer and paint, or a suitable corrosion protection spray. Regular lubrication also helps.

8. Speċifikazzjonijiet

Image 8.1: Detail of the 50mm thick tube, indicating robust construction.

9. Informazzjoni dwar Garanzija

Warranty terms and conditions for the XPOtool Heavy Duty Jockey Wheel are subject to the policies of the manufacturer and the retailer from whom the product was purchased. Please retain your proof of purchase.

For detailed warranty information, including coverage period and claims process, please refer to the official XPOtool webis-sit jew ikkuntattja lill-bejjiegħ tiegħek direttament.

10. Appoġġ

Should you require technical assistance, have questions regarding installation or operation, or need to inquire about spare parts, please contact XPOtool customer service or your authorized retailer.

When contacting support, please have your product model number (63842) and purchase details readily available to facilitate a quicker resolution.
