Manwal tal-Utent tat-Treadmill tad-Dar li Jintrewa 2-f'1 FLYLINKTECH

1. Introduzzjoni

Thank you for choosing the FLYLINKTECH 2-in-1 Foldable Home Treadmill. This versatile fitness equipment is designed for both walking and running, offering a convenient way to exercise indoors. Its foldable design ensures easy storage, making it ideal for home use. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to help you get the most out of your new treadmill.

FLYLINKTECH 2-in-1 Foldable Home Treadmill in both running and walking configurations

Image: The FLYLINKTECH 2-in-1 Foldable Home Treadmill, showcasing its upright running mode and flat walking pad mode.

2. Informazzjoni dwar is-Sigurtà

Before operating the treadmill, please read and understand all safety instructions.

Ċavetta tas-Sigurtà: Always ensure the safety key is properly in place before starting the treadmill. This is a critical safety feature.
Kapaċità tal-piż: The treadmill is designed to support a maximum weight capacity of 180 kg. Do not exceed this limit.
Wiċċ Stabbli: Place the treadmill on a flat, stable surface to prevent tipping or instability during use.
Clearance: Maintain adequate clear space around the treadmill during operation.
Tfal u Pets: Żomm it-tfal u l-annimali domestiċi 'l bogħod mit-treadmill waqt it-tħaddim.
Waqfien ta' Emerġenza: Iffamiljarizza ruħek mal-proċedura ta' waqfien ta' emerġenza.
Korda tal-Enerġija: Ensure the power cord is not pinched or damaged and is placed where it will not be tripped over.

3. Setup u Assemblea

The FLYLINKTECH treadmill is designed for quick and easy setup, typically within 3 minutes.

Spakkjar: Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ.
Pjazzament: Choose a suitable location with a flat, stable surface and sufficient clearance around the unit.
Tiżvolġi: Gently unfold the treadmill into your desired configuration (running or walking mode). Refer to the folding mechanism image for guidance.
Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
Ċavetta tas-Sigurtà: Attach the safety key to the designated slot on the console.

Image showing the folding mechanism of the treadmill

Image: Illustration of the treadmill's folding mechanism, demonstrating how the handles can be raised or lowered.

4. Istruzzjonijiet Operattivi

4.1. 2-in-1 Functionality: Running and Walking Modes

This treadmill offers two distinct modes of operation:

Mod ta 'Ġiri: When the handle is upright, the treadmill can operate at speeds from 4 km/h to a maximum of 14 km/h. This mode is suitable for jogging and running exercises.
Modalità Mixi: When the handle is folded down, the treadmill functions as a walking pad, ideal for brisk walking. Speeds in this mode range from 1 km/h to 4 km/h. This mode is perfect for use under a desk while working.

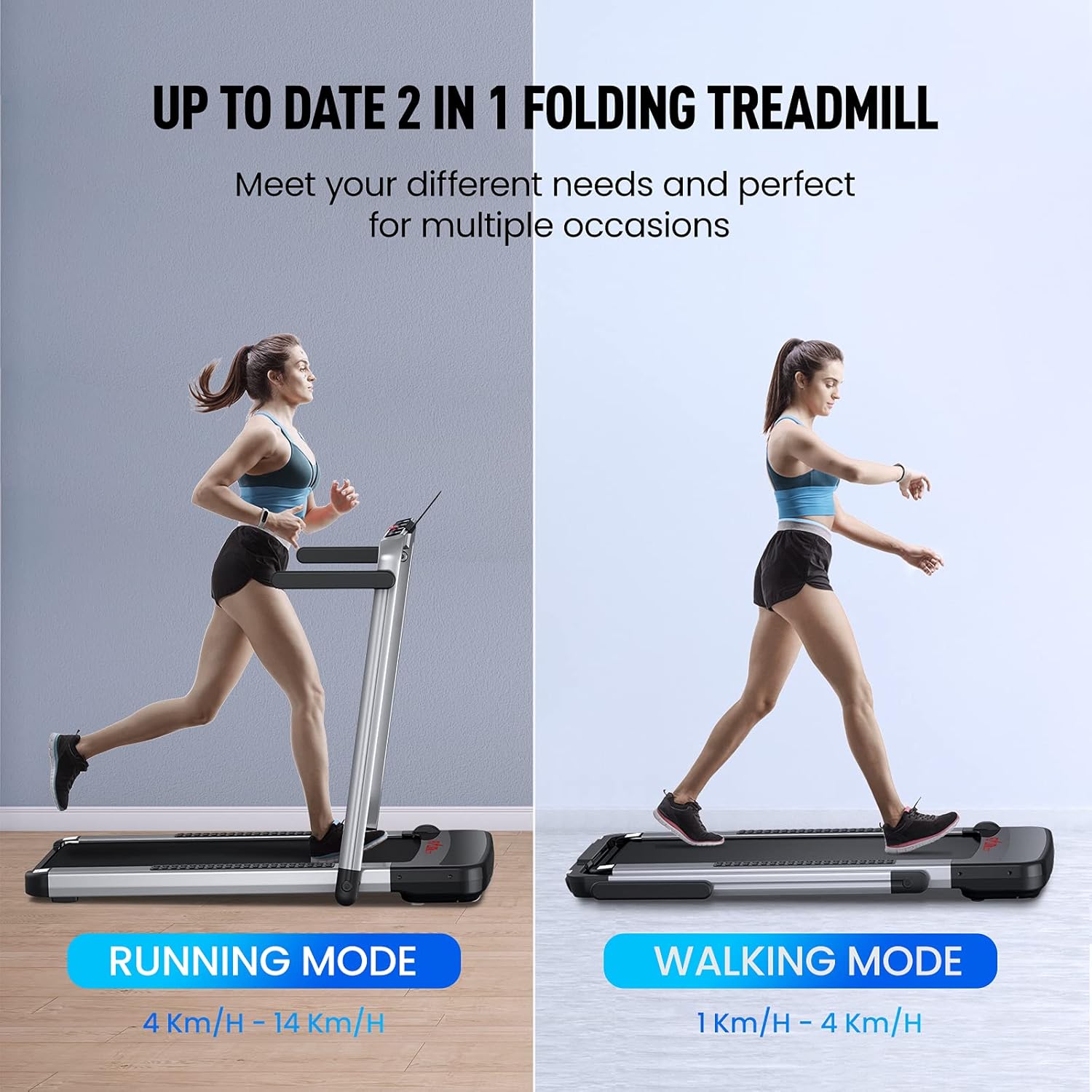

Treadmill showing running mode with upright handles and walking mode with folded handles

Image: Comparison of the treadmill in running mode (upright handles, higher speed range) and walking mode (folded handles, lower speed range).

Person using the treadmill as an under-desk walking machine

Image: A person using the treadmill in walking mode positioned under a standing desk, illustrating its use for exercising while working.

4.2. Control Panel u Display

The LED display tracks your workout metrics in real-time.

LED Digital Monitor: Displays Speed, Time, Distance, and Calories burned.
Buttuni tal-Iskrin tattili: For controlling various functions.
Detentur tal-Apparat: A convenient holder is integrated for your tablet or mobile phone.

Close-up of the treadmill's LED display and control panel

Immaġni: Dettaljata view of the treadmill's LED digital monitor, showing indicators for speed, time, distance, and calories, along with touch screen buttons and the device holder.

4.3. Smart Control: App and Remote

Control your treadmill conveniently using the dedicated app or the included remote control.

"FS" Exercise App: Scan the QR code in the manual (or on the product packaging) to install the "FS" app. Connect via Bluetooth to control the treadmill and track your exercise data.
Kontroll mill-bogħod: Use the provided remote control for immediate adjustments to speed and other settings.
Programmi Preset: The treadmill features 12 exercise modes, allowing you to choose training programs based on your preferences.

Image showing the remote control and a smartphone screen with the 'FS' app interface

Image: The treadmill's remote control alongside a smartphone displaying the "FS" fitness application, highlighting the smart control features.

5. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tat-treadmill tiegħek.

Lubrikazzjoni: Periodically lubricate the running belt according to the instructions in the full user manual to ensure smooth operation and reduce wear.
Tindif: Regularly clean the treadmill, especially around the motor area, to prevent dust buildup. Use a soft, damp cloth for cleaning surfaces.
Allinjament taċ-ċinturin: Check the running belt for proper alignment and adjust if necessary to prevent friction and damage.
Ħażna: When not in use, the treadmill can be easily folded and stored under a sofa or bed, thanks to its transport wheels and compact design.

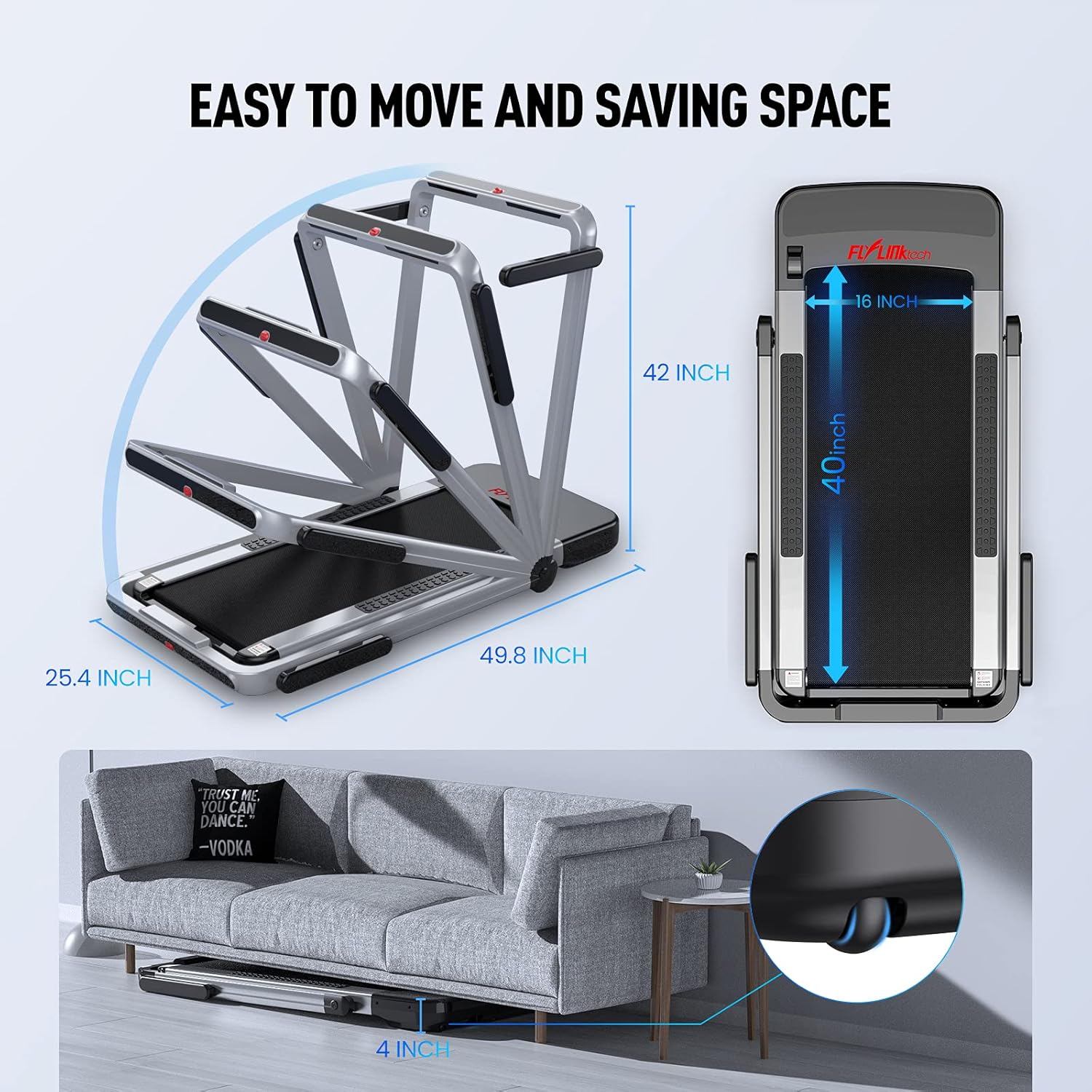

Image showing the folded treadmill stored under a sofa with dimensions

Image: The treadmill folded and stored compactly under a sofa, illustrating its space-saving design and ease of movement with transport wheels.

6 Issolvi l-problemi

Din it-taqsima tindirizza kwistjonijiet komuni li tista' tiltaqa' magħhom. Għal problemi aktar kumplessi, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

It-Treadmill Mhux Jibda:
- Kun żgur li l-korda tad-dawl hija pplaggjata sew f'ħanut tax-xogħol.
- Verify the safety key is correctly inserted into its slot.
- Check the main power switch on the treadmill.
Storbju mhux tas-soltu:
- Check for any loose parts or foreign objects on or under the belt.
- Ensure the running belt is properly lubricated.
- Verify the belt is centered and not rubbing against the sides.
Kwistjonijiet ta' Konnettività tal-App:
- Kun żgur li l-Bluetooth huwa attivat fuq it-tagħmir tiegħek.
- Make sure the treadmill is powered on.
- Try restarting the app and your device.

7. Speċifikazzjonijiet

Karatteristika	Dettall
Dimensjonijiet tal-Prodott	126.5 x 107 x 64.5 ċm
Piż tal-Prodott	32.45 kg
Materjal	Stainless Steel
Veloċità Massima	14 km/h
Horsepower Massimu	2.25 Kilowatts (equivalent to 2.25 HP)
Karatteristiċi Speċjali	Shock Absorption, Foldable
Tip ta 'Wiri	LCD
Żona tal-Ġiri	40 x 100 ċm (madwar 16 x 40 pulzieri)
Kapaċità tal-piż	180 kg
Livell ta' Storbju	<60 dB (Low Noise Motor)

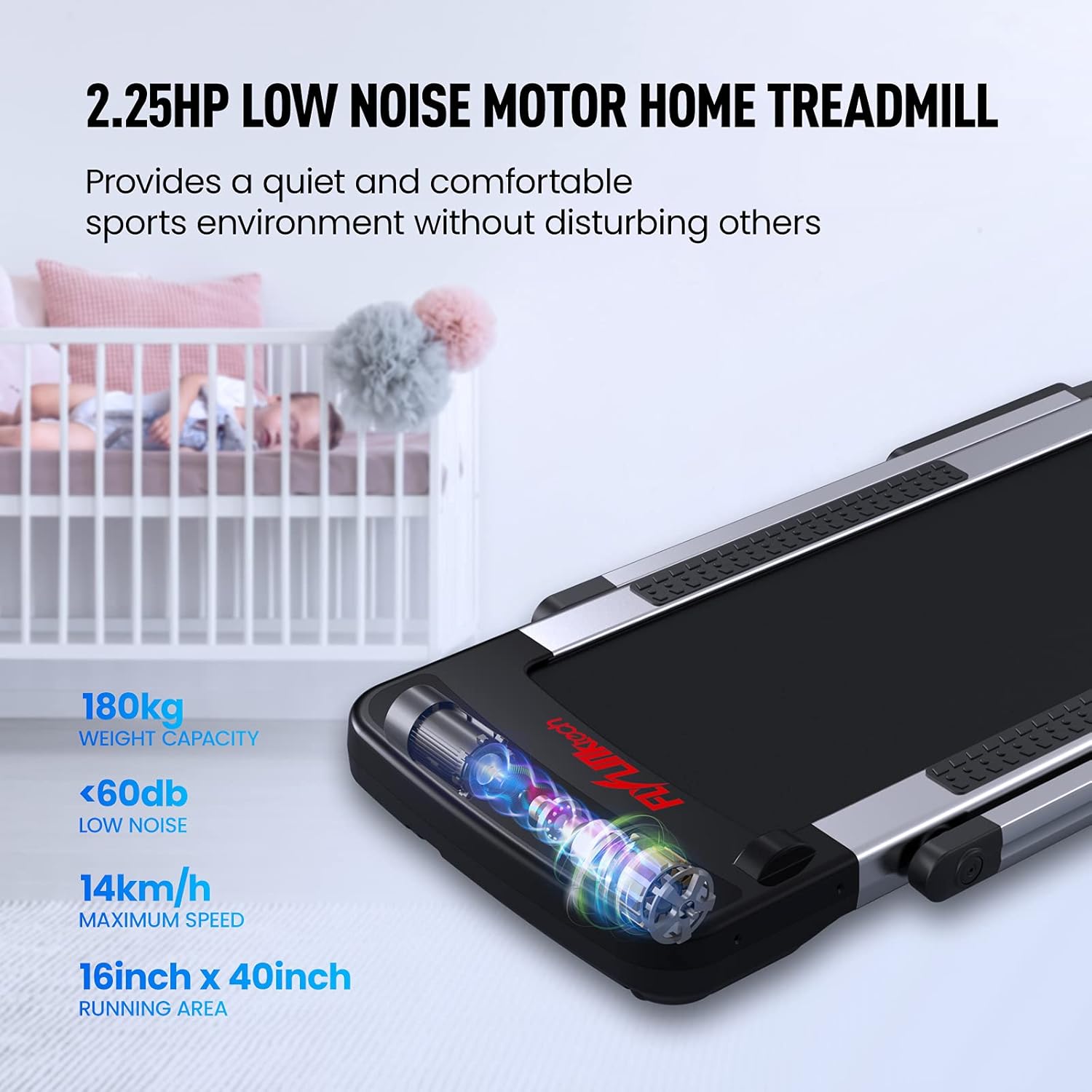

Image detailing the treadmill's motor, weight capacity, noise level, max speed, and running area

Image: Visual representation of the treadmill's 2.25HP low noise motor, highlighting its 180kg weight capacity, less than 60dB noise level, 14km/h maximum speed, and 16x40 inch running area.

Diagram of the treadmill's multi-layer running belt for shock absorption

Image: Cross-section diagram illustrating the five layers of the treadmill's non-slip and shock-absorbing running belt, designed to protect knees.

Image showing the large running area of the treadmill with dimensions

Immaġni: Ritratt minn fuq view of the treadmill's running surface, indicating its generous dimensions of 400mm by 1000mm.

8. Garanzija u Appoġġ

Your FLYLINKTECH treadmill comes with a garanzija ta 'sena.

If you have any questions or encounter issues with your product, please do not hesitate to contact FLYLINKTECH customer service.

Servizz tal-Klijent: Refer to the contact information provided in your product packaging or the official FLYLINKTECH websit għall-appoġġ.
Ritorni/Skambji: Amazon handles shipping for returns and exchanges.
