1. Introduzzjoni
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your SHARP 613L J-Tech Inverter Frost Free Double Door Refrigerator, Model SJ-GP60T-BK-EC. Please read this manual thoroughly before using the appliance and retain it for future reference.
Stampa 1: Quddiem view of the SHARP 613L J-Tech Inverter Frost Free Double Door Refrigerator.
2. Informazzjoni dwar is-Sigurtà
Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury. Ensure the refrigerator is properly grounded. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Keep ventilation openings clear of obstruction.
3. Setup u Installazzjoni
3.1 Disimballaġġ
Neħħi l-materjali tal-ippakkjar kollha bir-reqqa. Spezzjona l-friġġ għal kwalunkwe ħsara. Żomm il-materjali tal-ippakkjar 'il bogħod mit-tfal.
3.2 Tqegħid
Your SHARP refrigerator is a freestanding unit. Place it on a flat, stable surface away from direct sunlight, heat sources, and moisture. Ensure adequate clearance around the unit for proper ventilation. The dimensions are approximately 74 cm (D) x 82 cm (W) x 187 cm (H).
Image 2: Refrigerator dimensions (740 mm depth, 820 mm width, 1870 mm height).
3.3 Konnessjoni Elettrika
Connect the refrigerator to a dedicated 230 Volts (AC) power outlet. Do not use extension cords or adapters. Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow refrigerants to settle.
3.4 Interior Setup
The refrigerator comes with 5 toughened glass shelves and 3 drawers. These can be adjusted to suit your storage needs. The door orientation is right-hinged.
Immaġni 3: Intern view showing 394 Litres Fresh Food Capacity, 162 Litres Freezer capacity, 3 drawers, 5 toughened glass shelves, Interior LED, Anti-Bacterial Gasket, Ag Nano Deodorizer, and Vegetable Box.
4. Istruzzjonijiet Operattivi
Your SHARP refrigerator is designed for optimal food preservation with advanced technologies.
4.1 Touch Door Control Panel
The refrigerator features a touch control door panel for easy temperature adjustments and mode selection. Refer to the display for current settings and indicators.

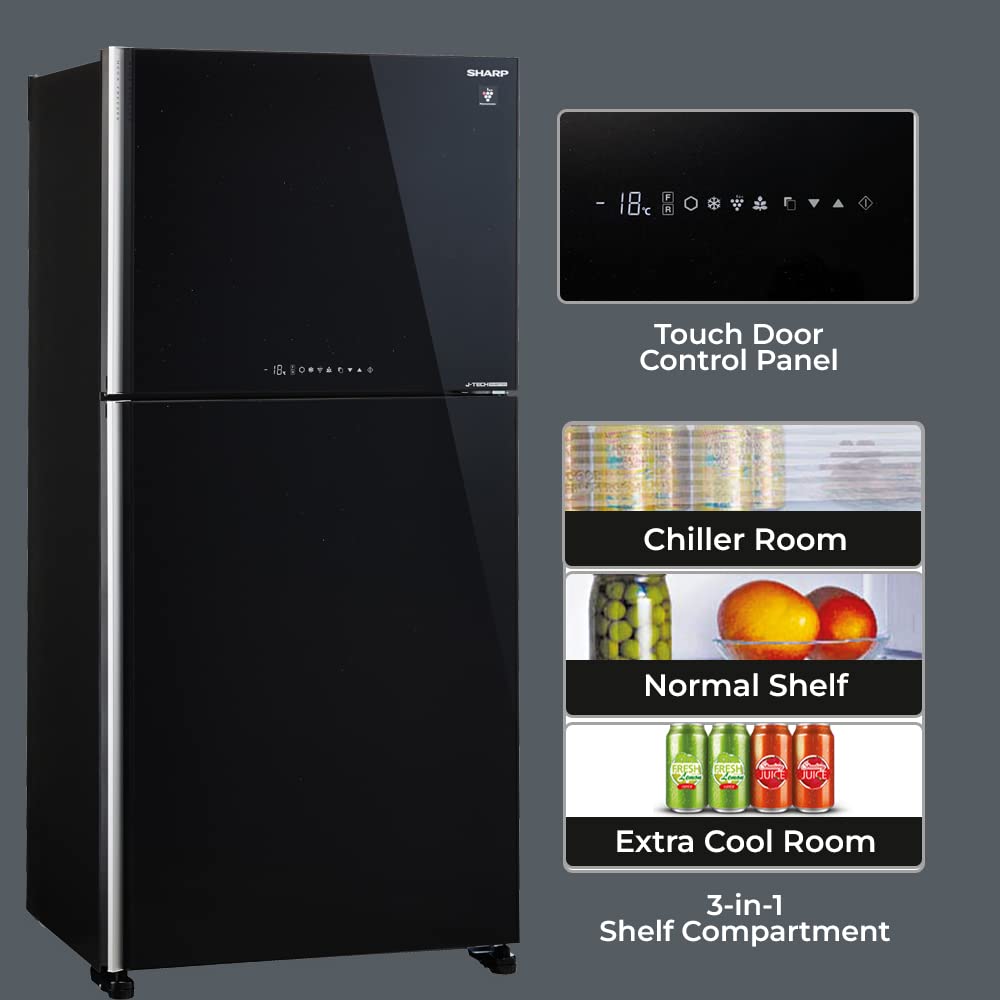

Image 4: Close-up of the Touch Door Control Panel and 3-in-1 Shelf Compartment.
4.2 J-Tech Inverter Technology
The J-Tech Inverter compressor minimizes fluctuations, reducing power consumption by up to 33%. It ensures silent operation, less vibration, and contributes to a longer compressor life. This technology allows for faster cooling and maintains stable temperatures.
Video 1: Demonstrates the benefits of SHARP's J-Tech Inverter technology, highlighting energy savings, silent operation, and stable temperature control.
4.3 Plasmacluster Ion Technology
SHARP's patented Plasmacluster Ion Technology releases positive and negative ions into the refrigerator. This technology deactivates 99% of airborne bacteria and removes 97% of airborne mold, keeping your food fresher for longer and preventing odor transfer.
Video 2: Explains how SHARP's Plasmacluster Technology works to eliminate microbes and odors, ensuring food freshness.
Image 5: Visual representation of Plasmacluster ions circulating within the refrigerator to maintain hygiene.
4.4 Sistema ta' Tkessiħ Ibrida
The Hybrid Cooling System ensures even cooling across all compartments. It prevents cold air from directly striking food, which delays dehydration and helps maintain a healthy moisture level, keeping food fresh for a longer period.
Video 3: Illustrates the Hybrid Cooling System, showing how it provides even cooling and moisture retention for lasting freshness.
Image 6: Diagram showing the Hybrid Cooling airflow, ensuring consistent temperature and humidity.
4.5 Express Freezing
Utilize the Express Freezing function to make ice cubes approximately 40% faster, within 93 minutes, compared to the normal mode (154 minutes).
Image 7: Comparison showing 40% faster ice cube formation with Express Freezing (93 mins vs 154 mins).
4.6 Karatteristiċi Oħra
- Mega Freezer: Provides extra space for cold storage.
- Moisture Shield Compartment: Designed to maintain optimal humidity for fruits and vegetables.
- 3-in-1 Shelf Compartment: Offers versatile storage options including a Chiller Room, Normal Shelf, and Extra Cool Room.
- Allarm tal-Bieb: Alerts you if the door is left open for too long.
- Modalità Eko: Optimizes energy consumption for efficiency.
- Ag Nano Deodorizer: An antibacterial deodorizer that prevents microbes and odor exchange.
- Dawl LED: Provides clear visibility inside the refrigerator.
- Movable Ice Maker: For flexible ice storage.
Immaġni 8: Fuqview of key features including Plasmacluster Technology, Exquisitely Designed Handle, Mega Freezer, Eco Mode, Hybrid Cooling, and Movable Ice Maker.
Image 9: Additional features such as Energy Saving up to 33%, LED Lighting, Mega Deep Freezer, Tempered Glass Shelves, Moisture Shield, and Large Door Pocket.
Vidjo 4: Ħarsa komprensivaview of the SHARP SJ-GP60T-BK refrigerator, highlighting its key features and technologies.
5. Manutenzjoni
5.1 Tindif
Regularly clean the interior and exterior of your refrigerator with a mild detergent and soft cloth. Avoid abrasive cleaners or solvents. Ensure the Anti-Bacterial Gasket is clean to maintain a tight seal.
5.2 Defrosting
This is a Frost Free refrigerator, meaning it features an auto defrost function to prevent ice build-up, eliminating the need for manual defrosting.
5.3 Deodorizzazzjoni
The built-in Ag Nano Deodorizer helps to keep the interior fresh by preventing microbes and odor exchange. For persistent odors, ensure all food items are properly sealed.
6 Issolvi l-problemi
If you encounter any issues with your refrigerator, please refer to the following general guidelines before contacting customer support:
- Ebda Qawwa: Iċċekkja jekk il-korda tal-enerġija hijiex imdaħħla sew fis-sokit u jekk is-circuit breaker qabeżx.
- Tkessiħ Insuffiċjenti: Ensure the door is closed properly, the temperature settings are correct, and there is adequate ventilation around the unit. Avoid overloading the refrigerator.
- Ħsejjes mhux tas-soltu: Some operational noises are normal (e.g., compressor, refrigerant flow). If the noise is excessive or unusual, ensure the refrigerator is level and not touching any walls.
- Allarm tal-Bieb: The door alarm will sound if the door is left open for an extended period. Close the door completely.
For more complex issues, please contact SHARP customer support.
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | SHARP |
| Mudell | SJ-GP60T-BK-EC |
| Kapaċità | 613 litru |
| Kapaċità tal-Ikel Frisk | 394 litru |
| Kapaċità tal-Friżer | 162 litru |
| Klassifikazzjoni tal-Enerġija | 2 Star |
| Konsum Annwali tal-Enerġija | 330 Kilowatt Siegħa Fis-Sena |
| Tip ta' Installazzjoni | Freestanding |
| Fattur tal-Formola | Standard double door, Full-Sized Freezer-on-Top |
| Kulur | Iswed |
| Voltage | 230 Volts (AC) |
| Numru ta 'Kxaxen | 3 |
| Sistema ta 'Defrost | Ħieles Ġlata |
| Orjentazzjoni tal-Bieb | Dritt |
| Materjal tal-Bieb | Ħġieġ |
| Tip ta' xkaffa | Ħġieġ imwebbes |
| Numru ta' Xkafef | 5 |
| Piż tal-oġġett | 95 kg |
| Dimensjonijiet tal-oġġett (LxWxH) | 74 x 82 x 187 Ċentimetru |
| Karatteristiċi Speċjali | Adjustable Shelves, Automatic Defrost, Digital Temperature Control, Door Ajar Alarm, Inverter Compressor, Touch Control, Plasmacluster Technology, Hybrid Cooling, Moisture Shield Compartment, 3-in-1 Shelf Compartment, Eco Mode, Ag Nano Deodorizer, Express Freezing |
8. Garanzija u Appoġġ
8.1 Informazzjoni dwar Garanzija
Your SHARP refrigerator comes with a 1 Sena Garanzija Komprensiva and a total of 10 Years Warranty on the Compressor. Please refer to the 'Safety and Warranty Documents' included in the box for detailed terms and conditions.
8.2 Appoġġ għall-Klijent
For any assistance, service requests, or inquiries, please contact SHARP customer support:
- Manifattur: Sharp Business Systems (India) Private Limited
- Indirizz: Plot No. 51, First Floor, Okhla Industrial Estate, Phase-III, New Delhi- 110020
- Bla ħlas: 1800-419-4322
- E-Mail: support@sharp-oa.com
Tista 'wkoll iżżur il- SHARP Store on Amazon għal aktar informazzjoni u appoġġ dwar il-prodott.
