1. Introduzzjoni
Thank you for choosing the Funsicle Oasis Designer Rectangular Above Ground Swimming Pool. This manual provides essential information for the safe assembly, operation, and maintenance of your new pool. Please read all instructions carefully before beginning installation and retain this manual for future reference.
Image 1.1: The Funsicle Oasis Designer Rectangular Above Ground Swimming Pool, showcasing its dark herringbone gray exterior and spacious design.
2. Informazzjoni dwar is-Sigurtà
Your safety is paramount. Failure to follow these instructions can result in serious injury or death. Always supervise children and non-swimmers. Ensure all local regulations regarding pool safety, fencing, and electrical connections are met.
- Superviżjoni għall-adulti: Qatt tħalli t-tfal waħedhom fil-pixxina jew madwarha.
- Ebda Għadds: This is an above-ground pool. Do not dive or jump into the pool. Serious injury, paralysis, or death may result.
- Sigurtà Elettrika: Ensure all electrical components (pump, filter) are connected to a Ground Fault Circuit Interrupter (GFCI) outlet. Do not use extension cords.
- Immaniġġjar Kimiku: Handle pool chemicals according to manufacturer's instructions. Store them in a secure, cool, dry place away from children and pets.
- Pool Area: Keep the pool area clear of obstacles. Ensure adequate lighting for night use.
- Sigurtà tas-Sellum: Always use the provided SureStep ladder for entry and exit. Remove the ladder when the pool is not in use to prevent unsupervised access.
3. Kontenut tal-Pakkett
Verify that all components listed below are present and undamaged before beginning assembly. If any parts are missing or damaged, contact Funsicle customer support immediately.
- Rectangular Pool Liner (Dark Herringbone Gray)
- Steel Frame Components (Poles, T-fittings, Leg Caps)
- SFX1000 SkimmerPlus Filter Pump (110-120V)
- Type C Filter Cartridge
- Sellum SureStep
- Qoxra Pool
- Drapp tal-art
- Deluxe Maintenance Kit

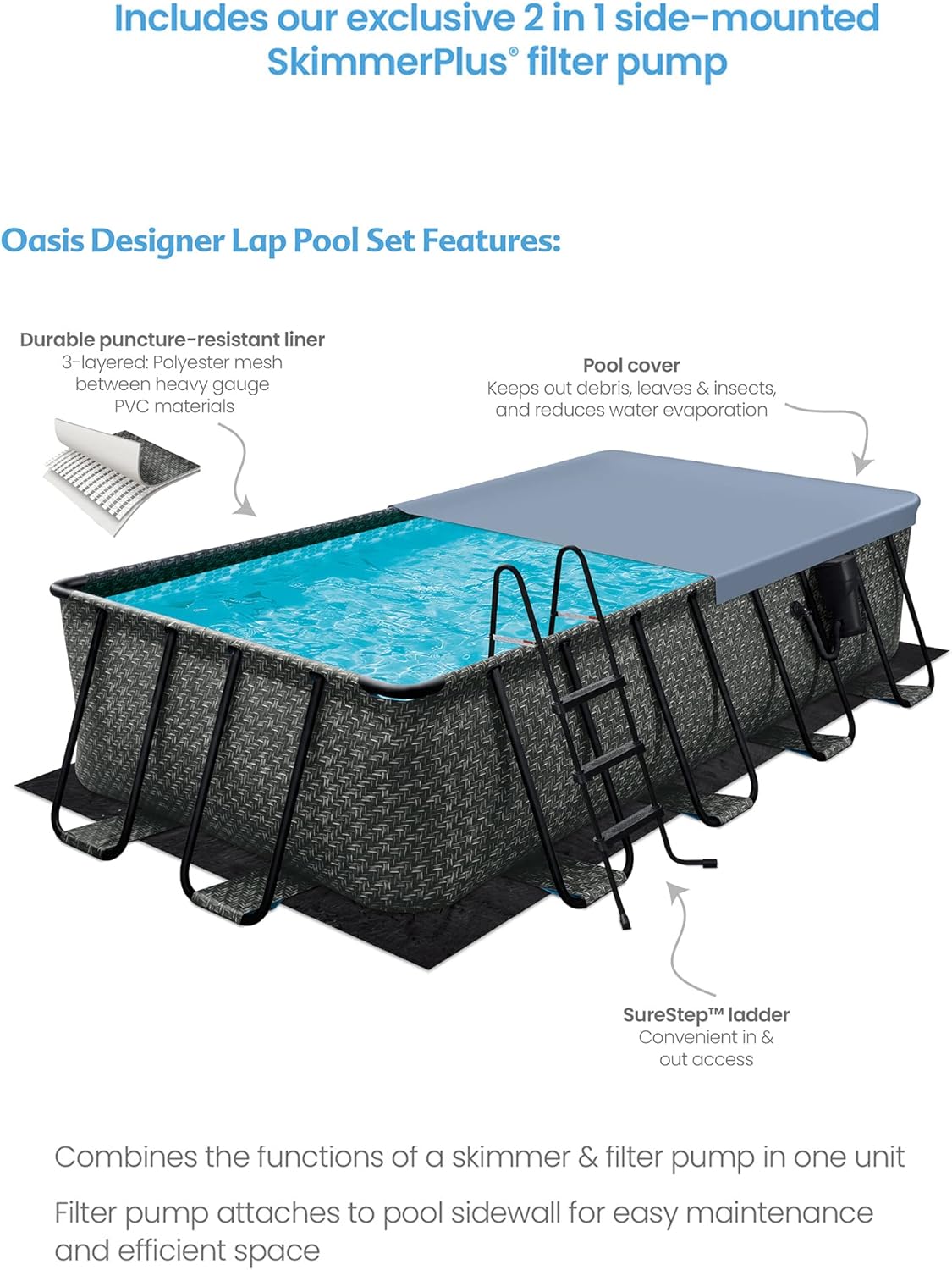

Image 3.1: The Funsicle Oasis Designer pool shown with its included pool cover and SureStep ladder, highlighting key accessories.
Immaġni 3.2: Close-up view of the removable SureStep ladder, designed for safe and easy pool access.
4. Setup
Proper site preparation and assembly are crucial for the stability and longevity of your pool. Follow these steps carefully.
- Ipprepara s-Sit:
Choose a flat, firm, and level surface. Avoid sand or sharp objects. Position the pool 10-21 feet from the outlet for filtration systems. Ensure the ground is completely level to prevent uneven water distribution and stress on the pool frame.
- Assemble the Pool Frame:
Unfold the ground cloth and place it on the prepared site. Carefully unroll the pool liner over the ground cloth. Assemble the frame by connecting the poles and T-fittings using the SmartConnect technology. Ensure the liner is securely connected to the frame. The matte finish on the poles helps prevent rust, corrosion, and scratches.
- Żid l-Ilma:
Once the frame and liner are assembled, add approximately one inch of water to the pool. Smooth out any wrinkles in the liner from the center outwards to ensure a taut and even surface. Continue filling the pool slowly, ensuring the frame remains stable and the liner settles correctly.
- Install the Filtration System:
Install the suction and return fittings, hoses, and the SFX1000 SkimmerPlus Filter Pump according to the pump's specific instructions. Ensure all connections are tight to prevent leaks. The SkimmerPlus pump combines skimming and filtration functions for efficient water cleaning.
Image 4.1: A visual guide illustrating the quick and simple DIY installation steps for the Funsicle pool, from site preparation to filtration system setup.
Image 4.2: An illustration detailing the durable 3-ply Toughmesh liner construction, featuring heavy gauge PVC and polyester mesh for puncture resistance.
5. Joperaw
Operating your Funsicle pool involves managing the filtration system and maintaining water quality.
- Tħaddim tal-Pompa tal-Filtru: The SFX1000 SkimmerPlus Filter Pump is designed to circulate and filter the pool water. Run the pump for at least 8-12 hours daily, depending on usage and water clarity, to ensure proper filtration.
- JetMaxx Aeration: The integrated JetMaxx Aeration feature enhances water circulation and aeration, contributing to cleaner and purer water. Ensure the return jet is unobstructed for optimal performance.
- Livell tal-Ilma: Maintain the water level between the minimum and maximum fill lines indicated on the pool liner. Too low a level can damage the pump, while too high a level can cause overflow.

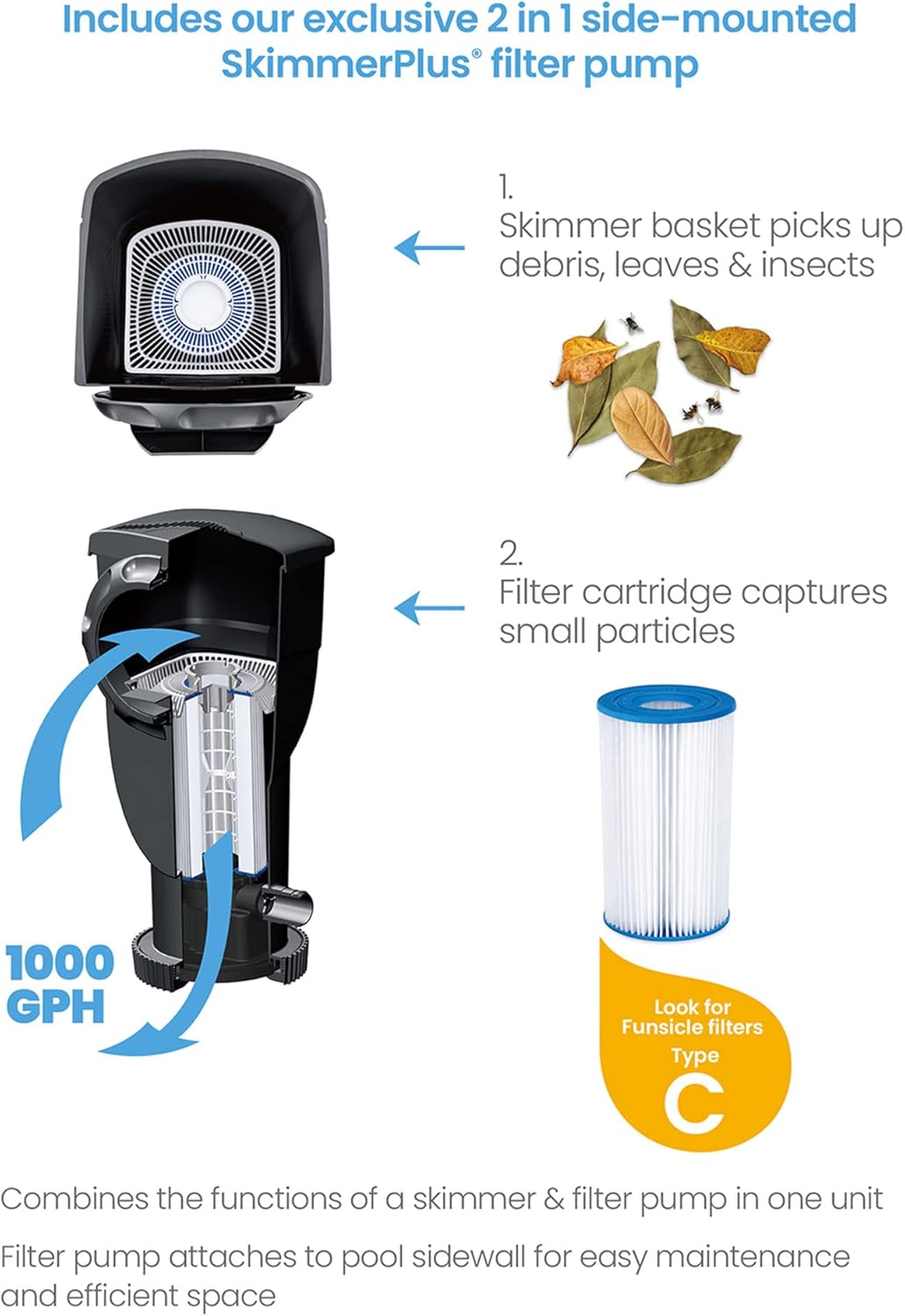

Image 5.1: A diagram illustrating the internal workings of the 2-in-1 SkimmerPlus filter pump, showing how the skimmer basket collects debris and the filter cartridge captures small particles.

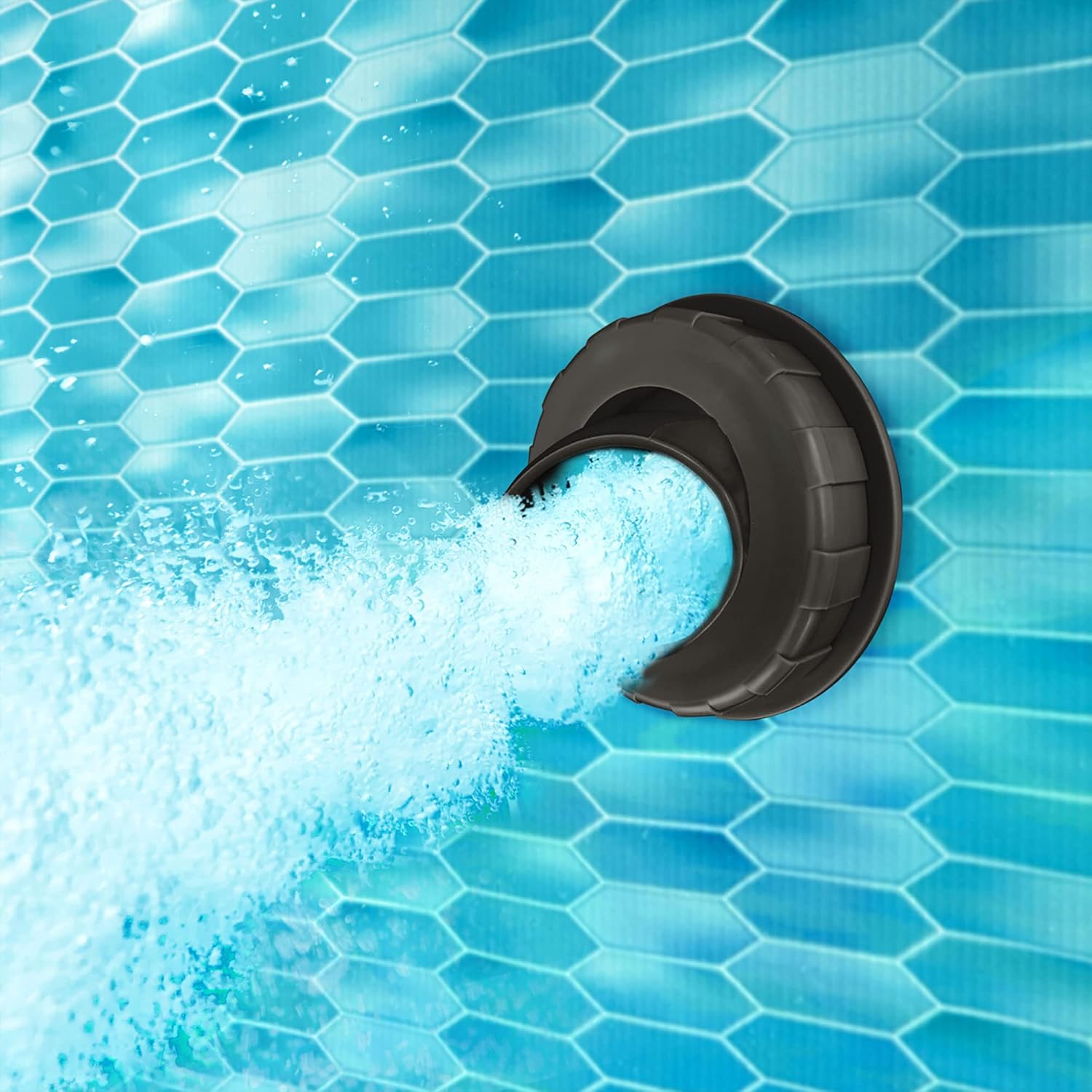

Image 5.2: A close-up of the JetMaxx Aeration feature, showing aerated water being returned to the pool for improved circulation and water quality.
6. Manutenzjoni
Manutenzjoni regolari hija essenzjali biex iżżomm il-pixxina tiegħek nadifa, sigura, u testendi l-ħajja tagħha.
6.1 Kimika tal-Ilma
- Ittestjar: Test chlorine, pH, and alkalinity 2-3 times per week during heavy use, and 1-2 times per week during lighter use. Use a reliable test kit or strips.
- Target Levels:
- Klorin Ħieles: 2-4 ppm
- pH: 7.2-7.6
- Alkalinità totali: 80-120 ppm
- Cyanuric Acid: 30-50 ppm (check monthly)
- Calcium Hardness: 200-400 ppm (check monthly or seasonally)
- Sanitizer and Shock: Add chlorine (liquid, tablets, or granular) daily or as needed. Shock weekly with a chlorine-based or non-chlorine shock to eliminate contaminants.
6.2 Filtration and Cleaning
- Skartoċċ tal-filtru: Clean the Type C filter cartridge regularly (e.g., weekly) by rinsing it with a hose. Replace the cartridge every 2-4 weeks, or more frequently with heavy use.
- Skimming: Use the SkimmerPlus pump's skimmer basket to regularly remove leaves, insects, and other large debris. Empty the basket as needed.
- Vacuuming: Use the Deluxe Maintenance Kit to vacuum the pool floor weekly to remove settled debris.
- Tfarfir: Aħsel il-ħitan u l-art tal-pixxina regolarment biex tevita l-akkumulazzjoni tal-alka.
- Għata tal-Pixxina: Uża l-għata tal-pixxina inkluża meta l-pixxina ma tkunx qed tintuża biex iżżomm barra l-fdalijiet u tnaqqas l-evaporazzjoni tal-ilma.
6.3 Winterizing (for Freezing Climates)
If you live in a climate with freezing temperatures, proper winterization is critical to prevent damage to your pool.
- Balance water chemistry.
- Add a winterizing chemical kit (algaecide, sequestering agent, shock).
- Baxxi l-livell tal-ilma taħt l-iskimmer u l-ġettijiet tar-ritorn.
- Disconnect and store the pump, filter, and hoses indoors after draining all lines.
- Install a winter cover securely.
7 Issolvi l-problemi
Irreferi għal din it-taqsima għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ilma jkun imdardar jew aħdar | Insufficient filtration, improper chemical balance, algae growth | Run pump longer (10-12 hours/day), backwash/clean filter, test and adjust chemicals (chlorine, pH, alkalinity), shock the pool, add algaecide. |
| Pump not running or weak flow | Clogged filter cartridge, air in system, motor issue, power supply problem | Clean/replace filter cartridge, bleed air from pump/hoses, check power connection and GFCI, ensure water level is adequate. |
| Il-pixxina qed tnixxi | Puncture in liner, loose hose connection, faulty seal at fittings | Locate and patch liner hole (use repair kit), tighten all hose clamps and connections, inspect and reseal fittings. If leak persists, contact customer support. |
| Pool frame bowing/unstable | Uneven ground, improper assembly, overfilling | Ensure ground is perfectly level before setup. Verify all frame connections are secure. Do not overfill the pool. |
8. Speċifikazzjonijiet
- Numru tal-Mudell: P4A1608HB
- Dimensjonijiet: 192"L x 96"W x 42"H (16ft L x 8ft W x 42in H)
- Forma: Rettangolari
- Kulur: Dark Herringbone Gray
- Materjal: Metal frame, 3-ply Toughmesh PVC liner
- Pompa tal-Filtru: SFX1000 SkimmerPlus Filter Pump (110-120V)
- Komponenti Inklużi: Filter Cartridge, Filter Pump, Ground Cloth, SureStep Ladder, Pool Cover, Deluxe Maintenance Kit
- Assemblaġġ Meħtieġa: Iva
- Użu fuq ġewwa/barra: Barra
Image 8.1: The Funsicle Oasis Designer pool in use, demonstrating its capacity for multiple individuals and its suitability for backyard fun.

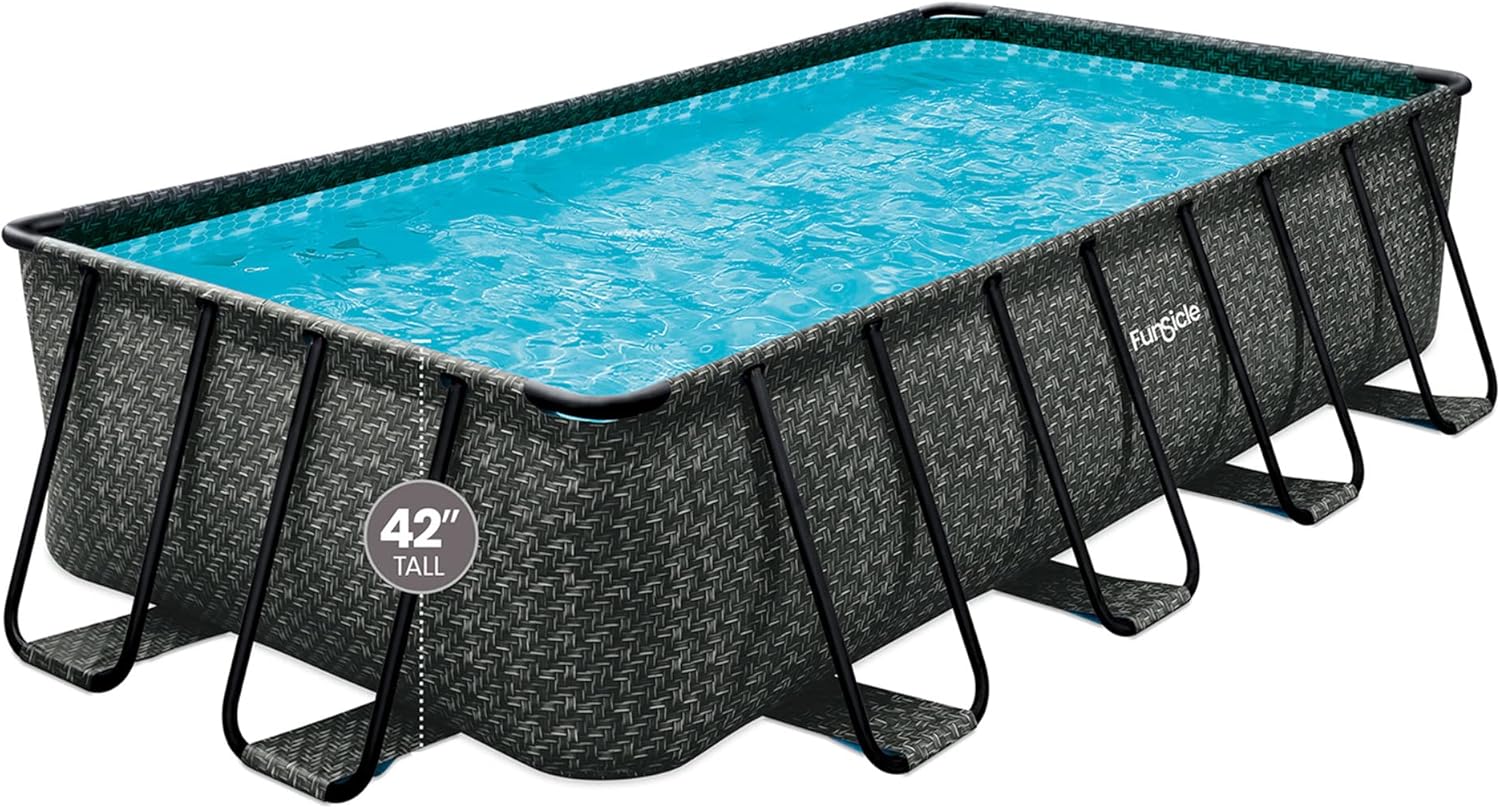

Image 8.2: The Funsicle Oasis Designer pool, highlighting its 42-inch height, suitable for various recreational activities.
9. Garanzija u Appoġġ
Funsicle provides a Garanzija tal-manifattur ta 'sena for the pool, pump, and ladder from the date of purchase. This warranty covers defects in materials and workmanship under normal use and service.
For warranty claims, technical support, or replacement parts, please contact Funsicle customer service. Keep your proof of purchase (receipt) readily available as it will be required for any warranty service.
For additional information and support, visit the official Funsicle webis-sit jew irreferi għall-informazzjoni ta' kuntatt ipprovduta fl-imballaġġ tal-prodott tiegħek.
