Manwal tal-Utent tal-Ajruplan RC DEERC

1. Introduzzjoni

Grazzi tax-xiriasing the DEERC RC Plane. This remote control airplane is designed for ease of use, making it ideal for beginners and experienced pilots alike. Featuring a 6-axis gyroscope for stable flight and durable EPP material for resilience, this model provides an enjoyable flying experience. Please read this manual thoroughly before operation to ensure safe and proper use.

Image: The DEERC RC Plane is designed for easy learning and fun for young pilots.

2. Linji Gwida dwar is-Sigurtà

Biex tevita korriment jew ħsara, dejjem osserva l-prekawzjonijiet ta' sigurtà li ġejjin:

• Superviżjoni għall-adulti: Recommended for pilots under 14 years of age.
• Ambjent tat-Titjira: Fly in open, clear areas away from people, buildings, trees, and power lines. Avoid flying in strong winds or adverse weather conditions.
• Kontroll ta' qabel it-Titjira: Always ensure the aircraft and remote control batteries are fully charged and properly installed. Verify all parts are securely attached.
• Sigurtà tal-Iskrun: Keep hands, face, and loose clothing away from rotating propellers.
• Sigurtà tal-batterija: Use only the specified batteries and chargers. Do not overcharge, short-circuit, or puncture batteries. Dispose of batteries responsibly.
• Espożizzjoni għall-Ilma: Do not expose the aircraft or remote control to water or moisture.

3. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett biex tiżgura li l-oġġetti kollha huma preżenti:

• DEERC RC Plane (1)
• 2.4GHz Remote Control (1)
• 3.7V 185mAh LiPo Batteries (3)
• USB Charging Cables (2)
• Spare Propellers (2 pairs)
• Landing Gear (1 set)
• Tornavit (1)
• Manwal għall-Utent (1)

Image: The complete package contents of the DEERC RC Plane, including the aircraft, remote, batteries, and accessories.

4. Prodott Aktarview

Familiarize yourself with the main components of your DEERC RC Plane:

• Aircraft Body: Made from durable EPP foam, designed to withstand impacts.
• Skrejjen: Located on the top of the wings, providing thrust.
• Kompartiment tal-batterija: Located on the underside of the aircraft.
• Dwal LED: Colorful LED strip for visibility and aesthetic appeal.
• Tagħmir tal-inżul: Removable for ground take-off and landing.
• Kontroll mill-bogħod: 2.4GHz system for stable and responsive control.

Image: Key features of the DEERC RC Plane, highlighting its durable construction and advanced flight systems.

Image: The colorful LED strip on the DEERC RC Plane, enhancing visibility and visual appeal.

5. Setup

5.1 Iċċarġjar ta' Batteriji

The aircraft comes with three 3.7V 185mAh LiPo batteries. Each battery provides up to 8 minutes of flight time, totaling up to 24 minutes with all three.

1. Connect the LiPo battery to the USB charging cable.
2. Plug the USB charging cable into a USB power source (e.g., computer USB port, USB wall adapter).
3. The indicator light on the USB cable will show charging status (refer to charger instructions for specific light behavior).
4. Charging typically takes approximately 30-40 minutes per battery. Do not leave batteries unattended while charging.

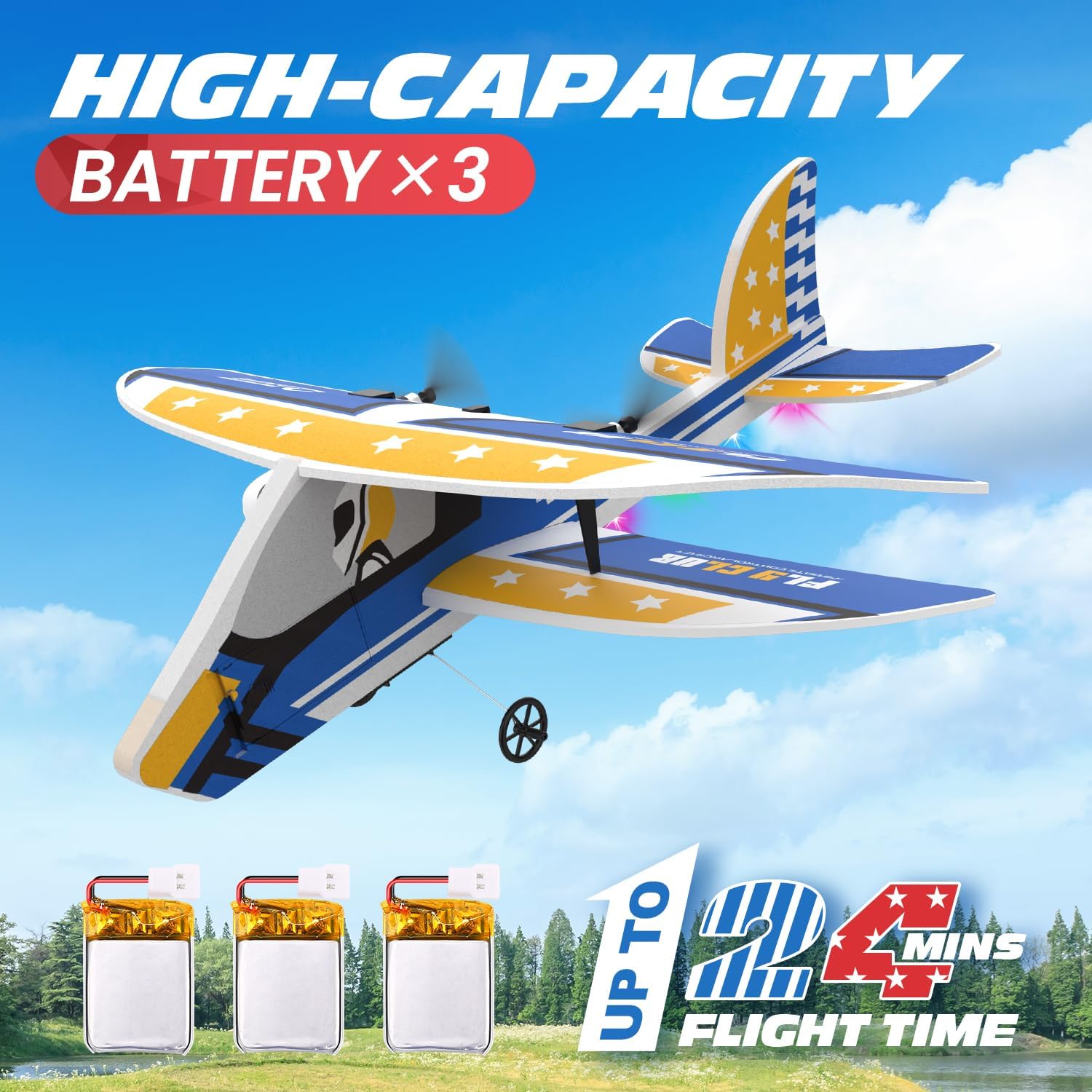

Image: The three included high-capacity batteries provide extended flight time.

5.2 Installing Aircraft Battery

1. Locate the battery compartment on the underside of the aircraft.
2. Carefully insert a fully charged LiPo battery into the compartment.
3. Connect the battery plug to the aircraft's power port. Ensure the connection is secure.
4. Agħlaq l-għatu tal-kompartiment tal-batterija.

5.3 Installazzjoni tal-Batteriji tal-Kontroll mill-Bogħod

The remote control requires 3 AA batteries (not included).

1. Iftaħ l-għatu tal-batterija fuq wara tal-kontroll remot.
2. Insert 3 AA batteries, observing the correct polarity (+/-).
3. Agħlaq l-għatu tal-batterija sew.

5.4 Assemblaġġ tal-Ajruplan

The DEERC RC Plane comes mostly pre-assembled. You may need to attach the landing gear:

1. Locate the slots on the underside of the aircraft for the landing gear.
2. Gently push the landing gear into the slots until it clicks into place.

Image: The removable landing gear can be easily attached or detached.

5.5 Binding the Remote Control

To establish a connection between the aircraft and the remote control:

1. Ensure the aircraft battery is connected and the aircraft is placed on a flat surface.
2. Ixgħel il-kontroll remot. Id-dawl indikatur fuq il-kontroll remot se jteptep.
3. Push the throttle stick (left stick) all the way up, then all the way down.
4. The indicator light on the remote control will become solid, indicating successful binding.

6. Istruzzjonijiet Operattivi

6.1 Kontroll ta' Qabel it-Titjira

• Confirm all batteries are charged and installed.
• Ensure the aircraft and remote control are bound.
• Check for any visible damage to the aircraft, especially propellers.
• Choose a safe, open area for flight.

6.2 Tluq

The DEERC RC Plane supports two take-off methods:

Image: The DEERC RC Plane supports both ground take-off and hand launch methods.

6.2.1 Ground Take-Off

1. Place the aircraft on a smooth, flat surface with the landing gear attached.
2. Slowly increase the throttle. The plane will gain speed and lift off.

6.2.2 Hand Launch

1. Hold the aircraft firmly with one hand, ensuring propellers are clear.
2. Increase the throttle to about 70-80%.
3. Gently toss the aircraft forward into the wind.

6.3 Kontrolli tat-Titjira

The 2.4GHz remote control system provides a stable connection up to 164 feet (50 meters).

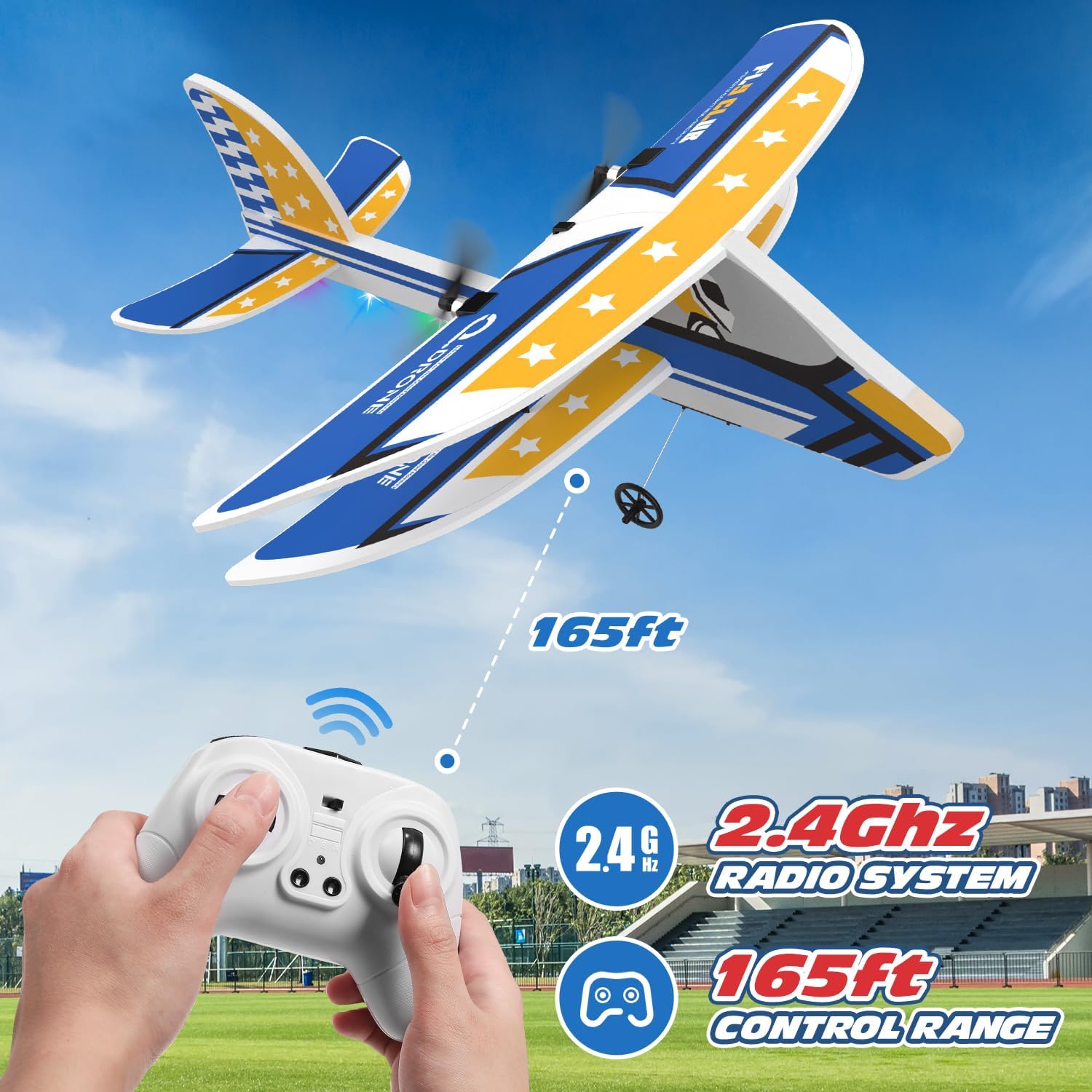

Image: The 2.4GHz radio system provides a control range of up to 165 feet.

• Throttle (Left Stick Up/Down): Controls the speed of the propellers, affecting altitude.
• Direction (Right Stick Left/Right): Controls the turning of the aircraft.
• 6-Axis Gyro Stabilizer: The built-in gyroscope automatically stabilizes the aircraft, making it easy to control even for beginners. If the plane loses control, release the throttle, and the gyro will help restore balance.

Image: The auto-leveling six-axis flight system ensures stable and balanced flight.

Image: The remote control allows for multi-directional flight control.

6.3.1 Modi ta' Veloċità

The aircraft features two speed modes for different flying experiences:

• Modalità ta' Veloċità Baxxa: Ideal for beginners and indoor flying (if space permits).
• Modalità ta' Veloċità Għolja: For more experienced pilots and outdoor flying.

Refer to the remote control diagram for the button to switch between speed modes.

Image: The remote control offers two speed modes for varied flight experiences.

6.4 Inżul

To land the aircraft safely:

1. Reduce the throttle gradually to decrease altitude.
2. Guide the aircraft towards an open, clear landing area.
3. Continue to reduce throttle until the aircraft gently touches down.
4. Once on the ground, fully reduce the throttle to stop the propellers.

7. Manutenzjoni

7.1 Tindif

Wipe the aircraft body with a soft, dry cloth after each use to remove dirt or debris. Do not use harsh chemicals or water directly on electronic components.

7.2 Sostituzzjoni tal-Iskrun

If a propeller is damaged, replace it with a spare from the package:

1. Carefully remove the damaged propeller.
2. Install a new propeller, ensuring it is securely attached and facing the correct direction.

7.3 Kura u Ħażna tal-Batterija

• Always disconnect the battery from the aircraft after use.
• Aħżen il-batteriji f'post frisk u niexef 'il bogħod mix-xemx diretta u mis-sħana.
• Do not store fully charged or completely depleted batteries for extended periods. For long-term storage, charge batteries to approximately 50% capacity.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

Image: Detailed dimensions of the DEERC RC Plane.

10. Garanzija u Appoġġ

DEERC products are manufactured to high quality standards. For warranty information, technical support, or replacement parts, please contact DEERC customer service through the retailer's platform or the official DEERC websit. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

For further assistance, visit the official DEERC store: DEERC Store on Amazon
