Webasto Go Dual Voltage Portable EV Charger Instruction Manual

1. Introduzzjoni

Dan il-manwal jipprovdi informazzjoni essenzjali għall-użu sikur u effiċjenti tat-tagħmir tiegħek Webasto Go Dual Voltage Portable EV Charger. The Webasto Go is designed to provide flexible charging solutions for electric vehicles, supporting both Level 1 (120V) and Level 2 (240V) charging.

It is compatible with all J1772 plug types and can charge Tesla vehicles with the appropriate adapter.

2. Informazzjoni dwar is-Sigurtà

Your safety is paramount. Please read and understand all safety instructions before operating the Webasto Go charger.

• UL and cUL Certified: Il- Webasto Go charger is tested and certified to the highest safety standards by UL and cUL.
• Karatteristiċi ta' Sigurtà Avvanzati: Equipped with thermal detection, auto-restart and recovery, and ground detection against faults to ensure safe operation.
• Klassifikazzjoni li ma jgħaddix ilma minnha: The charger has a NEMA 6P watertight rating, allowing it to be submerged in up to 3 feet of water. This ensures safe indoor or outdoor charging in various weather conditions.
• Installazzjoni xierqa: Ensure that the NEMA 14-50R receptacle for Level 2 charging is installed by a qualified electrician according to local codes.
• Evita l-Ħsara: Do not use the charger if the cable or connector is damaged. Do not attempt to open or repair the unit.

3. Kontenut tal-Pakkett

Verify that all items are present in your Webasto Go package:

• Webasto Go Portable EV Charger Unit with J1772 Connector
• NEMA 14-50 Grid Plug Assembly
• NEMA 5-15 Grid Plug Assembly
• Kawża tal-Ġarr
• Brazzi tal-Immuntar

Stampa 3.1: Webasto Go charger with included NEMA 14-50 and NEMA 5-15 plug adapters.

Stampa 3.2: Webasto Go charger alongside its protective carrying case.

4. Setup

Il- Webasto Go charger offers flexible setup options for both Level 1 and Level 2 charging.

4.1. Level 1 Charging (120V)

1. Ensure the NEMA 5-15 grid plug assembly is securely attached to the Webasto Go control unit.
2. Plug the NEMA 5-15 plug into a standard 120V NEMA 5-15R household outlet.
3. The charger will perform a self-check, indicated by its status lights.

4.2. Level 2 Charging (240V)

1. Ensure the NEMA 14-50 grid plug assembly is securely attached to the Webasto Go control unit.
2. Plug the NEMA 14-50 plug into a dedicated 240V NEMA 14-50R receptacle. Note: Installation of a NEMA 14-50R receptacle typically requires a qualified electrician.
3. The charger will perform a self-check, indicated by its status lights.

The intelligent grid plug assemblies automatically detect the connected power source and adjust charging parameters accordingly.

Stampa 4.1: Webasto Go charger connected to a wall outlet and an EV for charging.

5. Istruzzjonijiet Operattivi

Il- Webasto Go is designed for simple plug-and-play operation.

1. Qabbad mal-Enerġija: Follow the setup instructions in Section 4 to connect the Webasto Go charger to the appropriate power outlet (120V or 240V).
2. Qabbad mal-Vettura: Open your electric vehicle's charging port. Insert the J1772 connector from the Webasto Go into your vehicle's charging port. For Tesla vehicles, use the appropriate J1772 to Tesla adapter (sold separately).
3. Ibda l-Iċċarġjar: The charger will automatically begin charging your vehicle. The status indicator lights on the Webasto Go unit will show the charging status.
4. Iċċarġjar tal-Monitorja: You can monitor your vehicle's charging status through its onboard display or mobile application.
5. Tmiem l-Iċċarġjar: To stop charging, first disconnect the J1772 connector from your vehicle, then unplug the charger from the wall outlet.

Il- Webasto Go can deliver up to 7.7kW of power, providing approximately 30 miles of range per hour charged, depending on your vehicle's efficiency.

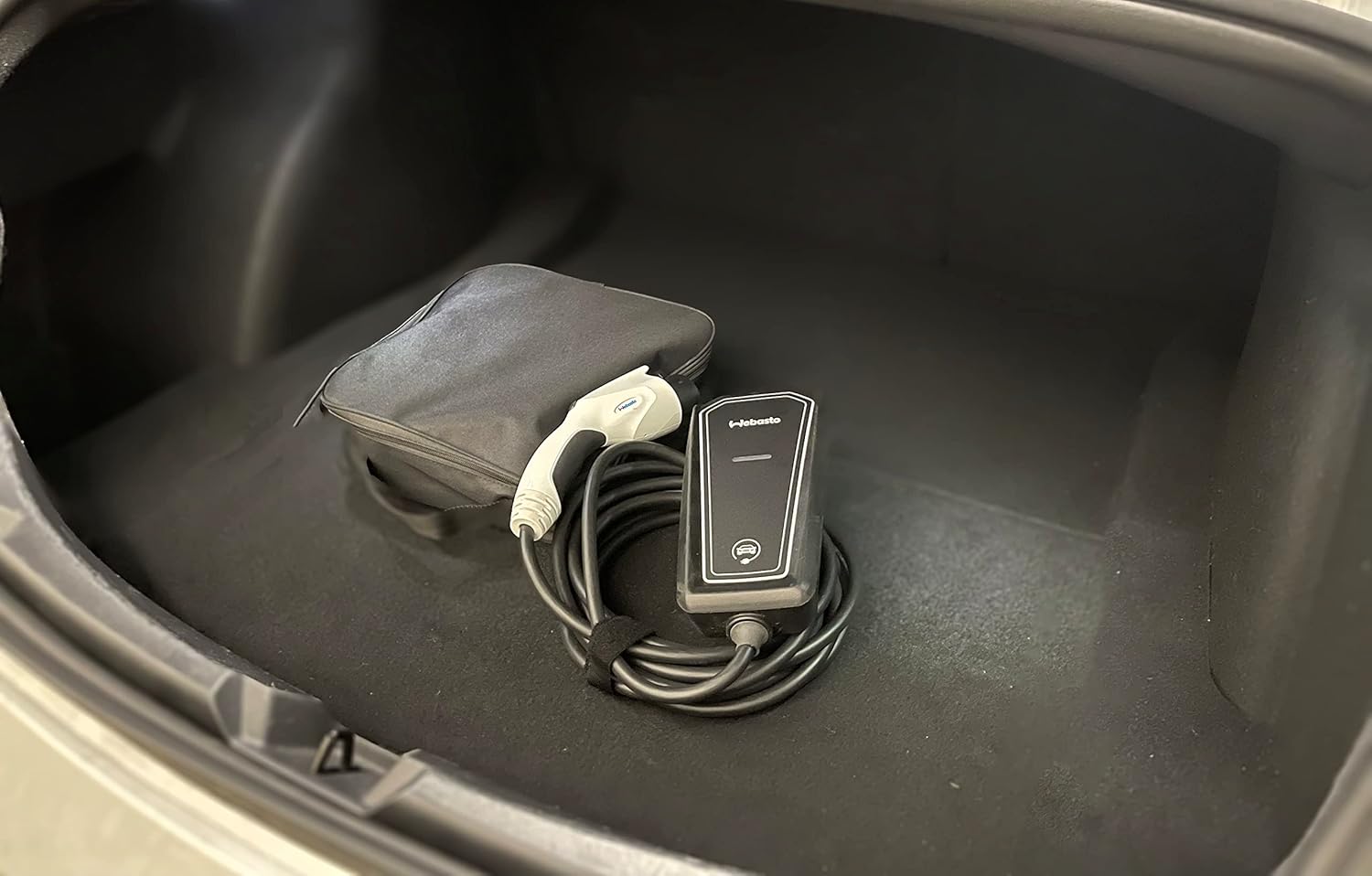

Stampa 5.1: Webasto Go charger and its carrying case stored conveniently in a vehicle's trunk, highlighting its portability.

6. Manutenzjoni

Biex tiżgura l-lonġevità u l-aħjar prestazzjoni tiegħek Webasto Go charger, follow these simple maintenance guidelines:

• Tindif: Regularly wipe the charger unit and cables with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Spezzjoni tal-Cable: Periodically inspect the charging cable and connectors for any signs of wear, cuts, or damage. Do not use if damage is observed.
• Ħażna: Meta ma tkunx qed tużah, aħżen Webasto Go in its carrying case in a cool, dry place, away from direct sunlight and extreme temperatures. Avoid coiling the cable too tightly.
• Kura tal-Konnettur: Keep the J1772 connector and grid plug pins clean and free from debris.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bil- Webasto Go charger, refer to the following common troubleshooting steps:

• Iċ-Ċarġer Mhux Qed Jattiva: Ensure the grid plug assembly is fully inserted into the control unit and the wall outlet. Check the wall outlet for power by testing with another device.
• L-ebda Indikazzjoni ta' Iċċarġjar: Verify that the J1772 connector is fully and securely inserted into your vehicle's charging port. Check your vehicle's dashboard or app for charging status.
• Indicator Light Errors: Irreferi għall- Webasto Go's indicator light patterns (if available in a separate guide) for specific error codes. A solid amber light may indicate a fault or incompatibility; ensure correct adapter usage for Tesla vehicles.
• Veloċità tal-Iċċarġjar Imnaqqsa: Confirm you are using the correct grid plug for the desired voltage (NEMA 14-50 for Level 2, NEMA 5-15 for Level 1). Ensure the electrical circuit is not overloaded.

Jekk il-problemi jippersistu wara li tipprova dawn il-passi, jekk jogħġbok ikkuntattja Webasto customer support for assistance.

8. Speċifikazzjonijiet

Speċifikazzjonijiet tekniċi għall- Webasto Go Dual Voltage Portable EV Charger (Model: 5910757B):

9. Garanzija u Appoġġ

For warranty information, product support, or technical assistance, please contact Webasto customer service. Details can typically be found on the official Webast webis-sit jew permezz tad-dokumentazzjoni tax-xiri tiegħek.
