1. Introduzzjoni
Thank you for choosing the Ingco CDLI12325 12V Cordless Drill. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read these instructions carefully before use and retain them for future reference.
2. Istruzzjonijiet tas-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi tas-sigurtà biex tnaqqas ir-riskju ta 'nar, xokk elettriku, u korriment personali.
- Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol tiegħek nadifa u mdawwla sew. Żoni imbarazzati jew mudlama jistiednu inċidenti. Tħaddimx għodod tal-enerġija f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab fjammabbli.
- Sigurtà Elettrika: Evita kuntatt tal-ġisem ma' uċuħ ertjati jew ertjati bħal pajpijiet, radjaturi, fuklari, u refriġeraturi. Tesponix għodod tal-elettriku għax-xita jew għal kundizzjonijiet imxarrbin.
- Sigurtà Personali: Dejjem ilbes protezzjoni għall-għajnejn. Uża tagħmir tas-sigurtà bħal maskri tat-trab, żraben tas-sigurtà li ma jiżolqux, elmi protettivi, jew protezzjoni għas-smigħ meta jkun xieraq. Ilbes sew; evita ħwejjeġ jew ġojjelli laxki.
- Użu u Kura tal-Għodda: Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek. Skonnettja l-pakkett tal-batterija mill-għodda tal-enerġija qabel ma tagħmel xi aġġustamenti, tibdel l-aċċessorji, jew taħżen l-għodda tal-enerġija.
- Sigurtà tal-Pakkett tal-Batterija: Iċċarġja biss bil-ċarġer speċifikat mill-manifattur. Tużax pakketti ta' batteriji ma' xi għodda oħra tal-enerġija. Tarmix il-pakkett tal-batterija anke jekk ikun bil-ħsara serja.
3. Prodott Aktarview
The Ingco CDLI12325 is a versatile 12V cordless drill designed for various drilling and driving tasks. It features variable speed control, multiple torque settings, and an integrated work light for improved visibility.

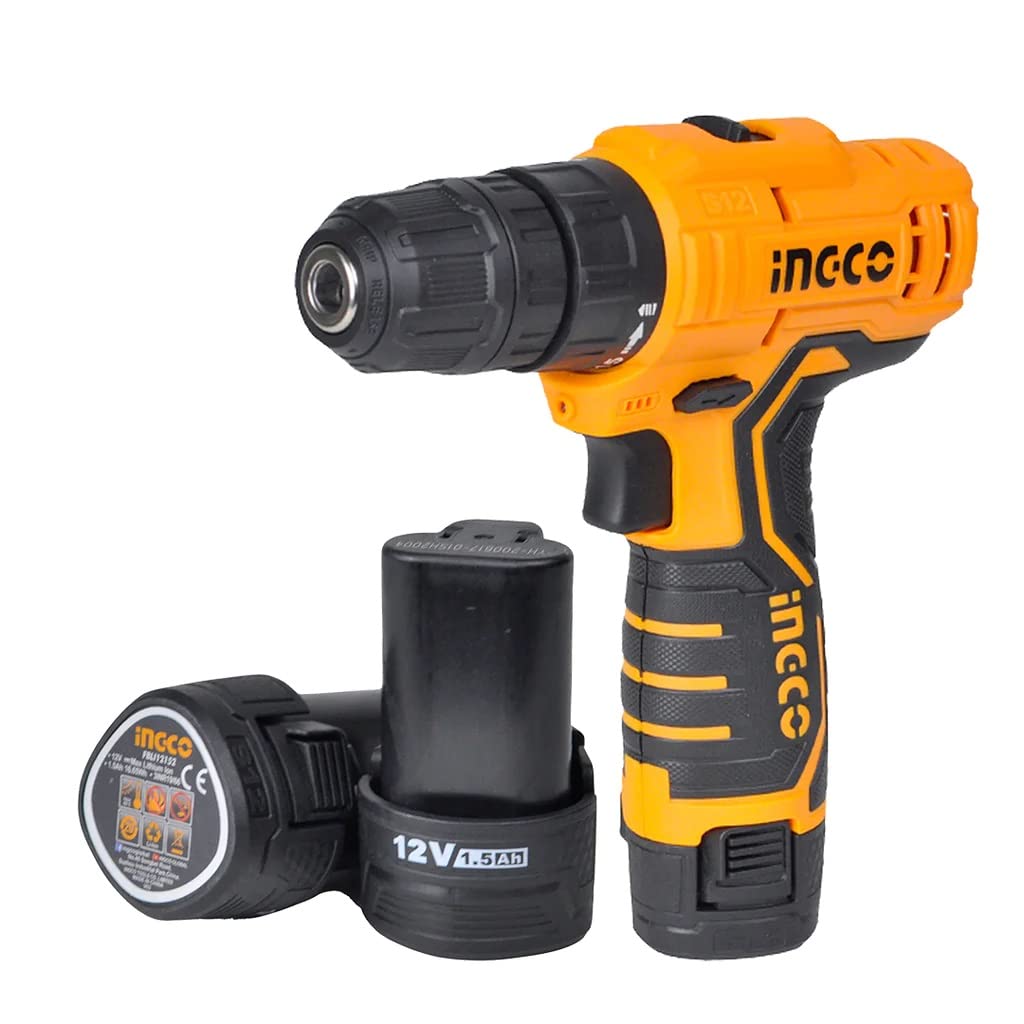

Image 1: Ingco CDLI12325 12V Cordless Drill, showing the drill unit, two 1.5Ah Lithium-Ion batteries, and a durable carrying case.
Komponenti:
- Cordless Drill Unit
- 12V Lithium-Ion Batteries (x2)
- Ċarġer tal-batterija
- Kawża tal-Ġarr
- Drill Bits (included in some packages)
4. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | CDLI12325 |
| Batterija Voltage | 12V |
| Tip ta 'batterija | Jonju tal-litju (1.5Ah) |
| Veloċità Bla Tagħbija | 0-350 / 0-1350 rpm |
| Torque Massimu | 20 Nm |
| Kapaċità Chuck | 0.8-10 mm |
| Settings tat-torque | 15 + 1 |
| Veloċitajiet | Gearbox b'2 veloċitajiet |
| Karatteristiċi Speċjali | Variable Speed, Integrated Work Light |
| Materjal | Metall |
| Dimensjonijiet tal-Prodott | 10 x 20 x 37 ċm |
| Piż | Approximately 209 grams (tool only) |
5. Setup
5.1. X'hemm fil-Kaxxa
Image 2: Unboxed Ingco CDLI12325 contents, showing the drill, carrying case, user manual, battery charger, and a set of drill bits.
5.2. Iċċarġjar tal-batterija
- Qabbad il-ċarġer ma' sokit standard tal-enerġija.
- Żerżaq il-pakkett tal-batterija fuq il-ċarġer sakemm tikklikkja f'postu.
- The charging indicator light on the charger will illuminate. Refer to the charger's specific instructions for light indications (e.g., red for charging, green for fully charged).
- Ladarba tkun iċċarġjata kompletament, skonnettja l-batterija mill-ċarġer.
Nota: For optimal battery life, fully charge the battery before first use. Do not overcharge the battery.
5.3. Installazzjoni/Tneħħija tal-Batterija
- Biex Tinstalla: Allinja l-pakkett tal-batterija mal-bażi tal-manku tat-trapan u żżerżaqha 'l ġewwa sakemm tissakkar sew.
- Biex tneħħi: Press the battery release button (usually located on the sides of the battery pack) and slide the battery out of the drill handle.
5.4. Installazzjoni/Tneħħija tal-Bits tat-Tħaffir
- Kun żgur li t-trapan ikun mitfi u li l-batterija tkun tneħħiet għas-sigurtà.
- Dawwar il-għonq taċ-chuck kontra l-arloġġ biex tiftaħ il-ponot taċ-chuck.
- Insert the drill bit or screwdriver bit into the chuck, ensuring it is centered.
- Dawwar il-kullar taċ-chuck lejn l-arloġġ biex tissikka x-xedaq sew madwar il-bit. Issikka bl-idejn biss; tużax wrench.
- Biex tneħħi: Dawwar il-għonq taċ-chuck kontra l-arloġġ biex ittaffi x-xedaq u iġbed il-bit 'il barra.
6. Operazzjoni
6.1. Tixgħil / Mitfi
- Biex Tixgħel: Press the trigger switch. The integrated work light will illuminate.
- Biex Tintefa: Erħi l-iswiċċ tal-grillu.
6.2. Kontroll tal-Veloċità Varjabbli
The drill features a variable speed trigger. The further you press the trigger, the faster the drill bit will rotate. This allows for precise control over drilling and driving applications.
6.3. Speed Selector Switch
The drill has a 2-speed gearbox. Use the speed selector switch (located on top of the drill) to choose between:
- Veloċità 1 (Veloċità Baxxa): For high torque applications, such as driving screws or drilling large diameter holes. (0-350 rpm)
- Veloċità 2 (Veloċità Għolja): For faster drilling with smaller bits. (0-1350 rpm)
Attenzjoni: Do not change the speed setting while the drill is running.
6.4. Ċirku ta 'Aġġustament tat-Torque
The torque adjustment ring (located behind the chuck) allows you to set the desired torque for driving screws. It has 15 torque settings plus a drill mode setting.
- Settings 1-15: Lower numbers are for smaller screws or softer materials to prevent overtightening or stripping. Higher numbers are for larger screws or harder materials.
- Drill Mode (Drill Bit Symbol): Use this setting for all drilling applications, as it provides maximum torque without clutch engagement.
6.5. Rotazzjoni 'l Quddiem/Lura
The forward/reverse selector switch (located above the trigger) controls the direction of rotation.
- Pushing the switch to the left (when viewed from the rear) sets the drill to quddiem rotation for drilling and driving screws.
- Pushing the switch to the right sets the drill to reverse rotation for removing screws or freeing jammed bits.
- Meta s-swiċċ ikun fil-pożizzjoni taċ-ċentru, il-grillu jkun imsakkar, u b'hekk jipprevjeni l-istartjar aċċidentali.
7. Manutenzjoni
7.1. Tindif
- Regularly clean the ventilation openings on the drill to prevent overheating.
- Uża artab, damp drapp biex timsaħ il-barra tal-għodda. Tużax kimiċi ħarxa jew prodotti tat-tindif li joborxu.
- Keep the chuck jaws free of dust and debris.
7.2. Ħażna
- Store the drill and accessories in a dry, secure location, out of reach of children.
- Remove the battery pack from the drill before storing for extended periods.
- Aħżen il-batteriji f'post frisk u niexef, 'il bogħod mix-xemx diretta u minn temperaturi estremi.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| It-trapan ma jibdiex | Battery not charged or improperly installed; Forward/Reverse switch in center (locked) position | Charge battery and ensure it is securely installed; Move F/R switch to forward or reverse position |
| Telf ta 'enerġija waqt it-tħaddim | Il-ħlas tal-batterija huwa baxx | Iċċarġja mill-ġdid il-pakkett tal-batterija |
| Il-bit jiżloq fil-mandrin | Chuck not tightened sufficiently; Bit shank is dirty or damaged | Retighten chuck firmly; Clean or replace bit |
| It-trapan jisħon iżżejjed | Overloading the tool; Blocked ventilation slots | Reduce load; Clear ventilation slots |
9. Garanzija u Appoġġ
Ingco products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product packaging or visit the official Ingco websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
For technical support, spare parts, or service inquiries, please contact your local Ingco dealer or authorized service center. You can find contact information on the official Ingco websit jew permezz tal-bejjiegħ bl-imnut tiegħek.
Websit: www.ingco.com
