KKSB Case for Arduino UNO Rev3 and Arduino Mega Rev3 Instruction Manual

Introduzzjoni

This manual provides detailed instructions for the assembly, installation, and proper use of the KKSB Case, designed for Arduino UNO Rev3 and Arduino Mega Rev3 boards. This robust steel enclosure offers protection and versatile mounting options for your Arduino projects, including space for an Arduino Shield.

Kontenut tal-Pakkett

Please verify that all components are present before proceeding with assembly.

KKSB Case (Steel, black powder-coated)
Mounting screws for Arduino board
Rubber feet (adhesive)
Grommet tal-kejbil

KKSB Arduino Case Packaging — Figure 1: KKSB Arduino Case packaging. The package contains the steel case and necessary accessories for assembly.

Setup u Installazzjoni

Follow these steps to install your Arduino UNO Rev3 or Arduino Mega Rev3 board into the KKSB Case.

1. Ipprepara l-Każ

Carefully remove the lid of the KKSB case by unscrewing the four corner screws. Note that some cases may have additional screws that do not need to be removed for lid access.
If using, attach the adhesive rubber feet to the bottom of the case for stability.

Wara view of KKSB Arduino Case — Figura 2: Wara view of the KKSB case, showing the Ethernet port cutout, USB-B port, Reset button access, and Power input. This view helps identify port alignment.

2. Install the Arduino Board

Align your Arduino UNO Rev3 or Arduino Mega Rev3 board with the mounting holes inside the case. Ensure that the USB and power ports align with the corresponding cutouts on the case.
Secure the Arduino board to the case using the provided mounting screws. Do not overtighten.
If you are using an Arduino Shield, install it onto your Arduino board before closing the case. The case provides sufficient vertical space for most standard shields.

Arduino board installed inside KKSB case — Figure 3: An Arduino board correctly installed within the KKSB case, demonstrating proper alignment with internal mounting points and external port cutouts.

Arduino board and shield installed inside KKSB case — Figure 4: An Arduino board with an attached shield inside the KKSB case, illustrating the ample space provided for additional components.

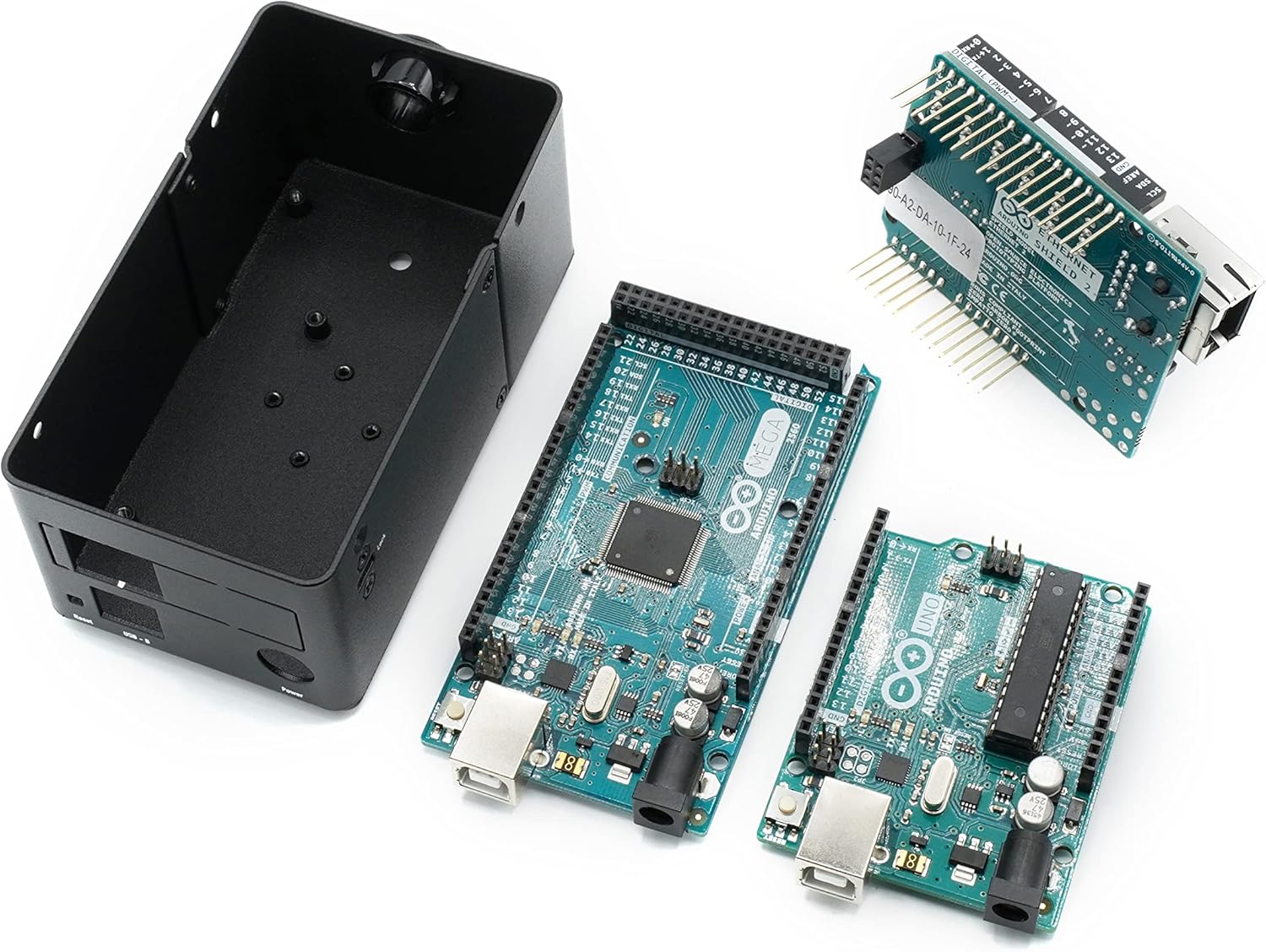

KKSB case with Arduino UNO, Mega, and Ethernet Shield — Figure 5: Components including the KKSB case, an Arduino UNO, an Arduino Mega, and an Ethernet Shield, demonstrating compatibility and potential configurations.

3. Agħlaq il-Każ

Replace the lid and secure it with the four corner screws.
If routing cables, use the provided cable grommet in the designated opening to protect wires from sharp edges.

Konsiderazzjonijiet Operattivi

The KKSB Case is designed to protect your Arduino board while providing access to essential ports and features.

Aċċess għall-Port: All standard Arduino UNO/Mega ports, including USB-B, power jack, and reset button, are accessible through labeled cutouts.
Shield Compatibility: The case accommodates an Arduino Shield, allowing for expanded functionality without requiring external modifications.
Ġestjoni tal-Kejbil: Openings are provided for routing cables, and a grommet is included for protection.
Ventilazzjoni: The case features ventilation slots to aid in passive cooling of the internal components.

Angolat view of KKSB Arduino Case with ports — Figura 6: Angolat view of the KKSB case, highlighting the accessible ports and the overall robust construction.

Għażliet ta 'Immuntar

The KKSB Case offers several mounting solutions for integration into various environments.

Immuntar tal-Ferrovija DIN: The case supports DIN rail mounting for industrial or organized setups.
Pre-cut Mounting Holes: Additional pre-cut mounting holes are available for custom installations.
Kensington Lock Compatibility: A slot is included for a standard Kensington lock, providing a theft deterrent for public or shared environments.

KKSB Arduino Case mounted on a DIN rail — Figure 7: The KKSB case securely mounted on a DIN rail, demonstrating its compatibility with industrial mounting standards.

KKSB Arduino Case with Kensington lock installed — Figure 8: A Kensington lock inserted into the designated slot on the KKSB case, illustrating the security feature.

Manutenzjoni

The KKSB Case requires minimal maintenance.

Tindif: Imsaħ il-barra b'ċarruta ratba u niexfa. Evita prodotti tat-tindif jew solventi li joborxu.
Spezzjoni: Periodically check screws for tightness, especially if the case is subjected to vibrations or frequent movement.
Ambjent: Ensure the case is used in a dry environment, away from excessive dust or moisture, to protect the internal electronics.

Issolvi l-problemi

Jekk tiltaqa' ma' problemi waqt l-installazzjoni jew l-użu, ikkunsidra dan li ġej:

Board Not Fitting: Ensure you are using a compatible Arduino UNO Rev3 or Arduino Mega Rev3 board. Verify that no components on the board are obstructing the mounting posts or case edges.
Port Misalignment: Double-check the orientation of the Arduino board before securing it. The ports should align perfectly with the case cutouts.
L-għatu ma jagħlaqx: Ensure all internal components, especially shields, are seated correctly and not exceeding the case's internal height. Verify that no wires are pinched.

Speċifikazzjonijiet

Brand	Każijiet tal-KKSB
Numru tal-Mudell	7350001161273
Kompatibilità	Arduino UNO Rev3, Arduino Mega Rev3 (and compatible clones)
Materjal	Steel, black powder-coated
Dimensjonijiet (LxWxH)	2.99 x 4 x 4.5 pulzieri (7.59 x 10.16 x 11.43 ċm)
Piż tal-oġġett	9.1-il uqija (0.26 kg)
Karatteristiċi	Space for Arduino Shield, labeled cutouts, cable routing openings, Kensington lock slot, DIN Rail mounting support, pre-cut mounting holes.

Garanzija u Appoġġ

For warranty information or technical support, please refer to the official KKSB Cases webis-sit jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

Official KKSB Cases Websit: kksb-cases.com
