PROFLO PF5200 Valv Bilanċjat bil-Pressjoni Trim Biss b'Manku ta' Lieva Waħda - Manwal ta' Istruzzjoni tan-Nikil Imqaxxar

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of the PROFLO PF5200 Pressure Balanced Valve Trim. This product is designed to be installed over an existing or separately purchased PROFLO pressure-balanced rough-in valve. This package includes only the trim components (handle, escutcheon plate, and associated hardware) and does not include the rough-in valve body.

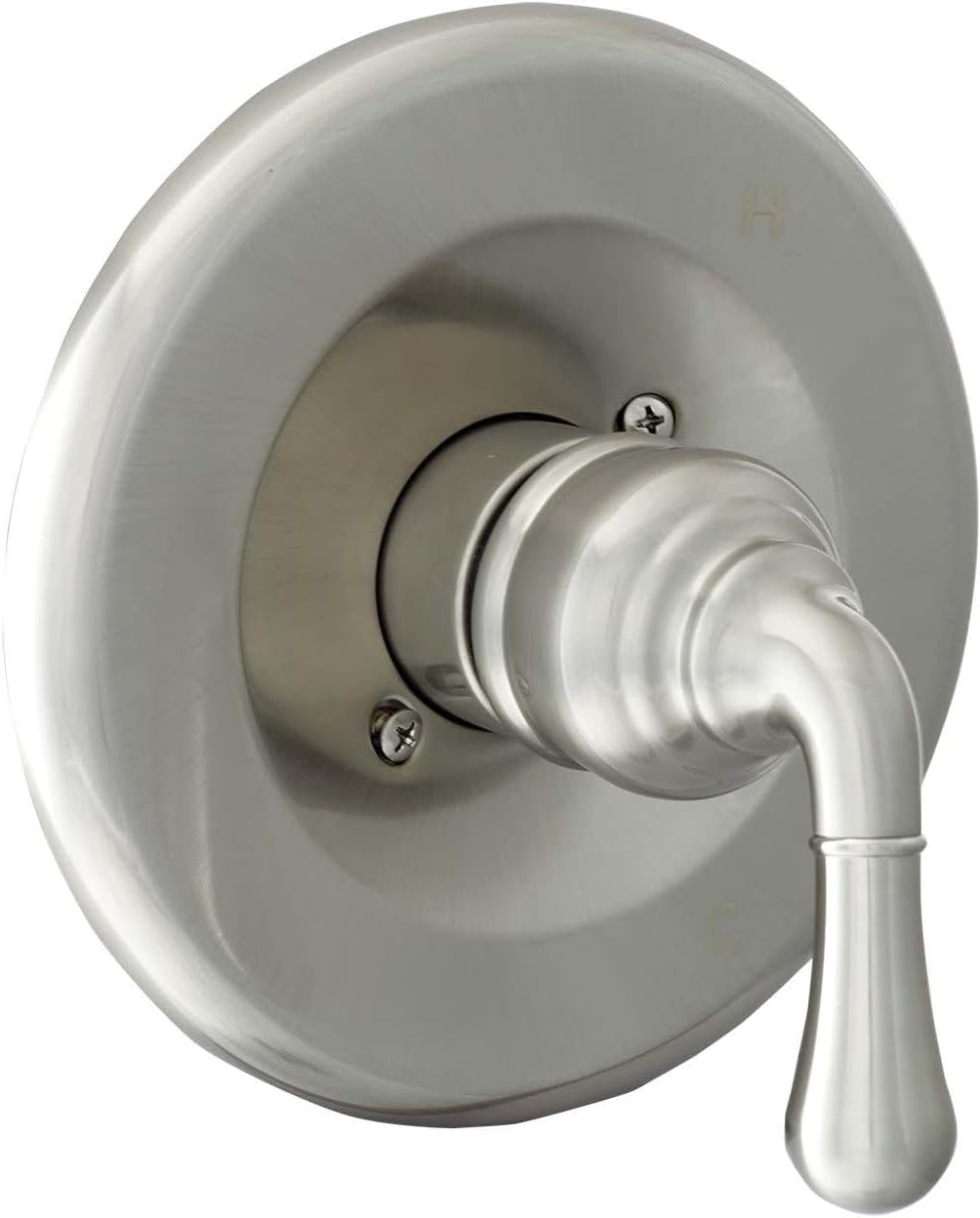

Image 1.1: The PROFLO PF5200 Pressure Balanced Valve Trim, featuring a single lever handle and a brushed nickel finish, designed for shower or tub/shower applications.

2. Informazzjoni dwar is-Sigurtà

Please read all instructions carefully before beginning installation. Failure to follow these instructions may result in personal injury or property damage. Always observe local plumbing and building codes.

• Ensure the main water supply is turned off before starting any plumbing work.
• Ilbes tagħmir protettiv personali xieraq, bħal nuċċalijiet tas-sigurtà.
• Jekk m'intix ċert dwar xi parti tal-proċess tal-installazzjoni, ikkonsulta plamer kwalifikat.
• Do not overtighten connections, as this can cause damage.

3. Kontenut tal-Pakkett

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact PROFLO customer support.

• Escutcheon Plate (Trim Plate)
• Immaniġġja l-Assemblea
• Immaniġġja l-Invita
• Escutcheon Screws (typically 2)
• Temperature Limit Stop (if applicable and not pre-installed)
• Gwida għall-Installazzjoni (dan id-dokument)

4. Għodod Meħtieġa

L-għodda li ġejjin huma tipikament meħtieġa għall-installazzjoni:

• Tornavit tar-ras Phillips
• Adjustable Wrench (optional, for rough-in valve adjustments if needed)
• Siġillant (kalk tas-silikon)
• Drapp tat-Tindif

5. Installazzjoni / Setup

These instructions assume the PROFLO pressure-balanced rough-in valve has already been correctly installed and secured within the wall. Refer to the rough-in valve's specific installation manual for its setup.

1. Ipprepara ż-Żona: Ensure the main water supply to the fixture is turned off. Remove any existing trim components if replacing an old unit. Clean the wall surface around the rough-in valve opening.
2. Install Escutcheon Plate: Position the escutcheon plate (trim plate) over the rough-in valve body, aligning the screw holes. Secure the plate to the rough-in valve using the provided escutcheon screws. Tighten screws evenly until snug, but do not overtighten.
3. Applika siġillant: Apply a bead of silicone sealant around the perimeter of the escutcheon plate where it meets the finished wall. This prevents water from entering the wall cavity. Leave a small gap at the bottom for drainage.
4. Installa l-Assemblea tal-Manku: Slide the handle assembly onto the valve stem. Align the handle with the desired "off" position (usually pointing down or to the right). Secure the handle with the handle screw, typically located under a decorative cap or on the underside of the handle.
5. Operazzjoni tat-Test: Slowly turn on the main water supply. Check for any leaks around the escutcheon plate and handle. Operate the handle to test water flow and temperature adjustment.
6. Aġġusta l-Waqfien tal-Limitu tat-Temperatura (jekk applikabbli): If your rough-in valve or trim includes a temperature limit stop, adjust it according to your preference to prevent scalding. Refer to the rough-in valve manual for specific instructions on adjusting the limit stop.

6. Operazzjoni

The PROFLO PF5200 features a single lever handle for controlling both water flow and temperature.

• Tixgħel/Jitfi: Lift the handle to turn on the water flow. Push the handle down to turn off the water flow.
• Aġġusta tat-Temperatura: Rotate the handle to the left for hotter water and to the right for colder water. The pressure-balanced cartridge maintains a consistent water temperature even if there are pressure fluctuations in your hot or cold water lines.
• Aġġustament tal-Fluss: The flow rate is typically controlled by how far the handle is lifted.

7. Manutenzjoni

Regular cleaning and inspection will help maintain the appearance and functionality of your PROFLO valve trim.

• Tindif: Clean the brushed nickel finish with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. Mild soap and water are recommended.
• Spezzjoni: Periodically check for leaks around the escutcheon plate and handle. If leaks occur, ensure all connections are snug.
• Sostituzzjoni tal-iskartoċċ: If you experience persistent drips, reduced flow, or difficulty adjusting temperature, the valve cartridge may need replacement. Refer to the rough-in valve's manual or contact PROFLO customer support for specific cartridge replacement instructions.

8 Issolvi l-problemi

Irreferi għall-kwistjonijiet u s-soluzzjonijiet komuni li ġejjin:

If troubleshooting steps do not resolve the issue, contact PROFLO customer support or a qualified plumber.

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

PROFLO products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty information included with your original rough-in valve or visit the official PROFLO websit.

For technical assistance, replacement parts, or warranty claims, please contact PROFLO customer support:

• Websit: Żur il-Ħanut PROFLO fuq Amazon (għal informazzjoni ġenerali dwar il-prodott)
• Kuntatt: Refer to the PROFLO official website for direct customer service contact information.
