Manwal tal-Utent tal-Forn tal-Countertop Cecotec Bake&Toast 1090

1. Istruzzjonijiet Importanti dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel ma tuża l-apparat. Żomm dan il-manwal għal referenza futura.

• Sigurtà Elettrika: Tiżgura l-voltage indicated on the appliance matches your local power supply before connecting. Do not immerse the appliance, cord, or plug in water or other liquids.
• Heat and Surfaces: The oven surfaces become very hot during and after operation. Always use oven mitts or gloves when handling hot items or surfaces. Do not touch hot surfaces directly.
• Ventilazzjoni: Ensure adequate ventilation around the oven. Do not place the oven near walls or under cabinets that could be damaged by heat. Maintain a minimum distance of 10 cm from other objects.
• Superviżjoni: Superviżjoni mill-qrib hija meħtieġa meta kwalunkwe apparat jintuża minn jew qrib it-tfal. Dan l-apparat mhuwiex maħsub għall-użu minn persuni b'kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew b'nuqqas ta' esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
• Sigurtà fl-Ikel: Do not cook foods that are too large for the oven. Do not place paper, cardboard, plastic, or similar materials inside the oven.
• Tindif: Always unplug the oven and allow it to cool completely before cleaning. Refer to the 'Care and Maintenance' section for detailed cleaning instructions.
• Ħsara: Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod. Ikkuntattja l-appoġġ tal-klijent għall-assistenza.

2. Prodott Aktarview

The Cecotec Bake&Toast 1090 is a compact 10-liter countertop oven designed for various cooking tasks, including baking, toasting, and grilling. It features adjustable temperature control, a 60-minute timer, and a double-glazed door for efficient heat retention.

Figura 2.1: Quddiem view of the Cecotec Bake&Toast 1090 oven with bread rolls being toasted inside. The oven features two control knobs on the right side and a power indicator light.

Komponenti u Aċċessorji

• Oven Unit: The main body of the countertop oven.
• Pum tal-Kontroll tat-Temperatura: Użat biex tissettja t-temperatura tat-tisjir mixtieqa (sa 230°C).
• Buttuna tat-Timer: Used to set the cooking time (up to 60 minutes).
• Dawl Indikatur tal-Enerġija: Jixgħel meta l-forn ikun qed jaħdem.
• Double Glazed Door: Provides insulation and allows viewikel.
• Trej tal-Ħami: For baking various foods.
• Grill Rack: For grilling or toasting.
• Handle with Tongs: For safely removing hot trays and racks.

Figura 2.2: The Cecotec Bake&Toast 1090 oven with its door open, revealing the included baking tray and grill rack. These accessories are designed for versatile cooking.

3. Twaqqif u l-Ewwel Użu

Spakkjar u Tqegħid

1. Oħroġ il-forn u l-aċċessorji kollha mill-imballaġġ bir-reqqa. Żomm l-imballaġġ għal trasport jew ħażna fil-futur.
2. Place the oven on a stable, heat-resistant, and level surface. Ensure there is at least 10 cm of clear space on all sides and above the oven for proper ventilation.
3. Tpoġġix il-forn ħdejn materjali fjammabbli, purtieri, jew taħt kabinetti tal-ħajt.

Figura 3.1: The Cecotec Bake&Toast 1090 oven positioned on a wooden countertop, demonstrating appropriate placement with clear space around it.

Initial Cleaning and Burn-in

1. Imsaħ il-barra tal-forn b'adamp cloth. Clean the baking tray, grill rack, and tongs with warm, soapy water, then rinse and dry thoroughly.
2. Before first use, operate the oven empty for approximately 15 minutes to burn off any manufacturing residues. Set the temperature to maximum (230°C) and the timer to 15 minutes. A slight odor or smoke may be present during this process; this is normal. Ensure the area is well-ventilated.
3. Allow the oven to cool completely after the burn-in cycle.

4. Istruzzjonijiet Operattivi

Operazzjoni Bażika

1. Place the food on the baking tray or grill rack. Use the handle with tongs to insert the tray/rack into the desired position inside the oven.
2. Agħlaq il-bieb tal-forn sew.
3. Ipplaggja l-forn fi żbokk elettriku adattat.
4. Set the desired cooking temperature using the Pum tal-Kontroll tat-Temperatura. The temperature can be adjusted up to 230°C.
5. Issettja l-ħin tat-tisjir mixtieq billi tuża l- Buttuna tat-Timer. The timer can be set for up to 60 minutes. Turning the timer knob will activate the oven, and the power indicator light will illuminate.
6. When the set time elapses, the oven will automatically turn off and an acoustic alarm will sound.
7. Carefully open the oven door and use the handle with tongs to remove the hot food. Always use oven mitts.

Figura 4.1: A hand carefully opening the double-glazed door of the Cecotec Bake&Toast 1090 oven, revealing muffins baking inside. Always use caution when opening the hot oven door.

Temperature and Timer Settings

The oven features a temperature range from approximately 90°C to 230°C. The timer allows for precise cooking durations up to 60 minutes. For best results, preheat the oven for 5-10 minutes at the desired temperature before placing food inside.

Figura 4.2: An illustrative diagram depicting the heat circulation within the Cecotec Bake&Toast 1090 oven, ensuring even cooking for items like croissants.

5. Kura u Manutenzjoni

Regular cleaning and proper maintenance will ensure the longevity and optimal performance of your Cecotec Bake&Toast 1090 oven.

Tindif

1. Dejjem aqla’ l-forn mill-plagg tal-elettriku u ħallih jiksaħ kompletament qabel ma tnaddfu.
2. Barra: Imsaħ l-uċuħ ta 'barra b'artab, damp drapp. Tużax prodotti tat-tindif li joborxu jew spondi tal-għorik, għax jistgħu jagħmlu ħsara lill-finitura.
3. Intern: Imsaħ il-ħitan ta 'ġewwa b'adamp cloth and mild detergent. For stubborn food residue, a non-abrasive oven cleaner designed for small appliances can be used, following the product instructions. Ensure all cleaner residue is removed.
4. Aċċessorji: The baking tray, grill rack, and tongs can be washed in warm, soapy water. Rinse thoroughly and dry completely before storing or reusing.
5. Tgħaddasx l-unità tal-forn fl-ilma jew fi kwalunkwe likwidu ieħor.

Ħażna

When not in use, ensure the oven is clean and dry. Store it in a cool, dry place, away from direct sunlight and moisture. Do not place heavy objects on top of the oven.

6 Issolvi l-problemi

If you encounter issues with your Cecotec Bake&Toast 1090 oven, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Cecotec customer support for further assistance.

7. Speċifikazzjonijiet

Technical details for the Cecotec Bake&Toast 1090 Countertop Oven:

• Isem tal-Mudell: Bake&Toast 1090
• Numru tal-Mudell tal-Oġġett: 03811
• Ditta: Cecotec
• Kapaċità: 10 Litri
• Qawwa: 1000 W
• Kulur: Abjad
• Dimensjonijiet tal-Prodott: 10.63"D x 14.57"W x 8.03"Għ (27 ċm D x 37 ċm W x 20.4 ċm Għ)
• Firxa tat-Temperatura: Sa 230°C
• Timer: Up to 60 minutes with acoustic alarm
• Tip ta' Kontroll: Button Control (Knobs)
• Stil tal-Bieb: Dropdown Door, Double Glazed
• Komponenti Inklużi: Baking tray, grill, and handle with tongs
• Sors tal-Enerġija: Adapter AC
• Piż tal-oġġett: 6.14 liri (2.78 kg)

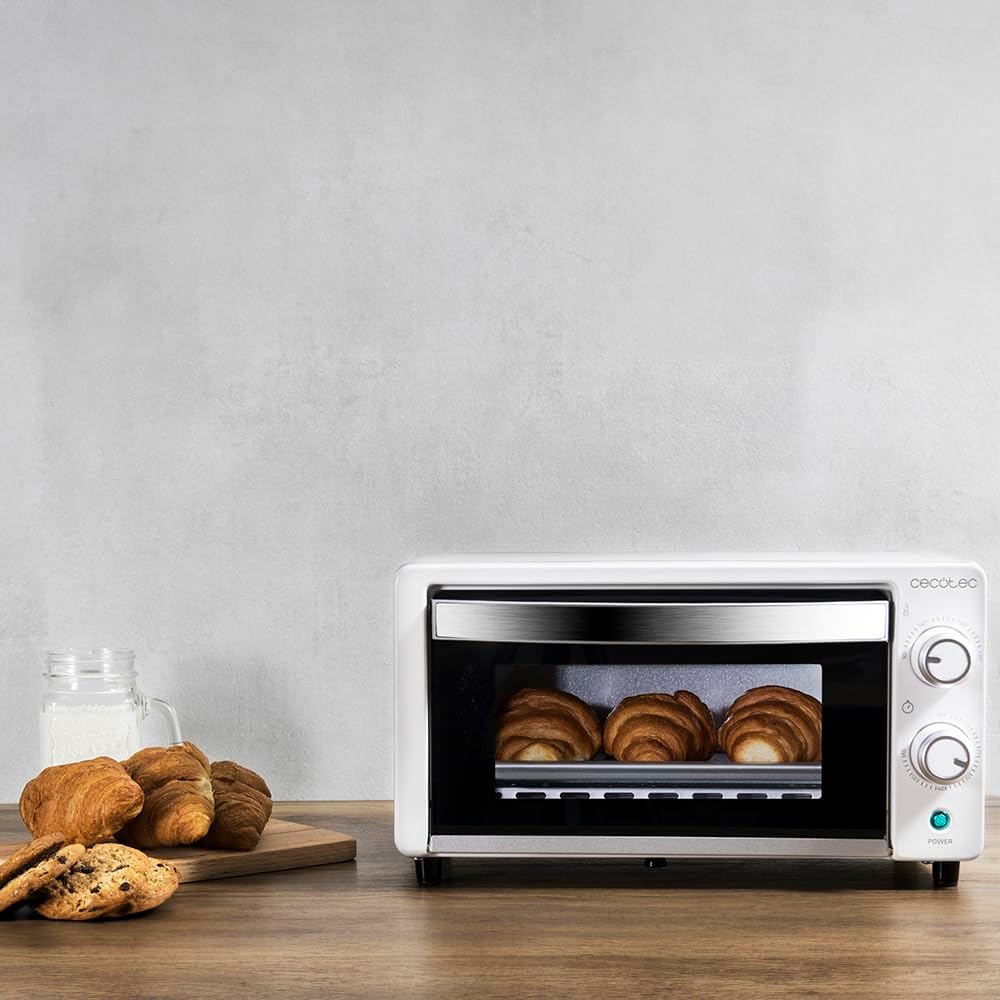

Figura 7.1: The Cecotec Bake&Toast 1090 oven in operation, baking croissants. This image highlights the compact design and internal capacity.

8. Garanzija u Appoġġ

Cecotec products are manufactured to high-quality standards. This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and how to make a claim.

For technical support, spare parts, or warranty inquiries, please contact Cecotec customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.

Tul tad-Disponibbiltà tal-Partijiet Spare tal-UE: 10 Snin
