1. Introduzzjoni
This manual provides essential information for the safe and efficient use of your Cecotec Bolero Hexa M236000 Built-in Multifunction Oven. Please read all instructions carefully before installation and operation, and retain this manual for future reference.
The Cecotec Bolero Hexa M236000 is a 70-liter capacity built-in oven designed for versatile cooking. It features 6 cooking functions, a Cooling Fan system, a programmable timer, and Steam Base XXL technology for steam-assisted cooking and cleaning. The oven is equipped with a triple-glazed door for safety and energy efficiency, and operates with a powerful 2800 W heating element.
Figura 1: Quddiem view of the Cecotec Bolero Hexa M236000 oven.
2. Istruzzjonijiet tas-Sigurtà
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury. This oven is intended for domestic use only.
- Ensure the oven is correctly installed by a qualified technician before first use.
- Tmissx uċuħ sħan. Uża ingwanti tal-forn jew pot holders.
- Issorvelja lit-tfal meta l-forn ikun qed jintuża.
- Tużax prodotti tat-tindif li joborxu jew barraxa tal-metall li jaqtgħu biex tnaddaf il-ħġieġ tal-bieba tal-forn, għax jistgħu jigrif il-wiċċ, u dan jista' jirriżulta fit-tkissir.
- Skonnettja l-apparat mill-provvista tal-enerġija qabel it-tindif jew il-manutenzjoni.
- Aċċerta ruħek li jkun hemm ventilazzjoni adegwata madwar il-forn waqt it-tħaddim.
- Importanti: This oven does not come with a power plug. Electrical connection must be performed by a qualified electrician with basic electrical knowledge.
3. Setup u Installazzjoni
The Cecotec Bolero Hexa M236000 is a built-in oven. Proper installation is crucial for safety and performance.
3.1 Disimballaġġ
Carefully remove the oven from its packaging. Inspect for any damage during transit. Keep packaging materials away from children.
3.2 X'hemm fil-Kaxxa
- 1 x Cecotec Bolero Hexa M236000 Multifunction Oven
- 1 x Manwal għall-Utent
- 1 x Tilar tal-ħami
- 1 x Grill Rack
3.3 Dimensjonijiet u Pożizzjonament
Ensure the cabinet opening meets the required dimensions for a built-in installation. The oven dimensions are approximately 64.5 cm (width) x 67.5 cm (depth) x 66 cm (height).
Figure 2: Oven dimensions for installation.
3.4 Konnessjoni Elettrika
The oven requires a dedicated electrical circuit. The electrical connection must be performed by a qualified electrician in accordance with local regulations. Ensure the power supply matches the specifications listed on the appliance rating plate.
4. Istruzzjonijiet Operattivi
Your Cecotec oven offers various functions for diverse cooking needs.
4.1 Control Panel Overview
Figure 3: Oven control panel.
The control panel consists of three rotary knobs:
- Buttuna tas-Selettur tal-Funzjoni: Used to choose the desired cooking mode.
- Buttuna tat-Timer: Used to set the cooking duration.
- Pum tal-Kontroll tat-Temperatura: Used to set the desired oven temperature (up to 250°C).
4.2 Funzjonijiet tat-tisjir
The oven features 6 cooking functions:
- Defrost: Għat-tidwib ta' ikel iffriżat.
- Konvenzjonali: Elementi tat-tisħin ta' fuq u ta' isfel għal ħami u inkaljar tradizzjonali.
- Sħana tal-qiegħ: Heating from the bottom element only, ideal for crisping bases.
- Konvezzjoni: Uses a fan to circulate hot air, ensuring even cooking and faster results.
- Convection + Grill: Combines fan-assisted cooking with the grill element for browning and crisping.
- Modalità Eko: Energy-efficient cooking mode.
Figura 4: Eżamples of dishes prepared using different oven functions.
4.3 L-użu tat-Timer
The timer allows you to set a specific cooking duration. Turn the Timer Knob to the desired time. The oven will automatically switch off once the set time has elapsed, preventing overcooking.
Figure 5: Detail of the timer knob.
4.4 Steam Assist Function
The Steam Assist function uses the Steam Base XXL to introduce steam during cooking, resulting in dishes with crispy exteriors and juicy interiors.
- Locate the Steam Base XXL at the bottom of the oven cavity.
- Pour up to 0.8 liters of water into the Steam Base XXL.
- Select a cooking function that benefits from steam (e.g., Convection).
- Issettja t-temperatura mixtieqa u l-ħin tat-tisjir.

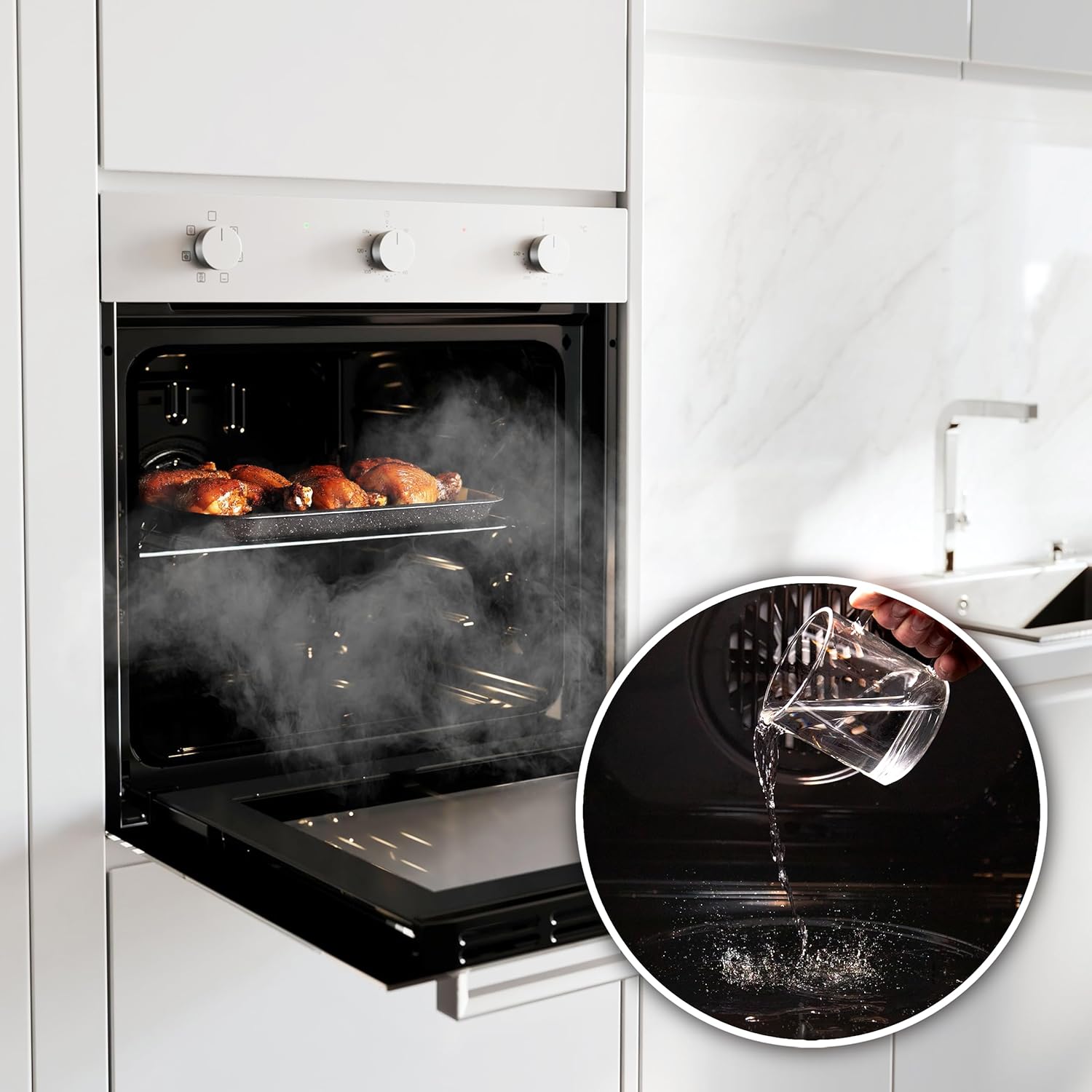

Figure 6: Using the Steam Base XXL for steam-assisted cooking.
4.5 Fann li jkessaħ
The integrated Cooling Fan system ensures optimal cooling of the oven during and after cooking, contributing to the appliance's longevity and user safety by keeping external surfaces cooler.
Figure 7: Internal cooling fan.
5. Manutenzjoni u Tindif
Tindif u manutenzjoni regolari jiżguraw il-lonġevità u l-prestazzjoni ottimali tal-forn tiegħek.
5.1 Tindif Ġenerali
- Dejjem kun żgur li l-forn ikun berred u skonnettjat mill-provvista tal-enerġija qabel ma tnaddaf.
- Naddaf l-uċuħ ta’ ġewwa u ta’ barra b’ċarruta ratba u deterġent ħafif.
- Avoid abrasive cleaners, scouring pads, or harsh chemicals that can damage surfaces.
- The baking tray and grill rack can be washed with warm soapy water.
5.2 Funzjoni Steam EasyClean
The Steam EasyClean function utilizes steam to loosen baked-on food residues, making manual cleaning easier.
- Kun żgur li l-forn jibred.
- Pour approximately 0.8 liters of water into the Steam Base XXL.
- Select the Steam EasyClean function (refer to your oven's specific function settings).
- Allow the cycle to complete. The steam will soften dirt and grease.
- Once the oven has cooled, wipe the interior with a soft cloth to remove loosened residues.
Figure 8: Oven interior before and after using Steam EasyClean.
6 Issolvi l-problemi
If you encounter issues with your oven, refer to the following common troubleshooting steps. For problems not listed here, contact customer support.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-forn ma jixgħelx | No power supply; Door not closed properly; Timer not set. | Check power connection; Ensure door is fully closed; Set the timer. |
| Tisjir irregolari | Incorrect temperature/function; Overcrowding the oven; Food placed too close to heating elements. | Adjust temperature/function; Use appropriate tray positions; Avoid overcrowding. |
| Id-dawl tal-forn ma jaħdimx | Il-bozza teħtieġ sostituzzjoni. | Consult a qualified technician for bulb replacement. |
| Duħħan eċċessiv waqt it-tisjir | Food spills or grease buildup; High-fat food. | Clean oven interior thoroughly; Use a baking tray with higher sides for fatty foods. |
7. Speċifikazzjonijiet
Detailed technical specifications for the Cecotec Bolero Hexa M236000 oven.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Cecotec |
| Numru tal-Mudell | 04728 |
| Dimensjonijiet tal-Prodott (W x D x H) | 64.5 x 67.5 x 66 ċm |
| Piż | 1 kg |
| Kapaċità | 70 Litri |
| Qawwa | 2800 W |
| Klassi tal-Enerġija | A |
| Metodu tat-Tisħin | Konduzzjoni |
| Tip ta' Fjuwil | Elettriku |
| Tip ta' Installazzjoni | Mibnija fil- |
| Funzjonijiet | Defrost, Conventional, Bottom Heat, Convection, Convection + Grill, Eco Mode |
| Karatteristiċi Speċjali | Cooling Fan, Timer, Steam Base XXL, Triple Glazed Door |
| Pajjiż ta' Oriġini | Spanja |
Figure 9: Energy Class A rating for efficiency.
Figure 10: 70-liter oven capacity.
8. Garanzija u Appoġġ
8.1 Informazzjoni dwar Garanzija
The Cecotec Bolero Hexa M236000 oven comes with a minimum manufacturer's warranty of 36 xhur mid-data tax-xiri. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
8.2 Appoġġ għall-Klijent
For technical assistance, spare parts, or warranty inquiries, please contact Cecotec customer support or visit their official websit:
