Pretul ROTI-20P2K Manwal għall-Utent tal-Kit tal-Martell Rotary Bla Fili

Introduzzjoni

Thank you for choosing the Pretul ROTI-20P2K Cordless Rotary Hammer Kit. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

The Pretul ROTI-20P2K is a versatile 20V cordless rotary hammer designed for various drilling and hammering tasks. It features two mechanical speeds, 21 levels of torque adjustment, an LED light, and a belt clip for convenience.

Informazzjoni Ġenerali dwar is-Sigurtà

Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża għodod tal-enerġija biex tnaqqas ir-riskju ta’ nar, xokk elettriku, u korriment personali.

• Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol tiegħek nadifa u mdawwla sew. Żoni imbarazzati jew mudlama jistiednu inċidenti. Tħaddimx għodod tal-enerġija f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab fjammabbli.
• Sigurtà Elettrika: Evita kuntatt tal-ġisem ma' uċuħ imqabbdin mal-art jew mal-art. Tesponix għodod tal-elettriku għax-xita jew għal kundizzjonijiet imxarrbin.
• Sigurtà Personali: Dejjem ilbes protezzjoni għall-għajnejn. Uża protezzjoni għas-smigħ meta tħaddem l-għodda għal perjodi twal. Ilbes sew; evita ħwejjeġ jew ġojjelli laxki. Assigura xagħrek twil.
• Użu u Kura tal-Għodda: Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek. Skonnettja l-pakkett tal-batterija mill-għodda tal-enerġija qabel ma tagħmel xi aġġustamenti, tibdel l-aċċessorji, jew taħżen l-għodda tal-enerġija.
• Użu u Kura tal-Pakkett tal-Batterija: Recharge only with the charger specified by the manufacturer. Do not use battery packs or tools that are damaged or modified.

X'inhu Inkluż

Your Pretul ROTI-20P2K kit comes with a comprehensive set of tools and accessories to get you started. Please check the contents of your package against the list below:

Figura 1: Fuqview of the Pretul ROTI-20P2K Cordless Rotary Hammer Kit and its included accessories. The image displays the rotary hammer, battery, charger, and various drill bits and fasteners neatly organized in the carrying case.

• ROTI-20P2K Rotary Hammer (1X)
• 2 Ah Lithium Ion Battery (BAT-20PR) (1X)
• Charger (CAR-20PR) (1X)
• 2" (50 mm) Bits: (1) PH1, (2) PH2, 1/4", 5/16" (5X total)
• 1" (25 mm) Bits: (1) PH1, (2) PH2, 1/4", 5/16" (5X total)
• Concrete Drill Bits: 3/16" x 4", 1/4" x 4", 5/16" x 4", 3/8" x 5" (4X)
• Metal Drill Bits: 3/32", 1/8", 3/16", 1/4" (4X)
• Wood Drill Bits: 5/32", 3/16", 7/32", 1/4" (4X)
• Glass Drill Bits: 3/16", 1/4", 5/16" (3X)
• Flat Wood Drill Bits: 1/2", 3/4", 1" (3X)
• Magnetic Nut Setters for Drill: 1/4", 5/16", 3/8" (3X)
• Magnetic Extension: 6 cm (1X)
• Flexible Extension: 30 cm (1X)
• #6 Screws (20X)
• #8 Screws (20X)
• Plastic Anchors 1/4" (20X)
• Plastic Anchors 3/8" (20X)

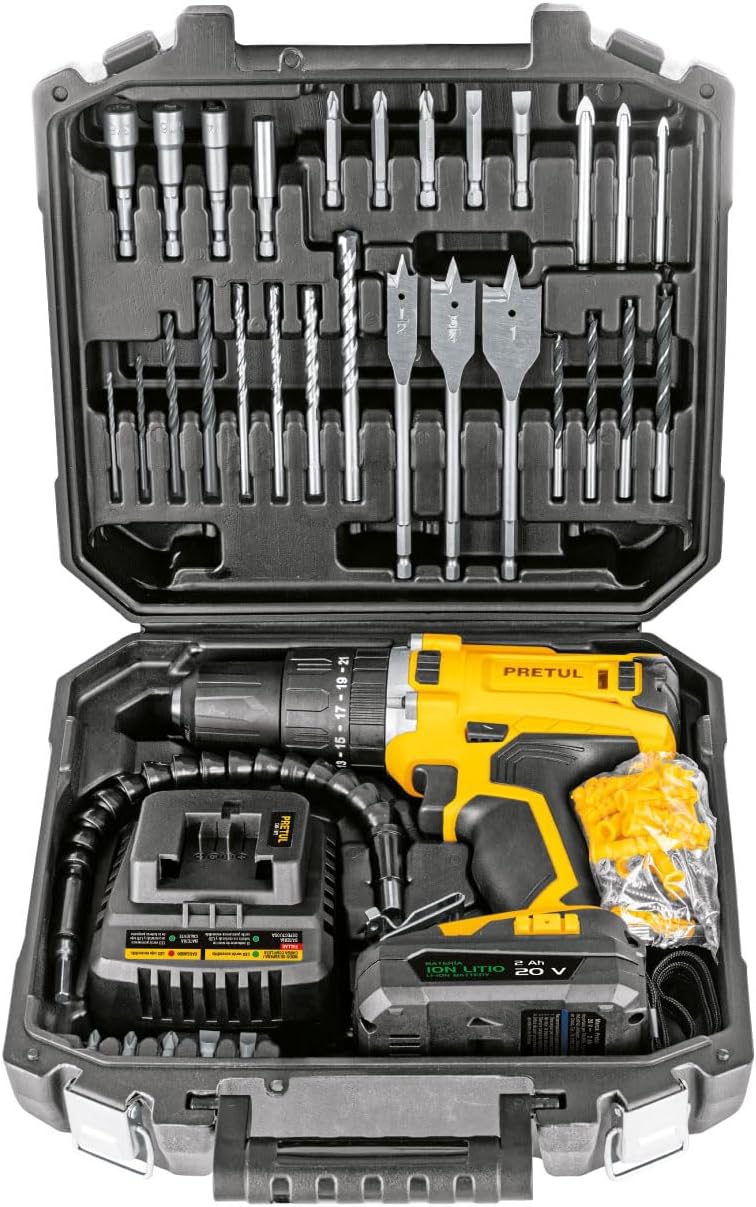

Figura 2: The Pretul ROTI-20P2K Cordless Rotary Hammer Kit neatly stored within its durable plastic carrying case, showcasing the drill, battery, charger, and various accessories.

Karatteristiċi u Komponenti tal-Prodott

Familiarize yourself with the key features and components of your rotary hammer:

Figura 3: Key components of the Pretul ROTI-20P2K rotary hammer. Labels indicate the quick-change chuck, torque selector collar (21+3 functions), direction change button, LED light, charge indicator, and belt clip. The tool is designed to be lightweight and portable.

• Chuck li Jibdel Malajr: Allows for fast and easy bit changes.
• Torque Selector Collar: Features 21 levels of torque adjustment plus 3 additional functions (drilling, hammer drilling, and driving).
• Direction Change Button: Controls the rotation direction (forward/reverse).
• Dawl LED: Idawwal iż-żona tax-xogħol għal viżibilità aħjar.
• Indikatur tal-Ħlas: Juri l-livell ta' ċarġ li fadal tal-batterija.
• Clip taċ-ċinturin: Conveniently attach the tool to your belt for easy access.
• Two Mechanical Speeds: Provides versatility for different applications.

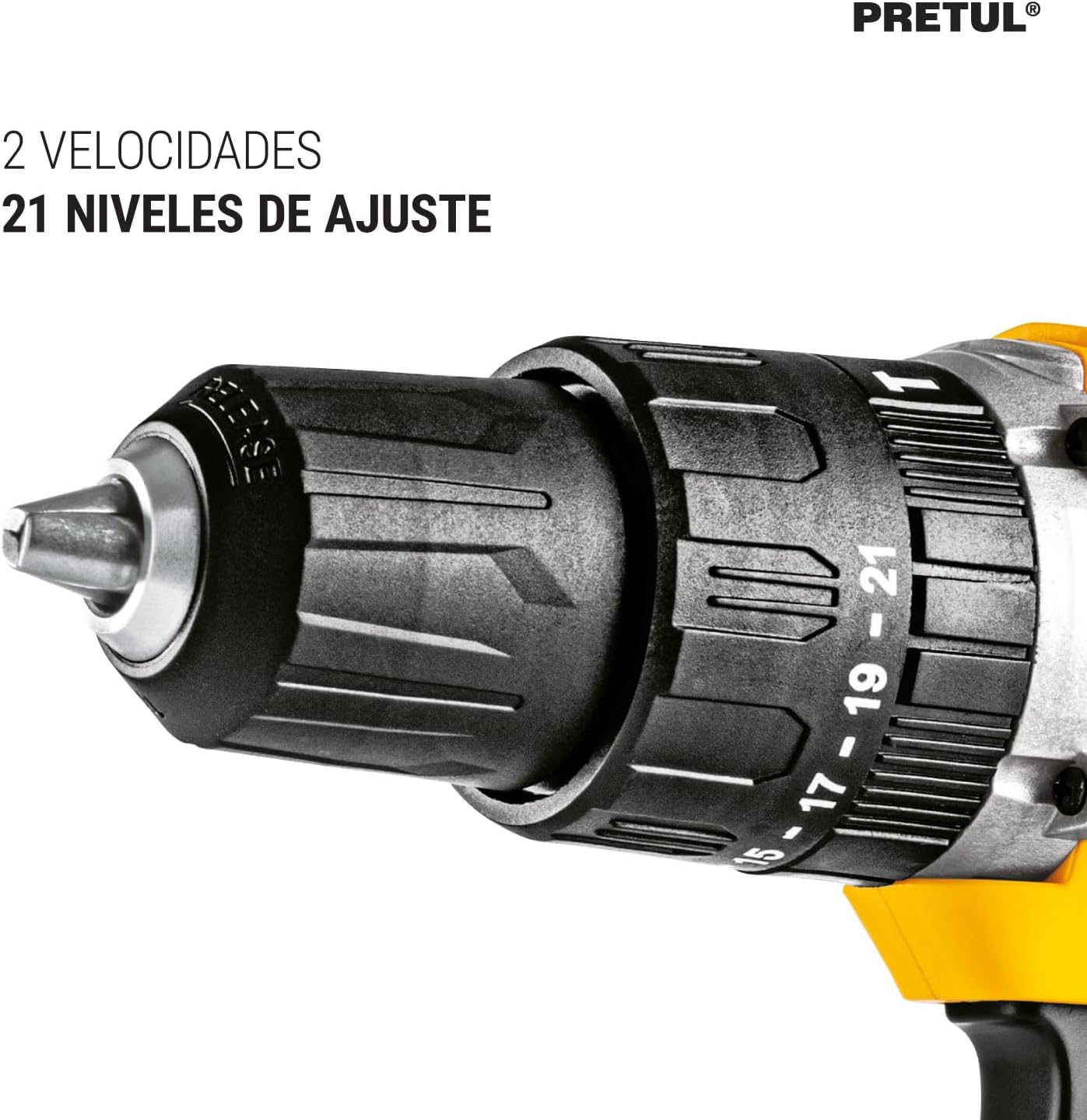

Figura 4: A dettaljata view of the chuck and torque adjustment ring on the Pretul ROTI-20P2K, highlighting the 21 adjustment levels and the two mechanical speed settings.

Setup

1. Iċċarġjar tal-batterija

Before first use, fully charge the 2 Ah Lithium Ion battery (BAT-20PR). The charger (CAR-20PR) is designed for this specific battery.

1. Connect the charger to a standard electrical outlet (127 V / 60 Hz).
2. Żerżaq il-pakkett tal-batterija fuq il-ċarġer sakemm tikklikkja f'postu.
3. The charger's indicator light will show the charging status. A full charge typically takes approximately 55 minutes.
4. Ladarba tkun iċċarġjata kompletament, skonnettja l-batterija mill-ċarġer.

2. Installazzjoni/Tneħħija tal-Batterija

• Biex Tinstalla: Align the battery pack with the receptacle on the bottom of the tool handle. Slide the battery into place until it locks securely with the metal snaps.
• Biex tneħħi: Press the battery release buttons (usually on the sides of the battery pack) and slide the battery out of the tool.

3. Installing/Removing Drill Bits and Accessories

• Biex Tinstalla: Rotate the chuck counter-clockwise to open the jaws. Insert the desired drill bit or accessory fully into the chuck. Rotate the chuck clockwise to tighten the jaws securely around the bit. Ensure the bit is centered and firmly held.
• Biex tneħħi: Dawwar iċ-chuck kontra l-arloġġ biex ittaffi x-xedaq u tneħħi l-bit.

Istruzzjonijiet Operattivi

1. Tixgħil / Mitfi

L-għodda tiġi attivata billi tagħfas is-swiċċ tal-grillu. Il-veloċità hija varjabbli skont kemm ikun ippressat il-grillu.

2. Għażla tal-Veloċità

The ROTI-20P2K features two mechanical speed settings:

• Low Speed (Level 1: 0 - 350 rpm): Ideal for high-torque applications, such as driving screws or drilling large diameter holes in softer materials.
• High Speed (Level 2: 0 - 1,500 rpm): Suitable for faster drilling in wood, metal, or for smaller diameter holes.

To change speed, use the speed selector switch located on top of the tool. Ensure the tool is stopped before changing speeds.

3. Aġġustament tat-torque

The torque selector collar allows you to set the desired torque for driving screws or select drilling modes.

• Rotate the collar to select one of the 21 torque settings. Lower numbers are for smaller screws or softer materials, higher numbers for larger screws or harder materials.
• Beyond the torque settings, there are typically three additional modes:
  • Drill Mode (Drill Bit Icon): For general drilling without clutch action.
  • Modalità tat-Tħaffir bil-Martell (Ikona tal-Martell): For drilling into masonry, concrete, or brick with impact action.
  • Drive Mode (Screw Icon): For driving screws with clutch action.

4. Kontroll tad-Direzzjoni

The forward/reverse lever (direction change button) is located above the trigger. Push it to the left for forward rotation (drilling/driving) and to the right for reverse rotation (removing screws or backing out bits). Center position locks the trigger for safety.

5. L-użu tad-Dawl LED

The integrated LED light automatically illuminates the work area when the trigger is pressed, providing better visibility in dimly lit spaces.

Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-għodda tiegħek.

1. Tindif

• Dejjem skonnettja l-pakkett tal-batterija qabel ma tnaddaf.
• Uża nadif, damp drapp biex timsaħ il-barra tal-għodda. Tużax kimiċi ħarxa jew prodotti tat-tindif li joborxu.
• Keep the ventilation openings free from dust and debris to prevent overheating. Use compressed air if necessary.
• Naddaf il-ponot taċ-chuck regolarment biex tiżgura li l-bits jaqbdu sew.

2. Kura tal-batterija

• Aħżen il-pakketti tal-batteriji f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Do not store battery packs in a discharged state for extended periods. Recharge them periodically if not in use.
• Tippruvax tiżżarma jew timmodifika l-pakkett tal-batterija.

3. Ħażna

When not in use, store the tool, battery, and charger in their original carrying case in a secure, dry place out of reach of children.

Issolvi l-problemi

If you encounter issues with your Pretul ROTI-20P2K, refer to the following common problems and solutions:

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Speċifikazzjonijiet

Detailed technical specifications for the Pretul ROTI-20P2K Cordless Rotary Hammer Kit:

Figura 5: Visual representation of the Pretul ROTI-20P2K's dimensions and key performance characteristics, including chuck size, speeds, blows per minute, torque levels, and battery recharge time.

Garanzija u Appoġġ

Pretul products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Pretul websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba ta' garanzija.
