1. Introduzzjoni
Thank you for choosing the JOYOR Electric Scooter S10-S. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new electric scooter. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

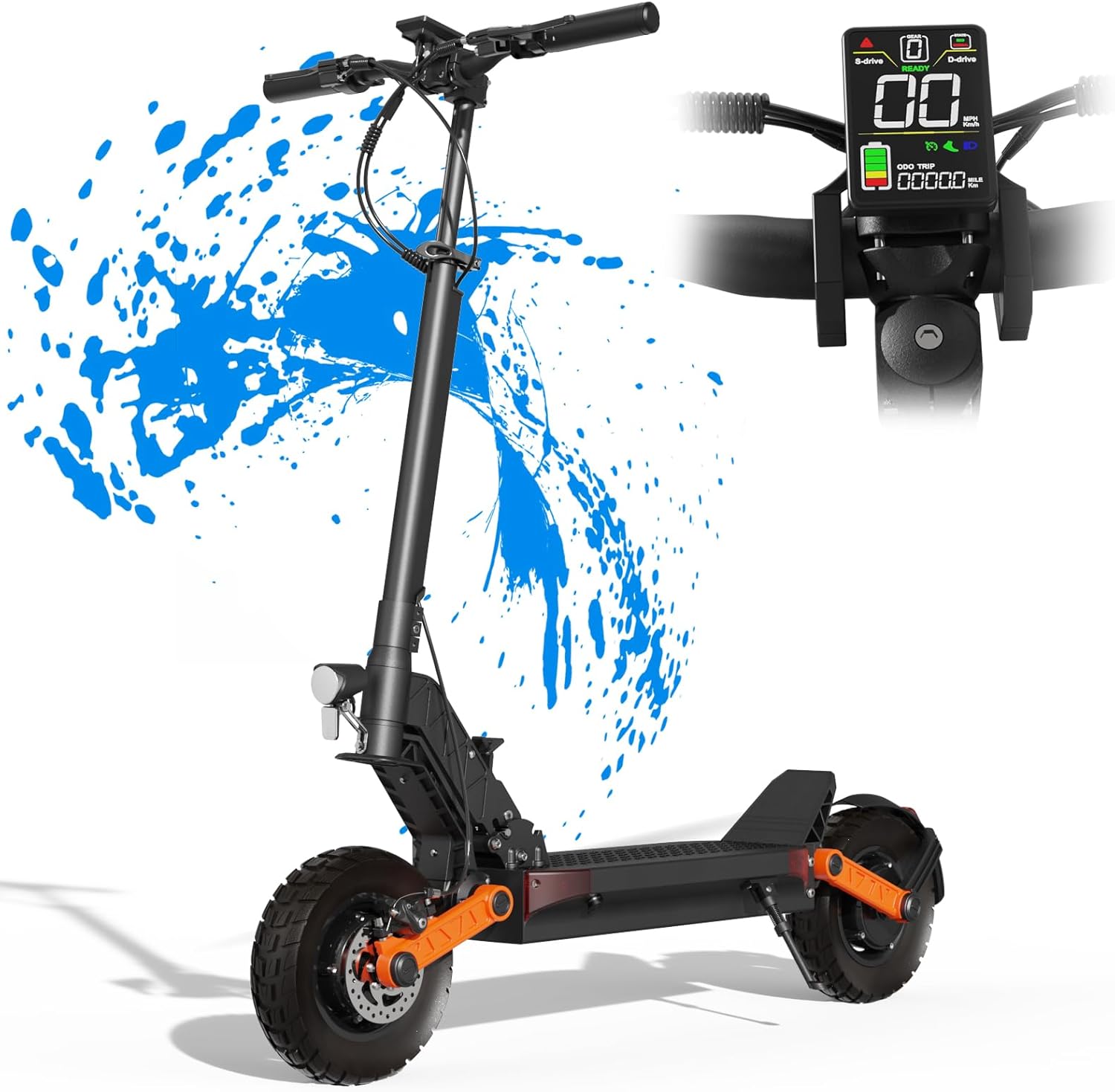

Figure 1: JOYOR S10-S Electric Scooter. This image shows the overall design of the scooter, highlighting its robust frame and off-road tires.
2. Linji Gwida dwar is-Sigurtà
Is-sigurtà tiegħek hija importanti ħafna. Dejjem segwi l-linji gwida li ġejjin:
- Dejjem ilbes elmu u tagħmir protettiv xieraq (protezzjoni għall-irkopptejn, protezzjoni għall-minkeb) meta tkun qed issuq.
- Iffamiljarizza ruħek mal-liġijiet u r-regolamenti lokali dwar l-użu tal-iskuter elettriku.
- Do not ride in heavy rain, snow, or icy conditions. The scooter is not designed for prolonged exposure to water.
- Żomm veloċità u distanza sikura minn vetturi oħra u persuni mexjin.
- Perform a pre-ride check: ensure brakes are functional, tires are properly inflated, and all components are secure.
- Evita rkib taħt l-influwenza ta 'alkoħol jew drogi.
- Il-kapaċità massima tat-tagħbija hija ta' 265 lbs (120 kg). Teċċedix dan il-limitu.
- Children under the age of 16 should not operate this scooter.
3. Kontenut tal-Pakkett
Upon unboxing, ensure all items listed below are present:
- JOYOR Electric Scooter S10-S (main unit)
- Ċarġer tal
- Manwal għall-Utent (dan id-dokument)
- Installation Tools (Allen key/hex key tool)
- Tubu ta' ġewwa żejjed
4. Twaqqif u Assemblaġġ
The JOYOR S10-S comes mostly pre-assembled. Follow these steps for final assembly:
- Unboxing: Carefully remove the scooter from its packaging. The box is designed to be opened from the bottom for easier removal due to the scooter's weight. Remove all protective foam and plastic wrapping.
- Kif tiftaħ l-iskuter:
- Step on the scooter's deck with one foot.
- Push the steering column forward firmly with your hands until it locks into the upright position.
- Ensure the safety latch on the folding mechanism is securely engaged.
- Attaching the Handlebar:
- Loosen the top screw on the handlebar stem until the extension tube can be moved freely.
- Pull the extension tube upwards to your desired height.
- Tighten the top screw to secure the handlebar in place.
- Attach the handlebars to the stem using the provided screws and Allen key. Ensure all screws are tightened securely.
- Ħlas Inizjali: Before your first ride, fully charge the scooter's battery. Refer to the "Battery Performance & Charging" section for details.
- Kontroll tal-Pressjoni tat-Tajers: Verify that the tires are inflated to the recommended pressure.
Figure 2: One-step folding system. This image illustrates the scooter in its folded state, highlighting its compact design for transport and storage.
Figure 3: Unfolding Skills. This diagram provides a visual guide on how to properly unfold and secure the scooter's stem.
5. Istruzzjonijiet Operattivi
5.1. Kontrolli u Wiri
The scooter is equipped with an intelligent LCD meter that displays vital information and controls.
Figure 4: Intelligent LCD Instrument. This image shows the scooter's handlebar with the LCD display, indicating controls for horn, turn signals, smart meter, headlight switch, and throttle switch.
- LCD Meter: Shows instant speed, speed mode, battery life, lighting status, and trip distance.
- Buttuna tal-Qawwa: Agħfas u żomm biex tixgħel/titfi l-iskuter.
- Buttuna tal-Modalità: Cycle through different speed modes (e.g., Eco, Standard, Sport).
- Lieva tat-Throttle: Jinsab fuq il-manubriju tal-lemin, jikkontrolla l-aċċelerazzjoni.
- Lievi tal-brejk: Located on both handlebars, activate the hydraulic disc brakes.
- Buttuna tal-Qrun: Jattiva l-ħorn.
- Swiċċ tad-Dawl: Turns headlights and taillights on/off.
- Turn Signal Buttons: Activate left and right turn indicators.
5.2. Ibda l-Iskuter
To start riding, ensure the scooter is powered on. The S10-S typically requires a kick-start in Eco mode (default) before the throttle engages. For immediate throttle response, you may need to adjust P-settings (refer to advanced settings in the video for details, but proceed with caution).
5.3. Riding Modes & Acceleration
The S10-S features dual 1000W brushless motors, providing powerful acceleration and climbing ability. It can reach speeds up to 37 MPH (60 km/h) and handle inclines of up to 30 degrees.
- Single Motor Mode: Default operation, suitable for general cruising and maximizing range.
- Dual Motor Mode: Press and hold the '+' button on the control panel to activate both motors for maximum power and acceleration. This mode is ideal for climbing steep hills or achieving top speeds.
Figure 5: Powerful Brushless Motors. This image highlights the dual motor setup, emphasizing the scooter's power and ability to handle inclines and heavy loads.
Video 1: JOYOR S10-S Electric Scooter OverviewDan il-filmat jipprovdi ħarsa ġenerali lejnview of the S10-S electric scooter, showcasing its features and capabilities in various environments.
6. Battery Performance & Charging
The S10-S is equipped with a high-capacity 60V 18Ah lithium battery, offering a long range of up to 54 miles (85 km) under specific road and weather conditions. Actual range may vary based on rider weight, terrain, speed, and riding mode.
- Ħin tal-Iċċarġjar: Ċarġ sħiħ tipikament jieħu 10-12 sigħat.
- Proċedura tal-Iċċarġjar:
- Kun żgur li l-iskuter ikun mitfi qabel ma tiċċarġjah.
- Locate the charging port (usually on the side of the deck).
- Qabbad il-ċarġer mal-iskuter, imbagħad daħħalh f'sokit tal-elettriku.
- Id-dawl indikatur tal-ċarġer juri l-istatus tal-iċċarġjar (eż., aħmar għall-iċċarġjar, aħdar għal iċċarġjat kompletament).
- Tiċċarġjax iżżejjed il-batterija. Skonnettja l-ċarġer ladarba tkun iċċarġjata kompletament.
Figure 6: High-Performance Lithium Battery. This image displays the internal battery pack, emphasizing its capacity and long-lasting performance.
7. Suspension & Comfort
The S10-S features excellent front and rear shock absorbers, providing maximum rider comfort even on uneven road conditions. The 10-inch pneumatic off-road tires with deeper lines offer superior anti-seismic and anti-slip performance.
Figure 7: Dual Suspension System. This image highlights the front and rear suspension components, demonstrating their role in absorbing shocks for a smoother ride.
8. Handling & Ergonomics
The scooter is designed for a comfortable and stable riding experience. The wide deck and anti-skid pedal provide ample foot space and grip. The handlebar height is adjustable to suit different riders.
- Deck Design: Wide and anti-skid for secure footing.
- Manubriju: Adjustable height for ergonomic riding.
- Dawl: Equipped with LED headlights and taillights with left and right steering indicators for safe night riding. The stoplight automatically activates during braking.

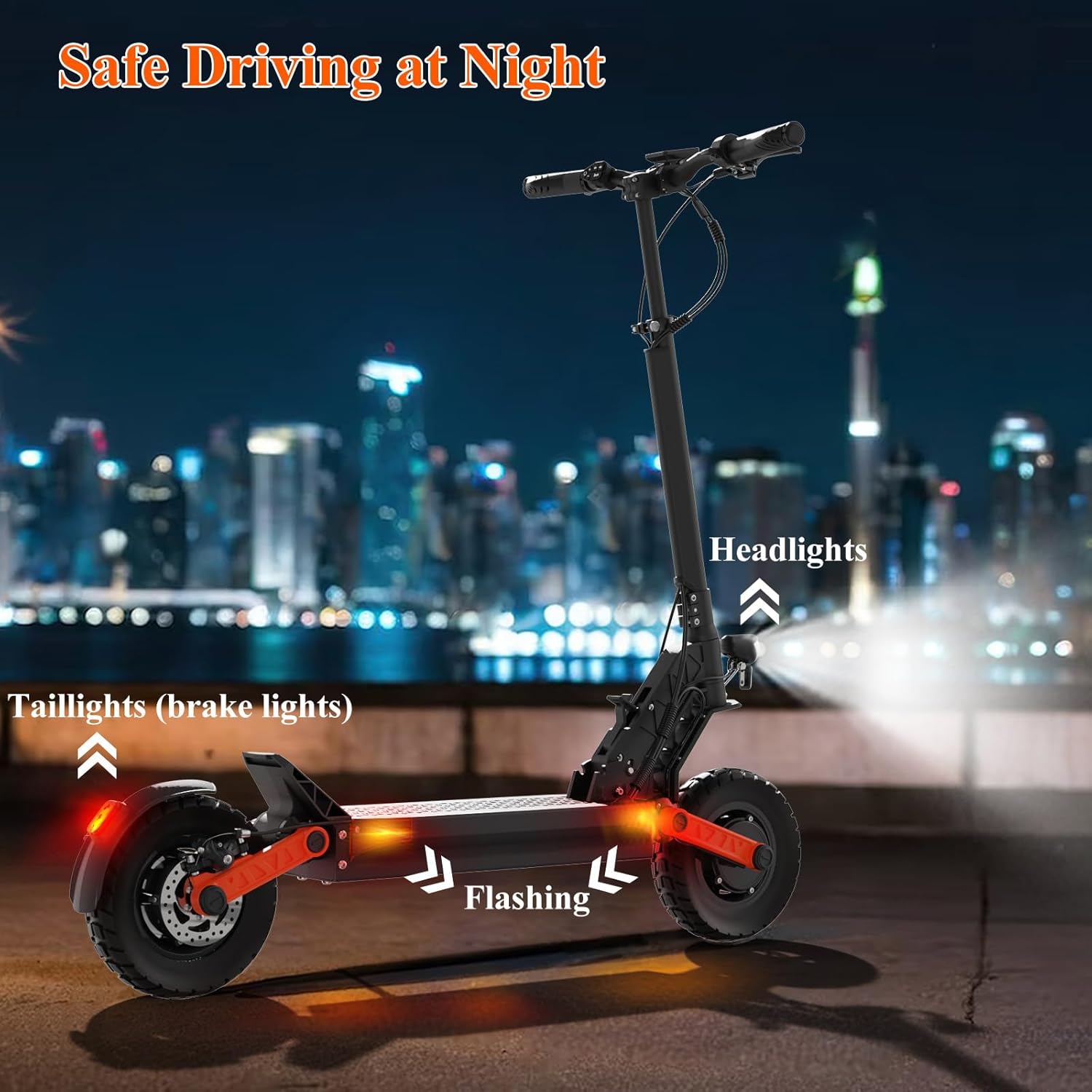

Figure 8: Safe Driving at Night. This image showcases the scooter's integrated LED headlights, taillights, and flashing side lights, ensuring visibility during nighttime rides.
9. Brakes & Tires
The S10-S is equipped with a hydraulic brake system for quick and responsive stopping power, enhancing safety. The 10-inch pneumatic off-road tires are designed for various terrains.
- Sistema tal-Ibbrejkjar: Hydraulic disc brakes on both front and rear wheels.
- Tajers: 10-inch pneumatic solid tires, providing excellent grip and shock absorption.
10. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tal-iskuter tiegħek.
- Tindif: Imsaħ l-iskuter bir-reklamaramp drapp. Tużax ġettijiet tal-ilma bi pressjoni għolja jew tgħaddasx l-iskuter fl-ilma.
- Pressjoni tat-Tajers: Check tire pressure regularly and inflate to the recommended PSI (refer to tire sidewall for exact value).
- Kontroll tal-Brejk: Periodically inspect brake pads and discs for wear. Ensure brake levers operate smoothly.
- Qafliet: Iċċekkja l-viti u l-boltijiet kollha għal sikuri qabel kull rikba.
- Ħażna: Aħżen l-iskuter f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
11 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-iskuter ma jixgħelx | Batterija baxxa; Konnessjonijiet maħlula | Charge battery; Check all cable connections. |
| Firxa jew qawwa mnaqqsa | Low tire pressure; Overloaded; Battery degradation | Inflate tires; Reduce load; Contact support for battery check. |
| Brejkijiet mhux effettivi | Worn brake pads; Low hydraulic fluid; Misaligned disc | Inspect/replace pads; Check fluid level; Adjust disc alignment. |
| Ħsejjes mhux tas-soltu waqt is-sewqan | Loose components; Debris in wheels/brakes | Check all fasteners; Inspect wheels/brakes for foreign objects. |
12. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | JOYOR |
| Isem tal-Mudell | S10-S |
| Qawwa tal-Mutur | Dual 1000W Brushless Motors (2000W total) |
| Veloċità Massima | Sa 37 MPH (60 km/siegħa) |
| Batterija | Batterija tal-litju 60V 18Ah |
| Medda Max | Sa 54-il Mil (85 km) |
| Ħin tal-Iċċarġjar | 10-12 Sigħat |
| Tagħbija Max | 265 Lira (120 kg) |
| Tajers | 10-inch Pneumatic Off-Road Tires |
| Sospensjoni | Front and Rear Dual Shock Absorption |
| Stil tal-Brejk | Hydraulic Disc Brakes (Front & Rear) |
| Mekkaniżmu li jintwew | One-step folding system |
| Dimensjonijiet tal-Prodott (Miftuħ) | 48"T x 24"W x 48"Għ |
| Piż tal-oġġett | 59.5 Lira (27 kg) |
| Materjal tal-qafas | Aluminju |
| Karatteristika Speċjali | Jintewa |
13. Garanzija u Appoġġ
JOYOR offers a warranty for different parts of the scooter, ranging from 3 months to 1 year. Please refer to the detailed warranty information provided in your user manual for specific terms and conditions.
For technical support, warranty claims, or any inquiries, please contact JOYOR customer service through the retailer where you purchased the product or visit the official JOYOR websit.
Appoġġ onlajn: Visit the JOYOR Store on Amazon
