Vente-unique ELEVATIO IV Bunk Bed Instruction Manual

1. Introduzzjoni

Thank you for choosing the Vente-unique ELEVATIO IV Bunk Bed. This manual provides essential information for the safe assembly, use, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The ELEVATIO IV is a modern bunk bed designed with a steel frame, featuring an upper bunk of 90 x 190 cm and a lower bunk of 140 x 190 cm. It includes two metal slatted bases and a reversible ladder, offering a space-saving solution with a stylish black and red glossy finish.

Image 1: Assembled Vente-unique ELEVATIO IV Bunk Bed with bedding.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA: Jekk ma ssegwix dawn l-istruzzjonijiet ta’ sigurtà, dan jista’ jirriżulta fi korriment serju.

• The upper bunk is not suitable for children under 6 years of age.
• This bunk bed irid ikun imwaħħal mal-ħajt using the provided hardware to prevent tipping.
• Kapaċità massima tal-piż tal-utent: 120 kg for the upper bunk u 240 kg for the lower bunkTeċċedix dawn il-limiti.
• The maximum mattress height for the upper bunk is 15 ċm. Ensure the mattress does not exceed the safety barrier height.
• The safety barrier height for the upper bunk is 32.5 ċm.
• Regularly check all bolts and connections to ensure they are securely tightened.
• Do not allow children to play on or under the bunk bed without supervision.
• Use only mattresses of the specified size: 90 x 190 cm for the upper bunk and 140 x 190 cm for the lower bunk.

3. Kontenut tal-Pakkett

The Vente-unique ELEVATIO IV Bunk Bed is delivered in two packages. Please verify that all components are present and undamaged before beginning assembly.

• Pakkett 1: Approx. 196 cm (W) x 51 cm (D) x 13 cm (H), Weight 30 kg.
• Pakkett 2: Approx. 148 cm (W) x 23 cm (D) x 8 cm (H), Weight 12 kg.
• Includes: Bunk bed frame components (steel), 2 metal slatted bases, reversible ladder, assembly hardware, and wall-fixing kit.
• Mattresses are not included.

4. Istruzzjonijiet ta' Twaqqif u Assemblaġġ

Assembly of the ELEVATIO IV Bunk Bed is required. It is recommended that two adults perform the assembly. Please follow the detailed assembly guide included in your package for step-by-step instructions.

1. Ħoll il-Komponenti: Neħħi l-partijiet kollha mill-imballaġġ bir-reqqa u poġġihom fuq wiċċ nadif u artab biex tevita l-grif. Ivverifika l-partijiet kollha mal-lista tal-partijiet inklużi.
2. Arma qafas: Follow the diagrams in the assembly guide to connect the main frame components using the provided hardware. Do not fully tighten bolts until the entire frame is assembled.
3. Installa Bażijiet bil-Paletti: Secure the metal slatted bases into position for both the upper and lower bunks.
4. Waħħal is-Sellum: The ladder is reversible and can be attached to either side of the bunk bed. Choose your desired side and secure it firmly.
5. It-twaħħil tal-ħajt: This is a critical safety step. Use the provided wall-fixing kit to securely attach the bunk bed to a solid wall. Ensure the wall material is suitable for the fixings. If unsure, consult a professional.
6. Issikkar finali: Once the entire structure is assembled and fixed to the wall, go back and securely tighten all bolts and connections.

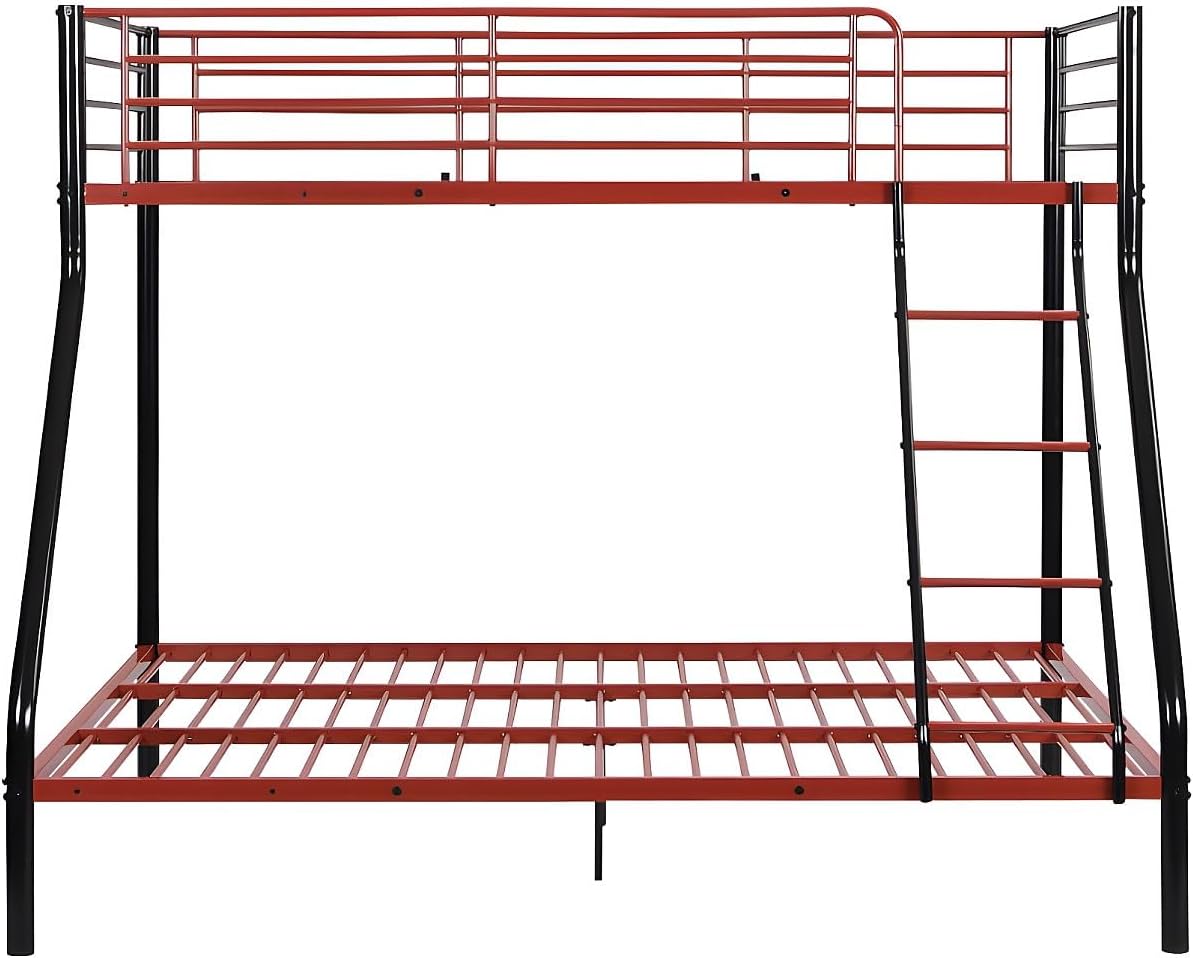

Stampa 2: Quddiem view of the ELEVATIO IV Bunk Bed frame, showing the structure.

Image 3: Detail of the ladder and metal slatted base.

5. Linji Gwida għall-Użu

• Ensure mattresses are correctly sized (90 x 190 cm for upper, 140 x 190 cm for lower) and do not exceed the maximum height of 15 cm for the upper bunk.
• Always use the ladder for access to the upper bunk. Do not jump on or off the bunk bed.
• Do not attach or hang items from any part of the bunk bed that are not designed for use with the bed, such as ropes, belts, or other items that could pose a strangulation hazard.
• Periodically check the stability of the bed and the wall fixings.

6. Manutenzjoni

• Tindif: Imsaħ il-qafas tal-metall b'ċarruta ratba u damp cloth. Avoid using abrasive cleaners or harsh chemicals, as these can damage the glossy finish.
• Spezzjonijiet: Regularly inspect all structural components, bolts, and connections for tightness. Re-tighten any loose hardware as needed.
• Ħsara: If any part of the bunk bed becomes damaged, discontinue use immediately and contact customer support for replacement parts or advice.

7 Issolvi l-problemi

If you encounter any issues with your ELEVATIO IV Bunk Bed, please refer to the following common solutions:

• Ħsejjes ta' tgergir: Check all bolts and connections. Loose hardware is a common cause of squeaking. Tighten all fasteners securely.
• Instabbiltà/Tħawwid: Ensure the bunk bed is properly fixed to the wall as per the assembly instructions. Verify all frame connections are tight. Ensure the bed is on a level surface.
• Partijiet Neqsin: If you find any parts missing during assembly, do not proceed. Contact Vente-unique customer service immediately.

8. Speċifikazzjonijiet

Immaġni 4: Dimensjonali 'l fuqview of the ELEVATIO IV Bunk Bed.

9. Garanzija u Appoġġ

This product is eligible for returns according to the retailer's policy. For specific warranty information, please refer to your purchase documentation or contact Vente-unique customer service directly.

For any questions, missing parts, or assistance with assembly, please contact Vente-unique Specialized Customer Service. Contact details can typically be found on your purchase invoice or the Vente-unique websit.
