Manwal tal-Utent tal-Iskuter Elettriku SuperFuN

1. Informazzjoni Importanti dwar is-Sigurtà

Always wear a helmet and appropriate safety gear when operating the scooter. Ensure you understand local regulations regarding electric scooter use. Do not ride in wet conditions or on slippery surfaces. Avoid riding at night without proper lighting. Always perform a pre-ride inspection.

• Aqra dan il-manwal sew qabel l-ewwel użu.
• Familiarize yourself with all controls and features.
• Kun żgur li l-komponenti kollha huma mwaħħla sew qabel kull rikba.
• Żomm distanza sigura minn vetturi oħra u persuni mexjin.
• Taqbiżx il-limitu massimu ta' piż ta' 220 libbra.

2. Prodott Aktarview

The SuperFuN Electric Scooter is designed for adult use, featuring a powerful 450W motor, solid 8.5-inch tires, and a portable, foldable design. It offers a top speed of 19mph and a maximum range of 17.5 miles.

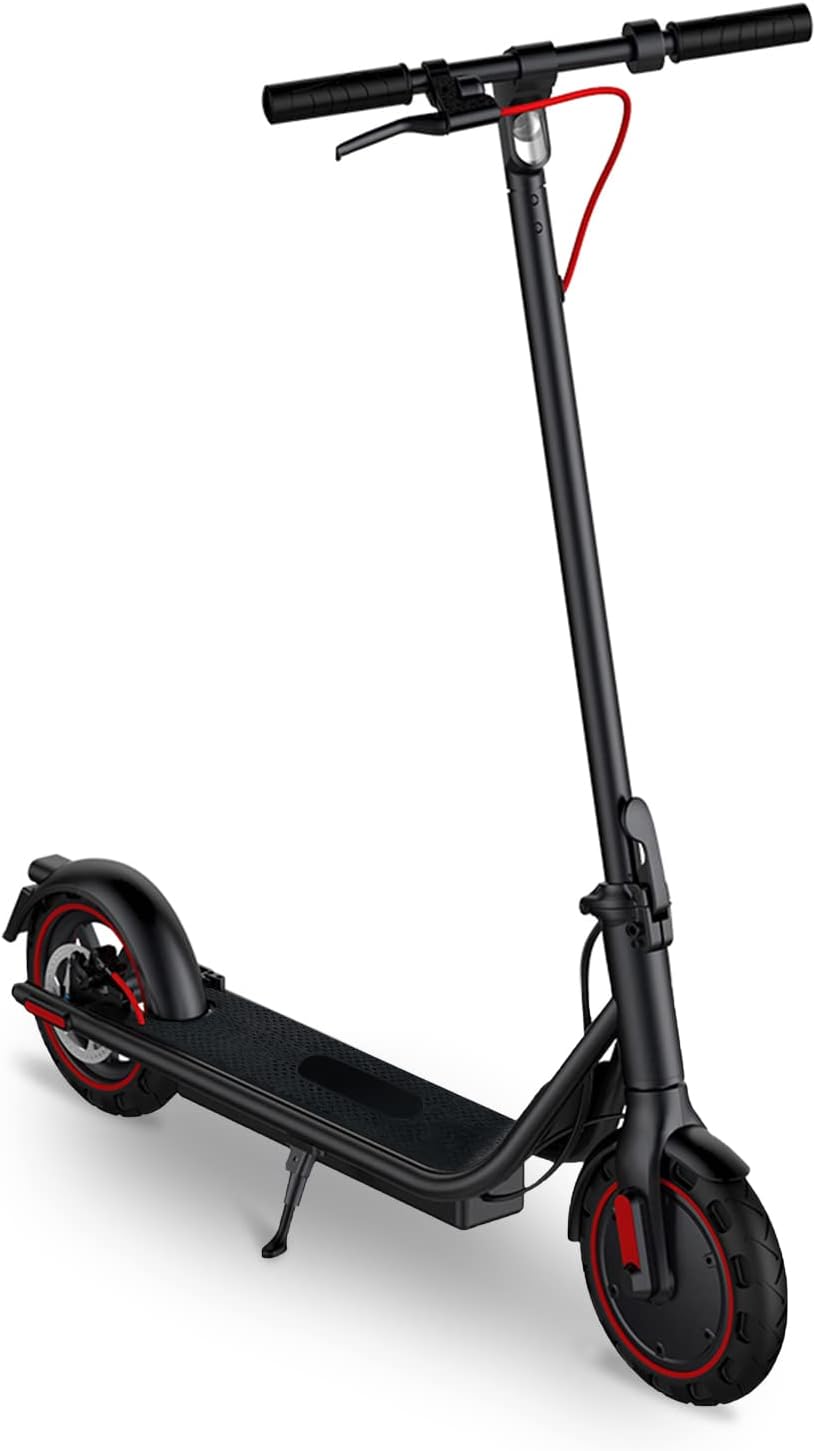

Image: The SuperFuN Electric Scooter in its upright, ready-to-ride position, showcasing its sleek black design and red accents.

Image: An infographic highlighting key features: 450W motor, 18.6 Mph top speed, 4 hours fast charging, and 8.5-inch honeycomb tires.

Image: Close-up of the scooter's smart LED display, showing speed, battery level, and gear shift indicators.

3. Setup u Assemblea

The SuperFuN Electric Scooter comes partially assembled. Follow these steps to complete the setup:

1. Unboxing: Neħħi l-komponenti kollha mill-imballaġġ bir-reqqa. Iċċekkja għal xi ħsara jew partijiet neqsin.
2. Installazzjoni tal-manubriju: Lift the handlebar stem into the upright position until it clicks securely into place. Ensure the locking mechanism is fully engaged.
3. Kejbils ta 'Konnessjoni: Connect any loose cables from the handlebar to the main body, ensuring they are properly aligned and secured.
4. Ħlas Inizjali: Before first use, fully charge the scooter's battery. The charging time is approximately 4 hours. Connect the charger to the charging port and then to a power outlet. The indicator light on the charger will change when fully charged.
5. Kontroll tal-Pressjoni tat-Tajers: Although the scooter features solid tires, it is good practice to inspect them for any visible damage or debris.

Image: An illustration showing the internal battery configuration (18650 Automotive Grade Lithium Battery 36V 7.5ah) and its placement within the scooter's deck.

4. Istruzzjonijiet Operattivi

4.1 Power On/Off

To power on the scooter, press and hold the power button on the display. To power off, press and hold the power button again until the display turns off.

4.2 Riding tal-Iskuter

1. Bidu b'saħħtu: Place one foot on the deck and use the other foot to push off the ground to gain initial momentum.
2. Aċċelera: Once moving, gently press the throttle lever with your thumb to engage the motor and accelerate.
3. Ibbrejkjar: To slow down or stop, release the throttle and gently press the brake lever. The scooter features a foot brake and a regenerative brake system for power recycling.
4. Changing Gears: Use the gear shift button on the display to switch between different speed modes (Eco, D, S) for varying performance and battery efficiency.

Image: A close-up of the scooter's front, illustrating the high brightness LED headlamp for improved visibility and safety during operation.

Image: A person riding the SuperFuN Electric Scooter on a sidewalk, demonstrating typical use.

Image: An illustrative diagram showing the regenerative brake system, explaining how energy is collected during braking and recycled.

5. Tiwi u Portabbiltà

The SuperFuN Electric Scooter features a quick-folding mechanism for easy storage and transport.

1. Tiwi: Locate the folding latch near the base of the handlebar stem. Release the latch and carefully fold the stem downwards until it locks into place with the rear fender.
2. Tiżvolġi: Release the latch from the rear fender and lift the handlebar stem upwards until it clicks securely into the riding position.

Image: A person carrying the folded SuperFuN Electric Scooter up stairs, demonstrating its portability.

Image: The folded SuperFuN Electric Scooter stored in the trunk of a car, illustrating its compact size for transport.

6. Manutenzjoni u Kura

Regular maintenance ensures the longevity and safe operation of your SuperFuN Electric Scooter.

• Tindif: Imsaħ l-iskuter b'reklamaramp cloth after each use. Do not use high-pressure water or corrosive cleaners.
• Kura tal-batterija: Charge the battery regularly, even if not in use, to maintain its health. Avoid completely draining the battery. Store the scooter in a cool, dry place.
• Spezzjoni tal-Brejk: Periodically check the brake system for proper function and wear. Adjust if necessary.
• Spezzjoni tat-Tajers: Although solid, inspect tires for cuts, punctures, or excessive wear.
• Iċċekkja tal-Qafliet: Iċċekkja regolarment il-viti u l-boltijiet kollha biex tiżgura li huma ssikkati.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

• Isem tal-Mudell: Scooter Elettriku
• Numru tal-Mudell: Super1
• Qawwa tal-Mutur: 450W
• L-ogħla Veloċità: Approximately 19 mph (18.6 Mph stated in image)
• Maximum Distance Range: 17.5 Mil
• Ħin tal-Iċċarġjar: 4 Sigħat
• Materjal tar-rota: Rubber (Solid)
• Tip ta 'rota: Solid 8.5-inch Honeycomb Tires
• Materjal tal-qafas: Aluminju
• Limitu tal-Piż: 220 Liri
• Tip ta' Sospensjoni: Sospensjoni Doppja
• Stil tal-Brejk: Foot Braking, Regenerative Brake
• UPC: 604787378224
• Dimensjonijiet tal-Pakkett tal-Oġġett: 45 x 23 x 9 pulzieri

9. Garanzija u Appoġġ

The SuperFuN Electric Scooter comes with a Limited Warranty. For detailed warranty information and customer support, please refer to the warranty card included with your purchase or visit the official SuperFuN websit.

For technical assistance or inquiries, please contact SuperFuN customer service.

Note: Customer-uploaded videos are not official product support. For official information, refer to the manufacturer's resources.
