IOXUS UC-31 12V Group 31 Smart Power Bluetooth Ultra Capacitor Instruction Manual

1. Introduzzjoni u Prodott Fuqview

The IOXUS UltraCapacitor is a Smart Power ultracapacitor-based product designed to enhance vehicle electrical systems. This module improves starting reliability, optimizes vehicle voltage health, extends battery life, and contributes to overall sustainability. With a design life of 15 years, this ultracapacitor offers a long-term solution for power management in compatible vehicles.

This manual provides essential information for the safe and effective installation, operation, and maintenance of your IOXUS UC-31 Ultra Capacitor.

Figure 1: IOXUS UC-31 Ultra Capacitor Module (Top View)

This image displays the top surface of the IOXUS UC-31 Ultra Capacitor, highlighting its key features such as the 12V rating, UltraCAP branding, 1100 Cold Cranking Amps (CCA), 24 Watt-hours (WHr) capacity, and the LED indicators for operational status (RUN, MAINT, BT, ERROR). The positive and negative terminals are clearly visible, along with a QR code for the Ultra-CAP app and a warning label.

2. Informazzjoni u Twissijiet dwar is-Sigurtà

Read all safety instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, injury, or death.

• DO NOT SHORT TERMINALS: Sparks will occur if terminals are shorted or connected directly to a battery without proper precautions.
• DO NOT CONNECT IN REVERSE POLARITY: Ensure correct polarity when connecting the ultracapacitor. Connecting terminals in reverse (+ to - and/or - to +) can cause severe damage to the unit and vehicle electrical system.
• NOT A BATTERY: This device is an ultracapacitor, not a traditional battery. Refer to this user manual for specific cautions, warnings, operating, and recycling instructions.
• KONNESSJONI PARALELA: The ultracapacitor module must be connected in parallel with a 12V battery to operate correctly. It is not designed to be a standalone power source for starting.

Figure 2: Safety Warning Labels

This image shows the side of the ultracapacitor module with critical safety warnings regarding terminal shorting and reverse polarity connections. These warnings are essential for preventing damage and ensuring user safety during installation and operation.

3. Setup u Installazzjoni

Proper installation is critical for the performance and longevity of your IOXUS UC-31 Ultra Capacitor. If you are unsure about any step, consult a qualified automotive technician.

3.1 Kontrolli ta' qabel l-installazzjoni

• Kun żgur li l-ignition tal-vettura tkun mitfija u l-batterija tkun skonnettjata qabel tibda l-installazzjoni.
• Inspect the ultracapacitor for any visible damage. While this is a "B Stock" item, significant damage affecting functionality should be addressed.
• Gather necessary tools: wrenches, wire cutters/strippers, appropriate gauge wiring (e.g., 1/0 OFC wiring for high-power audio systems), and terminal connectors.

3.2 Konnessjonijiet tal-Wiring

1. Immuntar: Securely mount the ultracapacitor in a dry, well-ventilated area away from excessive heat or vibration. Ensure it is easily accessible for inspection and maintenance.
2. Konnessjoni mal-art: Connect the negative terminal (NEG) of the ultracapacitor to a solid chassis ground point or directly to the vehicle's battery negative terminal. Use appropriate gauge wiring and ensure a clean, secure connection.
3. Positive Connection: Connect the positive terminal (POS) of the ultracapacitor to the vehicle's 12V battery positive terminal. This connection must be made in parallel with the existing battery. Use appropriate gauge wiring and ensure a clean, secure connection.
4. Double-Check Polarity: Crucially, verify that all connections are made with correct polarity. Reverse polarity will damage the unit.
5. Erġa' qabbad il-batterija: Once all connections are secure and verified, reconnect the vehicle's main battery.

Upon initial connection, the ultracapacitor will begin charging. This process may take some time, and the LED indicators will provide status feedback.

4. Istruzzjonijiet Operattivi

The IOXUS UC-31 features Smart Power technology with Bluetooth connectivity, allowing for monitoring and control via a dedicated mobile application.

4.1 Indikaturi LED

The ultracapacitor module is equipped with several LED indicators to display its operational status:

Figure 3: LED Indicator Descriptions

Din l-immaġni tipprovdi deskrizzjoni dettaljata view of the labels next to the LED indicators, explaining their meaning. It also reiterates a warning about not shorting terminals.

4.2 Konnettività Bluetooth u App Mobbli

The IOXUS UC-31 can be monitored and controlled via the "Ultra-CAP" mobile application. Download the app from your device's app store (iOS/Android) or scan the QR code located on the product label (refer to Figure 1).

1. Tqabbil: Ensure Bluetooth is enabled on your mobile device. Open the Ultra-CAP app and follow the on-screen instructions to pair with your UC-31 module. The BT LED on the unit will indicate connection status.
2. Monitoraġġ: The app provides real-time data on the ultracapacitor's voltage, charge status, and overall health.
3. Karatteristiċi ta' Kontroll: Depending on the app version, you may have access to features like "run mode" to assist with starting a vehicle with a low battery, as mentioned in user feedback.

5. Manutenzjoni

The IOXUS UC-31 Ultra Capacitor is designed for a long service life of approximately 15 years with minimal maintenance. However, periodic checks are recommended to ensure optimal performance.

• Spezzjoni tat-Terminal: Periodically check the positive and negative terminals for corrosion, looseness, or damage. Clean terminals with a wire brush and battery terminal cleaner if necessary. Ensure all connections are tight and secure.
• Spezzjoni Fiżika: Visually inspect the ultracapacitor casing for any signs of physical damage, cracks, or swelling. While this is a "B Stock" item and may have cosmetic imperfections (as seen in Figures 4 and 5), any new or worsening damage should be investigated.
• Kundizzjonijiet Ambjentali: Ensure the ultracapacitor is not exposed to extreme temperatures, excessive moisture, or corrosive substances.
• Monitoraġġ tal-App: Regularly use the Ultra-CAP mobile app to monitor the unit's health and performance. The app can provide early warnings of potential issues.

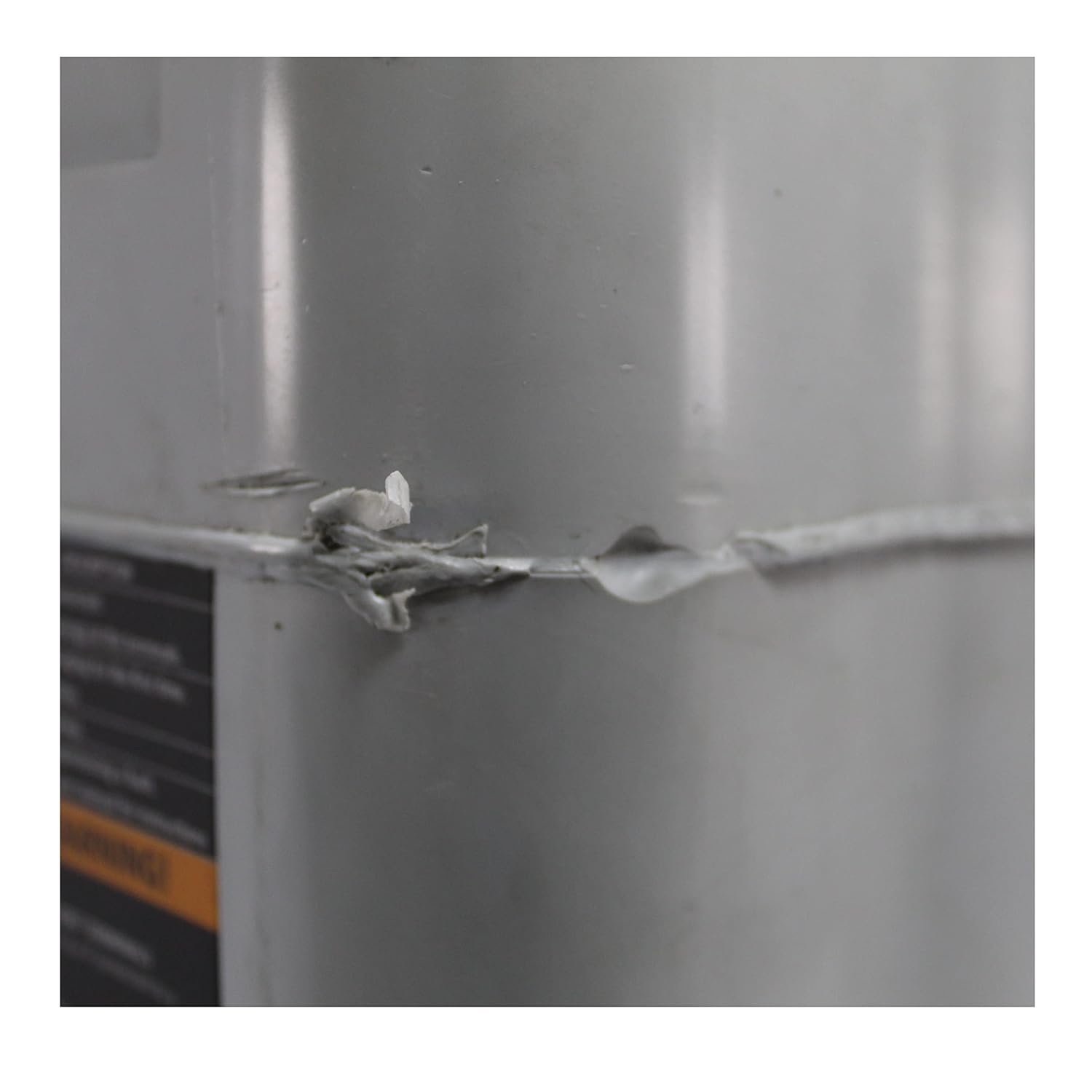

Figure 4: Cosmetic Imperfections on Casing

This image shows a close-up of a seam on the ultracapacitor casing, indicating some cosmetic imperfections or minor damage, which is typical for a "B Stock" item. These should be monitored but generally do not affect functionality unless severe.

Figura 5: Ċasing Scuff Mark

This image displays a scuff mark or scratch on the ultracapacitor's casing, another example of a cosmetic imperfection that may be present on "B Stock" units. Regular inspection should ensure such marks do not develop into functional issues.

6 Issolvi l-problemi

This section addresses common issues you might encounter with your IOXUS UC-31 Ultra Capacitor.

6.1 Indikaturi ta' Żball

• Red ERROR LED: If the red ERROR LED is illuminated, it indicates a fault condition.
  • Iċċekkja l-konnessjonijiet tal-wajers kollha għas-sigurtà u l-polarità korretta.
  • Verify the vehicle's 12V battery is functioning correctly.
  • Use the Ultra-CAP mobile app for more detailed diagnostic information.
  • If the error persists, disconnect the unit and contact customer support.
• Yellow MAINT LED: If the yellow MAINT LED is illuminated, it may indicate a specific operational state (e.g., initial charging, sleep mode) or a maintenance alert. Consult the mobile app for clarification.

6.2 Kwistjonijiet ta' Prestazzjoni

• No Power Improvement:
  • Ensure the ultracapacitor is fully charged.
  • Verify all connections are clean and tight, especially ground connections.
  • Check the health of your vehicle's main battery and alternator. The ultracapacitor works in conjunction with these components.
• Kwistjonijiet ta' Konnettività Bluetooth:
  • Kun żgur li l-Bluetooth huwa attivat fuq it-tagħmir mobbli tiegħek.
  • Restart the Ultra-CAP app.
  • Ensure your device is within range of the ultracapacitor.
  • Check if the BT LED on the unit is active.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

Specific warranty details for "B Stock" items may vary. Please refer to your purchase documentation or contact the seller directly for information regarding warranty coverage.

For technical support, product inquiries, or to obtain the latest information regarding product recalls, please visit the official IOXUS websit:

www.ioxus.com

Always provide your product model number (UC-31) and any relevant serial numbers when contacting support.
