Bushnell Prime 10x42 Binocular and Vault Bino Caddy Combination Pack Instruction Manual

Introduzzjoni

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Bushnell Prime 10x42 Binocular and Vault Bino Caddy Combination Pack. Please read this manual thoroughly before using your product to ensure optimal performance and longevity.

Komponenti tal-Prodott

Your Bushnell Prime 10x42 Binocular and Vault Bino Caddy Combination Pack includes the following items:

• Bushnell Prime 10x42mm Binoculars
• Vault Binocular Caddy (with harness)
• Lens cleaning cloth (integrated into caddy)

Image: The Bushnell Prime 10x42 Binocular and Vault Bino Caddy shown together, highlighting the complete combination pack.

Setup

Binocular Adjustment

1. Aġġustament tad-Distanza Interpupillari: Żomm il-binokli biż-żewġ idejn u ħares minn ġo fihom. Aġġusta d-distanza bejn iż-żewġ kannijiet billi ċċaqlaqhom eqreb jew aktar 'il bogħod minn xulxin sakemm tara kamp ċirkolari wieħed u ċar ta' view.
2. Aġġustament ta' l-għajnejn: If you wear eyeglasses, twist the eyecups down. If you do not wear eyeglasses, twist the eyecups up to the desired position for comfortable viewing.
3. Aġġustament tad-diottriċi: Close your right eye and focus on a distant object using the center focus wheel until the image in your left eye is sharp. Then, close your left eye and use the diopter ring (located on the right eyepiece) to focus the image in your right eye. Once both are focused, use only the center focus wheel for subsequent focusing.

Immaġni: Dettaljata view of the Bushnell Prime 10x42 Binocular with key features such as adjustable diopter, twist-up eyecups, durable rubber armor, EXO Barrier Protection, fully multi-coated optics, tripod compatibility, and attached lens caps labeled.

Vault Bino Caddy Setup

1. Harness Attachment: Attach the ultralight harness to the Vault Bino Caddy using the quick-release buckles. Adjust the straps for a stable and comfortable fit without excessive bulk.
2. Binocular Placement: Place your Bushnell Prime 10x42 Binoculars into the main compartment of the caddy. The forward-opening top with a magnetic hold-open feature allows for easy one-handed access.
3. Riser Usage: A riser is included for smaller binoculars to ensure a snug fit and easy retrieval. Insert the riser into the bottom of the main compartment if your binoculars require it.
4. Accessory Pockets: Utilize the mesh pockets with elastic bands on both sides for storing small items like wind checkers or mouth calls.

Image: The Bushnell Vault Bino Caddy with its harness, illustrating features like the ultralight harness, quick-release binocular attachment, magnetic closure, mesh pockets, and soft-touch fabric.

Image: The Bushnell Prime 10x42 Binocular securely attached to the Vault Bino Caddy harness, ready for use.

Video: Bushnell Vault Bino Caddy Features and Benefits

Video: This video demonstrates the key features and benefits of the Bushnell Vault Bino Caddy, including its magnetic closure for one-handed access, mesh pockets, and comfortable harness system.

Istruzzjonijiet Operattivi

Uża l-Binokli

• Once the interpupillary distance and diopter are set, use the center focus wheel to bring objects at various distances into sharp focus.
• The binoculars are waterproof and fog-proof, making them suitable for use in various weather conditions.
• Għal estiż viewing, the binoculars are tripod compatible. Locate the threaded adapter on the front hinge to attach a tripod adapter (sold separately).

Using the Vault Bino Caddy

• The magnetic closure provides quiet, one-handed access to your binoculars, ensuring they are secure when not in use.
• The soft-touch fabric of the caddy helps reduce noise from movement in the field.

Manutenzjoni u Kura

Tindif Lentijiet

Your Bushnell Prime binoculars feature EXO Barrier Protection, a molecularly bonded coating that repels water, oil, fog, dust, and debris. To clean the lenses:

1. Gently brush away any dust or large debris with a soft lens brush or compressed air.
2. Use the integrated lens cleaning cloth (found in the caddy's internal stretch pocket) to wipe the lenses in a circular motion. For stubborn smudges, a small amount of lens cleaning fluid can be applied to the cloth, not directly to the lens.

Kura Ġenerali

• Store your binoculars and caddy in a cool, dry place when not in use.
• Avoid exposing the binoculars to extreme temperatures for prolonged periods.
• Do not attempt to disassemble the binoculars or caddy, as this will void the warranty.

Issolvi l-problemi

Immaġni mċajpra

• Ensure the interpupillary distance is correctly set for your eyes.
• Verify that the diopter adjustment is properly calibrated for your vision.
• Adjust the center focus wheel for the specific distance of the object you are viewing.

Fogging Lenses

• While the binoculars are fog-proof, sudden extreme temperature changes can sometimes cause temporary external condensation. Allow the binoculars to acclimate to the ambient temperature.
• Ensure lens caps are properly secured when not in use to prevent moisture ingress.

Speċifikazzjonijiet

Immaġni: Ġenb view of the Bushnell Prime 10x42 Binocular indicating its length of 5.2 inches (132mm).

Image: A hand holding the Bushnell Prime 10x42 Binocular, with an overlay indicating its weight of 23.3 oz (660 g).

Immaġni: Quddiem view of the Vault Bino Caddy with an overlay showing its external dimensions: 7.75" H x 6" W x 3.5" D.

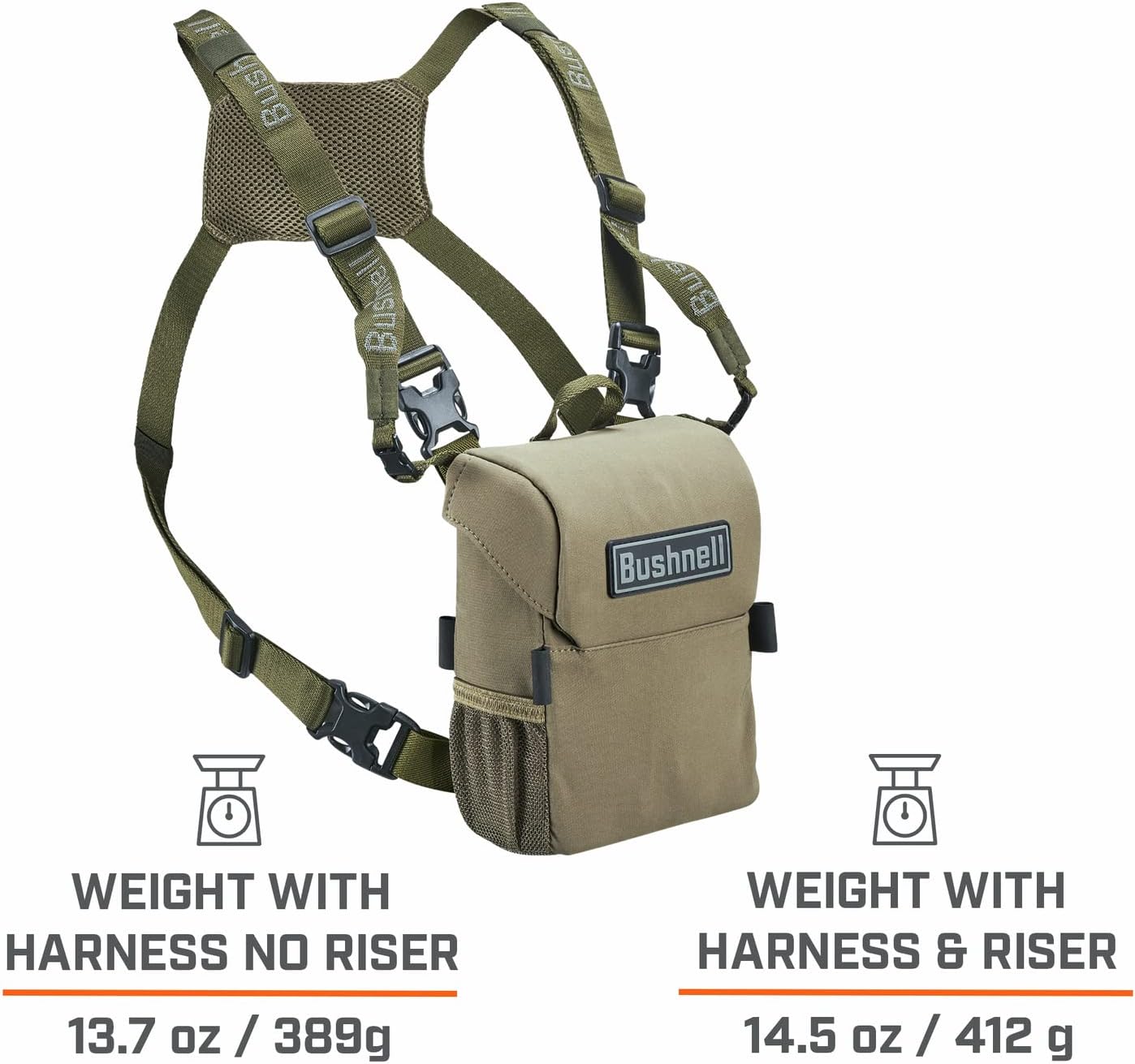

Image: The Vault Bino Caddy with harness, displaying its weight variations: 13.7 oz (389g) without riser and 14.5 oz (412g) with riser.

Informazzjoni dwar is-Sigurtà

• Propożizzjoni 65 Twissija: Dan il-prodott jista 'jkun fih kimiċi magħrufa mill-Istat ta' Kalifornja li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra.
• Magnetic Closure Warning: The Vault Bino Caddy contains magnets. Individuals with pacemakers or other medical implants should consult their physician before use. Keep away from sensitive electronic devices and magnetic storage media.

Garanzija u Appoġġ

Bushnell products are engineered to deliver reliable performance. For detailed warranty information and customer support, please visit the official Bushnell websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.

Għal aktar għajnuna, jekk jogħġbok żur il- Ħanut Bushnell.
