Platinum Karaoke DK-88 Duo Speaker System

Introduzzjoni

Thank you for choosing the Platinum Karaoke DK-88 Duo Speaker System. This manual provides essential information for the safe and efficient operation of your new device. Please read it thoroughly before use and retain it for future reference.

The DK-88 Duo is an all-in-one karaoke solution, featuring a built-in song library, wireless microphones, and various connectivity options. Its robust design and versatile features make it ideal for home parties, family gatherings, and outdoor events.

Informazzjoni dwar is-Sigurtà

• Tesponix l-unità għax-xita jew għall-umdità biex tevita nar jew xokk elettriku.
• Tiftaħx is-casing. Irreferi s-servizz kollu lil persunal kwalifikat.
• Aċċerta ruħek li jkun hemm ventilazzjoni xierqa madwar l-unità. Timblokkax il-fetħiet tal-ventilazzjoni.
• Use only the provided charging adapter.
• Żomm l-unità 'l bogħod mix-xemx diretta, minn sorsi ta' sħana, u minn trab eċċessiv.
• Evita li tpoġġi oġġetti tqal fuq l-unità.
• Żomm fejn ma jintlaħaqx mit-tfal.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• Main Unit (DK-88 Duo Speaker)
• Adapter tal-Iċċarġjar
• 2 x Mikrofoni Wireless
• Kontroll mill-bogħod
• Batteries (for remote control and microphones)
• AV Cable
• Manwal għall-Utent
• Karta ta' Garanzija

Figure 1: Included Accessories and Components

Prodott Overview

Quddiem View

Figura 2: Quddiem View of the DK-88 Duo with LED Lighting

Kontrolli tal-Panel Fuq

Figure 3: Top Panel Controls and Inputs

Panel ta' wara

Figura 4: Il-Pannell ta' Wara bil-Portijiet tal-Konnettività

Setup

1. Powering On/Charging

• Qawwa AC: Connect the charging adapter to the 'DC IN 20V/4A' port on the top panel and plug it into a wall outlet. The unit can be used while charging.
• Qawwa tal-batterija: The unit has a built-in rechargeable battery providing up to 6 hours of playback. Ensure the unit is charged before portable use. The battery indicator on the display will show the current charge level.

2. Issettjar tal-Mikrofonu

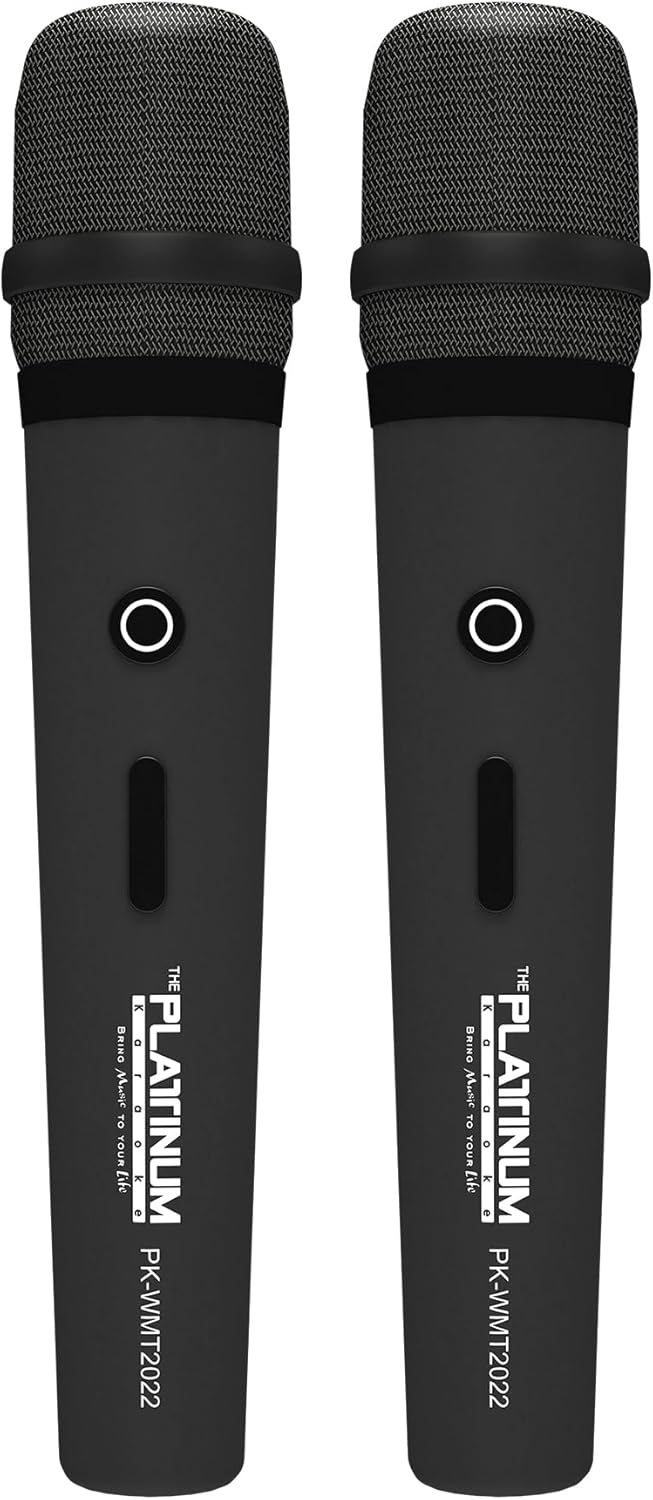

Figure 5: Wireless Microphones

• Insert the provided batteries into each wireless microphone.
• Turn on the microphones using their power switches. They will automatically connect to the DK-88 Duo unit.
• Adjust the 'MIC VOLUME' knob on the top panel to control the microphone output level.

3. Konnessjoni ta' Sorsi Awdjo

• Bluetooth: Turn on the unit. The Bluetooth indicator will flash. Enable Bluetooth on your mobile device and select 'DK-88 Duo' from the list of available devices to pair.
• USB Drive: Daħħal USB flash drive li jkun fih mużika MP3 files into the 'USB' port on the top panel. The system will automatically detect and play the files.
• Karta Micro SD: Insert a Micro SD card (up to 32GB, pre-loaded with songs) into the 'MICRO SD' slot on the top panel. The system will automatically detect and play the songs.
• Input AUX: Use the provided AV cable to connect external audio devices (e.g., DVD player, TV) to the 'AUX' input on the top panel.
• Input tal-kitarra: Connect a guitar to the 'GUITAR IN' port on the top panel. Adjust the dedicated 'GUITAR' volume knob.

Istruzzjonijiet Operattivi

1. Operazzjoni Bażika

• Power On/Off: Use the 'POWER' switch on the top panel to turn the unit on or off.
• Kontroll tal-Volum: Rotate the 'VOLUME' knob to adjust the overall sound output.
• Għażla tal-Modalità: Press the 'MODE' button to switch between input sources (Bluetooth, USB, Micro SD, AUX).

2. Karaoke Features

• Għażla tal-Kanzunetta: Use the 'SKIP' buttons (|< / >> |) to navigate through songs.
• Effett Eku: Adjust the 'ECHO' knob to add or reduce echo to your vocals. This helps blend your voice with the music.
• Reġistrazzjoni tal-Kanzunetta: Press the 'REC' button to start recording your performance. The system will save the music and your vocals to the inserted Micro SD card or USB drive. To share, simply copy the recorded file għal kompjuter.
• Vocal Assist (Training Songs): For training songs, the main vocals will automatically fade out when you sing into the microphone and reappear when you stop.

3. Audio Adjustment

• Kontroll tat-Triple: Use the 'TREBLE' knob to adjust the high-frequency sounds of the music.
• Kontroll tal-bass: Use the 'BASS' knob to adjust the low-frequency sounds of the music.

4. Effetti tad-Dawl

• Press the 'LIGHT' button on the top panel to cycle through different colorful fire lighting modes. The lights glow and dance with the music, enhancing the party atmosphere.

5. Platinum Link App

• Download the 'Platinum Link' app from your mobile device's app store (available on Android and iOS).
• Connect your mobile phone to the DK-88 Duo via Bluetooth.
• Use the app to control song selection, browse the song library, reserve songs, and display karaoke lyrics directly on your phone screen.
• The app also features a karaoke recording function to measure your vocal performance and improve your singing skills.

Manutenzjoni

• Naddaf l-unità b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif likwidi jew aerosols.
• Aħżen l-unità f'post frisk u niexef meta ma tkunx qed tuża.
• Remove batteries from the remote control and microphones if storing for extended periods to prevent leakage.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

Your Platinum Karaoke DK-88 Duo comes with a warranty. Please refer to the included Warranty Card for detailed terms and conditions, including warranty period and coverage.

For technical support, service, or inquiries not covered in this manual, please contact Platinum Karaoke customer service. Contact information can typically be found on the Warranty Card or the official Platinum Karaoke websit.
