BRPOM BM5001 Portable Jump Starter User Manual

Introduzzjoni

The BRPOM BM5001 is a powerful and versatile portable jump starter designed to provide reliable starting power for a wide range of vehicles. With a peak current of 4000A and a 26800mAh battery capacity, it can jump start most 12V vehicles, including gasoline engines of any size and diesel engines up to 10L. Beyond its primary function, it also serves as a portable power bank and features multiple LED lighting modes for various situations.

This image displays the BRPOM BM5001 portable jump starter, its smart jumper cables, a USB-C charging cable, and a compact carrying case, illustrating all components included with the product.

Karatteristiċi tal-Prodott

• Bidu Qawwi tal-Qabża: Delivers 4000A peak current, capable of starting 12V vehicles with any gasoline engine or up to 10L diesel engines. Suitable for cars, trucks, motorcycles, boats, lawnmowers, yachts, vans, and snowmobiles.
• High-Capacity Power Bank: Equipped with a 26800mAh battery, featuring a QC3.0 charging port that is 75% faster than standard ports. Ideal for charging laptops, smartphones, and other small electronic devices on the go.
• Dawl LED b'ħafna modi: Includes 4 practical LED lighting modes: Illumination (flashlight), Strobe, SOS, and Warning. Useful for camping, outdoor adventures, emergencies, or general lighting needs.
• Advanced Smart Clamps: The intelligent jumper cables incorporate 8 advanced protection technologies: reverse polarity, short circuit, over-discharge, overheating, overcurrent, overload, overvoltage, and overcharge. Features longer and thicker cables for better conductivity and ease of use, ensuring safe operation without sparks.

This graphic highlights the BRPOM BM5001's capability to jump start 99% of depleted batteries in seconds, featuring a 26800mAh battery capacity and 4000A peak current. It indicates suitability for 4.0L, 6.0L, and larger engines, including all types of vehicles.

This image demonstrates the BRPOM BM5001's versatile LED light, which offers four practical modes: Illumination for general lighting, Stroboscopic for signaling, Warning for caution, and SOS for emergency situations. The light can provide over 72 hours of continuous operation.

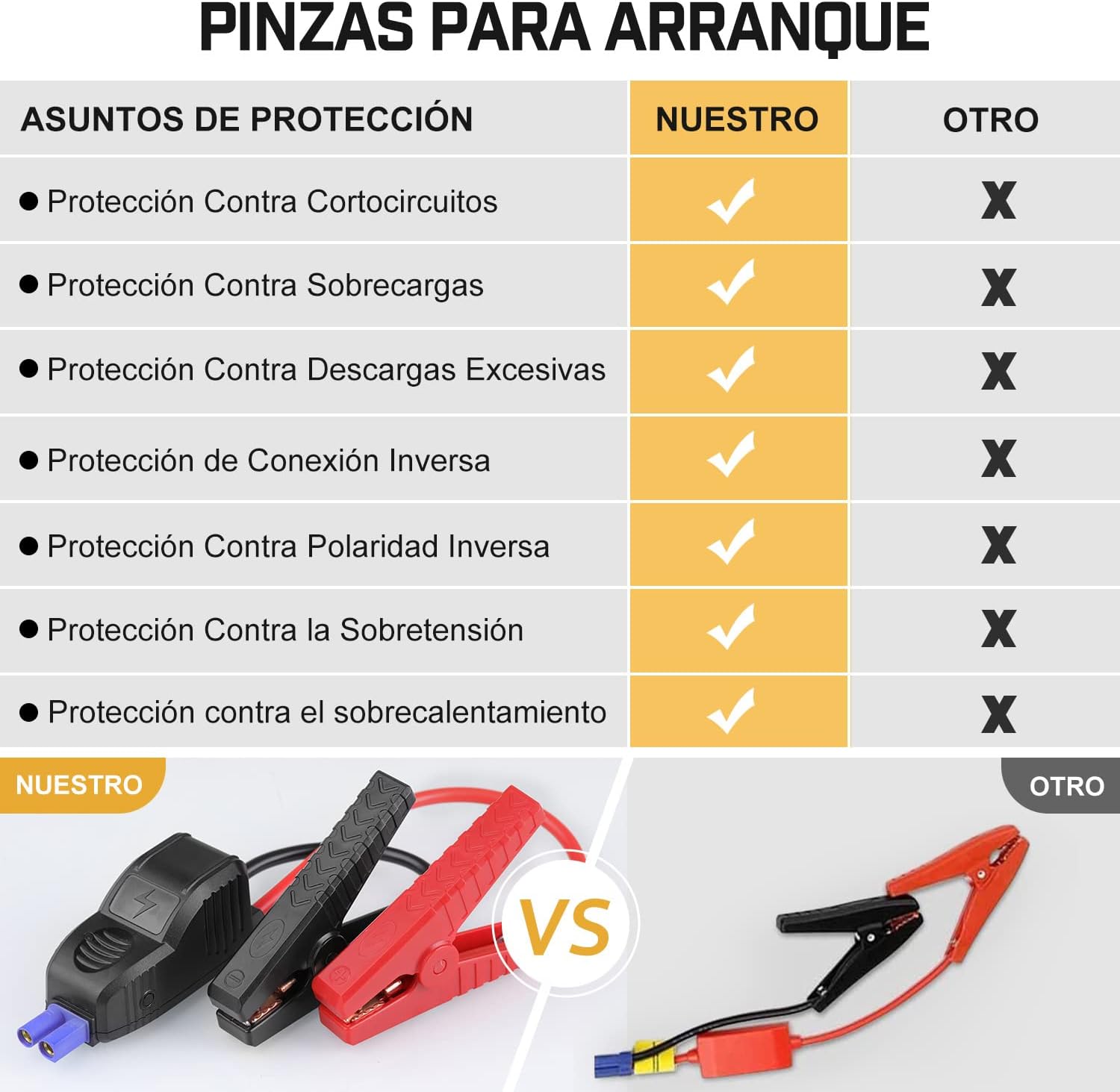

This comparison table details the advanced protection features of the BRPOM BM5001's smart jumper clamps, including protection against short circuits, overloads, over-discharge, reverse connection, reverse polarity, over-voltage, and overheating. These features ensure safe and reliable operation compared to standard clamps.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

• 1 x BRPOM BM5001 Car Battery Jump Starter
• 1 x Smart Jump Cable (with clamps)
• 1 x USB Type-C / USB All-in-One Cable
• 1 x Kaxxa tal-Ħażna
• 1 x Manwal għall-Utent

Setup

Iċċarġjar Inizjali

Before first use, fully charge the BRPOM BM5001. Connect the provided USB cable to the jump starter's input port and a suitable USB power adapter (not included). The LED indicators on the device will show the charging progress. Ensure the device is fully charged for optimal performance, especially before jump starting a vehicle.

This image shows the BRPOM BM5001 functioning as a portable power bank, capable of charging a phone and tablet simultaneously. It highlights the 18W USB-C fast charging capability, noting that the AC adapter is not included. The device can maintain a charge for up to 12 months in standby.

Istruzzjonijiet Operattivi

Kif Aqbeż Ibda Vettura

1. Step 1: Connect Smart Cable to Jump Starter. Insert the blue plug of the smart jump cable into the jump starter's 12V output port. Ensure a firm connection. The indicator light on the smart cable will flash green and red, indicating it's ready.
2. Step 2: Connect Clamps to Car Battery. Qabbad il-cl aħmaramp għat-terminal pożittiv (+) tal-batterija tal-karozza u l-iswed clamp to the negative (-) terminal. If the connection is correct, the smart cable indicator will turn solid green. If it flashes red, check for reverse polarity or other issues.
3. Step 3: Start the Engine. Once the smart cable indicator is solid green, start your vehicle's engine. If the engine does not start on the first attempt, wait at least 30 seconds before trying again. Do not crank for more than 3 seconds per attempt.
4. Step 4: Remove Clamps. Wara li tibda l-magna, neħħi immedjatament is-smart clamps from the car battery terminals, then disconnect the smart cable from the jump starter.

This visual guide illustrates the four simple steps to quickly jump start a car using the BRPOM BM5001: 1. Insert the jumper cable into the jump starter. 2. Connect the clamps to the car battery terminals. 3. Start the engine. 4. Remove the clamps to complete the operation.

This image depicts the BRPOM BM5001 being used to jump start a vehicle in a cold, snowy environment, emphasizing the convenience of not needing external assistance. It suggests significant time savings and the freedom to travel even in winter conditions.

Użu bħala Power Bank

The BRPOM BM5001 can charge various electronic devices. Connect your device's USB charging cable to the jump starter's USB output port (including the QC3.0 port for faster charging). The device will automatically begin charging.

Using LED Light Modes

Press the power button briefly to cycle through the LED light modes:

• Illuminazzjoni: Standard flashlight mode.
• Strobe Rapid flashing light for signaling.
• SOS: Morse code signal for emergencies (three short, three long, three short flashes).
• Twissija: A distinct flashing pattern for caution.

Press and hold the power button to turn off the LED light.

Manutenzjoni

• Iċċarġjar: For optimal battery life, recharge the jump starter every 3-6 months, even if not used. This helps maintain the battery's health and ensures it's ready when needed.
• Ħażna: Store the device in a cool, dry place away from direct sunlight and extreme temperatures. The included storage box is ideal for protecting the unit and its accessories.
• Tindif: Imsaħ l-unità b'ċarruta ratba u niexfa. Tużax kimiċi ħarxa jew prodotti tat-tindif li joborxu.

Issolvi l-problemi

• Apparat mhux qed jixgħel: Ensure the device is charged. If the battery is completely depleted, it may take a few minutes of charging before the indicators light up.
• Smart cable indicator flashing red: This indicates an incorrect connection or a safety protection trigger. Check for reverse polarity (red clamp on negative, black on positive), short circuit, or if the car battery voltage is too low. Reconnect correctly.
• Il-karozza ma tixgħelx:
  • Kun żgur li l-jump starter ikun iċċarġjat kompletament.
  • Iċċekkja li l-ismart clamps are securely connected to the correct battery terminals.
  • Wait 30 seconds between attempts if the engine doesn't start immediately.
  • If the car battery is severely damaged or completely dead, multiple attempts or a longer charge might be needed, or the battery itself may need replacement.
• Device not charging other electronics: Ensure the USB cable is properly connected to both the jump starter and the electronic device. Check if the jump starter has sufficient charge.

Speċifikazzjonijiet

Garanzija u Appoġġ

BRPOM offers a two-year free return and exchange policy for this product. For any issues or inquiries, please contact BRPOM customer service. We provide 24/7 five-star service to assist you.

Please refer to the contact information provided in your product packaging or on the official BRPOM websit għal appoġġ dirett.
