ATEM POWER Trailer Brake Controller Kit

1. Introduzzjoni

This instruction manual provides comprehensive guidance for the installation, operation, and maintenance of your ATEM POWER Trailer Brake Controller Kit. This system is designed to enhance towing safety by automatically activating electric trailer brakes in the event of a trailer breakaway. Featuring a built-in LiFePO4 battery and a solar panel for charge maintenance, this unit offers reliable performance for 1 or 2 axle caravans and trailers equipped with electric brakes.

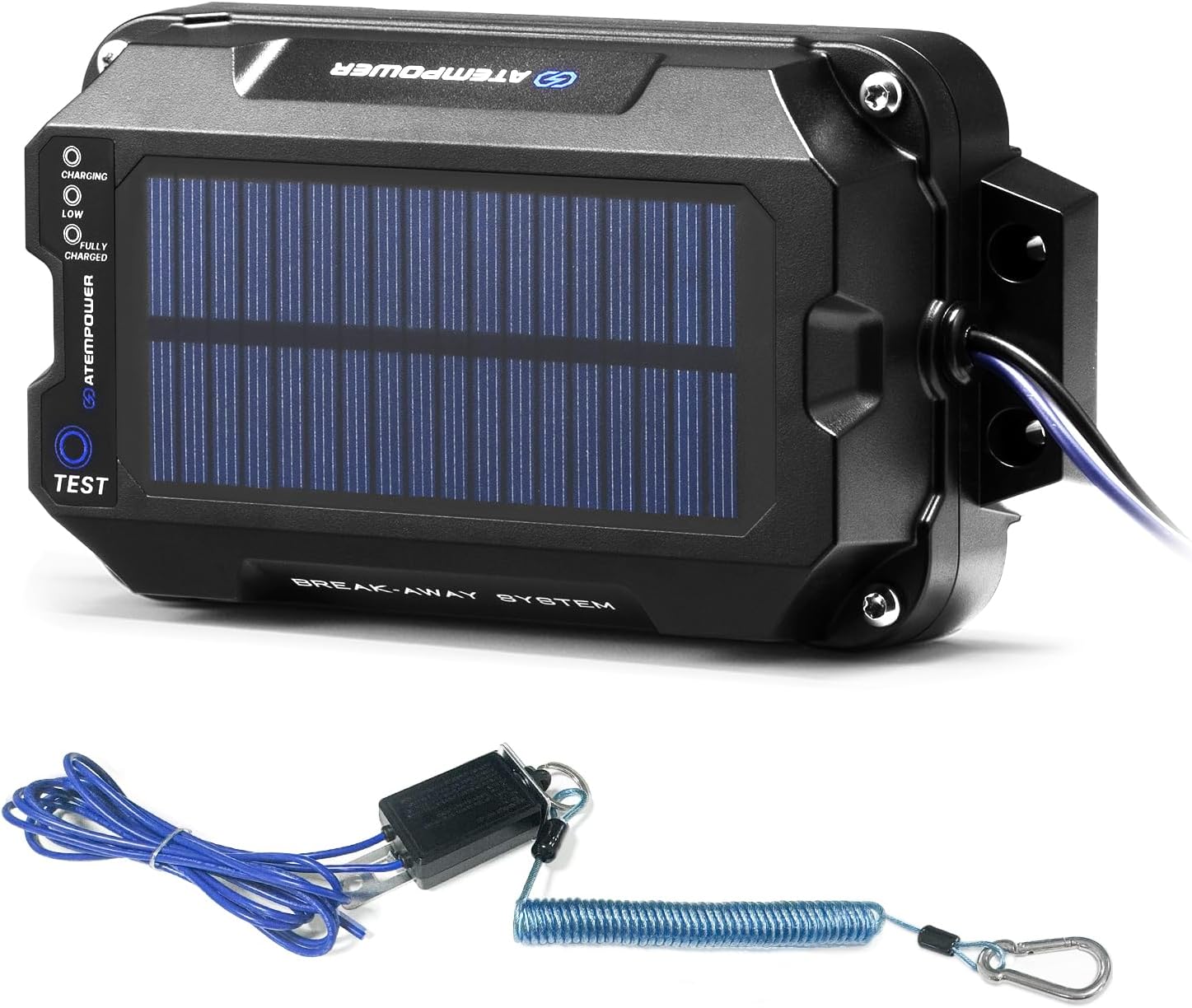

Figura 1: Aktarview of the ATEM POWER Trailer Brake Controller Kit, showcasing the main unit with its integrated solar panel and the accompanying breakaway switch.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA:

• Always ensure the trailer breakaway system is properly installed and tested before each towing operation.
• This device is designed to activate trailer brakes in a breakaway situation; it is not a substitute for proper trailer hitching and safety chain usage.
• The unit has an IP65 waterproof rating, providing protection against dust and low-pressure water jets. However, it is recommended to keep the unit away from direct exposure to heavy rainstorms to ensure long-term reliability.
• Do not attempt to open or modify the unit. Refer all servicing to qualified personnel.
• Kun żgur li l-konnessjonijiet tal-wajers kollha huma sikuri u iżolati sew biex tevita short circuits.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett:

• 1 x ATEM POWER Solar Trailer Brake Controller
• 1 x Manwal għall-Utent
• 1 x Swiċċ

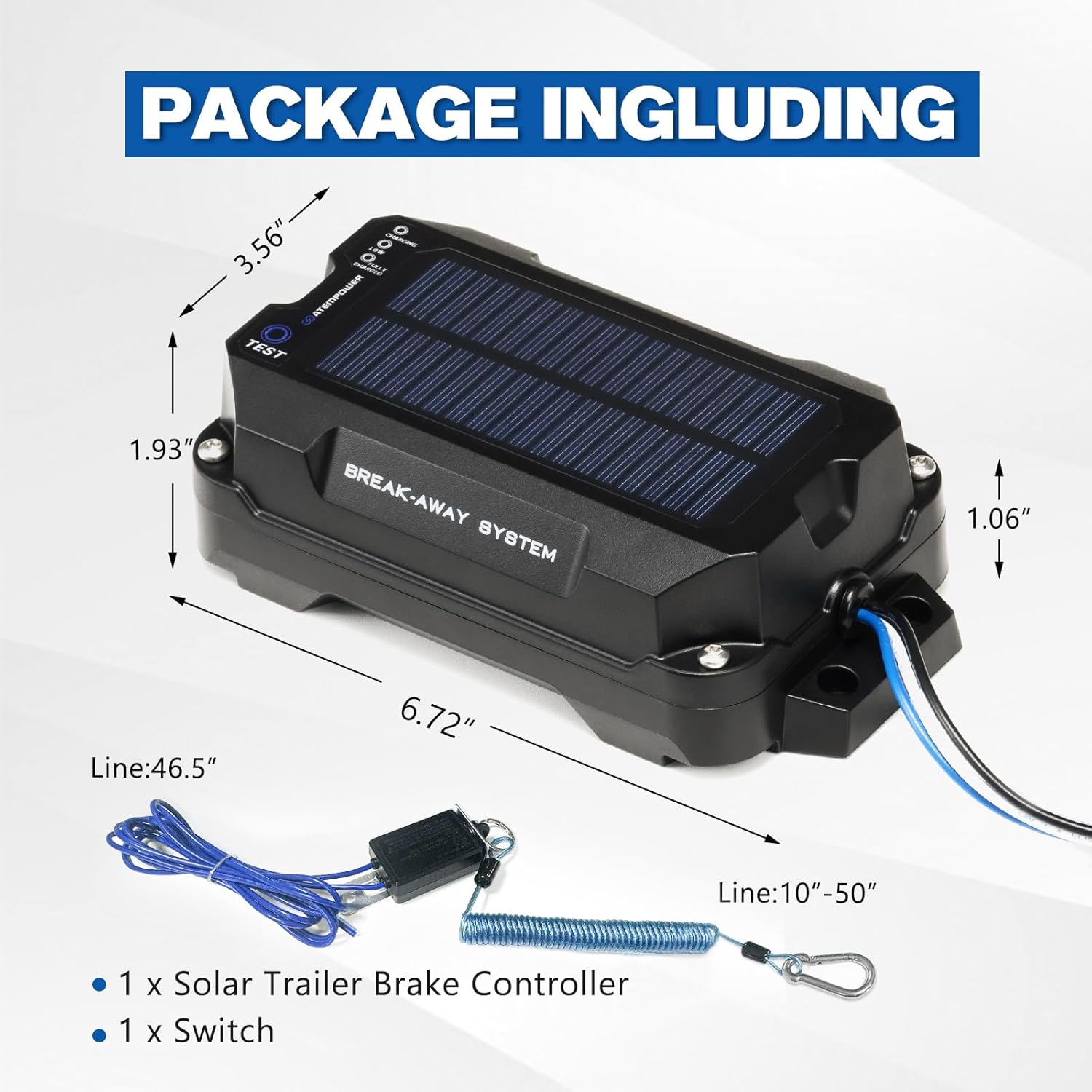

Figure 2: Included components and approximate dimensions of the controller unit.

4. Setup u Installazzjoni

Follow these steps for proper installation of the ATEM POWER Trailer Brake Controller Kit:

4.1 Mounting the Breakaway Controller

Decide the best location for mounting the unit. It should be a solid surface, typically on the trailer drawbar. Ensure that the solar panel faces upwards. This orientation allows the panel the maximum possible time to collect sunlight and convert it into energy, helping to maintain the internal battery's charge.

Figure 3: Step 1 - Securely mount the breakaway controller unit to a solid surface on the trailer drawbar, ensuring the solar panel faces upwards for optimal sunlight exposure.

4.2 Mounting the Breakaway Switch

Position the breakaway switch on the drawbar of the trailer, as depicted in the diagram below. This placement is critical for proper engagement of the switch in the event of a trailer detachment.

Figure 4: Step 2 - Position the breakaway switch on the trailer drawbar as shown, ensuring proper engagement for the breakaway function.

4.3 Dijagramma tal-Wiring

The kit comes with pre-wired, color-coded cables for easy connection. Refer to the diagram for correct wiring:

• Wajer Iswed: Connect to the 12V battery positive terminal.
• Wajer Blu: Connect to the electric brakes.
• Wajer abjad: Qabbad mal-art.

Figure 5: Wiring connections for the trailer brake controller system.

Ensure all connections are secure and protected from environmental elements. The unit is designed for use on 1 or 2 axle caravans and trailers equipped with electric brakes.

Figure 6: The controller is suitable for use on 1 or 2 axle caravans and trailers equipped with electric brakes, demonstrating its wide application.

5. Istruzzjonijiet Operattivi

The ATEM POWER Trailer Brake Controller is designed for simple operation and status monitoring.

5.1 Indikaturi tal-Istat tal-Batterija

The unit features LED indicators to display the charge status of the built-in LiFePO4 battery:

• LED isfar: Iċċarġjar
• LED aħmar: Batterija Baxxa
• LED aħdar: Kompletament Iċċarġjat

Figure 7: The control unit features LED indicators for 'Charging', 'Low', and 'Fully Charged' battery status.

5.2 Funzjonalità tal-Buttuna tat-Test

Press the 'TEST' button on the unit to verify the battery's charge status before towing. This ensures the LiFePO4 battery is properly charged and ready for operation.

5.3 Breakaway System Activation

In the event that your towing vehicle and trailer become disconnected, the breakaway switch will activate the electric trailer brakes automatically and swiftly. This action is crucial for bringing the trailer to a safe and controlled stop, enhancing road safety.

NOTE: The built-in solar panel is designed to prevent the trailer breakaway controller from running out of power during storage or prolonged periods of non-use. It is not intended as the primary charging method for a completely depleted battery.

6. Manutenzjoni

To ensure optimal performance and longevity of your ATEM POWER Trailer Brake Controller, consider the following maintenance guidelines:

• Spezzjoni regolari: Periodically inspect the unit, wiring, and connections for any signs of wear, damage, or corrosion. Ensure all mounting hardware remains secure.
• Indafa: Keep the solar panel clean and free from dirt, dust, or debris to maximize its efficiency in maintaining battery charge. Use a soft, damp drapp għat-tindif.
• Protezzjoni Ambjentali: While the unit is IP65 rated, prolonged exposure to extreme weather conditions, especially heavy rainstorms, should be minimized. Consider additional protection if the trailer is stored outdoors for extended periods in harsh climates.
• Kura tal-batterija: The built-in LiFePO4 battery offers a longer lifespan and lower self-discharge rate compared to traditional AGM batteries. Regularly check the LED indicators to ensure the battery is adequately charged, especially before long trips.

7 Issolvi l-problemi

If you encounter issues with your ATEM POWER Trailer Brake Controller, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The ATEM POWER Trailer Brake Controller Kit is backed by a 1-Sena Garanzija mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.

For warranty claims, technical support, or any inquiries regarding your product, please contact ATEM POWER customer service through their official website or the retailer where the product was purchased. Please have your model number (AP-VABS002-UFA) and proof of purchase ready when contacting support.
