Yaheetech MM-00117632vc 3ft Single Metal Bed Frame User Manual

Introduzzjoni

Grazzi tax-xiriasing the Yaheetech 3ft Single Metal Bed Frame. This manual provides essential information for the safe assembly, operation, and maintenance of your new bed frame. Please read these instructions carefully before assembly and retain them for future reference.

Image: The Yaheetech 3ft Single Metal Bed Frame, featuring a distinctive cross-design on both the headboard and footboard, presented in a black finish within a typical bedroom environment.

Informazzjoni dwar is-Sigurtà

Biex tiżgura użu sikur u tevita korrimenti jew ħsara, jekk jogħġbok osserva l-linji gwida ta' sigurtà li ġejjin:

• Kun żgur li l-partijiet kollha huma preżenti u mhux imħassra qabel tibda l-assemblaġġ.
• Tissikkax iżżejjed il-viti waqt l-assemblaġġ biex tevita li tagħmel ħsara lill-komponenti.
• Place the bed frame on a flat, stable, and level surface.
• Teċċedix il-kapaċità massima tal-piż ta' 136 kg.
• Keep children and pets away from small parts and packaging materials during assembly.
• Mattress, box spring, and bedding (comforter, sheets, pillows, etc.) are MHUX included with this product.

Kontenut tal-Pakkett

Il-pakkett jinkludi l-oġġetti li ġejjin:

• 1 x Single Metal Bed Frame (disassembled components)
• 1 x Accessory Kit (containing all necessary hardware and tools)
• 1 x Istruzzjonijiet (dan il-manwal tal-utent)

Speċifikazzjonijiet

Note: Please allow a 1cm/0.5" measurement tolerance.

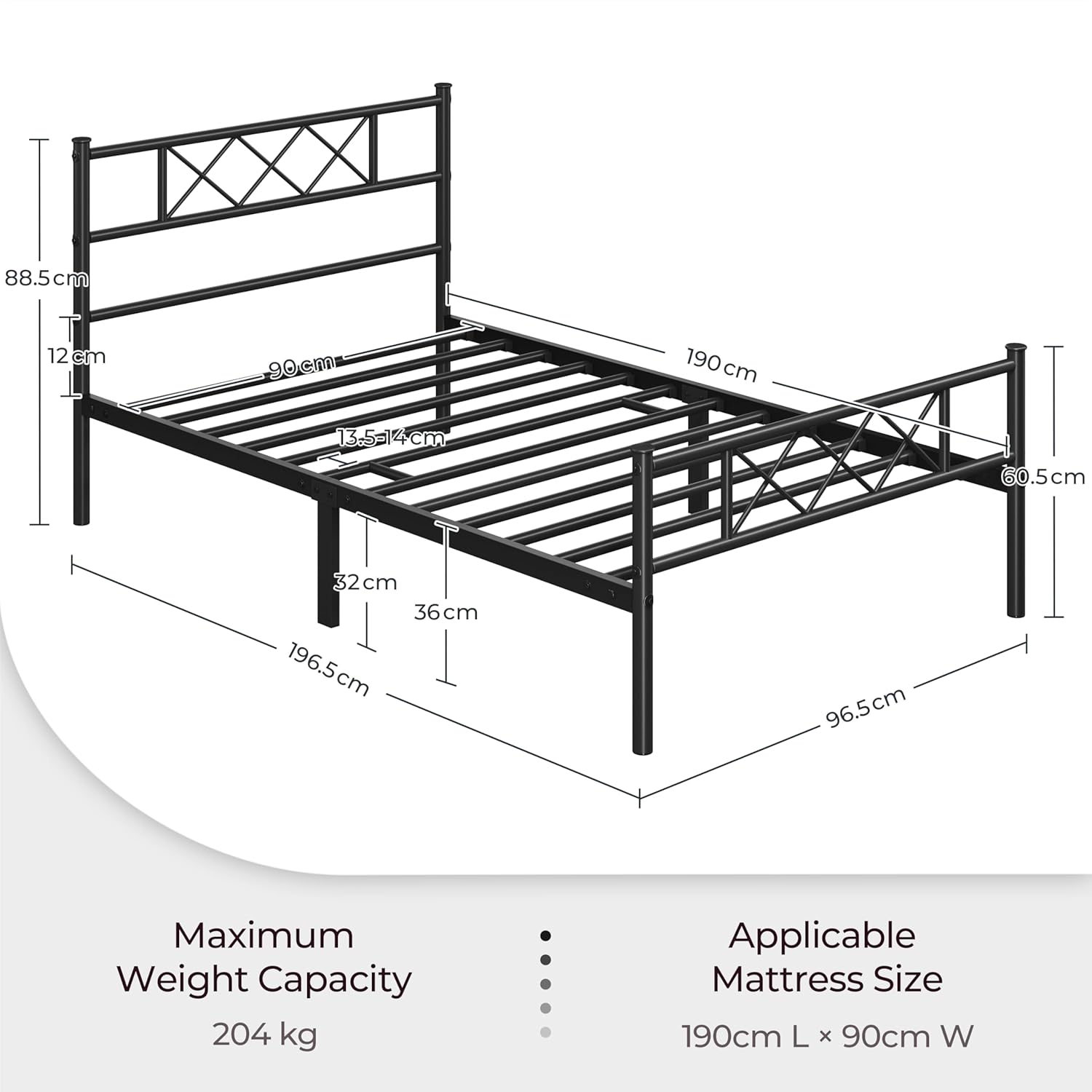

Image: A technical diagram illustrating the precise dimensions of the Yaheetech metal bed frame, including overall length (196.5 cm), width (96.5 cm), headboard height (88.5 cm), footboard height (60.5 cm), and under-bed clearance (32 cm).

Twaqqif: Istruzzjonijiet tal-Assemblaġġ

Follow these steps to assemble your Yaheetech metal bed frame. It is recommended to assemble the bed with two people, though it can be done by one.

Pass 1: Iftaħ u Identifika l-Partijiet

Carefully unpack all components from the packaging and lay them out on a clean, soft surface to prevent scratches. Refer to the included accessory kit and parts list to identify each piece. Ensure all parts are present and undamaged before proceeding to assembly.

Pass 2: Arma l-Headboard u l-Foodboard

Attach the horizontal bars to the vertical posts of the headboard and footboard using the provided hardware (bolts, washers, nuts). Ensure the cross-design elements are correctly oriented as shown in the diagrams. Hand-tighten bolts initially.

Immaġni: Dettaljata viewwirjaasing the key features of the bed frame: the decorative cross-design headboard, the robust metal slats for mattress support, the ample space beneath the bed for storage, and the protective foot pads designed to prevent floor damage.

Pass 3: Qabbad il-binarji tal-ġenb

Connect the assembled headboard and footboard using the long side rails. Secure them with the appropriate bolts and the provided Allen key. Do not fully tighten all bolts until the entire frame is completely assembled and aligned.

Immaġni: Imkabbra view illustrating the assembly process, specifically highlighting the use of T-shaped brackets and an Allen key to secure connections, ensuring enhanced stability of the bed frame.

Pass 4: Installa l-Paletti

Place the metal slats across the bed frame. Align each slat to the designated notches on the side rails and press down firmly to secure them into place. The slats are designed to provide direct mattress support, eliminating the need for a bulky box spring.

Image: Sequential images demonstrating the correct method for installing the bed slats: first, aligning the slat ends with the designated notches on the frame, and then pressing down firmly to lock them into place for a secure fit.

Pass 5: Issikkar finali

Once all components are in place and the frame is correctly aligned, systematically tighten all bolts using the Allen key. Ensure the frame is stable and level. Verify that the anti-slip plastic foot pads are securely attached to the bottom of the legs to protect your flooring.

Image: An angled, three-dimensional view of the Yaheetech metal bed frame, fully assembled and without a mattress, providing a clear overview of its structural design and components.

Istruzzjonijiet Operattivi

It-tqegħid tas-saqqu

Carefully place your 3' single mattress (190cm L x 90cm W) directly onto the metal slats. The built-in slats are designed to prevent the mattress from sliding, ensuring it stays securely in place.

Image: A comparative diagram illustrating the stability provided by the bed frame's built-in slats, which prevent mattress sliding, contrasted with a flat surface where a mattress would easily shift.

Ħażna taħt is-sodda

The bed frame provides approximately 32.5 cm (or 36.5 cm as depicted in some visuals) of clearance underneath, offering ample space for storage boxes, baskets, or other items to help keep your room tidy.

Image: A visual example of the bed frame's under-bed clearance, measuring 36.5 cm, effectively utilized with storage bins to demonstrate the available space for organization.

Manutenzjoni

Proper maintenance will extend the life and appearance of your bed frame:

• Tindif: Wipe the metal frame with a soft, dry cloth to remove dust and dirt. Avoid using abrasive cleaners, harsh chemicals, or wet cloths that could damage the finish.
• Spezzjoni: Periodically (e.g., every 3-6 months) check all bolts, screws, and connections to ensure they remain securely tightened. Retighten any loose fasteners to maintain stability.
• Kura tal-wiċċ: The painted surface is designed to resist scratches and oxidation. To preserve the finish, avoid contact with sharp objects or excessive impact.

Issolvi l-problemi

Jekk tiltaqa' ma' xi problemi bil-qafas tas-sodda tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

Bed Frame is Wobbly

• Kun żgur li l-boltijiet u l-konnessjonijiet kollha jkunu ssikkati sew.
• Verify that the bed frame is placed on a flat, stable, and level surface. Adjust if necessary.
• Check if all metal slats are properly seated in their designated notches.

Ħsejjes ta' tgħajjir

• Retighten all bolts and screws throughout the frame.
• Ensure no metal parts are rubbing directly against each other. A small amount of lubricant (e.g., silicone spray) can be applied to contact points if necessary, avoiding contact with the mattress.
• Check if the mattress is correctly positioned and not causing friction against the frame.

Garanzija u Appoġġ

For warranty information or technical support regarding your Yaheetech MM-00117632vc 3ft Single Metal Bed Frame, please contact Yaheetech customer service. Refer to your purchase documentation or the retailer's website for specific warranty terms, conditions, and contact details.

• Manifattur: Yaheetech
• Numru tal-Mudell: MM-00117632vc
• Data L-Ewwel Disponibbli: 9 L-2023 ta’ Marzu
