1. Introduzzjoni
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your AIYIMA T5 Tube Phono Amplifier. Please read this manual thoroughly before using the device to ensure proper function and longevity. The AIYIMA T5 is a versatile 2.0 channel stereo amplifier featuring tube amplification, a built-in phono stage for turntables, Bluetooth 5.0 connectivity, and a headphone output, designed for home audio systems.

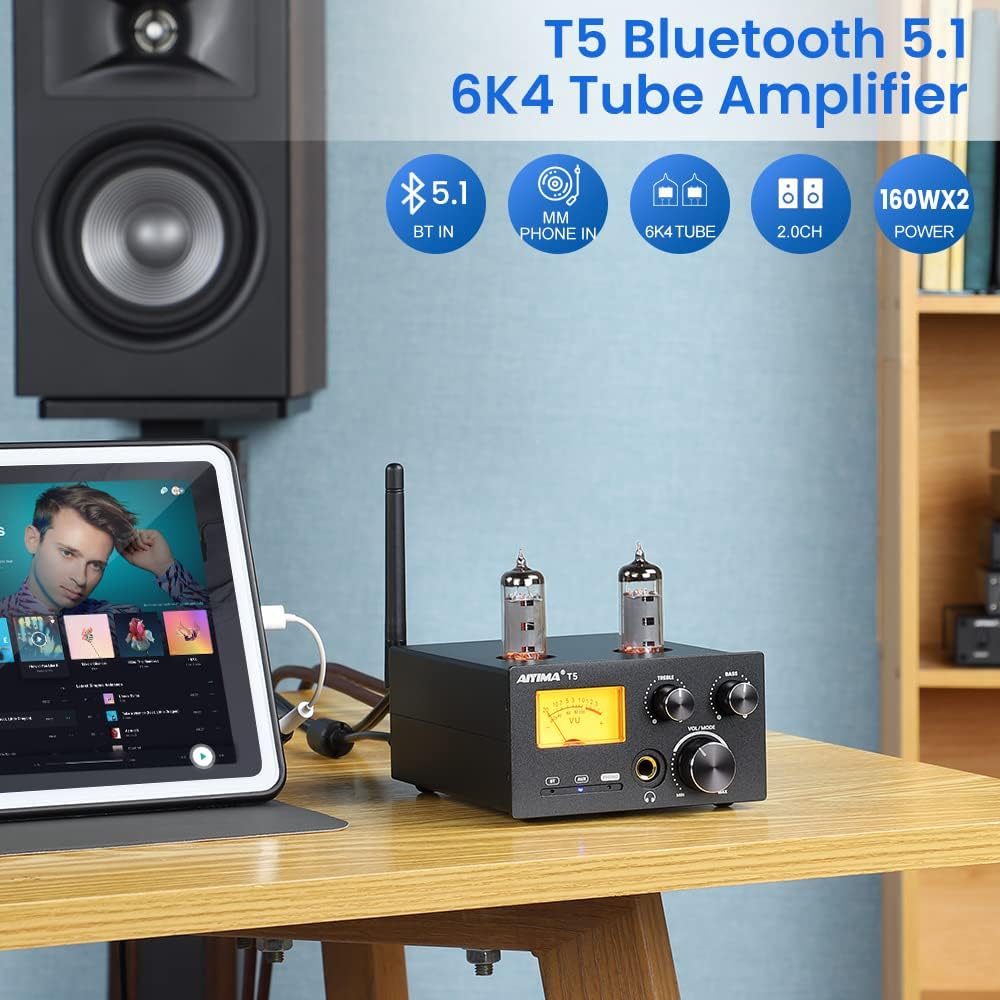

Figura 1: Quddiem view of the AIYIMA T5 Tube Phono Amplifier. This image displays the compact black amplifier unit with two visible vacuum tubes, a VU meter, and control knobs for volume, treble, and bass, along with input selection buttons and a headphone jack.
2. Istruzzjonijiet tas-Sigurtà
- Ensure the power adapter is correctly connected to the amplifier and a suitable power outlet.
- Do not expose the unit to water, moisture, or extreme temperatures.
- Evita li tpoġġi l-unità fid-dawl tax-xemx dirett jew ħdejn sorsi ta’ sħana.
- Tiftaħx il- amplifier casing. Irreferi s-servizz kollu lil persunal kwalifikat.
- Żomm l-unità 'l bogħod minn kampi manjetiċi qawwija.
- Unplug the power adapter during lightning storms or when unused for extended periods.
- Żgura ventilazzjoni xierqa madwar l-unità biex tevita sħana żejda.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:
- AIYIMA T5 Tube Phono AmpUnità lifier
- Adapter tal-Enerġija DC 36V 6A
- Antenna Bluetooth
- Manwal għall-Utent (dan id-dokument)
4. Prodott Aktarview
4.1 Kontrolli u Indikaturi tal-Panew ta' Quddiem
Figura 2: Labeled diagram of the AIYIMA T5 front panel. This image highlights the Bluetooth antenna, 6K4 vacuum tubes, VU level meter, Treble control, Bass control, Volume/Mode knob (which also functions as a power switch and input selector), 6.35mm Headphone Output, and input indicator buttons for Bluetooth, AUX (RCA), and MM Phono.
- Antenna Bluetooth: For wireless audio reception.
- 6K4 Tube * 2: Vacuum tubes for audio signal processing.
- Miter tal-Livell tal-VU: Displays audio output level.
- Kontroll tat-Triple: Adjusts high-frequency response.
- Kontroll tal-bass: Adjusts low-frequency response.
- VOL/MODE Knob: Controls volume, acts as power switch (press), and input selector (rotate).
- Ħruġ tal-headphones ta' 6.35mm: Għall-konnessjoni tal-headphones.
- Indikatur BT: Illuminates when Bluetooth input is selected.
- AUX Indicator: Illuminates when RCA input is selected.
- PHONO Indicator: Illuminates when MM Phono input is selected.
4.2 Konnessjonijiet tal-Panew ta' wara
Figura 3: Labeled diagram of the AIYIMA T5 rear panel. This image shows the MM Phono input, RCA input, Audio Output terminals for passive speakers, 3.5mm AUX Output, GND (ground) terminal for turntables, DC Power Input, and the Bluetooth antenna connector.
- MM PHONO Input: For connecting turntables with MM cartridges. Includes a GND terminal for grounding.
- Input RCA: For connecting audio sources via RCA cables (e.g., CD players, DACs).
- Output Awdjo: Speaker terminals for connecting passive speakers (Left and Right channels).
- Ħruġ AUX ta' 3.5mm: For connecting active speakers or an active subwoofer.
- Input ta' Enerġija DC: Connects to the provided DC 36V 6A power adapter.
- ANT: Connector for the Bluetooth antenna.
5. Istruzzjonijiet ta' Setup
5.1 Pożizzjonament Inizjali u Konnessjonijiet
- Pjazzament: Place the AIYIMA T5 on a stable, flat surface with adequate ventilation. Ensure it is away from direct heat sources or moisture.
- Install Bluetooth Antenna: Screw the provided Bluetooth antenna onto the ANT connector on the rear panel.
- Qabbad l-Ispeakers:
- Kelliema Passivi: Connect your passive speakers to the "Audio Output" terminals on the rear panel using speaker wire. Ensure correct polarity (+ to + and - to -).
- Active Speakers/Subwoofer: Connect active speakers or an active subwoofer to the "3.5mm AUX Output" on the rear panel using a 3.5mm to RCA cable (not included).
- Qabbad is-Sors tal-Awdjo:
- MM Phono (Turntable): Connect your turntable's RCA output to the "MM PHONO Input" on the rear panel. Connect the turntable's ground wire to the "GND" terminal on the amplifier to reduce hum.
- Input RCA: Connect your audio source (e.g., CD player, DAC) to the "RCA Input" on the rear panel using RCA cables.
- Bluetooth: For Bluetooth connection, no physical cable is needed for the source device.
- Qabbad l-Enerġija: Connect the DC 36V 6A power adapter to the "DC Power Input" on the rear panel, then plug the adapter into a wall outlet.
Figura 4: The AIYIMA T5 amplifier connected to a turntable and passive speakers. This image illustrates the rear panel connections for a turntable (MM Phono input with ground wire) and passive speakers (Audio Output terminals).
Figura 5: Close-up of the MM Phono input on the AIYIMA T5, showing the ground wire connection point. This image emphasizes the importance of connecting the phono ground wire to reduce noise.
6. Istruzzjonijiet Operattivi
6.1 Power On/Off
Agħfas il- VOL/MODE knob once to power on the amplifier. Press and hold the VOL/MODE knob for approximately 3 seconds to power off the ampaktar ħaj.
6.2 Għażla tal-Input
Dawwar il- VOL/MODE knob to cycle through the available input sources: Bluetooth (BT), RCA (AUX), and MM Phono (PHONO). The corresponding indicator light on the front panel will illuminate to show the selected input.
Figura 6: Close-up of the input selection buttons (BT, AUX, PHONO) and their indicator lights on the AIYIMA T5.
6.3 Aġġustament tal-Volum
Dawwar il- VOL/MODE dawwar il-pum lejn l-arloġġ biex iżżid il-volum u kontra l-arloġġ biex tnaqqasu.
Figura 7: Close-up of the volume control knob on the AIYIMA T5.
6.4 Treble and Bass Control
Uża l- TREBLE u BASS knobs to adjust the high and low frequency response of the audio output according to your preference.
6.5 Tqabbil tal-Bluetooth
- Select the Bluetooth input by rotating the VOL/MODE knob until the "BT" indicator light is on.
- Fuq it-tagħmir mobbli jew il-kompjuter tiegħek, ippermetti l-Bluetooth u fittex it-tagħmir disponibbli.
- Select "AIYIMA T5" from the list of devices to pair.
- Once paired, the "BT" indicator light may change from blinking to solid, indicating a successful connection.
6.6 Headphone Usage
Connect your 6.35mm headphones to the headphone output jack on the front panel. When headphones are connected, audio output to speakers will typically be muted.
Figura 8: Close-up of the 6.35mm headphone output jack on the AIYIMA T5.
6.7 VU Meter
The VU meter on the front panel visually indicates the audio output level. Its movement is synchronized with the music playback, providing a visual representation of the sound dynamics. Note that the VU meter's accuracy may vary and it primarily serves as a visual aesthetic.
7. Manutenzjoni
7.1 Tindif
- Dejjem aqla l- amplifier from the power outlet before cleaning.
- Uża drapp ratba u niexfa biex timsaħ in-naħa ta 'barra tal-unità.
- Do not use liquid cleaners, aerosols, or abrasive chemicals, as they may damage the finish or internal components.
7.2 Tube Replacement
The 6K4 vacuum tubes have a finite lifespan and may need replacement over time. If you notice a degradation in sound quality or if a tube fails, you can replace them.
- Tiżgura l- amplifier is powered off and unplugged from the wall outlet. Allow the tubes to cool completely before handling.
- Gently pull the old tube straight up from its socket. Avoid twisting or bending.
- Carefully align the pins of the new 6K4 tube with the holes in the socket.
- Gently push the new tube straight down into the socket until it is firmly seated. Do not force it.
- Reconnect power and test the ampaktar ħaj.
Figura 9: Close-up view of the 6K4 vacuum tubes on the AIYIMA T5 ampaktar ħaj.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda output tal-ħoss. |
|
|
| Kwalità tal-ħoss distorta jew fqira. |
|
|
| Bluetooth pairing failure. |
|
|
| Unit unexpectedly shuts down. |
|
|
| Humming noise from turntable. |
|
|
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Mudell | AIYIMA T5 |
| Interfaces tal-Input | Bluetooth 5.1, MM Phono, Stereo RCA |
| Interfaces tal-Output | Passive Speaker, 6.35mm Headphone, 3.5mm AUX Output (for active speakers/subwoofer) |
| Qawwa tal-Ħruġ | 160W + 160W (at 4Ω load) |
| Sistema tal-Kanal | 2.0 Channel Stereo |
| Rispons ta' Frekwenza | 20Hz - 20KHz (±3dB) |
| Verżjoni Bluetooth | 5.1 (SBC, AAC, APTX, APTX-HD, APTX-LL supported) |
| Input tal-Enerġija | DC 18-36V (5-12A) |
| Dimensjonijiet tal-Prodott | 5.2 x 4.1 x 2.1 pulzieri (133mm x 105mm x 54mm) |
| Piż tal-oġġett | 1.65 liri |
| Tubi | 6K4 * 2 |
Figura 10: Diagram showing the dimensions and key specifications of the AIYIMA T5 ampaktar ħaj.
10. Garanzija u Appoġġ
AIYIMA provides a garanzija ta 'sena for this product, ensuring worry-free after-sales service. For technical support, warranty claims, or any inquiries regarding your AIYIMA T5 amplifier, please refer to the contact information provided with your purchase documentation or visit the official AIYIMA websit.
