Manwal tal-Istruzzjonijiet tal-Karaca Air Cook XL Starlight 2-in-1 Air Fryer

1. Introduzzjoni

Thank you for choosing the Karaca Air Cook XL Starlight 2-in-1 Air Fryer. This appliance is designed to provide a healthier way to cook your favorite meals, utilizing advanced hot air circulation technology to fry, grill, bake, and even make homemade yogurt with minimal oil. Please read this manual thoroughly before first use to ensure safe and optimal operation of your new air fryer.

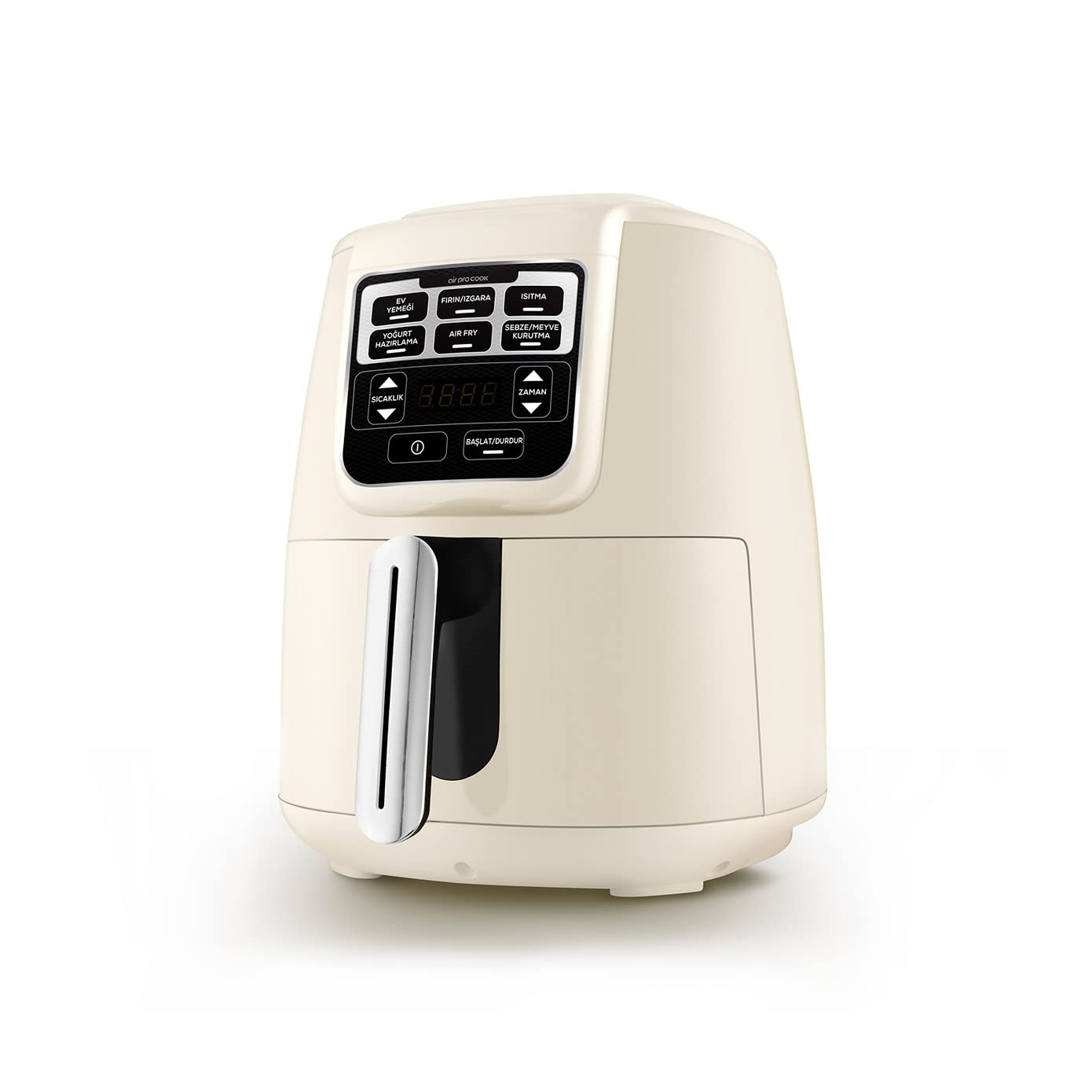

Figure 1: Karaca Air Cook XL Starlight Air Fryer - Front View

2. Istruzzjonijiet Importanti dwar is-Sigurtà

Meta tuża apparati elettriċi, għandhom dejjem jiġu segwiti prekawzjonijiet bażiċi ta’ sigurtà biex jitnaqqas ir-riskju ta’ nar, xokk elettriku, u korriment lill-persuni. Aqra l-istruzzjonijiet kollha bir-reqqa.

• Tmissx uċuħ sħan. Uża manki jew pumi.
• Biex tipproteġi kontra xokk elettriku, tgħaddasx il-korda, il-plakek, jew l-apparat fl-ilma jew f'likwidu ieħor.
• Superviżjoni mill-qrib hija meħtieġa meta xi apparat jintuża minn jew ħdejn it-tfal.
• Spluggja mill-iżbokk meta ma tkunx qed tuża u qabel tnaddaf. Ħallih jiksaħ qabel ma tpoġġi jew tneħħi l-partijiet.
• Tħaddim l-ebda apparat b'korda jew plagg bil-ħsara, jew wara li l-apparat ma jaħdimx jew ikun ġie bil-ħsara b'xi mod.
• L-użu ta' aċċessorji aċċessorji mhux rakkomandati mill-manifattur tal-apparat jista' jikkawża korrimenti.
• Tużax barra.
• Tħallix il-korda tistrieħ fuq it-tarf tal-mejda jew tal-bank, jew tmiss uċuħ sħan.
• Tpoġġix fuq jew ħdejn burner tal-gass sħun jew elettriku, jew f'forn imsaħħan.
• Għandha tintuża kawtela kbira meta tiċċaqlaq apparat li jkun fih żejt jaħraq jew likwidi oħra jaħarqu.
• Dejjem waħħal il-plagg mal-apparat l-ewwel, imbagħad daħħal il-korda fis-sokit tal-ħajt. Biex tiskonnettja, itfi kwalunkwe kontroll, imbagħad neħħi l-plagg mis-sokit tal-ħajt.
• Tużax l-apparat għal użu ieħor minbarra dak maħsub.
• Kun żgur li l-apparat jitqiegħed fuq wiċċ stabbli u reżistenti għas-sħana.

3. Prodott Aktarview

3.1 Komponenti

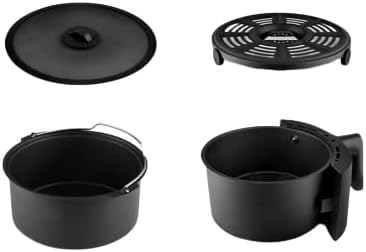

Figure 2: Air Fryer Components (Basket, Grill Rack, Lid)

• Unità Prinċipali b'Panel tal-Kontroll Diġitali
• Removable Cooking Basket (4-liter capacity)
• Grill Rack (for grilling functions)
• Lid (for specific cooking modes)
• Korda tal-Enerġija

3.2 Karatteristiċi ewlenin

• Funzjonalità 2-in-1: Air frying, grilling, baking, yogurt making, vegetable/fruit drying, and reheating.
• Less Fat Technology: Prepares meals with significantly less oil, promoting healthier eating.
• Circulation Air Tech: Ensures even cooking by circulating hot air uniformly throughout the cooking chamber.
• Kapaċità Kbira: 4-liter cooking basket, suitable for family-sized portions.
• Prestazzjoni qawwija: 1550 Watts for quick and efficient cooking.
• Panel tal-Kontroll Diġitali: Easy-to-use interface for setting temperature, time, and selecting cooking modes.
• Easy Wash Technology: Komponenti sikuri għall-ħasil tal-platti għal tindif konvenjenti.

Figura 3: Pannell tal-Kontroll Diġitali

4. Setup

4.1 Disimballaġġ

1. Neħħi bir-reqqa l-materjali tal-ippakkjar kollha mill-air fryer u l-aċċessorji tiegħu.
2. Check for any damage during transit. If damaged, do not use the appliance and contact customer support.
3. Neħħi kwalunkwe stikers jew tikketti mill-apparat.

4.2 Qabel l-Ewwel Użu

1. Clean the cooking basket, grill rack, and lid with warm soapy water. Rinse thoroughly and dry completely. These parts are dishwasher safe.
2. Imsaħ il-barra tal-unità prinċipali b'reklamaramp drapp. Tgħaddix l-unità prinċipali fl-ilma.
3. Place the air fryer on a stable, level, and heat-resistant surface, away from walls or other appliances to allow for proper air circulation. Ensure there is at least 10 cm of free space on the back and sides, and 10 cm above the appliance.
4. Ipplaggja l-korda tad-dawl fi żbokk tal-ħajt ertjat.

5. Istruzzjonijiet Operattivi

5.1 Operazzjoni Ġenerali

1. Qawwa Mixgħul: Plug in the appliance. The display will light up briefly. Press the power button to turn on the unit.
2. Tisħin minn qabel: For best results, preheat the air fryer for 3-5 minutes at the desired cooking temperature before adding food.
3. Tagħbija tal-Ikel: Pull out the cooking basket using the handle. Place ingredients into the basket. Do not overfill.
4. Issettjar tat-Temperatura u l-Ħin: Use the temperature and time control buttons on the digital panel to adjust settings according to your recipe.
5. Starting/Pausing: Press the start/pause button to begin or temporarily stop cooking.
6. Tħawwid/Tqallib: For even cooking, some foods may require shaking or flipping halfway through the cooking process. The appliance may beep to remind you.
7. Tlestija: The air fryer will beep when the cooking time is complete. Carefully pull out the basket and remove the food.

Figure 4: Circulation Air Tech for Even Cooking

5.2 Modi u Funzjonijiet tat-Tisjir

The Karaca Air Cook XL offers various preset functions for convenience:

• Fry bl-Ajru: Ideal for crispy foods like fries, chicken wings, and nuggets with minimal oil.
• Grill: Use the grill rack for grilling meats, fish, and vegetables.
• Bake/Oven: Suitable for baking cakes, pastries, or roasting smaller items.
• Homemade Yogurt: A specialized function for preparing fresh yogurt. Follow specific recipes for best results.
• Vegetable/Fruit Drying: Low-temperature setting for dehydrating fruits and vegetables.
• Erġa' saħħan: Quickly warms up previously cooked meals.

Figure 5: Air Frying French Fries

6. Tindif u Manutenzjoni

Regular cleaning ensures the longevity and optimal performance of your air fryer. The Karaca Air Cook XL features Easy Wash Technology for hassle-free cleaning.

6.1 Tindif Wara Kull Użu

1. Aqla l-air fryer u ħalliha tiksaħ kompletament qabel tnaddaf.
2. Remove the cooking basket and grill rack. These components are dishwasher safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge.
3. Naddaf l-intern tal-apparat b'adamp cloth and mild detergent. Do not use abrasive cleaning materials.
4. Imsaħ il-barra tal-apparat b'adamp drapp.
5. Kun żgur li l-partijiet kollha huma niexfa għalkollox qabel ma terġa' tgħaqqad jew taħżen l-apparat.

6.2 Ħażna

Aħżen l-air fryer f'post frisk u niexef. Kun żgur li l-korda tal-enerġija tkun imgeżwra pulit u mhux mgħawġa.

7 Issolvi l-problemi

If you encounter any issues with your Karaca Air Cook XL Air Fryer, please refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact Karaca customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

9.1 Informazzjoni dwar Garanzija

The Karaca Air Cook XL Starlight Air Fryer comes with a garanzija ta 'sena from the date of purchase. This warranty covers manufacturing defects and faulty materials under normal household use. It does not cover damage caused by misuse, neglect, accident, alteration, or unauthorized repair.

9.2 Appoġġ għall-Klijent

For warranty claims, technical assistance, or any questions regarding your product, please contact Karaca customer support. You may find contact details on the official Karaca webis-sit jew id-dokumentazzjoni tax-xiri tiegħek.

Jekk jogħġbok żomm in-numru tal-mudell tiegħek (153.03.08.3596) u l-prova tax-xiri lesti meta tikkuntattja l-appoġġ.
