PalliPartners 970B Waterproof Metal Detector User Manual

1. Introduzzjoni

The PalliPartners 970B Metal Detector is designed for both novice and experienced treasure hunters. Featuring a high-accuracy, waterproof search coil and an advanced DSP chip, this detector offers five distinct operation modes to help you efficiently locate various metals. Its intuitive LCD display provides clear information on detection mode, sensitivity, battery status, and volume. The adjustable stem and ergonomic design ensure comfortable use for adults and children alike, making it an ideal tool for exploring beaches, streams, backyards, and other outdoor environments.

Figure 1: PalliPartners Metal Detector in use, highlighting its treasure-hunting capabilities.

2. Kontenut tal-Pakkett

Upon unboxing your PalliPartners 970B Metal Detector, please ensure all the following items are present:

• 1 x PalliPartners Metal Detector Unit (with 12-inch search coil)
• 1 x Bag tal-Ġarr
• 1 x Folding Shovel (more durable and strong)
• 1 x Headset (for private audio alerts)
• 2 x 9V Batteriji
• 1 x Manwal għall-Utent

3. Assemblea

Assembling your metal detector is a straightforward process. Follow these steps to get started:

1. Waħħal il-Kojl tat-Tiftix: Secure the 12-inch search coil to the lower stem using the provided bolt and knob. Ensure it is firmly attached but can still pivot.
2. Connect the Lower and Middle Stems: Slide the lower stem into the middle stem. Use the spring clip or button-lock mechanism to secure the connection.
3. Waħħal il-Kaxxa tal-Kontroll: Connect the control box (with the armrest) to the upper stem. The cable from the search coil should be wrapped securely around the stem to prevent tangling.
4. Daħħal Batteriji: Iftaħ il-kompartiment tal-batteriji fuq il-kaxxa tal-kontroll u daħħal iż-żewġ batteriji ta' 9V, waqt li tosserva l-polarità korretta. Agħlaq il-kompartiment sew.
5. Aġġusta t-Tul: Loosen the locking collar on the stem and adjust the length to a comfortable height. Tighten the collar to secure the stem. The adjustable stem ranges from 41.3 inches to 47.6 inches.
6. Aġġusta l-Armrest: Pożizzjona l-appoġġ tad-dirgħajn għal appoġġ komdu waqt l-użu.

Figure 2: Comprehensive diagram of the metal detector's components and adjustable features.

4. Kontrolli u Wiri

The PalliPartners 970B features an intuitive LCD display and easy-to-use controls:

Figure 3: LCD Display and Control Panel Overview.

• Buttuna tal-Qawwa: Turns the detector ON/OFF.
• Buttuna tal-Modalità: Cycles through the different detection modes.
• Buttuna SENS: Adjusts sensitivity level.
• Buttuna PP (Pinpoint): Jattiva l-modalità preċiża għal post preċiż fil-mira.
• Vleġeġ 'il fuq/'l isfel: Adjust settings like sensitivity, volume, or discrimination levels.
• Volume/Light Button: Adjusts audio volume and toggles the LCD backlight.

L-iskrin LCD juri:

• Modalità ta' Sejbien: Indicates the currently selected operating mode.
• Livell ta 'Sensittività: Shows the current sensitivity setting.
• Kundizzjoni tal-batterija: Juri l-ħajja tal-batterija li fadal.
• Livell tal-Volum: Indicates the current audio volume.
• ID tal-mira: Provides a numerical identification for detected metals.
• Indikatur tal-Fond: Estimates the depth of the detected object.

5. Modi Operattivi

The PalliPartners 970B offers five specialized operating modes for various detection needs:

Figura 4: Aktarview of the Five Operating Modes.

1. Modalità tal-Metall Kollha: Detects all types of metal. This mode is ideal for general searching when you want to find any metallic object without discrimination.
2. Disc (Discrimination) Mode: Allows you to eliminate certain types of metal from detection. Use the Up/Down arrows to set the discrimination level and ignore unwanted metals like iron.
3. Modalità talja: Press the "NOTCH" button, then use the "+" or "-" buttons to select specific target categories to be eliminated. This provides more precise control over what the detector ignores.
4. Modalità tal-memorja: This mode allows the detector to "remember" a specific metal type you are searching for and focus on it, while eliminating others.
5. Modalità tal-Ġojjellerija: Specifically designed to eliminate iron signals and primarily respond to other metals, making it suitable for finding jewelry.
6. Modalità PP (Pinpoint): Once a target is detected in another mode, press the PP button to narrow down the exact location of the object, helping you dig more efficiently.

Figure 5: Three Tone Audio Discrimination and Target ID.

6. L-aġġustament tas-Settings

Optimize your detection experience by adjusting the following settings:

• Sensittività: Press the "SENS" button and use the Up/Down arrows to increase or decrease sensitivity. Higher sensitivity can detect smaller or deeper objects but may also pick up more interference.
• Volum: Press the Volume/Light button to cycle through volume levels or adjust using the Up/Down arrows. Use headphones for clearer audio signals in noisy environments.
• Dawl ta' wara: Press and hold the Volume/Light button to toggle the LCD backlight ON/OFF, useful for low-light conditions.

7. Detection Techniques

Proper technique enhances detection accuracy and efficiency:

• Sweep Motion: Hold the search coil parallel to the ground, about 1-2 inches above the surface. Sweep the coil slowly from side to side in overlapping arcs.
• Overlap Sweeps: Ensure each sweep overlaps the previous one by about half the coil's diameter to avoid missing targets.
• Bil-mod u Kostanti: Move the coil at a consistent, slow pace. Rushing can cause you to miss signals.
• Identifikazzjoni: Once a signal is detected, use the PP mode to narrow down the target's exact location before digging. Move the coil in a cross-pattern over the signal area.

Figure 6: Correct sweeping technique for optimal detection.

8. Waterproof Features

The PalliPartners 970B is equipped with a 12-inch waterproof search coil, allowing for detection in shallow water, such as beaches and streams. The coil is sealed using ultrasonic heat fusion for durability.

• Kolja li ma jgħaddix ilma minnha: The search coil can be submerged in water.
• Nota Importanti: The control box is NOT waterproof. Avoid submerging the control box or exposing it to heavy rain.

Figure 7: Using the waterproof search coil in shallow water.

9. Manutenzjoni u Kura

To ensure the longevity and optimal performance of your metal detector, follow these maintenance guidelines:

• Tindif: After each use, especially in sandy or muddy conditions, wipe down the search coil and stem with a damp cloth. Ensure the control box remains dry.
• Ħażna: Store the detector in a cool, dry place. If storing for an extended period, remove the batteries to prevent leakage. Use the provided carrying bag for protection during transport and storage.
• Sostituzzjoni tal-batterija: Replace batteries when the low battery indicator appears on the LCD screen. Always use fresh 9V batteries.
• Kura tal-Cable: Avoid sharp bends or excessive pulling on the search coil cable to prevent internal damage.

10 Issolvi l-problemi

If you encounter issues with your PalliPartners 970B, try the following:

11. Speċifikazzjonijiet

Key technical specifications for the PalliPartners 970B Metal Detector:

• Ditta: PalliPartners
• Numru tal-Mudell: 970B
• Kulur: Iswed u Blu
• Materjal: Metall, plastik
• Sors tal-Enerġija: Battery Powered (2 x 9V batteries)
• Piż tal-oġġett: 2.8 Liri
• Dimensjonijiet tal-Prodott: 17"L x 5.5"W x 11"H (Control Box)
• Tul estiż: 60.2 Pulzier
• Tul aġġustabbli: Yes (41.3 to 47.6 inches)
• Klassifikazzjoni tal-Protezzjoni Internazzjonali: IP54 (Control Box not waterproof)
• Frekwenza tat-Tħaddim: 9 KHz
• Daqs tal-Kojl tat-Tiftix: 12 Inches (Waterproof)
• Max Detection Depth: Up to 8.7 inches (for coin-sized objects)
• Wiri: LCD b'dawl ta 'wara
• Modi: All Metal, Disc, Notch, Memory, Jewelry, Pinpoint (PP)

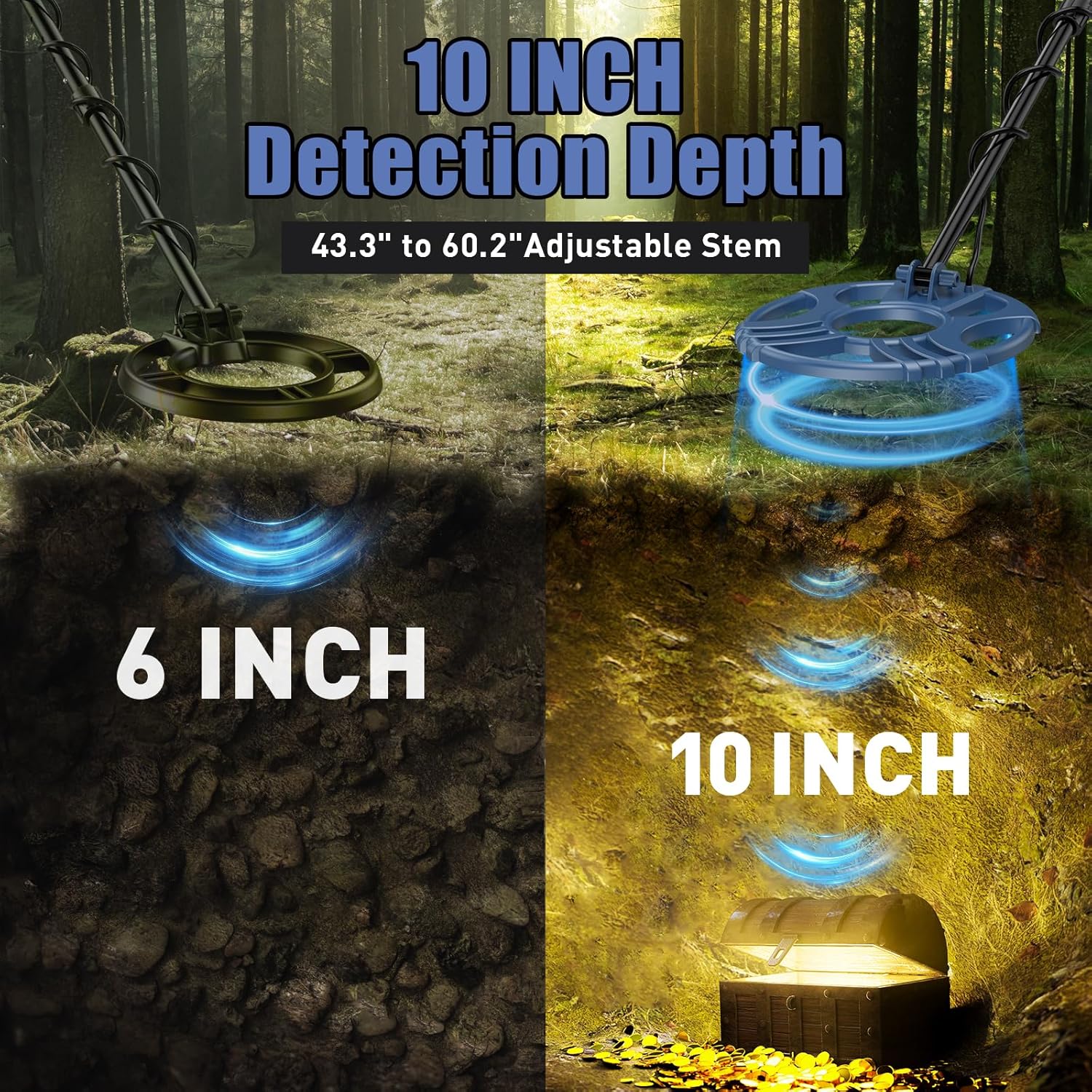

Figure 8: Depth detection capabilities of the metal detector.

12. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok osserva l-prekawzjonijiet tas-sigurtà li ġejjin:

• Avoid using the metal detector in thunderstorms or near power lines to prevent electrical shock.
• Do not operate the detector near active construction sites or areas with known underground utilities without proper clearance.
• Always be aware of your surroundings to prevent accidents.
• Do not attempt to open or modify the control box, as this may void the warranty and pose a safety risk.

13. Garanzija u Appoġġ

For any questions regarding your PalliPartners Metal Detector or metal detecting technicality, please feel free to contact PalliPartners customer support. Refer to your purchase documentation for specific warranty details and contact information.
