Manwal ta' Istruzzjoni

1. Introduzzjoni

Thank you for choosing the ROBOTIME Parachute Tower EA01 3D Wooden Puzzle Music Box. This intricate model kit provides a challenging yet rewarding assembly experience, culminating in a functional music box with lights and moving parachutes. This manual provides essential information for assembly, operation, maintenance, and troubleshooting to ensure a successful and enjoyable experience.

Image 1.1: The fully assembled ROBOTIME Parachute Tower EA01, showcasing its detailed design and illuminated features.

2. Informazzjoni dwar is-Sigurtà

• Dan il-prodott fih partijiet żgħar u mhux adattat għal tfal taħt it-3 snin minħabba periklu ta' fgar.
• Recommended age for assembly is 14 years and up. Adult supervision is advised for younger builders.
• Handle wooden pieces carefully to avoid splinters. Sanding is recommended for rough edges.
• Do not apply excessive force during assembly, as this may break delicate parts.
• Żomm 'il bogħod minn fjammi miftuħa jew sorsi ta' sħana għolja.
• Ensure proper battery installation (3 AAA batteries, not included) according to polarity markings. Remove batteries if the product will not be used for an extended period.

3. Kontenut tal-Pakkett

Before beginning assembly, verify that all components are present in your kit. The package typically includes:

• Pre-cut wooden sheets (184 pieces)
• Manwal ta' Istruzzjoni ta' l-Assemblea
• Motor and electrical components (e.g., touch switch, LED light strips, loudspeaker, leaf switch)
• Miniature parachute figures
• Small tools (e.g., sandpaper, file, tweezers)
• Screws and other fasteners
• Wax for lubrication of moving parts

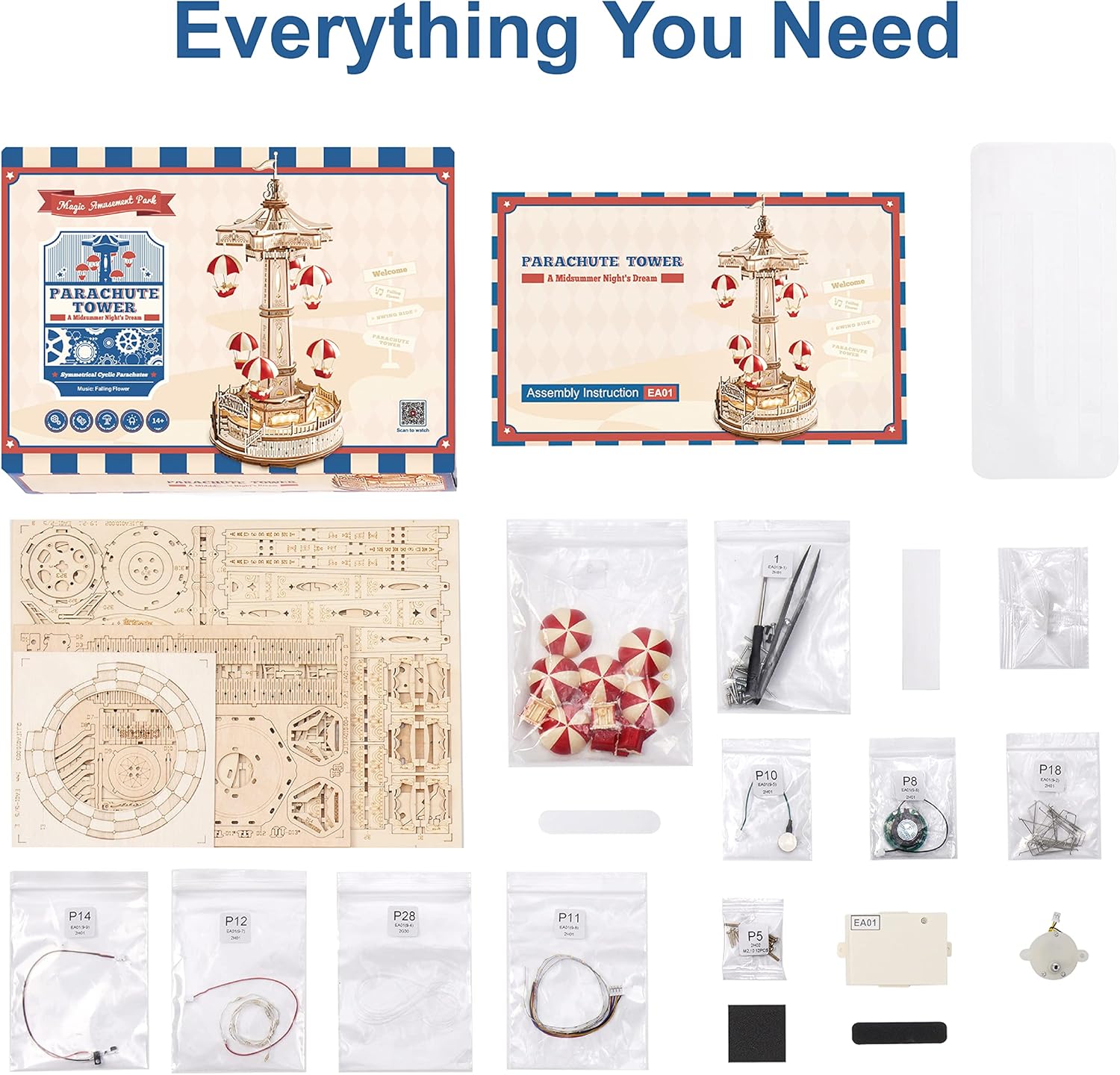

Immaġni 3.1: Fuqview of the kit's contents, showing the packaging, instruction booklet, wooden sheets, and bagged components.

4. Setup u Assemblea

The assembly process for the Parachute Tower EA01 is estimated to take approximately 5.5 hours. Patience and careful attention to the detailed instructions are key to a successful build. No glue is required for assembly.

1. Preparazzjoni: Carefully unpackage all components. Identify the wooden sheets and familiarize yourself with the parts. Use the included sandpaper or file to gently smooth any burrs or connection points on the wooden pieces after detaching them from the sheets. This will ensure a smoother fit.
2. Assemblaġġ tal-Bażi: Begin by assembling the base structure according to the instruction manual. This forms the foundation for the tower and houses the music box mechanism and battery compartment.
3. Tower Construction: Proceed with building the central tower. Pay close attention to the orientation of each piece, as the tower incorporates channels for wiring and the internal drive shaft.
4. Electrical Component Integration: Install the motor, LED light strips, touch switch, and loudspeaker as indicated in the manual. Ensure all connections are secure. The intermittent and constant LED light strips will illuminate different sections of the model.
5. Parachute Mechanism: Assemble the upper hexagram roof and the parachute drop mechanism. This involves carefully threading the fishing lines for the parachutes through the designated pulleys and attaching them to the internal drive shaft. Ensure the lines are taut and the parachutes move freely.
6. Irtokki Finali: Attach the miniature parachute figures to their respective lines. Insert 3 AAA batteries (not included) into the battery compartment, observing correct polarity.

Image 4.1: A builder carefully connecting wooden pieces, demonstrating the hands-on nature of the assembly process.

Immaġni 4.2: Dettaljata views highlighting key features such as the hexagram roof, the moving parachutes, the integrated flickering lights, and the capacitive touch switch on the base.

5. Istruzzjonijiet Operattivi

Once fully assembled and batteries are installed, the Parachute Tower EA01 is ready for operation.

• Power On/Off: Locate the touch switch on the base of the model.
• L-Ewwel Mess: A single touch will activate the music ('Falling Flower'), illuminate the LED lights, and initiate the reciprocating motion of the parachutes.
• It-Tieni Touch: Touching the switch again will stop the music, but the lights and parachute motion will continue.
• Mess u Żomm: Press and hold the touch switch to turn off all functions (music, lights, and motion).

Image 5.1: Demonstrating the touch-sensitive activation point on the model's base, which controls its various features.

6. Manutenzjoni

To ensure the longevity and optimal performance of your ROBOTIME Parachute Tower EA01, follow these maintenance guidelines:

• Tindif: Use a soft, dry cloth to gently wipe dust from the model. Avoid using abrasive cleaners or liquids, as they may damage the wood or electronic components.
• Lubrikazzjoni: If any moving parts (e.g., gears, shafts) become stiff, apply a small amount of the included wax or a suitable dry lubricant to reduce friction.
• Sostituzzjoni tal-batterija: Replace batteries when the lights dim or the motion/music becomes weak. Always replace all batteries at once with new ones of the same type.
• Ħażna: Store the model in a dry, cool place away from direct sunlight and extreme temperature fluctuations to prevent warping or damage to the wood.

7 Issolvi l-problemi

If you encounter any issues with your Parachute Tower EA01, refer to the following common problems and solutions:

8. Speċifikazzjonijiet

Image 8.1: Visual representation of the assembled model's dimensions and key features like piece count and glue-free assembly.

9. Garanzija u Appoġġ

ROBOTIME is committed to providing high-quality products. If you have any questions during assembly, or if you encounter damaged or missing parts, please do not hesitate to contact ROBOTIME customer support. We aim to respond to inquiries within 24 hours.

For further assistance, please visit the official ROBOTIME store or contact their customer service channels as provided on the product packaging or official websit.
