1. Introduzzjoni u Prodott Fuqview
This manual provides essential information for the Dorman 604-346 HVAC Blend Door Actuator. This component is designed as a direct replacement for the original actuator in specific vehicle years, makes, models, and configurations to restore proper heating, ventilation, and air conditioning (HVAC) system operation.
The HVAC system in a vehicle relies on air door actuators to manage airflow. These actuators control internal flaps or air doors within the ductwork behind the dashboard. Their function is to direct air to various vents (upper, middle, lower) and to switch between fresh air intake and recirculating air. Proper functioning of these actuators is crucial for maintaining passenger comfort and effective climate control.
Figura 1: Quddiem view of the Dorman 604-346 HVAC Blend Door Actuator.
2. Compatibility and Correct Part Selection
It is critical to ensure that the Dorman 604-346 actuator is the correct part for your specific vehicle and the intended position within the HVAC system. Many vehicles utilize several different air door actuators, each designed for a unique position and function. Differences in vehicle specifications, such as automatic versus manual climate control, can affect which actuator is required.
Vetturi Kompatibbli:
- Buick Envision: 2016, 2017, 2018, 2019, 2020
- Chevrolet Equinox: 2018, 2019, 2020, 2021
- GMC Terrain: 2018, 2019, 2020, 2021
Qabel ix-xiriasing and installing, carefully review the application notes for this part to verify it matches the position and function of the actuator you need to replace. If you are unsure which actuator position requires replacement, consult a qualified service technician.
Video 1: This video from Dorman Products provides guidance on choosing the correct air door actuator for your repair, emphasizing the importance of matching the part to the specific vehicle and function.
3. Kontenut tal-Pakkett
- 1 x Dorman 604-346 HVAC Blend Door Actuator
4. Installazzjoni
The Dorman 604-346 HVAC Blend Door Actuator is designed for direct replacement, allowing for a plug-and-play installation. However, due to the complex nature of accessing HVAC components behind the dashboard, professional installation is highly recommended. Incorrect installation can lead to further damage to the HVAC system or improper operation.
Konsiderazzjonijiet ta' Installazzjoni:
- Dejjem skonnettja l-batterija tal-vettura qabel tibda kwalunkwe xogħol elettriku.
- Refer to your vehicle's service manual for specific instructions on accessing and replacing the HVAC blend door actuator.
- Ensure the new actuator is correctly oriented and securely fastened.
- Reconnect electrical connectors firmly.
- After installation, perform a functional test of the HVAC system to confirm proper operation of all air doors and temperature controls.
Video 2: This Dorman Products video provides an overview of air door actuators, their function, and the importance of proper replacement, highlighting Dorman's extensive product line.
5. Operazzjoni
Once installed, the Dorman 604-346 HVAC Blend Door Actuator operates in conjunction with your vehicle's climate control system. When you adjust temperature settings, fan speed, or airflow direction, the actuator receives electrical signals to move the blend doors. This movement precisely mixes hot and cold air, or directs air to specific vents, ensuring the desired climate within the vehicle cabin.
Figura 2: Ġenb view of the Dorman 604-346 HVAC Blend Door Actuator, showing its compact design.
6. Manutenzjoni
The Dorman 604-346 HVAC Blend Door Actuator is a sealed unit and does not require routine user maintenance. If the actuator fails, it typically needs to be replaced. To prolong the life of your HVAC system components, ensure your cabin air filter is regularly inspected and replaced according to your vehicle manufacturer's recommendations. A clean cabin air filter helps maintain optimal airflow and reduces strain on the HVAC system.
7 Issolvi l-problemi
Common symptoms of a failing HVAC blend door actuator include:
- Inconsistent or incorrect temperature output from vents.
- Air not blowing from the selected vents (e.g., only defrost, no floor vents).
- Clicking, ticking, or whirring noises coming from behind the dashboard, especially when adjusting climate controls.
- Inability to switch between fresh air and recirculation modes.
If you experience any of these symptoms, it is advisable to have your vehicle's HVAC system diagnosed by a qualified technician. They can accurately identify the faulty actuator and ensure the correct replacement part is installed.
Figure 3: An assortment of HVAC components, including different types of air door actuators, illustrating the variety of parts within a vehicle's climate control system.
8. Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Manifattur | Prodotti Dorman |
| Brand | Dorman |
| Mudell | Dorman 604-346 |
| Piż tal-oġġett | 3.84 uqija |
| Dimensjonijiet tal-Prodott | 3.62 x 3.07 x 3.07 pulzieri |
| Numru tal-Mudell tal-Oġġett | 604-346 |
| Numru tal-Parti tal-Manifattur | 604-346 |
| Numri tal-Partijiet OEM | 1574602; 23155241 |

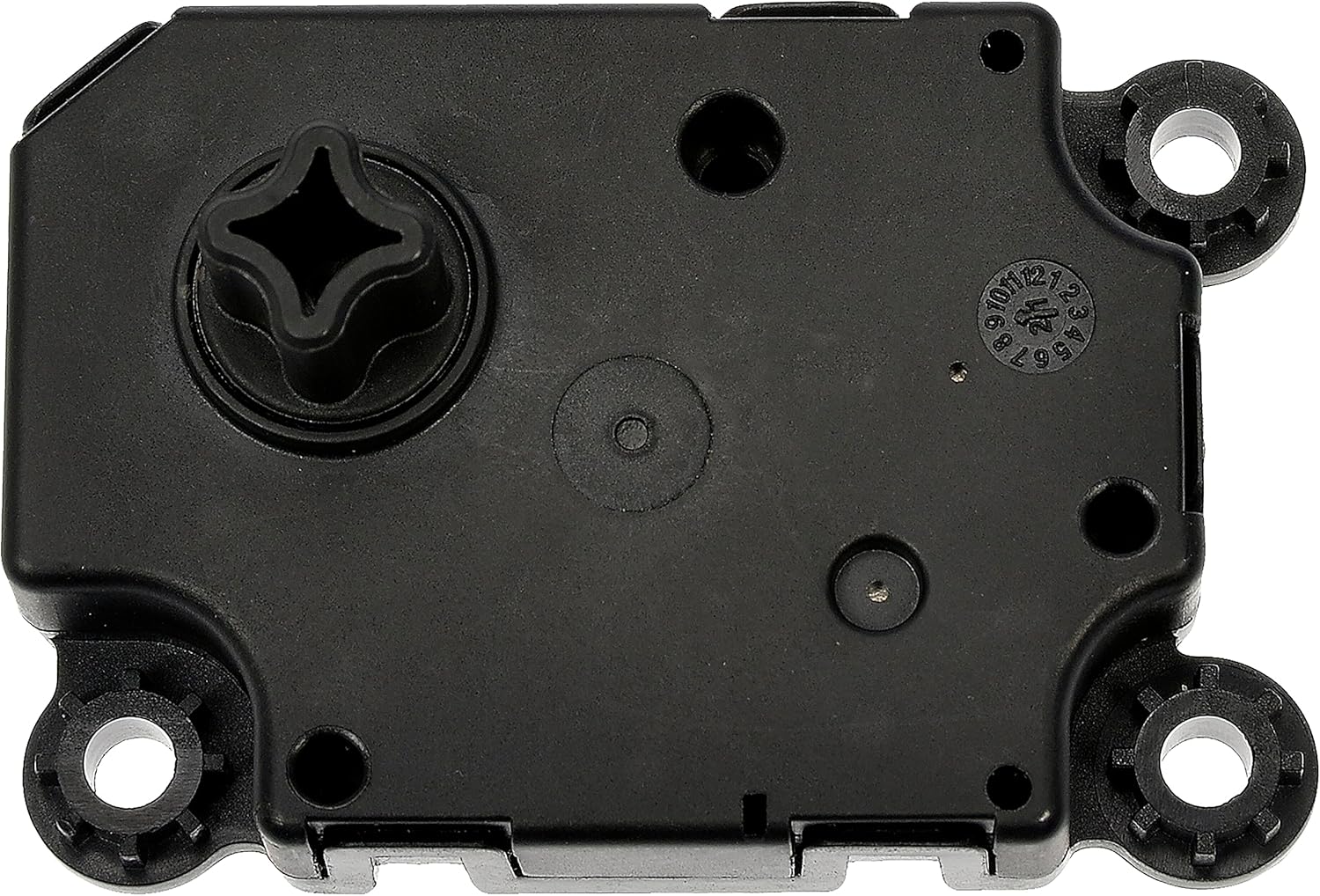

Figura 4: Qiegħ view of the Dorman 604-346 HVAC Blend Door Actuator, showing mounting points.
9. Garanzija u Appoġġ
The Dorman 604-346 HVAC Blend Door Actuator is backed by Dorman's commitment to quality and durability. For specific warranty details, terms, and conditions, please refer to the official Dorman Products website or contact Dorman customer support directly. Dorman has over a century of experience in providing reliable automotive replacement parts.
For additional support, product information, or to explore Dorman's full range of automotive solutions, please visit the Ħanut Dorman fuq Amazon or the official Dorman Products websit.
Figure 5: Dorman offers a variety of solutions for complete HVAC repairs, including air door actuators and related components.
