CONTEC SP80B Handheld Spirometer

1. Introduzzjoni u Fuqview

The CONTEC SP80B is a portable, handheld spirometer designed for measuring various respiratory parameters. It is equipped with Bluetooth connectivity for convenient data transfer to compatible devices. This manual provides essential information for the safe and effective use of your SP80B spirometer.

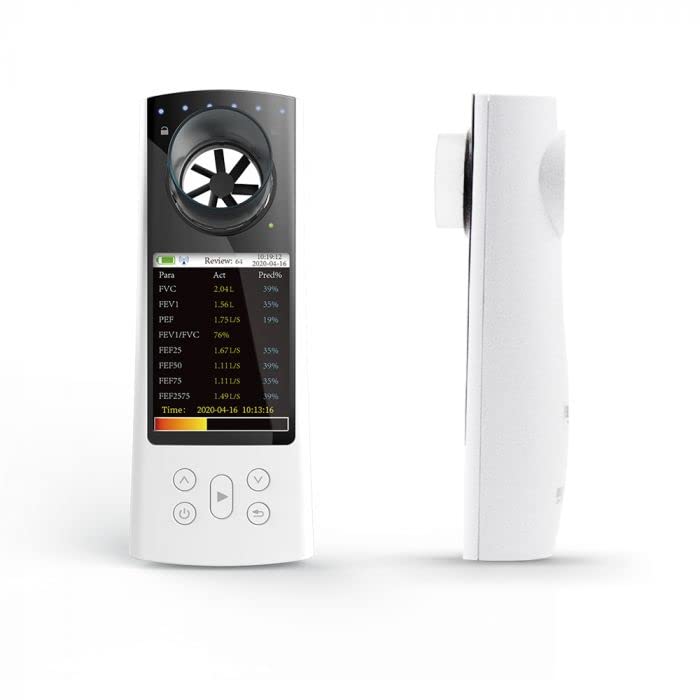

Figura 1: Quddiem u ġenb view of the CONTEC SP80B Handheld Spirometer. The device features a clear LCD screen and intuitive control buttons.

Karatteristiċi ewlenin:

• Measures 8 parameters: FVC (Forced Vital Capacity), FEV1 (Forced Expiratory Volume in one second), PEF (Peak Expiratory Flow), FEV1/FVC, FEF25 (Forced Expiratory Flow at 25% of FVC), FEF50 (Forced Expiratory Flow at 50% of FVC), FEF75 (Forced Expiratory Flow at 75% of FVC), and FEF2575 (Forced Expiratory Flow between 25% and 75% of FVC).
• 2.83" LCD display for clear readings.
• Indicates expiration within 6 seconds by indicators.
• Rechargeable lithium battery (2200mAh) for extended use.
• Continuous working time: > 10 hours.
• Data transmission via Bluetooth and USB.
• Stores up to 224 cases with waveform data (more than 10000 for cases without waveform).

2. Setup

Before first use, ensure the device is fully charged and all components are present and undamaged.

2.1 Disimballaġġ

Carefully remove the spirometer and all accessories from the packaging. Verify that the following items are included:

• CONTEC SP80B Handheld Spirometer unit
• Mouthpieces (disposable)
• Cable tal-iċċarġjar tal-USB
• Manwal għall-Utent (dan id-dokument)

2.2 Iċċarġjar tal-batterija

The device is powered by a rechargeable lithium battery. Connect the provided USB cable to the spirometer's charging port and the other end to a standard USB power adapter (not included) or a computer USB port. The charging indicator on the device will illuminate during charging and turn off when fully charged. A full charge typically takes approximately 2-3 hours.

2.3 Tixgħel Inizjali

Press and hold the power button (usually marked with a power symbol) for a few seconds until the LCD screen illuminates. The device will perform a self-check and display the main interface.

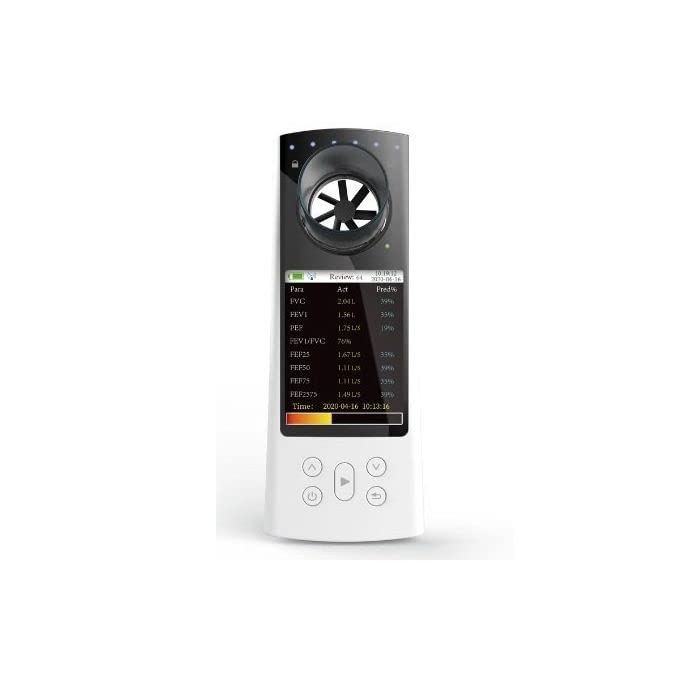

Figure 2: The CONTEC SP80B spirometer displaying various respiratory parameters on its screen. This view highlights the device's user interface.

3. Istruzzjonijiet Operattivi

Follow these steps for accurate spirometry measurements.

3.1 Preparing for a Test

1. Kun żgur li l-apparat ikun mixgħul u kompletament iċċarġjat.
2. Attach a new, clean disposable mouthpiece to the spirometer's sensor opening.
3. Oqgħod bilqiegħda dritt f'pożizzjoni komda.
4. Ensure there are no obstructions to breathing.

3.2 Performing a Spirometry Test

The device will guide you through the test. Typically, a spirometry test involves the following steps:

1. Inhale Deeply: Take the deepest breath you can, filling your lungs completely.
2. Seal Lips Around Mouthpiece: Place the mouthpiece in your mouth and seal your lips tightly around it.
3. Exhale Forcefully and Completely: Blow out as hard and as fast as you can until your lungs are completely empty. Continue exhaling for at least 6 seconds, or until the device indicates completion.
4. Review Riżultati: The measured parameters will be displayed on the LCD screen immediately after the test.

Figure 3: The CONTEC SP80B display showing detailed spirometry test results, including FVC, FEV1, PEF, and other parameters with actual and predicted values.

3.3 Data Transfer via Bluetooth

The SP80B supports Bluetooth connectivity for transferring data to a compatible smartphone or computer application. Refer to the specific application's instructions for pairing and data synchronization.

1. Ensure Bluetooth is enabled on both the spirometer and your receiving device.
2. Open the dedicated spirometry application on your smartphone or computer.
3. Follow the application's instructions to search for and pair with the SP80B device.
4. Once paired, data can be transferred and viewed fl-applikazzjoni.

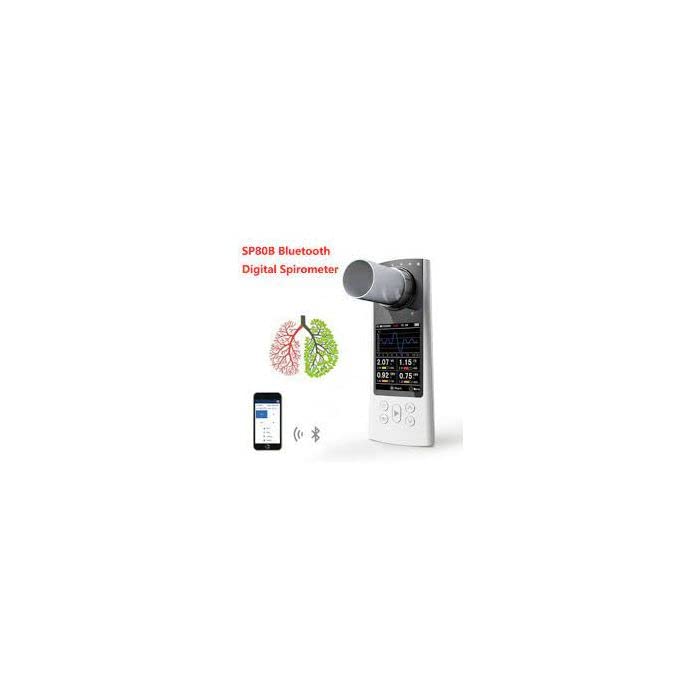

Figure 4: The CONTEC SP80B spirometer demonstrating its Bluetooth connectivity with a smartphone, allowing for data synchronization and analysis.

4. Manutenzjoni

Proper maintenance ensures the longevity and accuracy of your spirometer.

4.1 Tindif tal-Apparat

• Imsaħ il-barra tal-apparat b'artab, damp drapp. Tużax tindif li joborxu jew tgħaddas l-apparat fl-ilma.
• The mouthpiece should be disposable and replaced after each use to prevent cross-contamination.
• Ensure the sensor opening is free from dust or debris. Use a soft brush if necessary, but avoid inserting objects into the sensor.

4.2 Kura tal-Batterija

• Iċċarġja l-batterija regolarment, anke jekk l-apparat ma jkunx qed jintuża ta' spiss, biex iżżomm il-batterija f'kundizzjoni tajba.
• Evita li tiċċarġja l-batterija kompletament ta' spiss.
• Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża.

4.3 Ħażna

Store the spirometer in its original packaging or a protective case in a clean, dry environment, away from direct sunlight, extreme temperatures, and humidity.

5 Issolvi l-problemi

If you encounter issues with your SP80B spirometer, refer to the following common problems and solutions:

6. Speċifikazzjonijiet

Detailed technical specifications for the CONTEC SP80B Handheld Spirometer.

• Ditta: CONTEC
• Mudell: SP80B
• Piż tal-oġġett: 120 g
• Dimensjonijiet tal-pakkett: 16 x 6.5 x 4.5 ċm
• Teknoloġija tal-Konnettività: Bluetooth
• Sors tal-Enerġija: Battery Powered (Rechargeable Lithium Battery 2200mAh)
• Wiri: LCD ta' 2.83 pulzieri
• Ħażna tad-Data: Up to 224 cases with waveform, over 10000 cases without waveform
• Data L-Ewwel Disponibbli: 6 ta’ Settembru 2022

7. Garanzija u Appoġġ

For specific warranty terms and conditions, please refer to the warranty card included with your product or contact the authorized CONTEC distributor or seller from whom you purchased the device. Warranty coverage typically includes defects in materials and workmanship under normal use.

Appoġġ għall-Klijent:

If you require technical assistance, have questions about the device's operation, or need to report a malfunction, please contact the seller or CONTEC customer support. Have your product model (SP80B) and purchase information ready when contacting support.
