1. Introduzzjoni
Thank you for choosing the JCLOUD Smart Scent Air Machine AE-108. This waterless essential oil diffuser utilizes advanced Cold-Air Diffusion Technology to disperse fragrance effectively across areas up to 1000 square feet. This manual provides comprehensive instructions for the safe and efficient operation, setup, and maintenance of your device. Please read this manual thoroughly before use and retain it for future reference.
2. Prodott Aktarview
2.1 Komponenti Inklużi
- JCLOUD Smart Scent Air Machine AE-108
- USB-Cable
2.2 Karatteristiċi ewlenin
- Cold-Air Diffusion Technology: Disperses essential oils without heat or water, preserving their therapeutic properties.
- Operazzjoni bla Ilma: Eliminates the need for water, simplifying maintenance and preventing mold buildup.
- Kopertura Wiesgħa: Effectively scents areas up to 1000 square feet.
- 100ML Capacity: Allows for extended operation without frequent refills.
- Disinn kompatt: Suitable for various home and office environments.
2.3 Dijagramma tal-Prodott
Figura 1: Quddiem view of the JCLOUD Smart Scent Air Machine AE-108. This image shows the sleek black casing with the JCLOUD logo and a rose gold accent on the right side.
Figura 2: The JCLOUD Smart Scent Air Machine AE-108 shown alongside an empty blue essential oil bottle, illustrating the type of container used for fragrance.
3. Setup
- Spakkja l-Apparat: Carefully remove the scent machine and all accessories from the packaging.
- Locate the Oil Bottle Compartment: The oil bottle compartment is typically accessed from the top or side of the device. Refer to Figure 3 for the top view showing the oil port.
- Fill the Oil Bottle: Unscrew the empty essential oil bottle (if provided separately) and fill it with your desired essential oil. Do not overfill. The maximum capacity is 100ML.
- Attach the Oil Bottle: Screw the filled essential oil bottle securely into the nebulizing mechanism within the compartment. Ensure it is tightly sealed to prevent leaks.
- Qabbad l-Enerġija: Insert the USB-Cable into the power port on the device. Connect the other end of the USB-Cable to a suitable power adapter (not included) and plug it into a wall outlet. This device operates on corded electric power and does not contain an internal battery. Refer to Figure 4 for the back view showing the power port.
- Pjazzament: Place the scent machine on a flat, stable surface in the desired area. Ensure it is away from direct sunlight, heat sources, and out of reach of children and pets.
Figura 3: Fuq view of the JCLOUD Smart Scent Air Machine AE-108, highlighting the circular opening for the essential oil bottle connection.

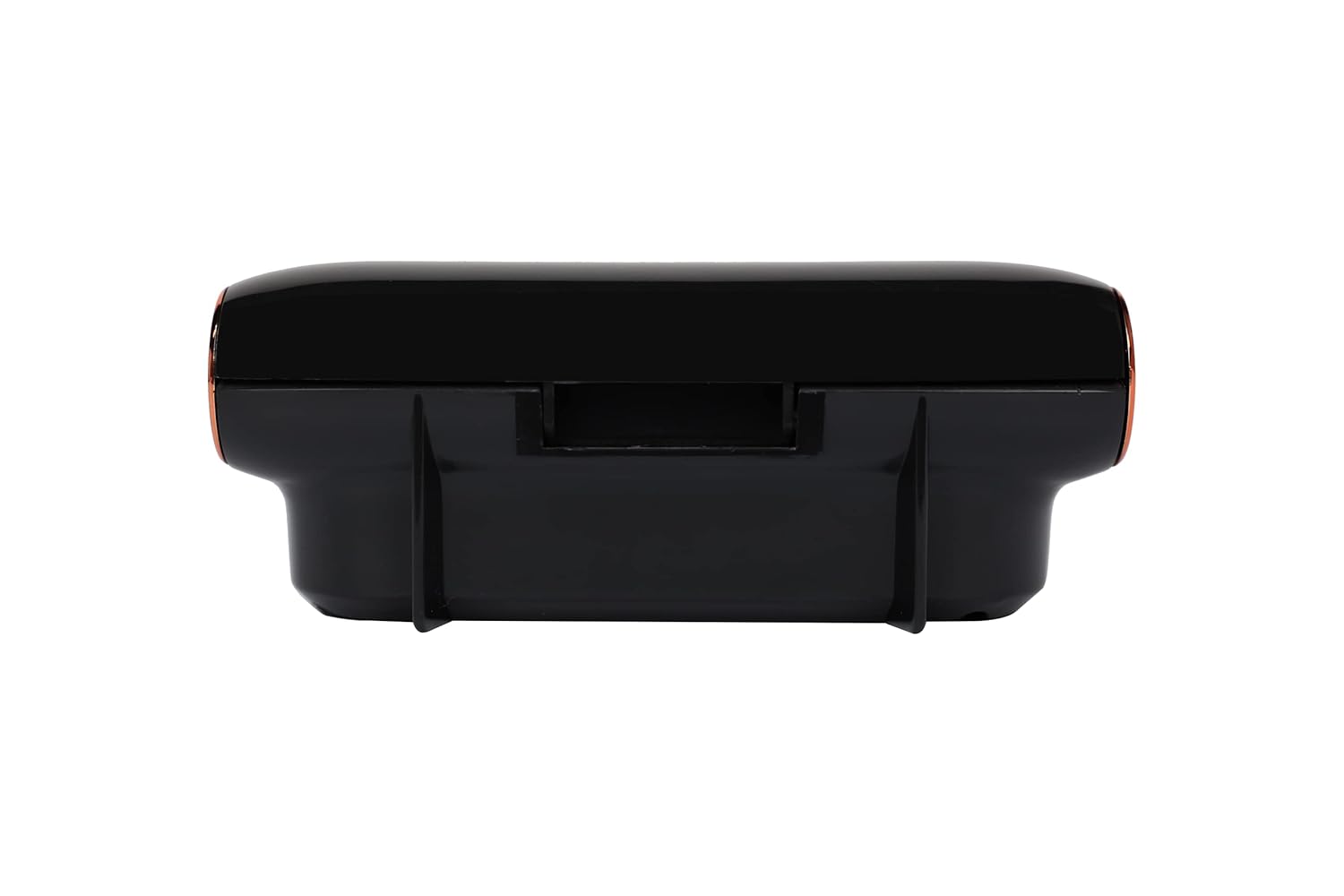

Figura 4: Lura view of the JCLOUD Smart Scent Air Machine AE-108, indicating the location of the USB power input port.
4. Istruzzjonijiet Operattivi
- Qawwa Mixgħul: Once connected to power, the device should indicate it is ready for operation (e.g., an indicator light). Press the power button (location may vary, typically on the top or front panel) to turn on the machine.
- Adjust Scent Intensity: The JCLOUD Smart Scent Air Machine AE-108 typically features adjustable intensity settings. Refer to the control panel for options to increase or decrease the diffusion strength. Higher settings will consume more oil.
- Funzjoni tat-Tajmer (jekk disponibbli): Some models include a timer function. Consult your device's specific controls to set desired operating intervals or durations.
- Itfi: Press the power button again to turn off the machine. Disconnect from the power source if the device will not be used for an extended period.
Nota: The device operates using Cold-Air Diffusion Technology, which means it does not produce mist or steam. You may not visibly see the diffusion, but the fragrance will be dispersed into the air.
5. Manutenzjoni
Regular maintenance ensures optimal performance and longevity of your JCLOUD Smart Scent Air Machine AE-108.
5.1 Tindif tal-Apparat
- Tindif ta' barra: Imsaħ il-barra tal-magna b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Nebulizer Cleaning: If you notice a decrease in scent output or plan to switch essential oils, clean the nebulizer. Remove the essential oil bottle. Fill a clean, empty bottle with rubbing alcohol and attach it to the nebulizer. Run the machine for 15-30 minutes to clear any residue. Then, reattach your essential oil bottle.
5.2 Essential Oil Replacement
When the essential oil bottle is empty, replace it by following the steps outlined in Section 3. Ensure the device is powered off and unplugged before replacing the oil bottle.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda ħruġ ta' riħa |
|
|
| Apparat mhux qed jixgħel |
|
|
| Żejt li jnixxi |
|
|
If the problem persists after attempting these solutions, please contact JCLOUD customer support.
7. Speċifikazzjonijiet
| Isem tal-Mudell | AE-108 |
| Brand | JCLOUD |
| Kulur | Iswed |
| Materjal | Plastik |
| Sors tal-Enerġija | Corded Elettriku |
| Wattage | 10 Watts |
| Kapaċità | 100 Milliliters (Oil Bottle) |
| Żona ta' Kopertura | Sa 1000 pied kwadru |
| Piż tal-oġġett | 812 g |
| Dimensjonijiet tal-oġġett (LxWxH) | 14.7 x 5.8 x 16 Ċentimetru |
| Karatteristika Speċjali | Cold-Air Diffusion Technology |
8. Garanzija u Appoġġ
For warranty information and customer support, please refer to the documentation provided with your purchase or visit the official JCLOUD website. If you encounter any issues not covered in this manual, please contact JCLOUD customer service for assistance.
Informazzjoni ta' Kuntatt: Please refer to your purchase receipt or the JCLOUD official websit għad-dettalji ta' kuntatt tal-appoġġ għall-klijenti l-aktar aġġornati.
