1. Introduzzjoni
Thank you for choosing the Midea Arctic King KAP14H1CBL Portable Air Conditioner. This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before using the product and retain it for future reference.
2. Informazzjoni dwar is-Sigurtà
Your safety and the safety of others are very important. Please read and follow all safety instructions provided in this manual to prevent injury or damage.
- Always plug the unit into a grounded 120V AC outlet. Do not use extension cords or adapter plugs.
- Tħaddimx l-unità b'korda jew plagg bil-ħsara.
- Żomm l-unità 'l bogħod minn sorsi ta' sħana u dawl tax-xemx dirett.
- Aċċerta ruħek li jkun hemm ventilazzjoni xierqa madwar l-unità. Timblokkax id-daħliet jew il-ħruġ tal-arja.
- Do not insert fingers or objects into the air outlet grille.
- Skonnettja l-unità qabel ma tnaddafha jew tagħmel xi manutenzjoni.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
3. Kontenut tal-Pakkett
Carefully unpack your portable air conditioner and check that all items are included:
- Midea Arctic King KAP14H1CBL Portable Air Conditioner Unit
- Manka tal-egżost
- Window Venting Kit (Window Slider Kit, Exhaust Hose Adapter, Window Exhaust Adapter)
- Kontroll mill-bogħod
- Ixxotta pajp
- Manwal għall-Utent (dan id-dokument)
4. Prodott Aktarview
Familiarize yourself with the main components of your portable air conditioner.

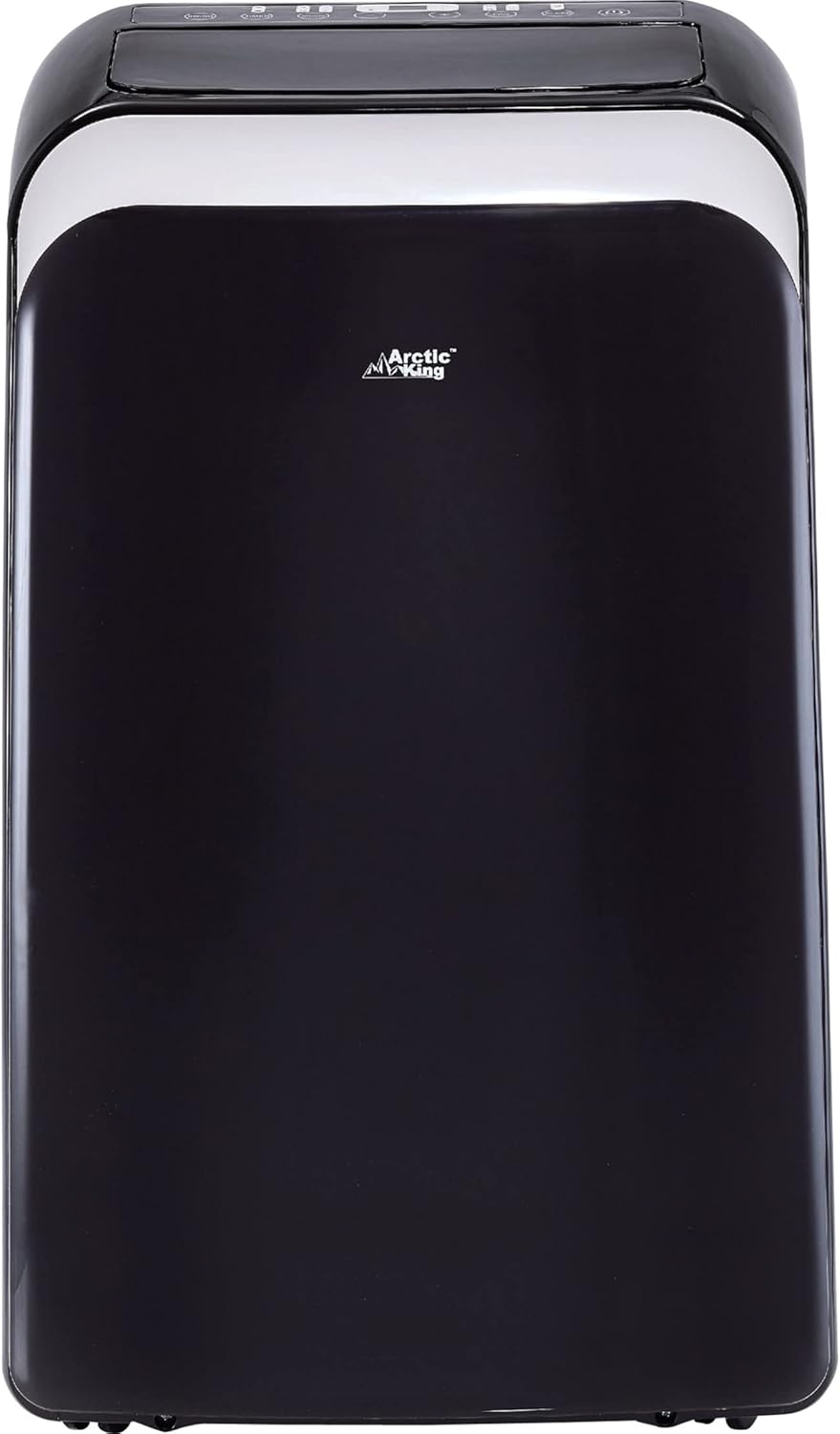

Figura 4.1: Quddiem view of the Midea Arctic King KAP14H1CBL Portable Air Conditioner. This image shows the sleek black unit with its control panel located on the top surface.
Panel tal-Kontroll u Kontroll mill-bogħod
The unit features an intuitive control panel on its top surface and comes with a remote control for convenient operation from a distance. Both allow you to adjust settings such as mode, temperature, fan speed, and timer.
5. Setup u Installazzjoni
The Midea Arctic King KAP14H1CBL is designed for easy installation without professional assistance. Simply follow these steps to set up your unit.
5.1 Pjazzament tal-Unità
- Poġġi l-unità fuq wiċċ ċatt u stabbli.
- Kun żgur li hemm mill-inqas 20 pulzier (50 ċm) ta' spazju madwar l-unità għal fluss tal-arja xieraq.
- Poġġi l-unità ħdejn tieqa għall-installazzjoni tal-pajp tal-egżost u sokit elettriku ertjat.
5.2 Installazzjoni tal-Kit tal-Ventilazzjoni tat-Twieqi
- Arma l-kit tas-slajder tat-tieqa biex jaqbel mal-ftuħ tat-tieqa tiegħek.
- Insert the exhaust hose adapter into one end of the exhaust hose.
- Waħħal l-adapter tal-egżost tat-tieqa mat-tarf l-ieħor tal-pajp tal-egżost.
- Connect the exhaust hose adapter to the exhaust outlet on the back of the portable air conditioner.
- Secure the window exhaust adapter into the opening of the window slider kit.
- Close the window securely against the window slider kit to seal the opening.
Figura 5.1: The portable air conditioner unit with its exhaust hose properly installed in a window. This setup ensures hot air is expelled outdoors, enhancing cooling efficiency.
5.3 Konnessjoni tal-Enerġija
Once the unit is positioned and the exhaust hose is installed, plug the power cord into a standard 120V AC grounded electrical outlet. The unit is now ready for operation.
6. Istruzzjonijiet Operattivi
This section details how to use the various functions of your portable air conditioner.
6.1 Power On/Off
Agħfas il- QAWWA buttuna fuq il-pannell tal-kontroll jew fuq il-kontroll remot biex tixgħel jew titfi l-unità.
6.2 Għażla tal-Modalità
Agħfas il- MODALITÀ buttuna biex tiċċikla bejn il-modi operattivi disponibbli:
- Modalità Kessaħ: Għat-tkessiħ tal-kamra. Issettja t-temperatura mixtieqa tiegħek.
- Modalità Fan: Jiċċirkola l-arja mingħajr ma jkessaħ. Il-veloċità tal-fann tista' tiġi aġġustata.
- Modalità Dehumidify: Inaqqas l-umdità fil-kamra.
- Modalità tas-Sħana: Għat-tisħin tal-kamra. Issettja t-temperatura mixtieqa tiegħek.
6.3 Aġġustament tat-Temperatura
In Cool or Heat mode, use the UP u 'L isfel arrow buttons to set your desired temperature. The temperature range is typically between 62°F (17°C) and 88°F (30°C).
6.4 Kontroll tal-Veloċità tal-Fann
Agħfas il- VELOĊITÀ TAL-FAN button to select between Low, Medium, and High fan speeds. This function is available in Cool and Fan modes.
6.5 Funzjoni Timer
The timer allows you to set a specific time for the unit to turn on or off automatically. Refer to the remote control section for detailed timer programming instructions.
7. Manutenzjoni
Regular maintenance ensures optimal performance and extends the lifespan of your portable air conditioner. Always unplug the unit before performing any maintenance.
7.1 Tindif tal-Filtru tal-Arja
Il-filtru tal-arja għandu jitnaddaf kull ġimagħtejn, jew aktar ta' spiss skont l-użu u l-kwalità tal-arja.
- Itfi u aqla l-unità.
- Locate and remove the air filter from the back or side of the unit.
- Aħsel il-filtru b'ilma sħun u bis-sapun. Laħlaħ sew.
- Ħalli l-filtru jinxef kompletament bl-arja qabel ma terġa' tinstallah. Tesponihx għad-dawl tax-xemx dirett.
7.2 Drenaġġ tal-Ilma
The unit has a self-evaporative system, but in high humidity conditions, the internal water tank may fill up. When this occurs, the unit will stop operating and display an error code (e.g., "FL" for full tank). Drain the water as follows:
- Itfi u aqla l-unità.
- Place a shallow pan or tray under the drain port located at the bottom rear of the unit.
- Neħħi t-tapp tad-drenaġġ biex tħalli l-ilma joħroġ.
- Ladarba jkun imsaffi, erġa' poġġi t-tapp tad-drenaġġ sew.
7.3 Ħażna
Jekk se taħżen l-unità għal perjodu estiż:
- Ixxotta l-ilma kollu akkumulat.
- Naddaf il-filtru tal-arja.
- Store the unit in a cool, dry place, covered to protect from dust.
8 Issolvi l-problemi
Qabel ma tikkuntattja l-appoġġ għall-klijenti, jekk jogħġbok irreferi għat-tabella li ġejja għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel. | Bla enerġija; il-korda tal-enerġija skonnettjata; is-circuit breaker qabad. | Ensure unit is plugged in; check circuit breaker; try a different outlet. |
| L-unità qed taħdem imma mhux qed tkessaħ. | Air filter dirty; exhaust hose not properly installed; room too large; windows/doors open. | Clean air filter; ensure exhaust hose is sealed; close windows/doors; check room size. |
| Unit displays "FL" error. | It-tank tal-ilma intern huwa mimli. | Drain the accumulated water from the unit. |
| L-unità hija storbjuża. | L-unità mhix fuq wiċċ livellat; veloċità tal-fann għolja wisq; komponenti interni jivvibraw. | Place on a level surface; reduce fan speed; ensure no obstructions. |
9. Speċifikazzjonijiet
Key technical specifications for the Midea Arctic King KAP14H1CBL Portable Air Conditioner:
- Numru tal-Mudell: KAP14H1CBL
- Kapaċità tat-tkessiħ: 13500 British Thermal Units (BTU) / 3956.46 W
- Kapaċità tat-tisħin: Not explicitly stated in specs, but description mentions "Heater". Assuming similar capacity.
- Sors tal-Enerġija: Corded Elettriku
- Voltage: 120 Volts (AC)
- Wattage: 1365.0 watt
- Livell ta' Storbju: 59.5 Deċibel
- Refriġerant: R-32
- Dimensjonijiet tal-Prodott (P x W x H): 20.2 x 17.4 x 34.7 pulzieri
- Piż tal-oġġett: 89 liri
- Kulur: Iswed
- Karatteristiċi Speċjali: Portable, Remote Controlled
10. Garanzija u Appoġġ
This Midea Arctic King KAP14H1CBL Portable Air Conditioner comes with a Garanzija Limitata ta' 1 Snin mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.
For warranty claims, technical support, or service inquiries, please contact Midea customer support. Please have your model number (KAP14H1CBL) and proof of purchase readily available.
You can find contact information for Midea customer support by visiting the official Midea website or referring to the documentation included with your product.
