1. Introduzzjoni
This manual provides essential information for the safe and efficient operation of your EBL 100W Portable Solar Panel. Please read these instructions thoroughly before use and retain them for future reference. This portable solar panel is designed to convert sunlight into electrical energy, suitable for charging compatible power stations and other electronic devices.
2. Istruzzjonijiet tas-Sigurtà
- Do not attempt to disassemble, repair, or modify the solar panel. Unauthorized modifications may cause damage or injury.
- Keep the solar panel away from fire, heat sources, and flammable materials.
- Avoid exposing the solar panel to extreme temperatures or direct sunlight for prolonged periods when not in use.
- Ensure all connections are secure and correct before operating the device. Incorrect connections can lead to damage.
- While the panel is IP65 water-resistant, it is not waterproof. Do not immerse it in water or expose it to heavy rain.
- Handle the solar panel with care to prevent physical damage.
3. Kontenut tal-Pakkett
Iċċekkja li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:
- 1x EBL Solar Apollo 100W Solar Panel
- 1x MC4 TO ANDERSON Cable
- 1x MC4 TO DC5521 Cable
- 1x 5.5*2.1mm to 5.5*2.5mm Adapter
- 1x 5.5*2.1mm to 7.9*0.9mm Adapter
- 1x 5.5*2.1mm to 3.5*1.5mm Adapter
- 1x Manwal għall-Utent
4. Karatteristiċi tal-prodott
- Kompatibilità Universali: Equipped with multiple connectors (MC4 to Anderson, MC4 to DC5521, and various DC adapters) to support most portable power stations.
- High Energy Conversion: Features upgraded monocrystalline cells with up to 23% efficiency for effective power generation.
- Teknoloġija IC intelliġenti: Provides protection against overcharging, overheating, and short-circuits.
- Disinn portabbli: Foldable with a magnetic handle for easy transport and storage.
- Kickstand aġġustabbli: Integrated kickstands allow for optimal angling (e.g., 45°) towards the sun to maximize solar intake.

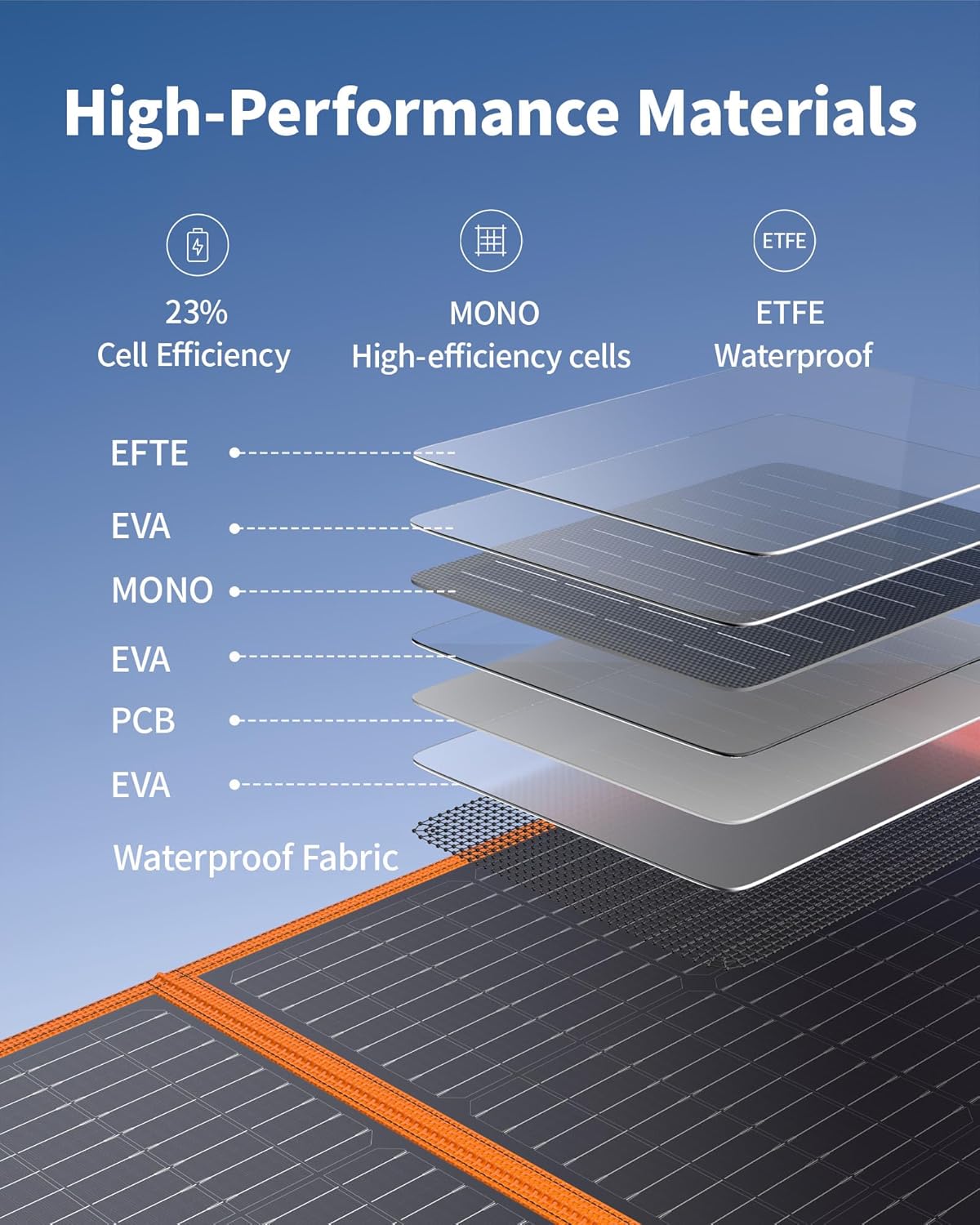

- Durabbli u Reżistenti għall-Ilma: Constructed with advanced laminated technology and long-lasting ETFE material, offering IP65 water resistance against splashes and dust.
5. Setup
- Iftaħ il-Panel Solari: Carefully unfold the EBL 100W Portable Solar Panel completely.
- Pożizzjoni għall-Ottimal Dawl tax-Xemx: Locate an area with direct sunlight. Extend the integrated kickstands on the back of the panel and adjust them to angle the panel towards the sun. A 45-degree angle is often recommended for maximum efficiency.
- Qabbad mal-Power Station:
- Identify the correct adapter cable for your power station's input port.
- Connect the MC4 connectors from the solar panel to the appropriate adapter cable (e.g., MC4 to Anderson or MC4 to DC5521). Ensure positive (+) and negative (-) connections are correctly matched.
- Plug the adapter cable into your power station's solar input port.
- Ivverifika l-Konnessjoni: Check your power station's display to confirm that it is receiving a charge from the solar panel.
6. Istruzzjonijiet Operattivi
Once the solar panel is set up and connected, it will automatically begin converting sunlight into electricity. The charging status will be displayed on your connected power station. For optimal performance:
- Ensure the solar panel is positioned to receive maximum direct sunlight throughout the day. Adjust its angle periodically as the sun moves.
- Avoid shading the panel with trees, buildings, or other objects, as this can significantly reduce charging efficiency.
- The integrated Smart IC provides protection, but it is advisable to monitor the charging process, especially in extreme weather conditions.
7. Manutenzjoni
- Tindif: Regularly clean the surface of the solar panels with a soft, damp cloth to remove dust, dirt, or debris. Avoid using abrasive materials or harsh chemicals that could scratch or damage the panel surface.
- Ħażna: When not in use, fold the solar panel and store it in a cool, dry place away from direct sunlight and moisture. Ensure it is completely dry before folding and storing.
- Spezzjoni: Periodically inspect the cables and connectors for any signs of wear, damage, or corrosion. Replace any damaged components immediately.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| No power output or low charging efficiency. | Insufficient sunlight, shading, incorrect angle, dirty panel surface, loose connection. | Reposition the panel for direct sunlight, remove any shading, adjust the angle, clean the surface, check all cable connections. |
| Power station not recognizing the solar panel. | Incorrect adapter, faulty cable, power station input issue. | Ensure the correct adapter is used, try a different cable, consult your power station's manual. |
| Panel overheating. | Extreme ambient temperature, poor ventilation. | Move the panel to a cooler, shaded area if possible, ensure adequate airflow around the panel. |
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | EBL |
| Numru tal-Mudell | ESP-100 |
| Qawwa Massima | 100 Watts |
| Materjal | Silikon monokristallin |
| Effiċjenza | Effiċjenza Għolja (sa 23%) |
| Dimensjonijiet tal-Prodott (Mitwija) | 7.48"T x 6.69"W x 1.57"Għ |
| Piż tal-oġġett | 11.64 liri |
| Reżistenza għall-Ilma | IP65 (splash and dust resistant) |
| Komponenti Inklużi | 1x EBL Solar Apollo 100W Solar Panel, 1x MC4 TO ANDERSON Cable, 1x MC4 TO DC5521 Cable, 1x 5.5*2.1mm to 5.5*2.5mm Adapter, 1x 5.5*2.1mm to 7.9*0.9mm Adapter, 1x 5.5*2.1mm to 3.5*1.5mm Adapter, 1x User Manual |
10. Garanzija u Appoġġ
EBL products typically come with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official EBL websit għal termini u kundizzjonijiet dettaljati tal-garanzija.
For technical support, troubleshooting assistance, or any inquiries regarding your EBL 100W Portable Solar Panel, please contact EBL customer service through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta fid-dokumentazzjoni tal-prodott tiegħek.
