Introduzzjoni
This manual provides essential information for the safe and effective operation and maintenance of your WLtoys 144010 Brushless 4WD High-Speed RC Car. Please read all instructions carefully before use to ensure optimal performance and longevity of your product.
X'hemm fil-Kaxxa
- 1 X RC Car
- 1 X Kontroll mill-bogħod
- 1 X Manwal
- 1 X USB Cable Charging
- 1 X Zinc Alloy Cross Sleeve
- 1 set X Battery
Speċifikazzjonijiet
| Dimensjonijiet tal-Prodott | 12.2 x 8.27 x 4.33 pulzieri |
| Piż tal-oġġett | 2.2 liri |
| Numru tal-Mudell tal-Oġġett | 144010 |
| Età Rakkomandata mill-Manifattur | 14 snin 'il fuq |
| Batteriji | 1 batterija tal-Lithium Polymer meħtieġa (inkluża) |
| Veloċità Massima | 75 KM/H |
| Distanza ta' Kontroll | Madwar 100-il metru |
| Ħin tal-Iċċarġjar | Madwar 3 sigħat |
| Ħin ta 'Użu | Madwar 8 minuta |
| Tip ta' Mutur | Mutur mingħajr brushes |
Setup
Installazzjoni tal-batterija
Ensure the vehicle is powered off before installing or removing the battery. Carefully connect the battery to the vehicle's power port, ensuring correct polarity. Secure the battery within its compartment to prevent movement during operation.

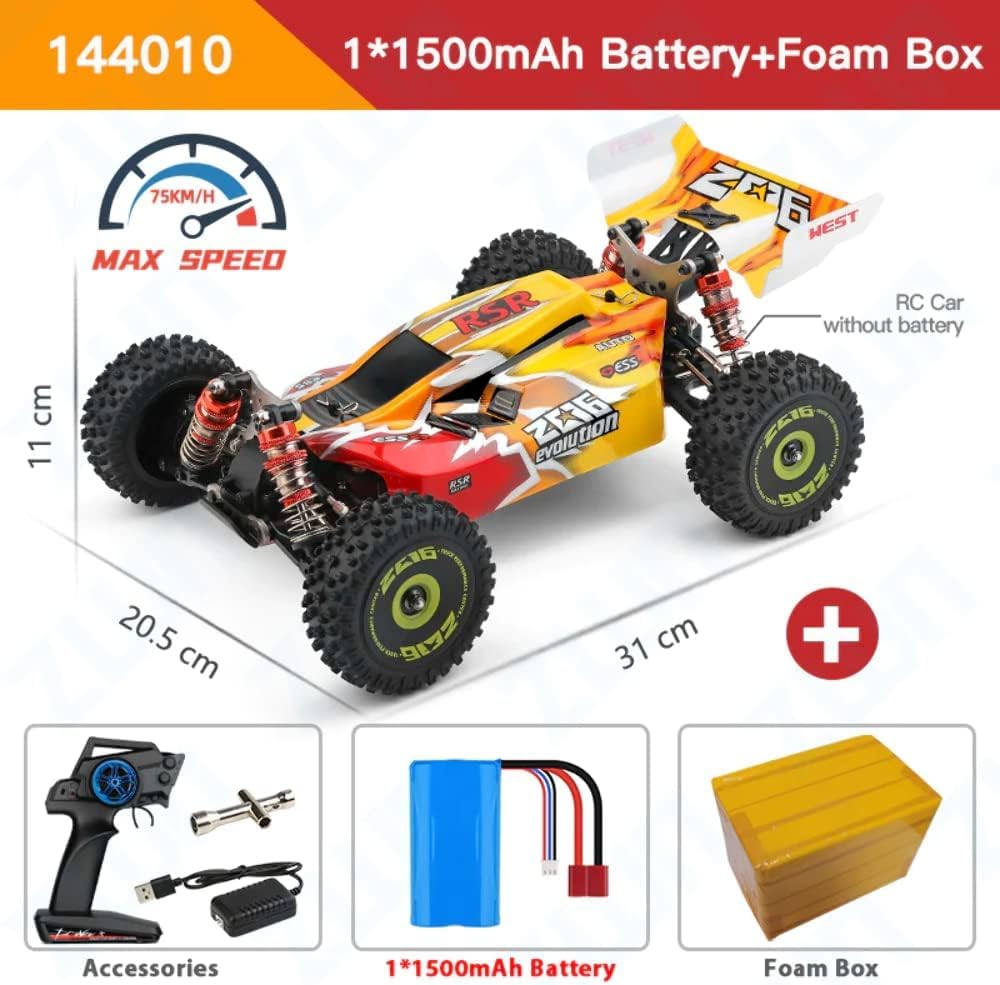

Image: WLtoys 144010 RC Car with included accessories, highlighting the battery and remote control.
Setup tal-Kontrollur
Insert the required batteries into the remote control. Power on the remote control, then power on the RC car. The remote control operates on a 2.4GHz radio system, offering anti-jamming capability and a control distance of approximately 100 meters.
Istruzzjonijiet Operattivi
Kontrolli Bażiċi
Use the remote control to steer the vehicle. The throttle controls forward and reverse movement, while the steering wheel controls left and right turns. Familiarize yourself with the controls in an open area before attempting high-speed maneuvers.
Driving on Different Terrains
The WLtoys 144010 is designed for off-road use with its 4WD system and hardware oil pressure shock absorbers. It can adapt to various terrains including dirt, grass, and sand. Avoid deep water or extremely muddy conditions to prevent damage to electronic components.
Video: Demonstrates the WLtoys 144010 RC Car's performance on various terrains, showcasing its 4WD and high-speed capabilities.
Karatteristiċi tal-Prestazzjoni
Equipped with a super brushless motor, the vehicle can reach a top speed of 75 KM/H. The all-metal chassis design provides strong stability and durability. Hardware oil pressure shock absorbers ensure precise shock absorption for a smooth ride.
Image: The WLtoys 144010 RC Car in action on a track, highlighting its speed and agility.
Immaġni: Dettaljata view of the WLtoys 144010 RC Car's all-metal chassis, emphasizing its robust construction.
Manutenzjoni
Kura Ġenerali
After each use, clean the vehicle to remove dirt, dust, and debris. Inspect all moving parts for wear and tear. Ensure all screws and fasteners are tight. Store the vehicle in a dry, cool place away from direct sunlight.
Kura tal-batterija
Always use the provided USB charging cable for charging. Do not overcharge or completely discharge the battery. Disconnect the battery from the vehicle when not in use. Store batteries in a safe, cool place.
Spezzjoni tal-Komponent
Regularly check the zinc alloy gears for any signs of damage or excessive wear. Inspect the hardware oil pressure shock absorbers for leaks or reduced performance. Ensure wheel nuts are tight before each run to prevent loss.
Issolvi l-problemi
Kwistjonijiet Komuni
- Vehicle stops working in water: The vehicle is not fully waterproof. Avoid driving in deep water or prolonged exposure to moisture. If it stops, dry it thoroughly before attempting to restart.
- Loss of control/range: Ensure the remote control batteries are charged and there are no strong interference sources nearby. The 2.4GHz system is designed to minimize interference, but extreme conditions can affect performance.
- Loose wheel nuts: Regularly check and tighten wheel nuts before each operation to prevent them from coming off during high-speed driving.
