1. Prodott Aktarview
The AZZA CSAZ-280B Spectra Black is an ATX Mid Tower gaming case designed to house various computer components. It features a tempered glass side panel and a steel right panel. This manual provides instructions for the proper installation and maintenance of your computer components within this case.
Image 1.1: Front-left view of the AZZA CSAZ-280B Spectra Black case, showcasing the tempered glass side panel and the front panel design with integrated RGB lighting.
Karatteristiċi ewlenin:
- Left Panel: Tempered glass with rubber mounts for secure installation.
- Right Panel: Solid steel panel.
- Motherboard Compatibility: Supports ATX, Micro-ATX, and ITX motherboards.
- Drive Bays: Up to three 2.5" drive bays and up to two 3.5" drive bays.
- Maximum CPU Cooler Height: Up to 170 mm.
- Maximum Video Card Length: Up to 290 mm.
2. Konfigurazzjoni u Installazzjoni tal-Komponenti
Follow these steps for proper installation of your computer components into the AZZA CSAZ-280B case. Ensure the system is powered off and unplugged before beginning any installation.
2.1 Front I/O Panel Connections
The top panel of the case features various input/output ports and controls for convenient access.
Immaġni 2.1: Minn fuq għal isfel view of the case's front I/O panel, indicating the Power button, LED control button, Audio jacks (Mic and Headphone), two USB 2.0 ports, and one USB 3.0 port.
- Buttuna tal-Qawwa: Agħfas biex tixgħel jew titfi s-sistema.
- Buttuna LED: Controls the RGB lighting effects of the case.
- Ġakki tal-Awdjo: Separate ports for microphone and headphones.
- Portijiet USB 2.0: Two ports for connecting USB 2.0 devices.
- Port USB 3.0: One port for connecting USB 3.0 devices, offering faster data transfer speeds.
2.2 Installazzjoni tad-Drajv
The case supports both 3.5" HDDs and 2.5" SSDs. Refer to the images below for drive bay locations.
Immaġni 2.2: Interna view showing the lower drive cage, capable of holding one 3.5" HDD or one 2.5" SSD, and an additional dedicated 3.5" HDD bay.
Immaġni 2.3: Interna view showing two dedicated 2.5" SSD mounting brackets located behind the motherboard tray.
- For 3.5" HDDs: Install drives into the designated 3.5" drive cage located at the bottom front of the case. Secure with screws.
- For 2.5" SSDs: Install drives into the dedicated 2.5" mounting brackets behind the motherboard tray or in the lower drive cage. Secure with screws.
2.3 Installazzjoni tal-Karta tal-Grafika
Il-kaxxa tappoġġja karti grafiċi sa 290mm fit-tul.
Immaġni 2.4: Interna view illustrating the maximum supported length for a video card, which is 290mm.
- Remove the necessary PCI-E slot covers from the rear of the case.
- Carefully insert the graphics card into the PCI-E slot on your motherboard.
- Waħħal il-karta grafika mal-kaxxa bil-viti.
2.4 Fan Installation and Airflow
Proper fan placement ensures optimal cooling performance. The case supports various fan configurations:
- Quddiem: Supports 3 x 120mm fans or 2 x 140mm fans.
- Fuq: Supports 2 x 120mm fans.
- Wara: Supports 1 x 120mm fan.

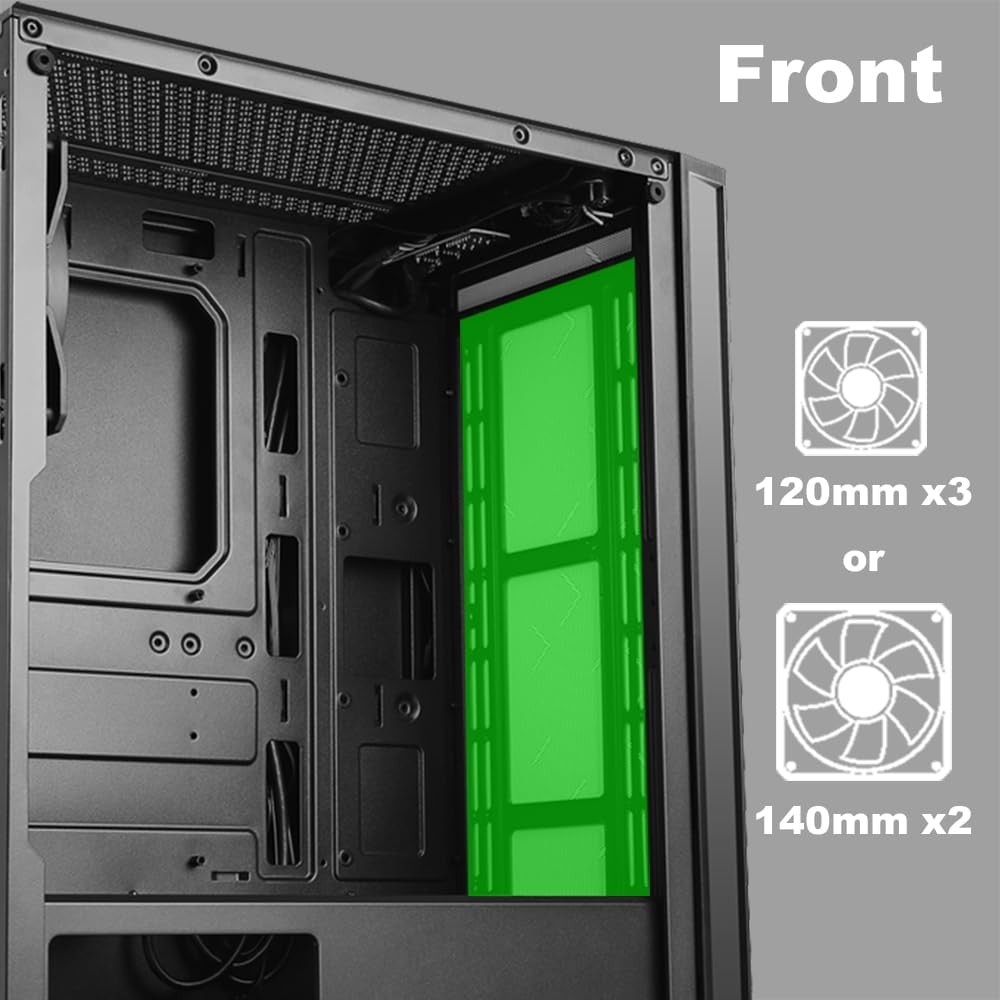

Immaġni 2.5: Interna view of the front panel, highlighting the mounting locations for up to three 120mm fans or two 140mm fans.
Immaġni 2.6: Interna view of the top panel, showing the mounting locations for up to two 120mm fans.
Immaġni 2.7: Interna view of the rear panel, indicating the mounting location for one 120mm fan.
- Identify the desired fan mounting locations (front, top, rear).
- Secure fans to the case using appropriate fan screws.
- Connect fan power cables to the motherboard or a fan controller.
2.5 Installazzjoni tal-Provvista tal-Enerġija
The power supply unit (PSU) mounts at the bottom of the case.
- Slide the PSU into the designated compartment at the bottom rear of the case.
- Secure the PSU to the case using screws from the rear.
- Route power cables through the cable management cutouts to reach your components.
3. Istruzzjonijiet Operattivi
3.1 Power On/Off
To power on your system, press the power button located on the top I/O panel. To power off, either shut down through your operating system or press and hold the power button for several seconds.
3.2 Kontroll LED
Use the dedicated LED button on the top I/O panel to cycle through various lighting modes and colors for the integrated RGB elements of the case.
4. Manutenzjoni
Manutenzjoni regolari tgħin biex tiżgura prestazzjoni ottimali u lonġevità tal-komponenti tal-PC tiegħek.
- Tindif tat-Trab: Periodically clean dust filters and internal components using compressed air. Ensure the system is powered off and unplugged before cleaning.
- Ġestjoni tal-Kejbil: Ensure cables are neatly routed to prevent obstruction of airflow and to maintain a clean interior.
- Kura tal-Panel: Clean the tempered glass panel with a soft, lint-free cloth and a mild glass cleaner. Avoid abrasive materials.
5 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista’ tiltaqa’ magħhom.
- Is-Sistema Mhux Tixgħel:
- Verify all power cables (24-pin ATX, 8-pin CPU, GPU power) are securely connected to the motherboard and components.
- Kun żgur li s-swiċċ tal-provvista tal-enerġija jkun fil-pożizzjoni 'ON'.
- Iċċekkja li l-kejbil tal-buttuna tal-enerġija tal-pannell ta' quddiem huwa konness sew mal-header tal-pannell ta' quddiem tal-motherboard.
- Fans Not Spinning / LEDs Not Lighting Up:
- Confirm fan power cables are properly connected to the motherboard or fan controller.
- Ensure LED cables are correctly connected to the motherboard's RGB header or the case's LED controller.
- Press the LED button on the top I/O panel to cycle through modes or turn on the lighting.
- Portijiet USB Mhux Jaħdmu:
- Check that the USB 2.0 and USB 3.0 headers from the front panel are correctly plugged into the corresponding ports on your motherboard.
- Audio Jacks Not Working:
- Ensure the HD Audio cable from the front panel is securely connected to the HD Audio header on your motherboard.
6. Speċifikazzjonijiet
Detailed technical specifications for the AZZA CSAZ-280B Spectra Black case.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Isem tal-Mudell | CSAZ-280B SPECTRA BLACK |
| Tip ta' Każ | Torri tan-Nofs |
| Kompatibbiltà tal-motherboard | ATX, Mikro-ATX, ITX |
| Materjal | Plastik, Ħġieġ ittemprat |
| Kulur | Iswed |
| Dimensjonijiet (L x W x H) | 19.69 x 17.32 x 9.84 pulzieri |
| Piż tal-oġġett | 11 liri |
| Kompartimenti tad-Drajv ta' 2.5" | Sa 3 |
| Kompartimenti tad-Drajv ta' 3.5" | Sa 2 |
| Max CPU Cooler Għoli | 170 mm |
| Tul Max tal-Kard tal-Vidjo | 290 mm |
| Portijiet I / O ta 'quddiem | 2 x USB 2.0, 1 x USB 3.0, Audio, Mic, Power, LED Control |
| Appoġġ għall-Fann ta 'Quddiem | 3 x 120mm jew 2 x 140mm |
| L-Aqwa Appoġġ għall-Fannijiet | 2 x 120mm |
| Appoġġ tal-Fann ta' Wara | 1 x 120mm |
| Immuntar tal-Provvista tal-Enerġija | Mount tal-qiegħ |
7. Garanzija u Appoġġ
7.1 Politika ta' Ritorn
This product is subject to a 30-day return policy for refund or replacement, as per the retailer's terms.
7.2 Appoġġ Tekniku
For technical assistance or inquiries regarding your AZZA product, please visit the official AZZA website or contact their customer support channels. You can find more information and contact details by visiting the Ħanut AZZA fuq Amazon.
