NICOR DLR56 Recessed LED Downlight Instruction Manual

1. Prodott Aktarview

The NICOR DLR56 is a 5-inch/6-inch selectable recessed LED downlight designed for efficient lighting in residential and commercial environments. This fixture replaces traditional recessed lighting with LED technology, offering ease of installation and high-quality illumination.

Il-karatteristiċi ewlenin jinkludu:

• 5 Selectable CCT: Choose from 2700K (warm white), 3000K (soft white), 3500K (neutral white), 4000K (cool white), and 5000K (daylight) to match various lighting preferences. The fixture provides a 94 CRI and R9 over 68 rating for accurate color rendering.
• Prestazzjoni Għolja: Delivers 918 lumens at 10.3W and 120V, providing ample brightness with low power consumption. It is dimmable down to 5% with standard TRIAC or ELV dimmers.
• Installazzjoni faċli: Features a magnetic snap-on trim for straightforward setup. The IC-rated design and powder-coated steel trim help dissipate heat from electrical components.
• Applikazzjoni versatili: Suitable for retrofitting standard 5-inch and 6-inch recessed housings in various indoor settings such as homes, offices, corridors, hallways, and entries. Available in multiple finishes to complement interior designs.

Immaġni 1.1: Fuqview of the NICOR DLR56 Recessed LED Downlight's features and application in a kitchen environment.

2. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra u ifhem l-istruzzjonijiet kollha qabel tibda l-installazzjoni. Jekk tonqos milli tagħmel dan, tista' tikkawża xokk elettriku, nar, jew korrimenti oħra li jistgħu jkunu perikolużi jew saħansitra fatali. Żomm dawn l-istruzzjonijiet għal referenza futura.

• Dejjem itfi l-enerġija mis-circuit breaker qabel ma tinstalla jew tagħmel manutenzjoni fuq l-apparat tad-dawl.
• Kun żgur li l-konnessjonijiet elettriċi kollha jikkonformaw mal-kodiċijiet u l-ordinanzi lokali, kif ukoll mal-Kodiċi Elettriku Nazzjonali (NEC).
• Jekk m'intix familjari mal-konnessjonijiet xierqa tal-wajers elettriċi, ikkonsulta elettriċista kwalifikat.
• Dan il-prodott huwa ddisinjat għall-użu fuq ġewwa biss.
• Tippruvax tbiddel l-apparat tad-dawl bl-ebda mod.
• The fixture is IC-rated, meaning it is suitable for direct contact with insulation.

3. Kontenut tal-Pakkett

Il-pakkett jinkludi l-komponenti li ġejjin:

• LED Downlight
• Edison Base Adapter
• Gwida għall-Installazzjoni (dan id-dokument)

4. Speċifikazzjonijiet

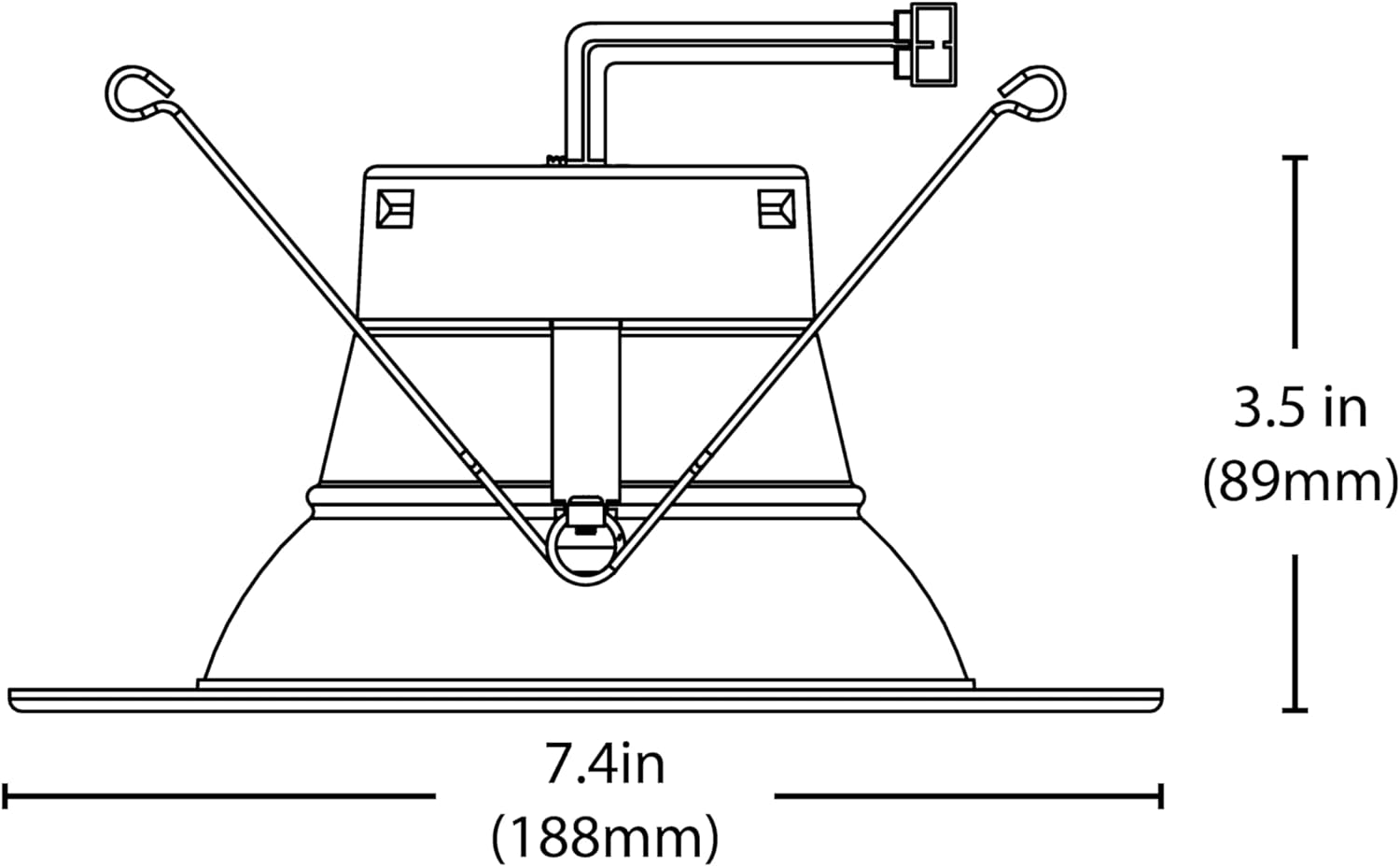

Image 4.1: Product dimensions for the DLR56 Recessed LED Downlight.

5. Istruzzjonijiet ta 'installazzjoni

The DLR56 is designed for easy retrofit installation into existing 5-inch or 6-inch recessed housings. Follow these steps for proper installation:

1. Ipprepara l-Akkomodazzjoni: Ensure power to the existing recessed fixture is turned off at the circuit breaker. Remove the existing bulb and trim from the recessed housing.
2. Qabbad l-Adapter: Install the provided Edison base adapter into the existing light socket or connect using the IDEAL style connector if applicable.
3. Adjust CCT (if applicable): If your model features selectable color temperature, locate the CCT switch on the back of the downlight and adjust it to your desired setting (2700K, 3000K, 3500K, 4000K, or 5000K) before installation.
4. Waħħal id-Downlight: Squeeze the torsion springs on the sides of the LED downlight and insert them into the brackets inside the recessed housing. Gently push the fixture flush with the ceiling. The magnetic trim will snap into place.

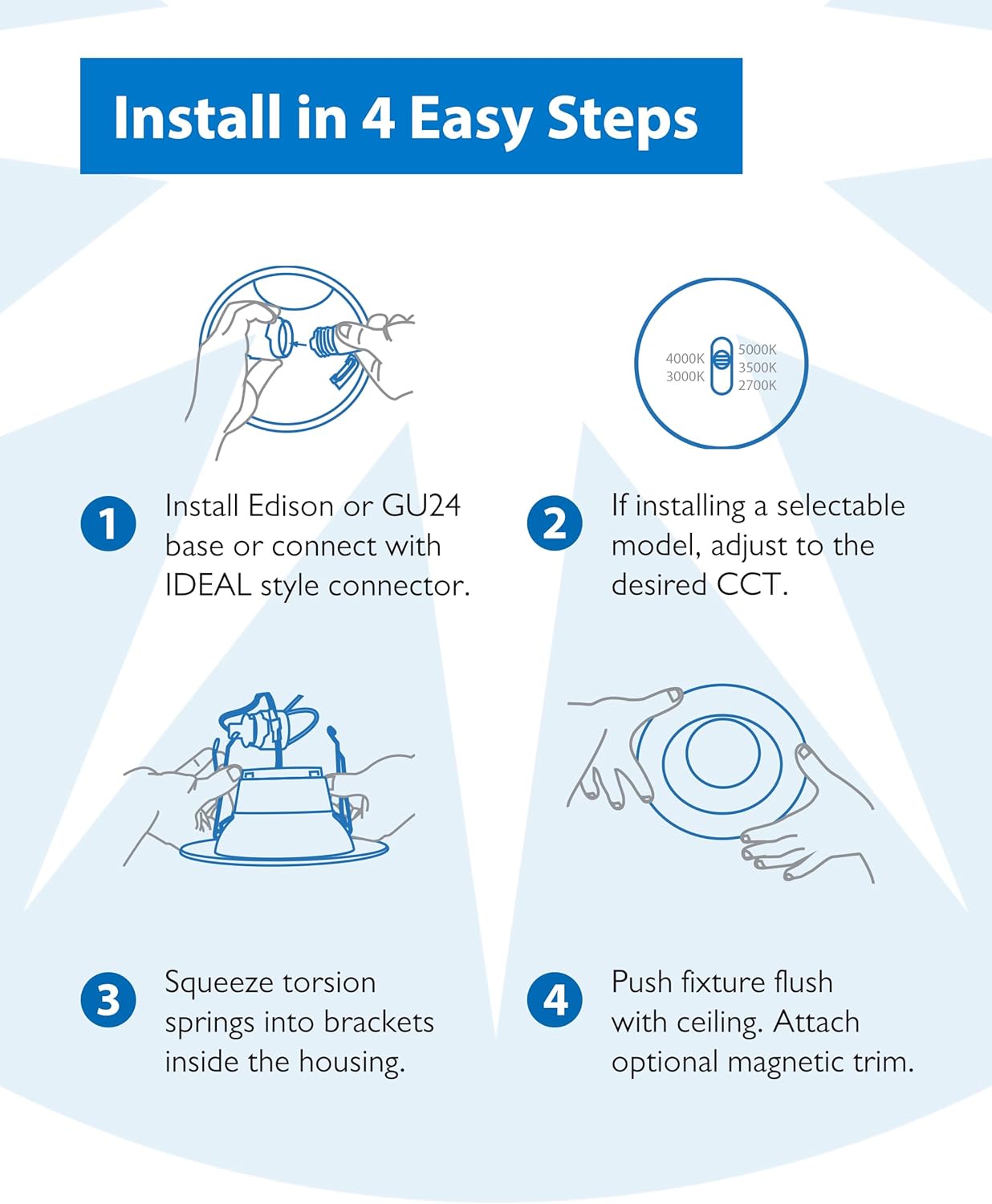

Image 5.1: Visual guide for the 4-step installation process.

Image 5.2: Component breakdown for recessed downlight installation.

6. Istruzzjonijiet Operattivi

Once installed, the NICOR DLR56 Recessed LED Downlight offers adjustable features for optimal lighting control.

• Power On/Off: Control the light using your standard wall switch.
• Color Temperature Selection (CCT): Before final installation, select your desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K) using the switch located on the back of the fixture. This setting is typically chosen once during installation.
• Dimming: The DLR56 is dimmable down to 5% with compatible TRIAC or ELV dimmers. Ensure your dimmer switch is suitable for LED lighting.

Image 6.1: Visual representation of selectable color temperatures and available trim finishes.

7. Manutenzjoni

The NICOR DLR56 Recessed LED Downlight requires minimal maintenance. The integrated LED light source is designed for a long lifespan, exceeding 72,000 hours, and is not user-replaceable.

• Tindif: To clean the fixture, ensure power is off at the circuit breaker. Use a soft, dry, or slightly damp drapp. Tużax tindif jew solventi li joborxu.
• Spezzjoni: Periodically inspect the fixture for any signs of damage or loose connections. If any issues are found, turn off power and consult a qualified electrician.

8 Issolvi l-problemi

If you experience issues with your NICOR DLR56 Recessed LED Downlight, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, contact NICOR customer support or a qualified electrician.

9. Garanzija u Appoġġ

The NICOR DLR56 Recessed LED Downlight is backed by an industry-leading Garanzija limitata ta 'sena. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu normali.

For warranty claims, technical support, or further assistance, please contact NICOR Lighting customer service. Refer to the official NICOR Lighting webis-sit għall-aktar informazzjoni ta' kuntatt aġġornata.
