Manwal ta' Istruzzjonijiet tas-Sedil tat-Tojlit Universali Duravit 0025790000

1. Introduzzjoni

This manual provides instructions for the installation, operation, maintenance, and troubleshooting of your Duravit 0025790000 Universal Toilet Seat. Please read these instructions carefully before installation and retain them for future reference.

Image 1.1: Duravit 0025790000 Universal Toilet Seat in closed position. This image shows the overall design of the white, oval-shaped toilet seat with its lid closed.

2. Kontenut tal-Pakkett

Ensure all the following items are present in the package:

• Sedil tat-tojlit b'għatu
• Mounting material (hinges, screws, washers)
• Istruzzjonijiet għall-assemblaġġ
• Istruzzjonijiet għall-kura

3. Kompatibilità

The Duravit 0025790000 toilet seat features a universal fit, suitable for many standard toilets due to its variable hinge distance and oval, ergonomic shape. Before purchase and installation, it is recommended to verify the dimensions of your toilet ceramic against the seat's specifications.

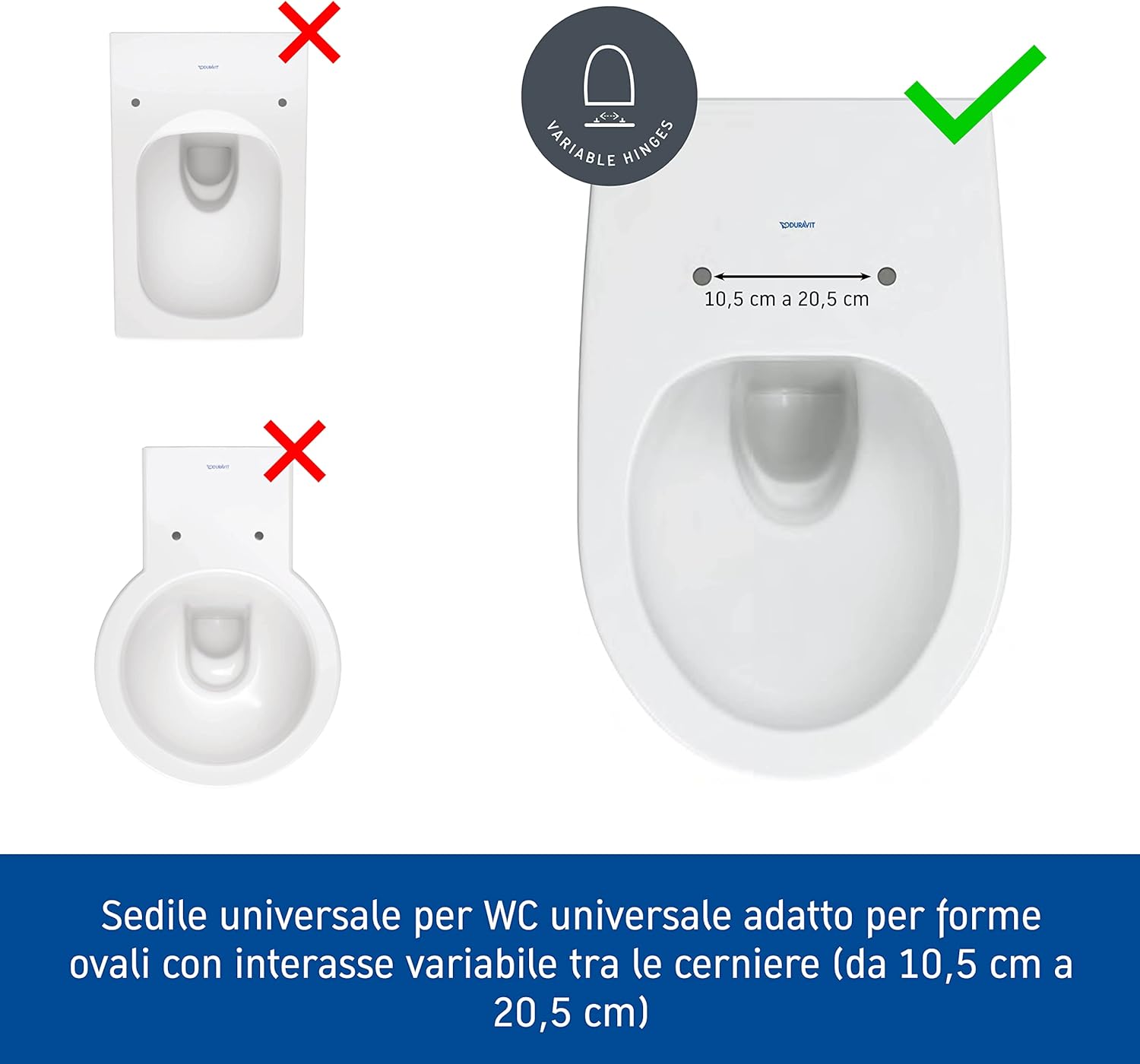

Image 3.1: This diagram illustrates the variable hinge distance (10.5 cm to 20.5 cm) and the oval shape of the toilet seat, indicating its universal compatibility. It also shows examples of incompatible toilet shapes.

4. Istruzzjonijiet ta 'installazzjoni

Installation of the toilet seat is designed to be straightforward and convenient, performed from above. All necessary mounting materials are included.

1. Ipprepara t-Tojlit: Ensure the toilet ceramic is clean and dry where the seat will be mounted.
2. Pożizzjona ċ-Ċappetti: Place the stainless steel hinges into the mounting holes on the toilet ceramic. Adjust the hinge distance to match the pre-drilled holes on the toilet seat.
3. Secure the Hinges: Insert the provided screws and washers through the hinges and tighten them from above. Ensure the hinges are firmly secured but do not overtighten.
4. Attach the Toilet Seat: Align the toilet seat with the secured hinges and press down until it clicks into place. The quick-release mechanism allows for easy attachment and detachment.
5. Stabbiltà tat-Test: Gently test the seat for stability. It should rest optimally on the ceramic without wobbling or slipping.

5. Karatteristiċi Operattivi

5.1 Double Soft-Close Mechanism

The toilet seat and lid are equipped with an integrated double soft-close mechanism. This feature ensures that both the seat and the lid close gently and silently, preventing slamming and reducing wear. The soft-close mechanism is designed for a service life exceeding 15,000 lowering cycles.

Image 5.1: This image demonstrates the double soft-close mechanism, showing the toilet seat and lid slowly lowering onto the ceramic.

5.2 Quick-Release Function

For convenient and thorough cleaning, the toilet seat features a quick-release function. A push button located inside allows for easy removal of the seat from the hinges, providing full access to the ceramic and the seat itself for cleaning.

Image 5.2: A four-panel image illustrating the quick-release process. It shows a hand pressing a button to detach the seat, lifting it off the hinges, and then cleaning the ceramic and the detached seat.

6. Kura u Manutenzjoni

The Duravit toilet seat is constructed from high-quality urea thermosetting plastic, which is durable, scratch-resistant, UV-light resistant, and designed to be color-fast. It is also easy to clean, repelling dust, water, and dirt.

• Tindif: Use mild, non-abrasive cleaning agents and a soft cloth. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the surface and cause yellowing or scratches.
• Rilaxx Mgħaġġel: Utilize the quick-release function (refer to Section 5.2) to easily remove the seat for comprehensive cleaning of both the seat and the toilet ceramic.
• Buffering: The seat ring and lid are equipped with high-quality buffers to ensure optimal contact with the ceramic and prevent movement. Regularly check these buffers for wear.

Image 6.1: This image highlights key features: anti-scratch material (scissors test), 150 kg capacity, flexible 360-degree adjustable stainless steel hinges, and integrated buffers for stability.

7 Issolvi l-problemi

If you encounter any issues with your Duravit toilet seat, please consider the following:

• Wobbling Seat: Ensure the hinges are securely tightened. If the buffers are worn, they may need replacement.
• Soft-Close Not Functioning: Check for any obstructions. If the mechanism is damaged, contact customer support.
• Tibdil fil-kulur/Ħsara: This is often caused by incorrect cleaning agents. Refer to the care instructions in Section 6.

For persistent problems, please contact Duravit customer support.

8. Speċifikazzjonijiet

Image 8.1: This image provides a detailed diagram of the toilet seat's dimensions, including length, width, and variable hinge distance, crucial for compatibility checks.

9. Garanzija u Appoġġ

9.1 Informazzjoni dwar Garanzija

The Duravit 0025790000 Universal Toilet Seat comes with a Garanzija ta' sentejn mill-manifatturDin il-garanzija tkopri difetti fil-materjali u fix-xogħol taħt użu normali. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

9.2 Appoġġ għall-Klijent

For any questions, technical assistance, or warranty claims, please contact Duravit customer support through their official webis-sit jew l-informazzjoni ta' kuntatt ipprovduta mad-dokumentazzjoni tax-xiri tiegħek.
