Bestway Flowclear Cartridge Filter Pump User Manual

1. Introduzzjoni

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bestway Flowclear Cartridge Filter Pump. This pump is designed to circulate and filter water in above-ground swimming pools, helping to maintain clean and clear water. The 1500 GPH (Gallons Per Hour) pump is recommended for use with pools ranging from 300 to 8,400 gallons and utilizes Type III-A/C filter cartridges.

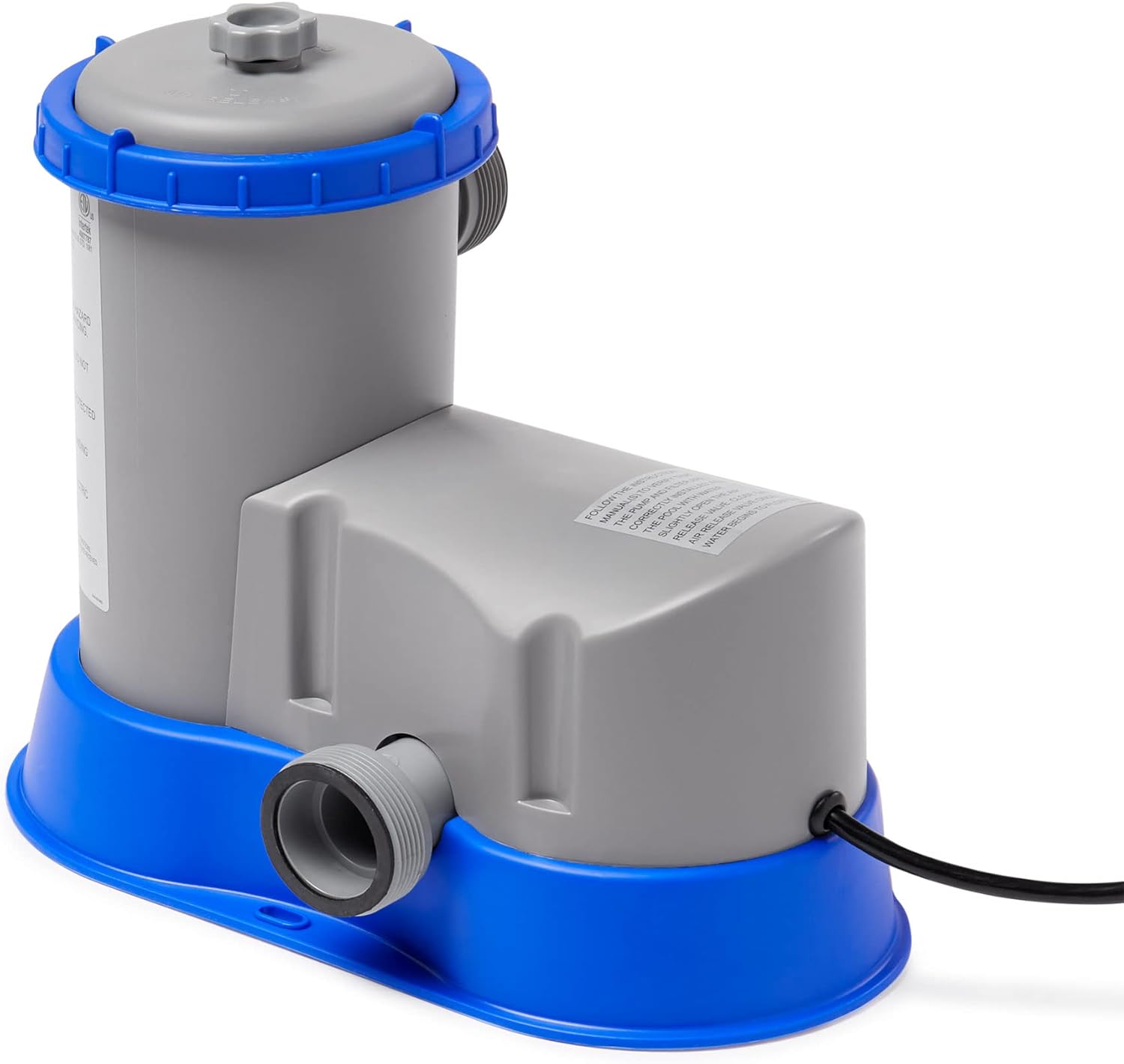

Immaġni 1.1: Fuqview of the Bestway Flowclear Cartridge Filter Pump.

2. Istruzzjonijiet Importanti dwar is-Sigurtà

WARNING: Read and follow all instructions carefully before installing and using this product. Failure to do so can result in serious injury or death.

• Always disconnect the pump from the electrical outlet before servicing or cleaning.
• The pump must be supplied by a ground-fault circuit interrupter (GFCI) or residual current device (RCD) with a rated tripping current not exceeding 30 mA.
• Do not bury the electrical cord. Locate cord to minimize abuse from lawnmowers, hedge trimmers, and other equipment.
• To reduce the risk of electric shock, do not use an extension cord to connect the unit to an electrical supply. Provide a properly located outlet.
• Tħaddimx il-pompa jekk il-korda tal-enerġija jew il-plagg ikunu bil-ħsara.
• Never operate the pump when the pool is occupied.
• Dan l-apparat jista' jintuża minn tfal minn 8 snin 'il fuq u persuni b'kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa jew b'nuqqas ta' esperjenza u għarfien jekk ikunu ngħataw superviżjoni jew struzzjoni dwar l-użu tal-apparat b'mod sikur u jifhmu l-perikli involuti .

3. Kontenut tal-Pakkett

Ensure all components listed below are present in your package. If any parts are missing or damaged, do not attempt to assemble or operate the pump. Contact Bestway customer support for assistance.

• Unità tal-Pompa tal-Filtru
• Skartoċċ tal-Filtru (Tip III-A/C)
• Hoses (typically two)
• Pajp Clamps
• Inlet and Outlet Strainers/Grates
• Manwal ta' Istruzzjoni

Image 3.1: Inlet and outlet grates for the filter pump.

4. Assemblaġġ u Installazzjoni

Follow these steps for proper assembly and installation of your filter pump. Refer to your pool's specific instructions for connecting the hoses to the pool's inlet and outlet ports.

1. Poġġi l-Pompa: Place the filter pump on a solid, level surface, at least 2 meters (6.5 feet) away from the pool edge. Ensure the pump is lower than the pool's water level.
2. Qabbad Manek: Attach one hose from the pump's inlet port (marked with a minus sign or 'IN') to the pool's water outlet (suction) port. Attach the second hose from the pump's outlet port (marked with a plus sign or 'OUT') to the pool's water inlet (return) port. Secure all hose connections with clamps.
3. Install Strainers: Insert the inlet and outlet strainers into the corresponding ports inside the pool.
4. Aċċerta ruħek li l-Fluss tal-Ilma: Open any valves or plugs on the pool's inlet and outlet ports to allow water to flow into the pump. The pump housing should fill with water.
5. Arja li tispara: Loosen the air release valve on top of the filter pump housing until water starts to flow out. Close the valve once all air has escaped.
6. Konnessjoni Elettrika: Plug the pump into a properly grounded electrical outlet protected by a GFCI/RCD.

5. Operazzjoni

The Bestway Flowclear filter pump is designed for ease of use, featuring an energy-saving plug with a built-in timer for customizable operation.

1. Tibda tal-Pompa: After ensuring proper installation and water flow, plug the pump into the electrical outlet. The pump will begin to operate.
2. Issettjar tat-Timer: The energy-saving plug allows you to set the pump to run for a specific duration, up to 10 hours. Consult the instructions provided with the plug for detailed timer setting procedures. This feature helps optimize filtration cycles and energy consumption.
3. Operazzjoni ta' Kuljum: For optimal water clarity, operate the filter pump daily. The duration of operation depends on pool size, bather load, and environmental conditions. A general guideline is to run the pump for at least 8-10 hours per day.
4. Twaqqif tal-Pompa: Biex titfi l-pompa, sempliċement aqlagħha mill-plagg tal-elettriku.

6. Manutenzjoni

Regular maintenance of your filter pump is crucial for its longevity and for maintaining clean pool water. The primary maintenance task involves cleaning or replacing the filter cartridge.

1. Skonnettja l-Enerġija: Always unplug the filter pump from the electrical outlet before performing any maintenance.
2. Valvijiet Magħluqa: Close the pool's inlet and outlet valves (if applicable) to prevent water from flowing out of the pool.
3. Remove Filter Housing Lid: Unscrew the collar retainer and remove the filter housing lid.
4. Neħħi l-Kartriġ: Carefully remove the used Type III-A/C filter cartridge from the pump housing.
5. Clean or Replace:
   • Tindif: Rinse the filter cartridge thoroughly with a garden hose to remove debris. If the cartridge remains dirty or discolored after rinsing, it should be replaced.
   • Sostituzzjoni: Install a new Bestway Type III-A/C filter cartridge into the pump housing.
6. Erġa' arma: Place the filter housing lid back on and tighten the collar retainer securely.
7. Irrestawra l-Enerġija: Open the pool's valves, bleed any air from the pump (as described in Section 4), and plug the pump back into the electrical outlet.

It is recommended to clean the filter cartridge every few days and replace it every 2-4 weeks, depending on pool usage and water conditions.

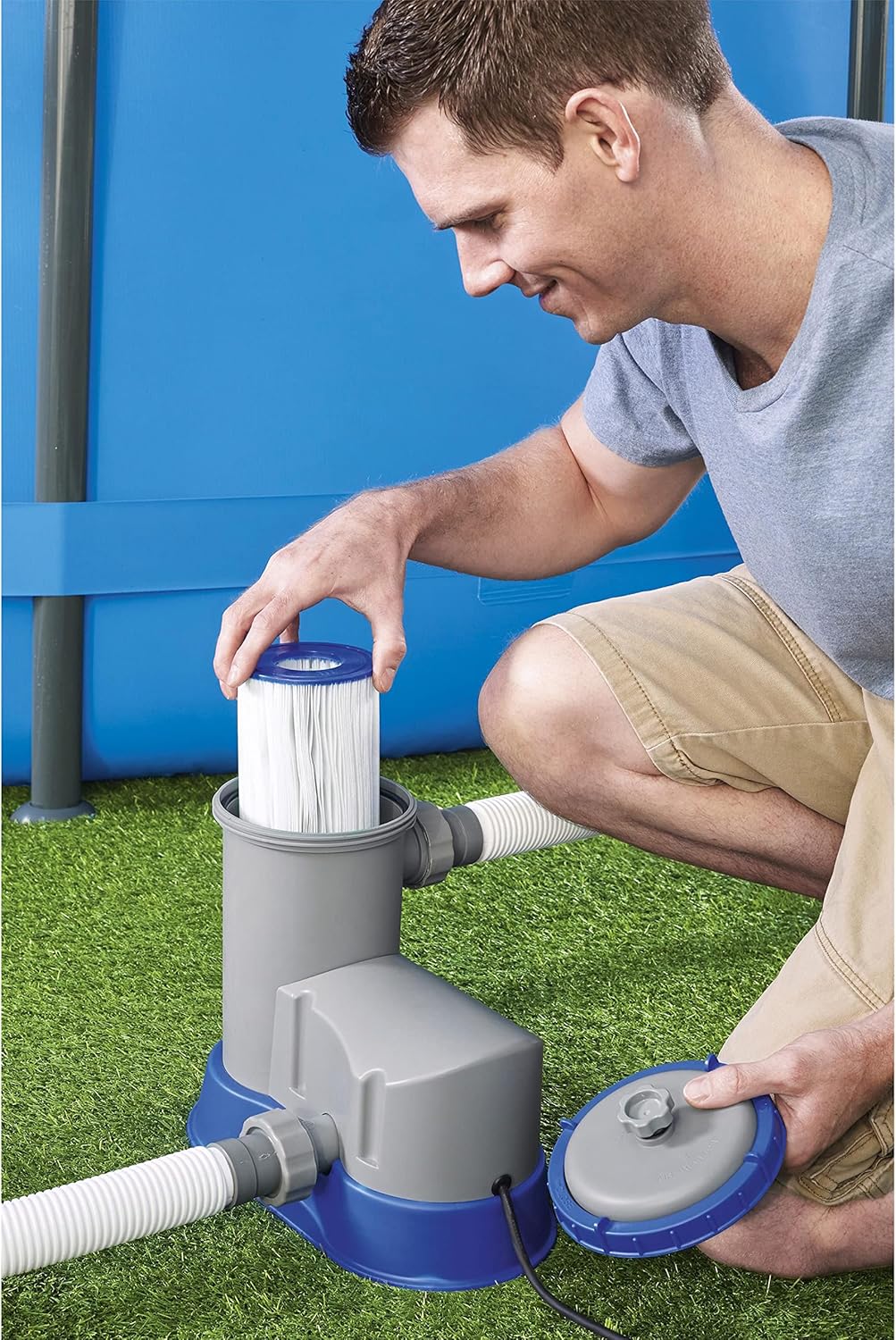

Image 6.1: Demonstrating the replacement of a filter cartridge.

7. Ħażna

When the swimming season ends or if the pump will not be used for an extended period, follow these steps for proper storage:

1. Skonnettja l-pompa mill-provvista tal-enerġija.
2. Disconnect all hoses from the pump and the pool.
3. Remove the filter cartridge and discard it.
4. Drain all water from the pump housing.
5. Naddaf u nixxef il-komponenti kollha sewwa.
6. Store the pump and accessories in a dry, temperature-controlled location, away from direct sunlight and extreme temperatures.

8 Issolvi l-problemi

If you encounter issues with your filter pump, refer to the following common problems and solutions:

9. Speċifikazzjonijiet

Detailed technical specifications for the Bestway Flowclear Cartridge Filter Pump Model 58389.

• Ditta: Bestway
• Numru tal-Mudell: 58389
• UPC: 821808045648
• Rata massima tal-fluss: 1500 Gallun Kull Siegħa (GPH)
• Voltage: 120 Volts
• Sors tal-Enerġija: Elettriku
• Materjal: Plastik
• Kulur: Clear (housing may appear grey/blue)
• Dimensjonijiet tal-Prodott (L x W x H): 25.4L x 25.4W x 25.4H Centimetres (approximately 10 x 10 x 10 inches)
• Piż tal-oġġett: 6.38 kg (madwar 14.07 lbs)
• Compatible Filter Cartridge: Tip III-A/Ċ
• Volum Rakkomandat tal-Pixxina: 300-8,400 Galun

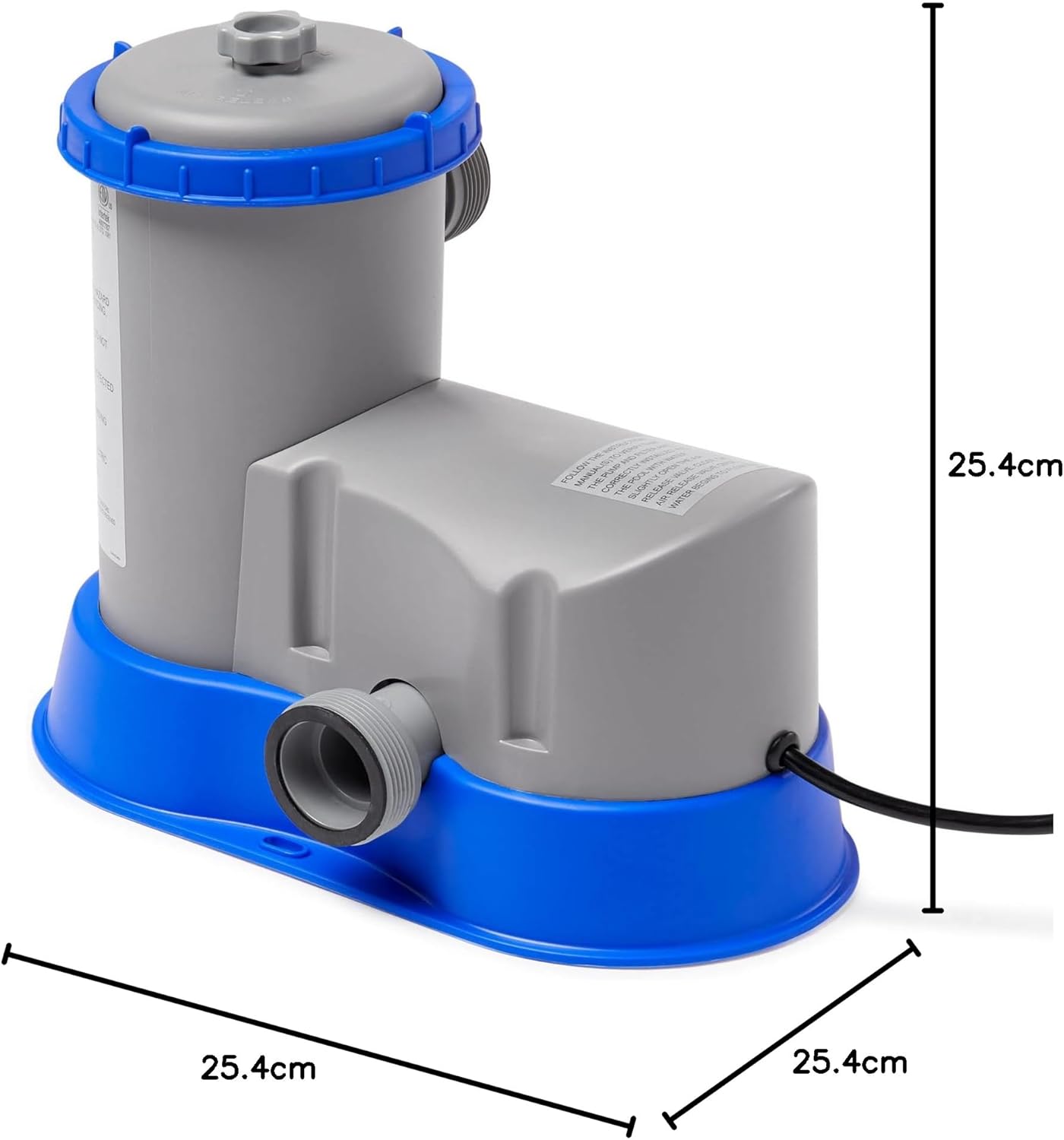

Image 9.1: Bestway Flowclear Filter Pump with key dimensions.

10. Appoġġ għall-Klijent

For further assistance, warranty information, or to purchase replacement parts, please contact Bestway customer support. Refer to the contact information provided on the product packaging or visit the official Bestway websit.

Websit: www.bestwaycorp.com

Please have your model number (58389) and UPC (821808045648) available when contacting support.
