Tailcas 50W Outdoor Security Light with Motion Sensor
Manwal ta' Istruzzjoni għall-Utent
Introduzzjoni
Thank you for choosing the Tailcas 50W Outdoor Security Light with Motion Sensor. This manual provides essential information for the safe installation, operation, and maintenance of your new security floodlight. Please read this manual thoroughly before installation and keep it for future reference.
Informazzjoni dwar is-Sigurtà
WARNING: Risk of electric shock. Installation must be performed by a qualified electrician or a person with electrical knowledge.
- Always disconnect power before installation, servicing, or cleaning.
- Tiżgura l-provvista voltage is compatible with the product (220V-240V).
- M'għandekx timmodifika l-prodott bl-ebda mod.
- Kun żgur li l-konnessjonijiet kollha huma siguri u iżolati kif suppost.
- This product is designed for outdoor use and has an IP66 waterproof rating. However, avoid submerging it in water.
- Żomm 'il bogħod minn materjali li jaqbdu.
Prodott Overview

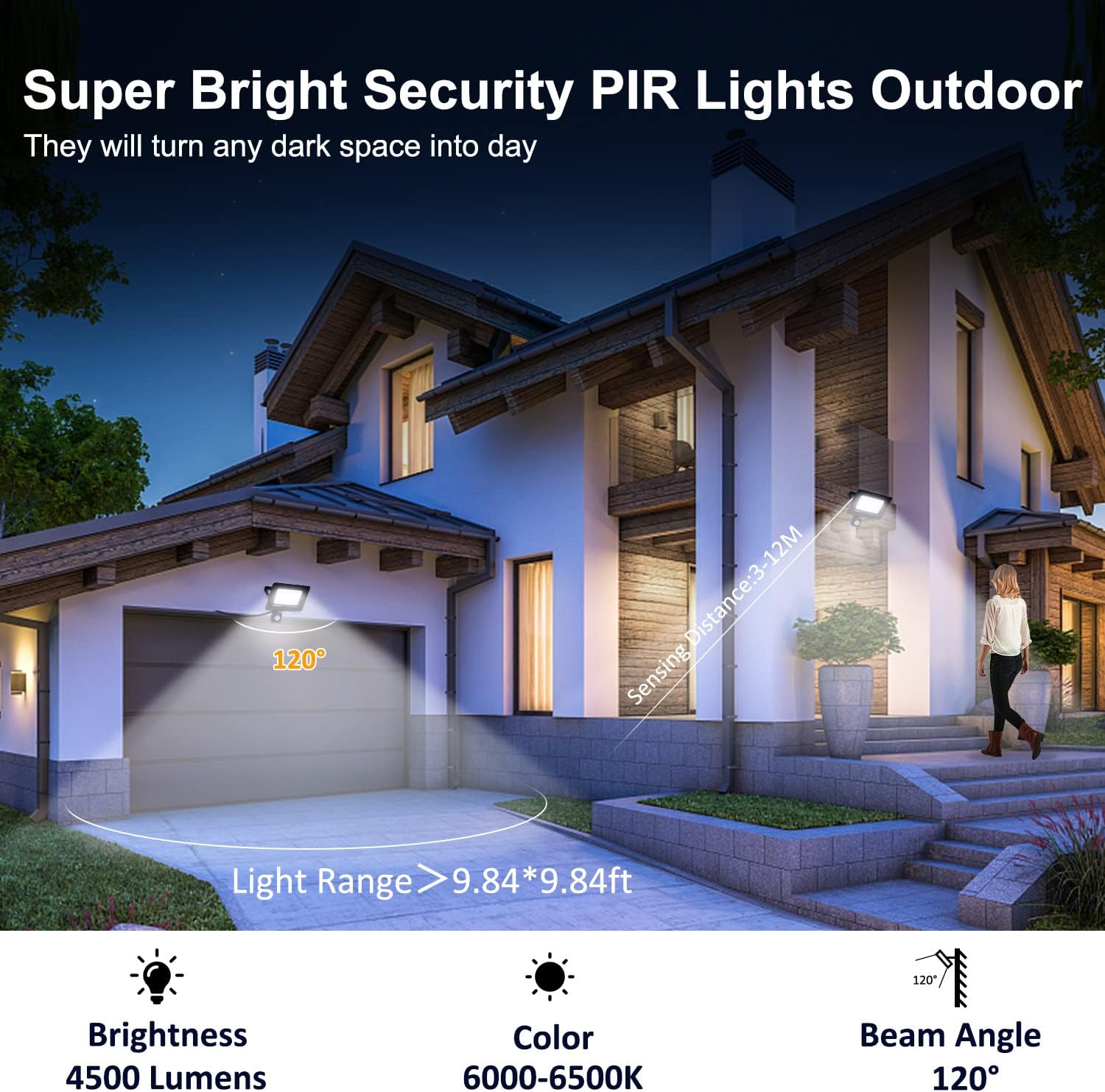

The Tailcas 50W Outdoor Security Light is a high-performance LED floodlight designed for enhanced outdoor security and illumination. It features a sensitive PIR motion sensor and durable construction.
Karatteristiċi ewlenin:
- Super Bright & Iffrankar tal-Enerġija: 50W with 72 LEDs, producing up to 4500lm with a 120-degree wide beam. Replaces 400W-500W traditional halogen floodlights, saving over 80% on electricity.
- 3 Motion Sensor Modes: Customizable settings for lighting time (5 seconds to 3 minutes), motion distance (3-12 meters), and day/night operation.
- IP66 reżistenti għall-ilma u għat-trab: Constructed with solid aluminum alloy, heat-resistant, frost-resistant, and designed to withstand extreme weather. The sensor's adjustment button has a waterproof rubber stopper.
- Faċli biex tinstalla: Comes with a 1.5-meter cable and mounting accessories. Features a 180° adjustable mounting bracket for versatile installation.
- Applikazzjoni wiesgħa: Ideal for illuminating backyards, parking lots, corridors, gardens, doorways, and garages.
Komponenti tal-Prodott:
The package includes the 50W LED floodlight with integrated PIR motion sensor, a 1.5-meter power cable, and robust nails for mounting.
Vidjow tal-Prodott:
Vidjo 1: Overview of the Tailcas Motion Sensor Outdoor Security Light, highlighting its IP66 waterproof rating, motion detection capabilities, and ease of installation. The video demonstrates the light's functionality in various outdoor settings.
Setup u Installazzjoni
Before beginning installation, ensure the power supply is turned off at the main circuit breaker.
- Agħżel Post tal-Immuntar: Select a suitable location on a wall, ceiling, or ground where the light can provide optimal coverage. The 180° adjustable bracket allows for flexible positioning.
- Immarka l-Punti tat-Tħaffir: Use the mounting bracket as a template to mark the drilling points on the chosen surface.
- Drill toqob: Drill holes at the marked points. Insert wall plugs if necessary for secure mounting.
- Immonta l-Bracket: Secure the mounting bracket to the surface using the provided robust nails/screws.
- Qabbad il-Wiring:
- Connect the Live wire (Brown) from the floodlight to your household Live wire.
- Connect the Neutral wire (Blue) from the floodlight to your household Neutral wire.
- Connect the Ground wire (Yellow/Green) from the floodlight to your household Ground wire.
Ensure all connections are tight and properly insulated with electrical tape or connectors.
- Attach Floodlight to Bracket: Secure the floodlight body to the mounted bracket.
- Aġġusta Angolu: Adjust the angle of the floodlight and the motion sensor to your desired coverage area. The motion sensor can be rotated 180 degrees for optimal detection.
- Irrestawra l-Enerġija: Ladarba l-installazzjoni tkun tlestiet u l-konnessjonijiet kollha jkunu siguri, erġa' daħħal l-enerġija fiċ-ċirkwit.
Istruzzjonijiet Operattivi
The Tailcas security light features a PIR motion sensor with three adjustable knobs to customize its operation:
- SENS (Sensittività): Adjusts the motion detection distance. Turn the knob towards '+' for a longer detection range (up to 12 meters) or towards '-' for a shorter range (down to 3 meters).
- ĦIN (Tul tad-Dawl): Controls how long the light stays on after motion is detected. Adjust from 5 seconds to 3 minutes.
- LUX (Day/Night Setting): Determines when the sensor activates.
- Turn towards the 'Sun' icon: The sensor will activate and the light will turn on both during the day and at night when motion is detected.
- Turn towards the 'Moon' icon: The sensor will only activate and the light will turn on at night (in low light conditions) when motion is detected.
Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tad-dawl tas-sigurtà tiegħek.
- Tindif: Periodically clean the light fixture and sensor lens with a soft, damp drapp. Tużax prodotti tat-tindif jew solventi li joborxu. Kun żgur li l-elettriku jkun mitfi qabel ma tnaddaf.
- Spezzjoni: Regularly inspect the power cable for any signs of damage, fraying, or wear. Check mounting screws for tightness.
- LEDs: The LEDs are integrated and not user-replaceable. If the light stops functioning, contact customer support.
- Sensor: Keep the sensor lens clear of obstructions (e.g., dirt, spiderwebs) to ensure accurate motion detection.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx. | No power supply; LUX setting too high (daylight); Faulty wiring. | Check power connection and circuit breaker. Adjust LUX setting towards 'Moon' icon. Verify wiring connections. |
| Id-dawl jibqa’ mixgħul il-ħin kollu. | TIME setting too long; Continuous motion in detection area; LUX setting too low (always dark). | Adjust TIME setting to a shorter duration. Clear obstructions from detection area. Adjust LUX setting towards 'Sun' icon or to desired night-only operation. |
| Id-dawl jixgħel mingħajr raġuni apparenti. | SENS setting too high; Environmental factors (wind, small animals, heat sources). | Reduce SENS setting. Reposition the sensor to avoid detecting unwanted motion sources. |
| Id-dawl teptip jew jitbaxxa. | Unstable power supply; Loose wiring connection; Product defect. | Check power supply stability. Secure all wiring connections. If problem persists, contact customer support. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Tailcas |
| Numru tal-Mudell | FL-01-50 |
| Qawwa | 50 Watts |
| Fluss Luminuż | 4500 Lumen |
| Voltage | 220-240 volt |
| Materjal | Glass, Aluminium, Metal |
| Temperatura tal-Kulur | Cool White (6000-6500K) |
| Klassifikazzjoni li ma jgħaddix ilma minnha | IP66 |
| Angolu tar-raġġ | 120° |
| Motion Sensor Sensing Angle | 180° |
| Motion Sensor Sensing Distance | 3-12 metri (aġġustabbli) |
| Lighting Time Adjustment | 5 sekondi - 3 minuti (aġġustabbli) |
| Tul tal-Cable | 1.5-il metru |
| Dimensjonijiet tal-Prodott | 23.4 x 22.4 x 4.8 ċm |
| Piż tal-oġġett | 650 g |
| It-tul tal-ħajja | Sa 50,000 sigħat |
| Komponenti Inklużi | Power cable and robust nails |
For more energy efficiency information, please refer to the Bażi tad-dejta tal-EPREL (link bil-kodiċi QR).
Garanzija u Appoġġ
Tailcas products are manufactured to high-quality standards. For any issues or support, please contact your retailer or the manufacturer directly. Keep your proof of purchase for warranty claims.
For light bulb recycling and breakage information, please refer to local regulations and guidelines.
