Locinox Mammoth 180° Self-Closing Gate Hinge MAMMOTH180 Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of the Locinox Mammoth 180° Self-Closing Gate Hinge, model MAMMOTH180. This robust hinge is designed for gates weighing up to 330 lbs and offers a 180° opening angle with a controlled self-closing mechanism. It features a double bearing system for smooth operation and an Active Thermal System to ensure consistent closing speed regardless of weather conditions. Proper installation and maintenance are crucial for optimal performance and longevity.

2. Informazzjoni dwar is-Sigurtà

• Always read and understand all instructions before beginning installation or operation.
• Use appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
• Ensure the gate structure and posts are strong enough to support the weight of the gate and the forces exerted by the hinge.
• Be aware of potential pinch points during installation and operation of the gate.
• Do not exceed the maximum weight capacity of 330 lbs for the gate.
• Professional installation is recommended to ensure correct and safe operation.
• Keep children and pets away from the gate area during installation and adjustment.

3. Kontenut tal-Pakkett

Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:

• 1 x Locinox Mammoth 180° Self-Closing Gate Hinge (MAMMOTH180)
• 1 x Dino Hinge (included as a complementary component)
• Installation hardware (e.g., Quick-Fix fasteners)

4. Setup u Installazzjoni

The Mammoth 180° hinge is designed for fast and easy installation using the Quick-Fix system. It is suitable for both left and right-handed gates.

4.1 Kontrolli ta' qabel l-installazzjoni

• Confirm the gate weight does not exceed 330 lbs.
• For ADA compliance (less than 5 lbs opening force), ensure gate widths are 4.4 ft or more.
• Ensure mounting surfaces (gate frame and post) are clean, flat, and structurally sound.

4.2 Mounting the Hinges

1. Position the main Mammoth hinge unit and the Dino hinge on the gate frame and post according to your gate's configuration (left or right-handed).
2. Securely attach the hinges using the provided Quick-Fix fasteners. Ensure all fasteners are tightened to the manufacturer's specifications.
3. Verify that the hinges are perfectly aligned to prevent binding and ensure smooth operation.

4.3 Adjusting Closing Speed and Final Snap

The hinge features an adjustable closing speed and final snap. Refer to the markings on the hinge for adjustment points. Use the appropriate tool (e.g., Allen key) to fine-tune the closing speed to your desired rate and the final snap for secure closure.

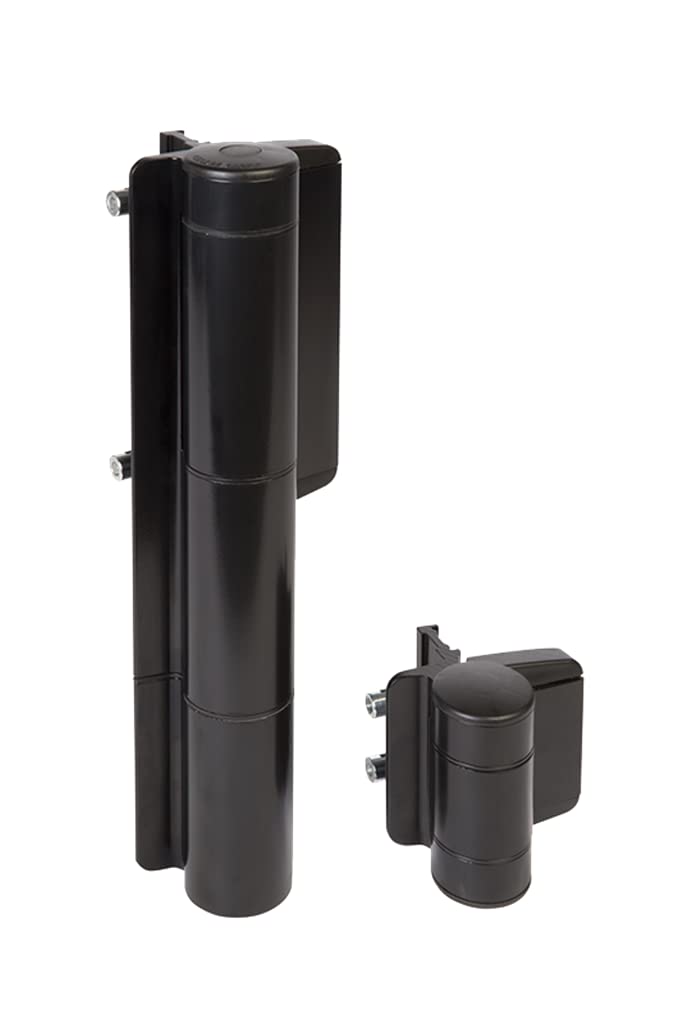

This image displays the Locinox Mammoth 180-degree self-closing gate hinge. The main hinge unit is shown vertically, highlighting its robust cylindrical design and black anodized finish. A smaller, separate component, likely the Dino hinge or a part of the main hinge, is shown to the right. Both components feature mounting points for secure attachment to a gate or post.

5. Istruzzjonijiet Operattivi

Once installed and adjusted, the Locinox Mammoth hinge provides a reliable self-closing function. The gate can be opened up to 180 degrees. Upon release, the hinge will automatically close the gate at the pre-set speed, concluding with a final snap to ensure the gate is securely shut. The patented hydraulic damping and Active Thermal System maintain a consistent closing speed across varying temperatures.

6. Manutenzjoni

The Mammoth hinge features a weatherproof aluminum housing designed for exterior use, requiring minimal maintenance.

• Tindif Perjodiku: Clean the hinge periodically with a damp cloth to remove dirt, dust, and debris. Avoid abrasive cleaners or solvents that could damage the finish.
• Spezzjoni: Regularly inspect the hinge for any signs of wear, damage, or loose fasteners. Ensure the gate operates smoothly without excessive friction or noise.
• Lubrikazzjoni: While the hinge is designed for low maintenance, a light application of a silicone-based lubricant to moving parts (if accessible) can help maintain smooth operation over time. Consult Locinox support for specific lubrication recommendations.

7 Issolvi l-problemi

• Gate Not Closing Properly:
  • Check for obstructions in the gate's path.
  • Verify that the hinges are securely mounted and properly aligned.
  • Adjust the closing speed mechanism as described in Section 4.3.
• Inconsistent Closing Speed:
  • Ensure the hinge is free from debris.
  • Re-adjust the closing speed. If the issue persists, contact Locinox support.
• Ħoss Eċċessiv Waqt l-Operazzjoni:
  • Inspect for loose fasteners and tighten if necessary.
  • Check for friction points between the gate and post.
  • Consider light lubrication as per Section 6.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information, technical support, or further assistance, please contact Locinox directly through their official websit jew distributuri awtorizzati. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri.
