1. Prodott Aktarview
The Oregon CS1400 2400W Electric Chainsaw is a powerful tool designed for both professional and home users tackling demanding wood cutting tasks. It features a 40 cm (16-inch) guide bar and an Oregon ControlCut chain, known for its ease of sharpening and extended sharpness retention. The chainsaw boasts a chain speed of 14.7 m/sec, a European plug, and a convenient tool-less chain tensioning system. Its ergonomic design ensures a lightweight and balanced feel with low vibrations, a comfortable molded handle, and a front hand guard for user protection against flying debris. For enhanced safety, an integrated chain brake is included, and an oil level window allows for quick and easy monitoring of the guide bar oil.
This product also includes the Oregon Universal Portable Sharpening Kit, designed to maintain your chainsaw chain's sharpness on the go. The kit contains high-quality tools for sharpening various chain pitches.
Image 1.1: The Oregon CS1400 Electric Chainsaw and the Universal Portable Sharpening Kit.
Karatteristiċi ewlenin:
- Prestazzjoni qawwija: 2400W electric chainsaw with integrated chain brake, suitable for demanding wood cutting.
- ControlCut Chain: Low-maintenance chain providing smooth cuts and extended sharpness. Chain speed: 14.7 m/sec.
- Disinn konvenjenti: Tool-less chain tensioning, oil level window, and front hand guard for debris protection.
- Żejt awtomatiku: Spreads oil on the guide bar and chain during operation, ensuring lubrication and preventing premature wear.
- Universal Portable Sharpening Kit: Designed for on-site chain sharpening.
- Kit Komprensiv: Includes 3 round files (5/32" (4 mm), 3/16" (4.8 mm), and 7/32" (5.5 mm)), 1 flat file (6"), 1 file guide, 1 universal file handle, and instructions.
- Faċli għat-Trasport: Kit comes in a compact roll-up pouch with internal pockets and a hook-and-loop closure.
2. Informazzjoni dwar is-Sigurtà
Always prioritize safety when operating the Oregon CS1400 Electric Chainsaw. Failure to follow safety instructions can result in serious injury or death.
Regoli Ġenerali tas-Sigurtà:
- Aqra u ifhem il-manwal kollu qabel l-operazzjoni.
- Wear appropriate Personal Protective Equipment (PPE), including safety glasses, hearing protection, gloves, safety helmet, and chainsaw protective trousers/chaps.
- Kun żgur li ż-żona tax-xogħol hija ħielsa minn nies fil-qrib, speċjalment tfal u annimali domestiċi.
- Inspect the chainsaw before each use for any damage, loose parts, or dull chain.
- Do not operate the chainsaw in wet conditions or near flammable liquids/gases.
- Dejjem żomm qabda soda biż-żewġ idejn fuq il-manki tas-serrieq tal-katina.
- Kun konxju tal-kickback u kif tevitah.
- Disconnect the power supply before performing any maintenance, adjustments, or cleaning.
3. Setup
3.1 Disimballaġġ
- Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ.
- Ivverifika li l-partijiet kollha elenkati fil-lista tal-ippakkjar huma preżenti u mhux imħassra.
3.2 Chainsaw Assembly
The Oregon CS1400 features a tool-less chain tensioning system for easy assembly and adjustment.
- Poġġi l-bar gwida fuq l-istuds tas-serrieq tal-katina.
- Carefully fit the chain around the sprocket and into the guide bar groove. Ensure the cutting edges are facing the correct direction.
- Replace the side cover and tighten the tensioning knob until the chain is snug but can still be moved by hand.
- Refer to the diagram below for component identification.
Image 3.1: Labeled components of the Oregon CS1400 Electric Chainsaw.
3.3 Filling the Oil Reservoir
The chainsaw requires bar and chain oil for proper lubrication. The automatic oiler system ensures continuous lubrication during operation.
- Locate the oil reservoir cap, typically marked with an oil can symbol.
- Ħoll l-għatu u imla r-riżervwar b'żejt tal-bar u l-katina ta' kwalità għolja.
- Monitor the oil level through the oil inspection window during use.
- Timliex iżżejjed. Erġa' poġġi l-għatu sew.
Image 3.2: Filling the oil reservoir of the chainsaw.
4. Joperaw
4.1 Jibda l-Lupa
- Ensure the chain brake is disengaged (pushed back towards the handle).
- Ipplaggja l-lupa fi żbokk tad-dawl adattat.
- Press the trigger lock-out button, then squeeze the trigger switch to start the motor.
4.2 Tekniki tat-Tqattigħ
Always maintain a stable stance and firm grip. Plan your cuts to avoid kickback and ensure the log is properly supported.
Image 4.1: Proper use of the Oregon CS1400 Electric Chainsaw for cutting wood.
4.3 Using the Sharpening Kit
The Universal Portable Sharpening Kit allows for precise chain maintenance.

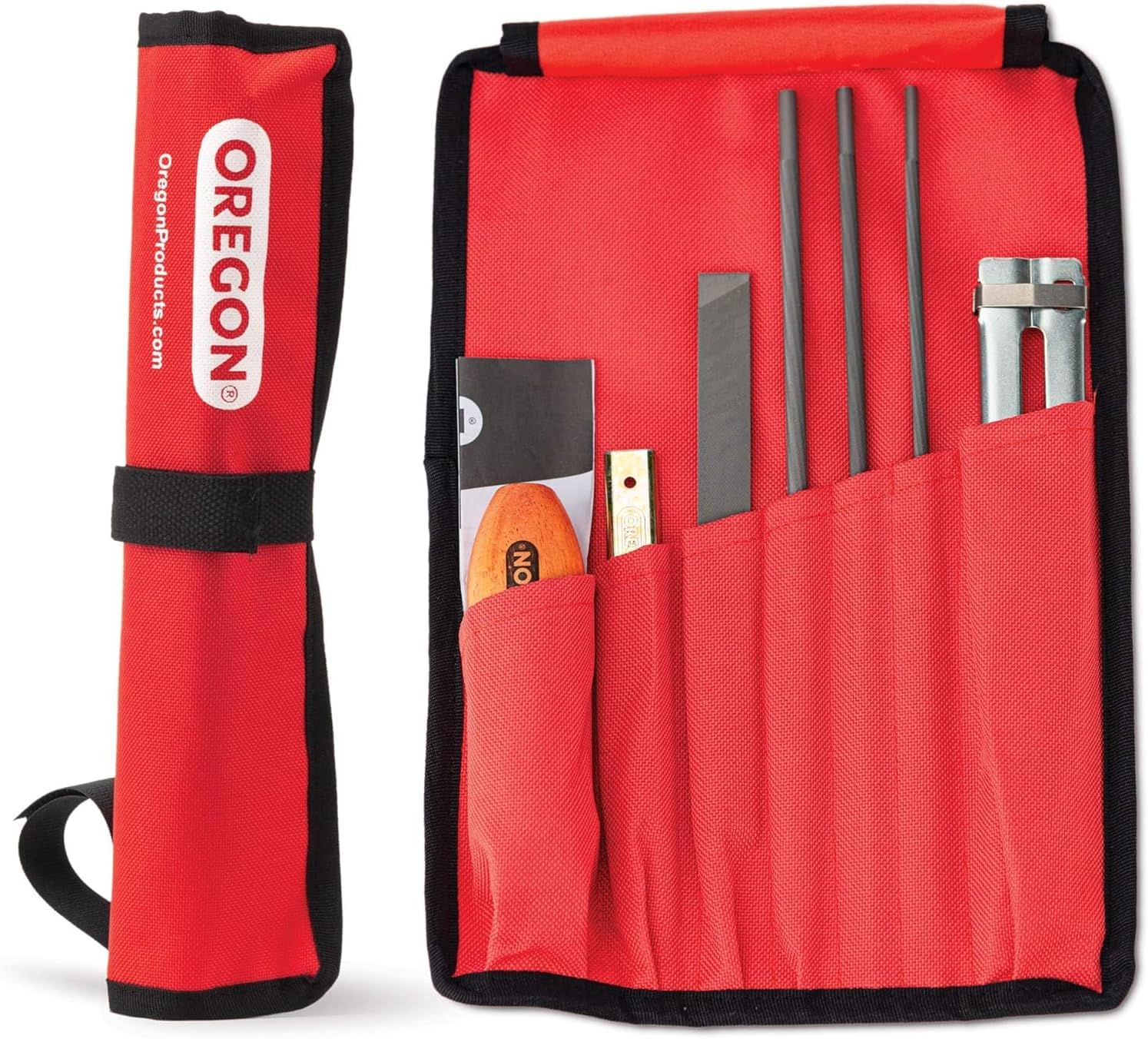

Image 4.2: The Oregon Universal Portable Sharpening Kit.
- Identify the correct round file size for your chain (5/32", 3/16", or 7/32").
- Attach the chosen file to the universal file manku.
- Uża l- file guide to maintain the correct sharpening angle and depth.
- Sharpen each cutter with consistent strokes, always pushing away from you.
- Uża l-flat file to lower the depth gauges as needed.
5. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u t-tħaddim sikur tas-serrieq tal-katina tiegħek.
5.1 Tensjoni tal-Katina
Check chain tension frequently. A properly tensioned chain should be snug against the guide bar but still allow you to pull it around the bar by hand.
5.2 Lubrikazzjoni tal-Katina
The automatic oiler system keeps the chain lubricated. Always ensure the oil reservoir is adequately filled before and during operation.
5.3 Tisħin tal-Katina
A sharp chain is crucial for efficient and safe cutting. Use the provided sharpening kit.
Image 5.1: Components of the Oregon Universal Portable Sharpening Kit.
Image 5.2: The Oregon sharpening file guide for precise angles.
5.4 Tindif
After each use, clean sawdust and debris from the chainsaw, especially around the guide bar, chain, and motor housing. Ensure ventilation openings are clear.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Lupa ma tibda | No power supply; Chain brake engaged; Trigger lock-out not pressed. | Check power connection; Disengage chain brake; Press trigger lock-out before trigger. |
| Il-katina ma taqtax b'mod effiċjenti | Katina matt; Tensjoni tal-katina mhux korretta; Katina installata bil-maqlub. | Isaffi l-katina; Aġġusta t-tensjoni tal-katina; Erġa' installa l-katina b'mod korrett. |
| L-ebda żejt fuq il-katina | Oil reservoir empty; Oil port clogged. | Refill oil reservoir; Clean oil port and guide bar groove. |
| Vibrazzjoni eċċessiva | Loose components; Damaged chain or guide bar. | Check all fasteners; Inspect and replace damaged chain/guide bar. |
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | Oregon |
| Mudell | CS1400 |
| Enerġija (Watts) | 2400 Watts |
| Sors tal-Enerġija | Battery Powered (Note: Product description states electric, but specifications list battery. User should verify power source based on specific model purchased.) |
| Tul tal-Katina | 40 Ċentimetri (16 pulzieri) |
| Kulur | Abjad |
| Numru ta' Oġġetti | 1 |
| ASIN | B09V516G69 |
| Date First Available on Amazon.fr | 9 ta’ Marzu, 2022 |
8. Garanzija u Appoġġ
8.1 Informazzjoni dwar Garanzija
The Oregon CS1400 Electric Chainsaw comes with a garanzija ta 'senaJekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
8.2 Appoġġ għall-Klijent
For further assistance, technical support, or to inquire about spare parts, please visit the official Oregon brand store or contact Oregon customer service.
Żur il- Oregon Brand Store.
