1. Introduzzjoni
The Paperang P3 is a portable wireless thermal label printer designed for a wide range of applications, including retailing, field service, manufacturing, home office use, and DIY projects. It delivers sharp, detailed monochrome prints up to 3 inches (80mm) wide with a 300 DPI resolution. This inkless printer offers convenience and versatility for printing labels, stickers, images, QR codes, and more directly from your smartphone or tablet.
2. X'hemm fil-Kaxxa
Upon unboxing your Paperang P3 printer, please ensure all the following items are present:
- 1 x Paperang Pocket Printer
- 1 x 3-Inch Thermal Paper Roll (pre-installed)
- 1 x Cable USB-C
- 1 x Gwida Quick Start
- 1 x 1-Year Paperang Warranty Card
3. Prodott Aktarview
Familiarize yourself with the Paperang P3 printer's design and key components.
Figura 3.1: The Paperang P3 portable thermal printer, showing its compact white body, power button, and paper output slot.
Figura 3.2: The Paperang P3 printer held in a hand, demonstrating its compact and portable size.
4. Setup
4.1 Iċċarġjar tal-Printer
Before first use, fully charge the Paperang P3 printer using the provided USB-C cable. Connect the USB-C end to the printer's charging port and the other end to a standard USB power adapter (not included) or a computer's USB port. The indicator light will show charging status.
4.2 Tagħbija ta' Karta Termali
Your Paperang P3 comes with a 3-inch thermal paper roll pre-installed. To replace or load a new roll:
- Iftaħ l-għatu tal-kompartiment tal-karta bil-mod.
- Remove any remaining paper core if applicable.
- Insert the new thermal paper roll, ensuring the paper feeds out from the top and is aligned correctly.
- Agħlaq l-għatu sew sakemm jikklikkja f'postu.
4.3 Installazzjoni tal-App
The Paperang P3 printer is controlled via the Paperang mobile application. Download the official Paperang app from your device's app store:

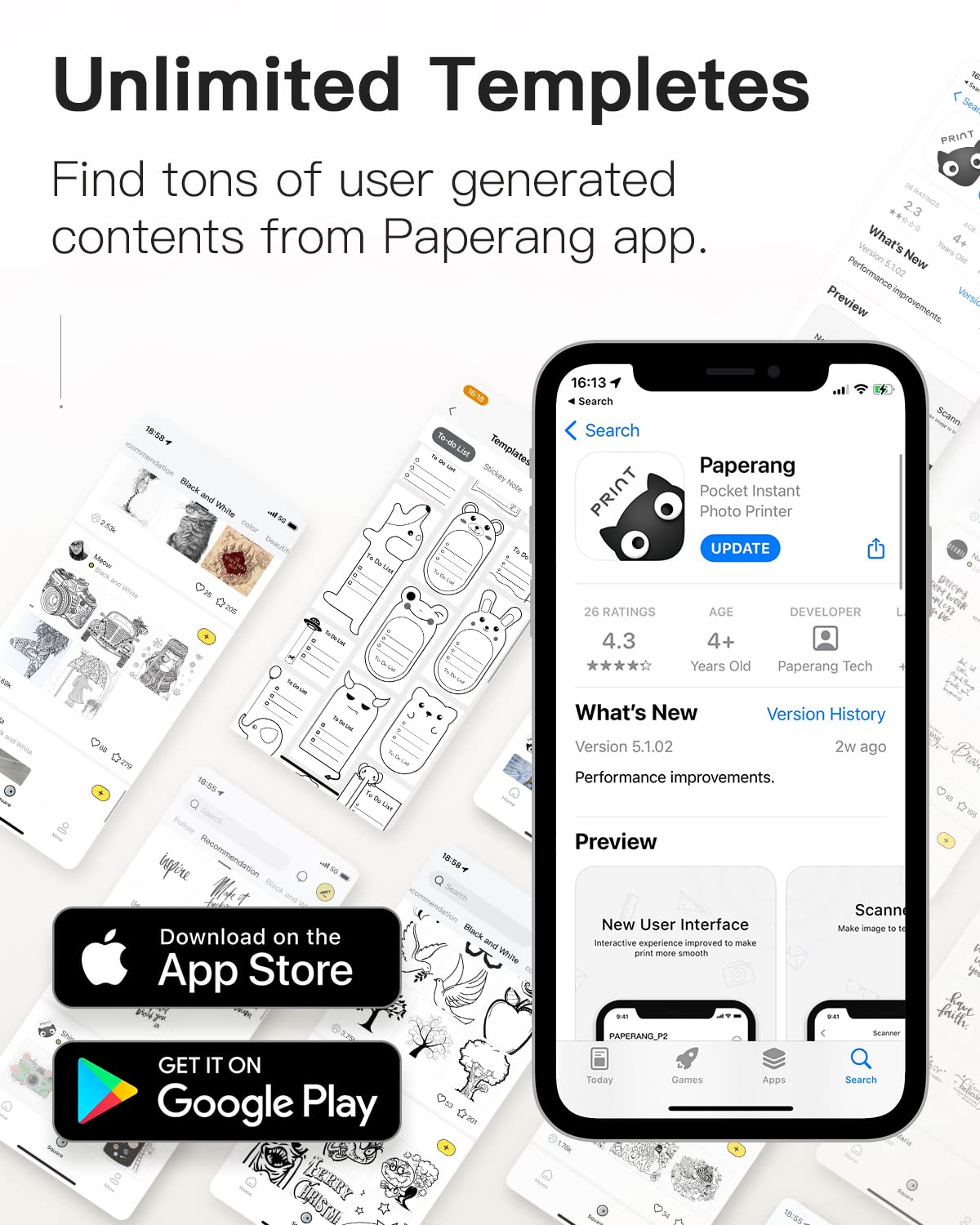

Figura 4.1: Screenshot showing the Paperang app interface and download options for App Store and Google Play.
- Għal apparati iOS: Fittex għal "Paperang" on the Apple App Store.
- Għal apparati Android: Fittex għal "Paperang" on the Google Play Store.
Segwi l-istruzzjonijiet fuq l-iskrin biex tinstalla l-app.
5. Istruzzjonijiet Operattivi
5.1 Konnessjoni mal-Printer
- Ensure your Paperang P3 printer is powered on. The power button is located on the top surface.
- Ippermetti l-Bluetooth fuq l-ismartphone jew it-tablet tiegħek.
- Open the Paperang application. The app will automatically search for nearby Paperang printers.
- Select your Paperang P3 from the list of available devices to establish a connection.
5.2 Stampar
The Paperang app provides various functions for printing:
Figura 5.1: Illustration of instant printing capability with the Paperang P3, compatible with mobile phones and tablets.
- Stampar tat-Test: Type or paste text directly into the app and format it as needed.
- Stampar tal-Immaġni: Select images from your device's gallery. The app allows for basic editing and cropping before printing.
- Stampar ta' Mudelli: Explore the app's extensive library of pre-designed templates for labels, notes, to-do lists, banners, and more.
- QR Code/Barcode Printing: Generate and print QR codes or barcodes for various purposes.
After selecting your content, tap the print button within the app. The printer will automatically feed the thermal paper and produce the printout.
Figura 5.2: Comparison demonstrating the 300 DPI high-definition print quality of the Paperang P3 versus lower resolution printers.
6. Manutenzjoni
6.1 Tindif tar-Ras tal-Istampar
To ensure optimal print quality, periodically clean the thermal print head. Use a soft, lint-free cloth lightly dampened with isopropyl alcohol. Gently wipe the print head surface. Allow it to dry completely before using the printer again.
6.2 Sostituzzjoni tar-Rombli tal-Karta
When the print quality degrades or the paper runs out, it's time to replace the thermal paper roll. Refer to Section 4.2 for detailed instructions on loading paper. Always use high-quality, BPA-free thermal paper rolls for best results and to prolong the life of your printer.
6.3 Kura tal-Batterija
Biex timmassimizza l-ħajja tal-batterija:
- Evita li tiċċarġja l-batterija kompletament ta' spiss.
- Aħżen il-printer f'post frisk u niexef meta ma tkunx qed tużah għal perjodi twal.
- Charge the printer regularly, even if not in frequent use, to maintain battery health.
7 Issolvi l-problemi
If you encounter issues with your Paperang P3 printer, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-istampatur ma jixgħelx | Batterija baxxa; Il-buttuna tal-qawwa mhux ippressata sew | Charge the printer; Press and hold the power button for a few seconds |
| Ma tistax tikkonnettja mal-app | Bluetooth mitfi; Il-printer mhux skopert; Problema bl-app | Ensure Bluetooth is on; Restart printer and app; Reinstall app |
| Poor print quality (faint, lines) | Low battery; Dirty print head; Incorrect paper type; Old paper | Charge printer; Clean print head (Section 6.1); Use proper thermal paper; Replace paper roll |
| Ġamm tal-karta | Tagħbija ħażina tal-karta; Oġġett barrani | Open cover, remove jammed paper carefully; Reload paper correctly |
| Il-printer mhux qed jirrispondi | System error; Firmware issue | Restart the printer; Check for app updates or firmware updates |
8. Speċifikazzjonijiet
Detailed technical specifications for the Paperang P3 Portable Wireless Thermal Label Printer:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | P3 |
| Teknoloġija tal-Istampar | Termali |
| Output Printer | Monokromu |
| Riżoluzzjoni massima tal-istampar | 300 DPI (300 x 300) |
| Daqs Massimu tal-Midja | 3 pulzieri (80mm) |
| Tip ta' Midja tal-Istampar | Labels (Thermal Paper) |
| Teknoloġija tal-Konnettività | USB Type C (for charging), Bluetooth (for printing) |
| Apparati Kompatibbli | Smartphones (Android, iOS) |
| Metodu ta' Kontroll | App |
| Sors tal-Enerġija | Mħaddma bil-batterija |
| Piż tal-oġġett | 481 g |
| Kulur | Abjad |
| Karatteristika Speċjali | Portable, Inkless Printing |
| UPC | 750888209940 |
9. Garanzija u Appoġġ
9.1 Informazzjoni dwar Garanzija
The Paperang P3 Portable Wireless Thermal Label Printer comes with a standard 1-year Paperang Warranty. This warranty covers manufacturing defects and ensures the product meets its specified performance standards under normal use. Please retain your proof of purchase for warranty claims.
9.2 Appoġġ għall-Klijent
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official Paperang website or contact their customer support directly. Refer to the contact information provided in your product packaging or on the official Paperang websit.
