WGP Teleheer T6 Plus Motorcycle Bluetooth Headset User Manual

Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your WGP Teleheer T6 Plus Motorcycle Bluetooth Headset. Please read this manual thoroughly before using the device to ensure proper function and safety. The T6 Plus is designed for motorcycle riders, offering full-duplex Bluetooth real-time intercom communication, hands-free calling, music playback, and voice assistant integration.

Karatteristiċi Ewlenin

• Full Duplex Bluetooth Real-time Intercom: Stable signal transmission up to 1500 meters (93 MPH) with ceramic antenna.
• Hands-free & Multi-function Keys: Bluetooth 5.1 connectivity, supports call handling (answer/refuse/redial), music playback. Automatic switch to phone mode for incoming calls. Large button design for easy operation with gloves.
• IP65 Waterproof & Dustproof Design: Withstands various weather conditions, operational down to -15°F.
• HD Speakers & Ultra High Quality Sound: High-definition sound quality, especially for bass, with effective wind noise reduction.
• All-in-One Type-C Port: Integrated audio, data transfer, and charging.
• Ħajja twila tal-batterija: 850 mAh battery providing 30 hours of continuous use and 500 hours standby.

Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• WGP Teleheer T6 Plus Bluetooth Headset Unit (2 units for 2-pack)
• Kelliema tal-elmu
• Microphone (boom mic for open-face helmets, soft mic for full-face helmets)
• Mounting Clip (clamp and adhesive options)
• Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ
• Manwal għall-Utent

Image: A detailed diagram illustrating the components of the WGP Teleheer T6 Plus headset, including the main unit with its Type-C port, indicator light, and control buttons (OFF/ON, Volume+, Volume-, Telephone, Connect). It also shows the securing clip, microphone, and trumpet (speakers), providing a clear visual guide to the parts included and their connections.

Setup u Installazzjoni

1. Iċċarġjar tal-Apparat

Before first use, fully charge the T6 Plus headset. Connect the provided USB Type-C cable to the headset's Type-C port and the other end to a USB power adapter (not included). The indicator light will show charging status and turn off when fully charged.

• Ħin tal-iċċarġjar: Madwar 2-3 sigħat.
• Indicator light: Red during charging, off when fully charged.

2. Installing the Headset in Your Helmet

The T6 Plus can be installed using either the clamp mount or the adhesive mount.

1. Agħżel Post tal-Immuntar: Select a flat area on the left side of your helmet where the headset unit can be easily accessed.
2. Installa l-Ispeakers: Attach the speakers inside the helmet's ear pockets using the adhesive pads. Ensure they are positioned directly over your ears for optimal sound quality.
3. Installa l-Mikrofonu:
   • For full-face helmets: Use the soft wire microphone and position it inside the chin bar, close to your mouth.
   • For open-face or modular helmets: Use the boom microphone and position it in front of your mouth.
4. Immuntar l-Unità Prinċipali:
   • Clamp Mount: Żerżaq il-clamp between the helmet shell and the inner padding. Secure it tightly.
   • Muntaġġ li jwaħħal: Clean the chosen surface on the helmet. Peel off the protective film from the adhesive mount and firmly press it onto the helmet for at least 30 seconds. Allow 24 hours for the adhesive to cure before use.
5. Qabbad Kejbils: Plug the speaker/microphone cable into the Type-C port on the main headset unit.

Image: A WGP Teleheer T6 Plus headset unit mounted on the side of a motorcycle helmet. This image demonstrates the typical installation position of the headset on a helmet, showing its compact design and how it integrates with the helmet's exterior. The control buttons are visible, indicating ease of access for the rider.

Istruzzjonijiet Operattivi

1. Power On/Off

• Qawwa Mixgħul: Agħfas u żomm il- Buttuna tal-Qawwa for 3 seconds until the indicator light flashes.
• Itfi: Agħfas u żomm il- Buttuna tal-Qawwa for 3 seconds until the indicator light turns off.

2. Bluetooth Pairing with Mobile Phone

1. Ensure the T6 Plus is powered off.
2. Agħfas u żomm il- Buttuna tal-Qawwa for approximately 5-7 seconds until the indicator light flashes red and blue alternately, indicating pairing mode.
3. On your mobile phone, enable Bluetooth and search for "Teleheer T6 Plus".
4. Select "Teleheer T6 Plus" from the list of available devices to connect. Once connected, the indicator light will flash blue slowly.

3. Intercom Pairing (Two Units)

To establish intercom communication between two T6 Plus units:

1. Ensure both T6 Plus units are powered off.
2. On Unit 1, press and hold the Buttuna tal-Qawwa for 5-7 seconds until the indicator light flashes red and blue alternately.
3. On Unit 2, press and hold the Buttuna tal-Qawwa for 5-7 seconds until the indicator light flashes red and blue alternately.
4. Agħfas fil-qosor il- Buttuna tal-Qawwa on either Unit 1 or Unit 2 (one short press). The units will search for each other.
5. Once connected, the indicator lights on both units will flash blue slowly, and you will hear a confirmation tone.

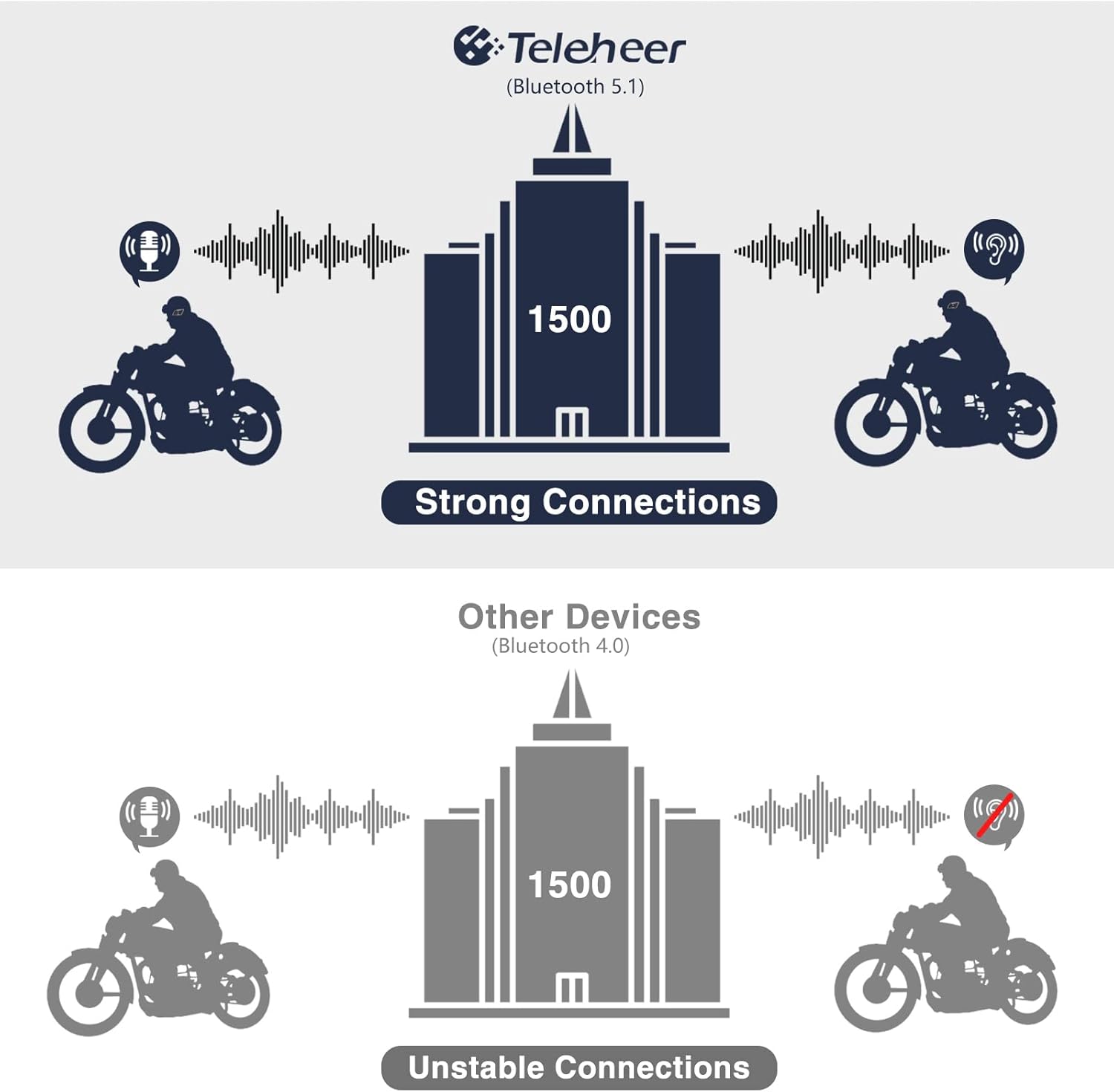

Image: A graphic illustrating the effective intercom range of the Teleheer T6 Plus (Bluetooth 5.1) compared to older Bluetooth 4.0 devices. The T6 Plus shows stable connections over 1500m, while older devices show unstable connections over shorter distances. This highlights the improved signal stability and range due to Bluetooth 5.1 and the ceramic antenna.

4. Phone Call Functions

• Irrispondi Sejħa: Agħfas qasir il- Buttuna tat-Telefon.
• Tmiem Sejħa: Agħfas qasir il- Buttuna tat-Telefon.
• Irrifjuta Sejħa: Agħfas u żomm il- Buttuna tat-Telefon għal 2 sekondi.
• Isemmi mill-ġdid l-Aħħar Numru: Agħfas darbtejn il- Buttuna tat-Telefon.

5. Daqq tal-mużika

• Play/Pawsa: Agħfas qasir il- Buttuna tat-Telefon.
• Track li jmiss: Agħfas qasir il- Buttuna tal-Volum.
• Track preċedenti: Agħfas qasir il- Buttuna Down Volume.
• Aġġustament tal-Volum: Agħfas u żomm il- Buttuni Volum 'il fuq /' l isfel biex iżżid jew tnaqqas il-volum.

6. Voice Assistant (Siri/Google Assistant)

• Attiva l-Assistent tal-Vuċi: Agħfas darbtejn il- Buttuna tal-Qawwa.

Image: A graphic depicting the voice assistant feature of the Teleheer T6 Plus, showing a helmeted rider interacting with their phone via voice commands like "Hey Siri" or "Ok Google". This illustrates the hands-free convenience for navigation, calls, and other smartphone functions while riding.

Manutenzjoni u Kura

• Tindif: Wipe the headset unit with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
• Reżistenza għall-Ilma: The device is IP65 waterproof. While it can withstand water jets, avoid submerging it in water for extended periods. Ensure the Type-C port cover is securely closed when not charging.
• Ħażna: Aħżen l-apparat f'post frisk u niexef meta ma jkunx qed jintuża. Evita temperaturi estremi.
• Kura tal-batterija: To prolong battery life, avoid fully discharging the battery frequently. Charge the device regularly, even if not in use for long periods.

Image: A WGP Teleheer T6 Plus headset unit partially submerged in water with splashes, demonstrating its IP65 waterproof rating. The image emphasizes the device's ability to withstand water exposure, making it suitable for various weather conditions during riding.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information and technical support, please refer to the official WGP webis-sit jew ikkuntattja lis-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

Għal aktar għajnuna, tista' żżur il- paġna tal-prodott fuq Amazon or contact the seller directly through the Amazon platform.
