1. Introduzzjoni
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your TOTAL TR111226 12mm 2200W Router. Please read this manual thoroughly before using the tool to ensure proper handling and to prevent injury or damage.
The TOTAL TR111226 Router is a powerful tool designed for shaping and cutting wood. It features a premium 2200W motor, variable speed control, and an impact-resistant plastic base, making it suitable for various woodworking applications including manual straight cuts, guide cutting, and handle cutting.
2. Istruzzjonijiet tas-Sigurtà
TWISSIJA: Dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà biex tnaqqas ir-riskju ta’ nar, xokk elettriku, u korriment personali.
- Sigurtà taż-Żona tax-Xogħol: Żomm iż-żona tax-xogħol tiegħek nadifa u mdawwla sew. Żoni imbarazzati jew mudlama jistiednu inċidenti. Tħaddimx għodod tal-enerġija f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab fjammabbli.
- Sigurtà Elettrika: Il-plakek tal-għodda tal-enerġija għandhom jaqblu mas-sokit. Qatt timmodifika l-plakek bl-ebda mod. Tesponix l-għodda tal-enerġija għax-xita jew għal kundizzjonijiet imxarrbin. Evita kuntatt tal-ġisem ma' uċuħ imqabbdin mal-art.
- Sigurtà Personali: Always wear eye protection, dust mask, non-skid safety shoes, and hearing protection when operating the router. Dress properly; avoid loose clothing or jewelry.
- Użu u Kura tal-Għodda: Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek. Skonnettja l-plagg mis-sors tal-enerġija qabel ma tagħmel xi aġġustamenti, tibdel l-aċċessorji, jew taħżen l-għodda tal-enerġija.
- Manutenzjoni: Żomm power tools. Iċċekkja jekk hemmx allinjament ħażin jew twaħħil ta 'partijiet li jiċċaqalqu, ksur ta' partijiet, u kwalunkwe kundizzjoni oħra li tista 'taffettwa l-operazzjoni tal-għodda tal-enerġija.
3. Komponenti tal-Prodott
Familiarize yourself with the main components of your TOTAL TR111226 Router:

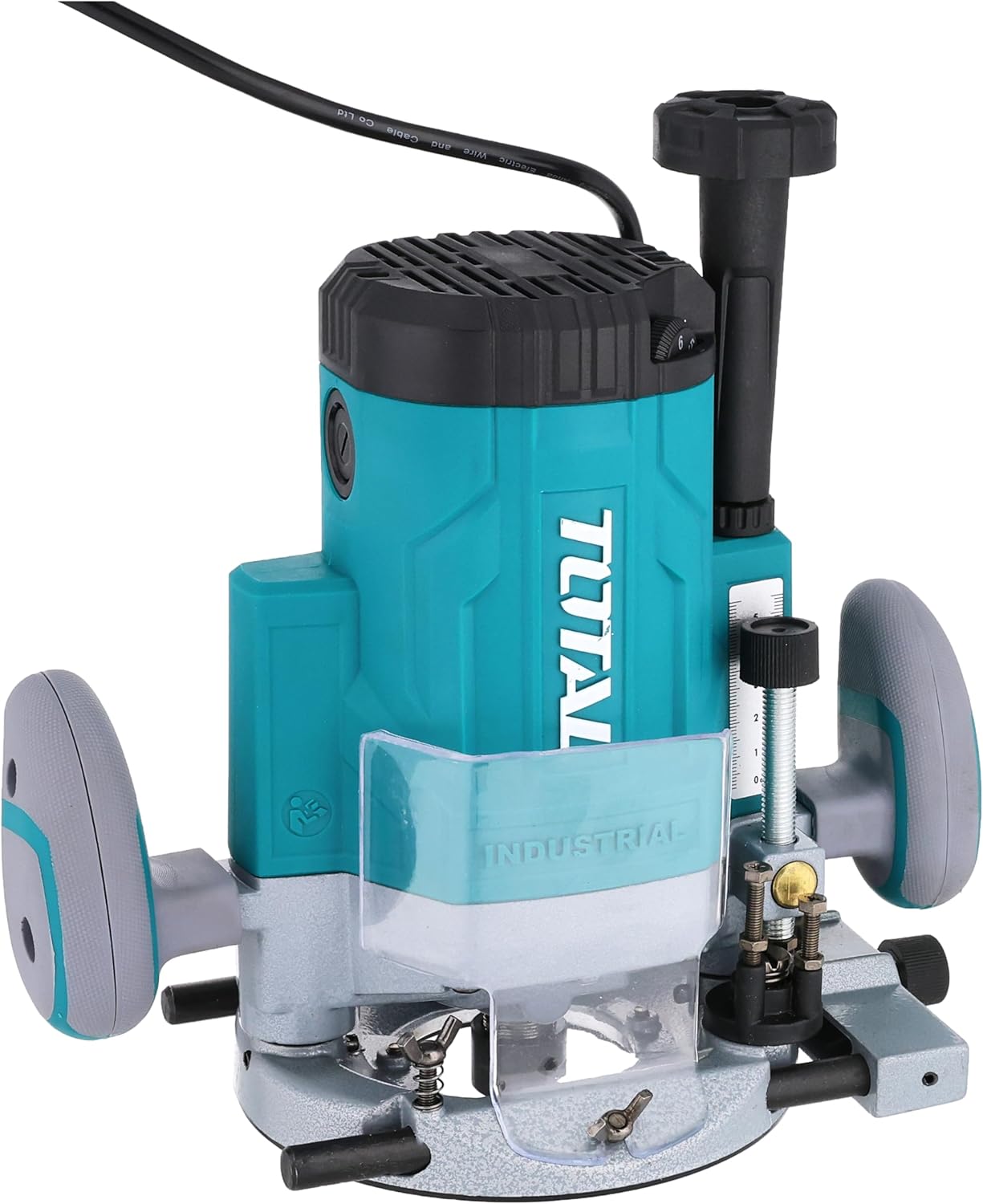

Figura 3.1: Quddiem view of the TOTAL TR111226 Router, showing the main body, handles, and base. This image highlights the overall design and primary components of the tool.
Figura 3.2: Close-up view of the router's depth adjustment mechanism. This shows the threaded rod and locking knob used to precisely set the cutting depth.
Figura 3.3: Wara view of the router, displaying the power cord entry point and the product's identification label with technical specifications.

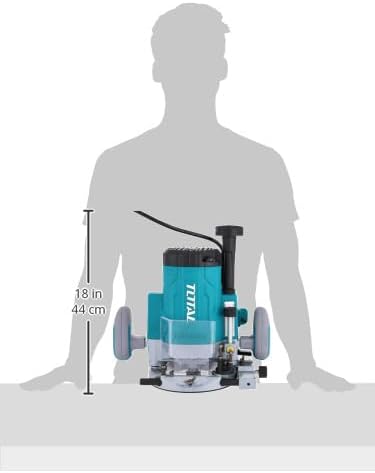

Figura 3.4: Image illustrating the approximate dimensions of the router, providing a visual reference for its size relative to a person.
4. Setup
4.1 Disimballaġġ
Carefully remove the router and all accessories from the packaging. Inspect the tool for any signs of damage during transit. Retain the packaging for future storage or transport.
Installazzjoni ta' 4.2 Bit
- Kun żgur li r-router huwa skonnettjat mis-sors tal-enerġija.
- Ħoll il-ġewż tal-kollett billi tuża l-wrench provdut.
- Insert the desired router bit into the collet, ensuring it is seated fully but not bottomed out.
- Tighten the collet nut firmly with the wrench. Do not overtighten.
4.3 Aġġustament tal-Fond
The router features a precise depth adjustment mechanism:
- Place the router on a flat surface with the desired bit installed.
- Ħoll il-pum tal-qfil tal-fond.
- Lower the motor until the bit touches the surface.
- Adjust the depth fine-tuning knob or scale to achieve the desired cutting depth.
- Tighten the depth lock knob securely to prevent movement during operation.
4.4 Konnessjoni mal-Enerġija
Ensure the router's power switch is in the OFF position before plugging it into a suitable power outlet. The router operates on a corded electric power source.
5. Istruzzjonijiet Operattivi
5.1 Operazzjoni Bażika
- Hold the router firmly with both hands on the handles.
- Kun żgur li l-biċċa tax-xogħol tkun clamped.
- Press the lock-off switch (if present) and then the power switch to start the motor. Allow the motor to reach full speed before engaging the workpiece.
- Slowly lower the router bit into the workpiece, guiding the tool smoothly along the desired path.
- To stop, release the power switch. Wait for the bit to come to a complete stop before lifting the router from the workpiece.
5.2 Kontroll tal-Veloċità Varjabbli
The router features variable speed settings to match the bit and material. Adjust the speed dial or control to the appropriate setting before starting the cut. Lower speeds are generally used for larger bits, harder materials, or when more control is needed. Higher speeds are suitable for smaller bits and softer materials.
5.3 Tekniki tat-Tqattigħ
- Qatgħat Dritta: Use a straight edge guide or fence to ensure accurate straight cuts.
- Guide Cutting: For curved or intricate cuts, use appropriate templates and guide bushings.
- Edge Profiling: For decorative edges, select the appropriate profiling bit and make multiple shallow passes if necessary.
6. Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tar-router tiegħek.
6.1 Tindif
- Dejjem aqla l-għodda qabel tnaddaf.
- Clean the router regularly with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
- Use compressed air to clear dust and debris from the motor vents and collet area.
6.2 Bit Care
- Keep router bits sharp and clean. Dull bits can cause kickback and poor cut quality.
- Store bits in a protective case to prevent damage to the cutting edges.
6.3 Ħażna
When not in use, store the router in a dry, secure place out of reach of children. Protect it from direct sunlight and extreme temperatures.
7 Issolvi l-problemi
Din it-taqsima tindirizza kwistjonijiet komuni li tista' tiltaqa' magħhom bir-router tiegħek.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ir-router ma jibdax | Ebda provvista ta 'enerġija Swiċċ tal-qawwa OFF Lock-off switch not engaged | Iċċekkja s-sokit tal-enerġija u l-korda Ixgħel is-swiċċ tal-enerġija Engage lock-off switch before pressing power switch |
| Kwalità ħażina tat-tqattigħ / Injam maħruq | Bit matt Incorrect feed rate Issettjar tal-veloċità mhux korrett | Replace or sharpen bit Adjust feed rate (slower for harder materials) Adjust speed setting (lower for larger bits/harder materials) |
| Vibrazzjoni eċċessiva | Loose bit Damaged bit Żbilanċ tal-mutur | Ensure bit is securely tightened Replace damaged bit Contact customer support if motor imbalance persists |
| Depth adjustment slips | Depth lock knob not tightened Debris fil-mekkaniżmu | Tighten depth lock knob firmly Clean depth adjustment mechanism |
If you encounter problems not listed here or if solutions do not resolve the issue, please contact TOTAL customer support.
8. Speċifikazzjonijiet
Key technical specifications for the TOTAL TR111226 Router:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | TR111226 |
| Sors tal-Enerġija | Corded Elettriku |
| Input tal-Enerġija | 2200W |
| Daqs Kollet | 12mm |
| Piż tal-oġġett | 4 kg (8.818 libbra) |
| Dimensjonijiet tal-Prodott | 10 x 20 x 37 ċm |
| Tip ta' Bażi | Fiss |
| Materjal | Plastik, Injam |
| Horsepower | 3 hp |
9. Garanzija u Appoġġ
TOTAL products are manufactured to high-quality standards. For information regarding the standard product warranty, please refer to the warranty card included with your purchase or visit the official TOTAL websit. Għażliet ta’ garanzija estiża jistgħu jkunu disponibbli wkoll minn fornituri ta’ partijiet terzi.
For technical support, spare parts, or service inquiries, please contact TOTAL customer service through their official channels. Always provide your product model number (TR111226) and serial number when seeking support.
