Joydeem JD-S40T 8-in-1 Multifunctional Steam Oven User Manual

1. Istruzzjonijiet Importanti dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel ma tuża l-apparat u żommhom għal referenza futura. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta f'xokk elettriku, nar, jew korriment serju.

1.1 Sigurtà Ġenerali

• Tmissx uċuħ sħan. Uża manki jew pumi.
• Dejjem uża mitts jew ingwanti tal-forn meta timmaniġġja oġġetti sħan mill-forn.
• Aċċerta ruħek li jkun hemm ventilazzjoni xierqa madwar l-apparat. Timblokkax xi fetħiet tal-ventilazzjoni.
• Dan l-apparat huwa għall-użu fid-dar biss. Tużax barra.
• Superviżjoni mill-qrib hija meħtieġa meta xi apparat jintuża minn jew ħdejn it-tfal.

1.2 Sigurtà Elettrika

• Tiżgura l-voltage of the appliance matches your local power supply before connecting.
• Tgħaddasx il-korda tal-enerġija, il-plagg, jew l-apparat innifsu fl-ilma jew f'likwidi oħra.
• Neħħi l-plagg mill-iżbokk meta ma tkunx qed tuża u qabel it-tindif.
• Tħaddim ebda apparat b'korda jew plagg bil-ħsara.

1.3 Sigurtà ta 'Użu

• Tpoġġix karta, kartun, plastik, jew materjali oħra li jaqbdu ġewwa l-forn.
• Oqgħod attent ħafna meta tneħħi t-trejs jew tarmi l-grass jaħraq.
• Taħżinx materjali, għajr l-aċċessorji rakkomandati mill-manifattur, f'dan il-forn meta ma jkunx qed jintuża.
• Always ensure the water tank is filled before using steam functions.

2. Prodott Aktarview

The Joydeem JD-S40T is an 8-in-1 multifunctional countertop appliance designed to simplify your cooking experience. It combines various cooking methods into a single unit, offering versatility and convenience.

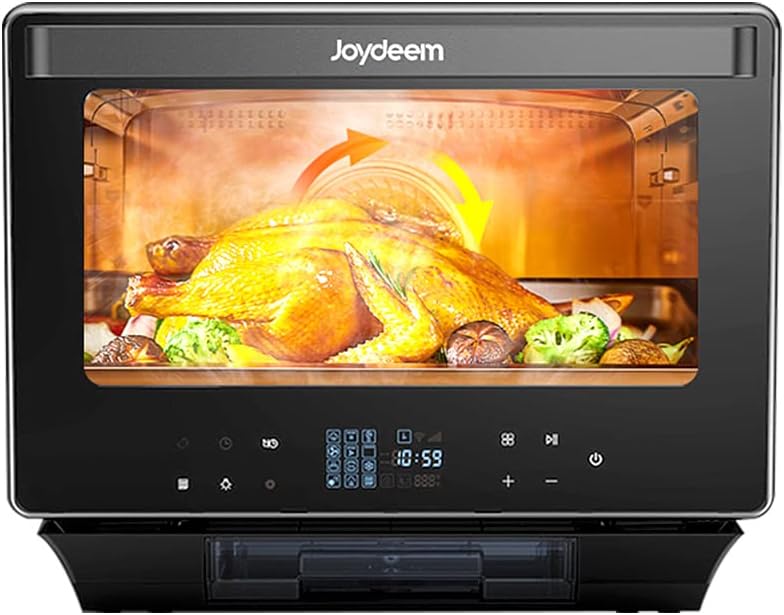

Figura 2.1: Quddiem view of the Joydeem JD-S40T 8-in-1 Multifunctional Steam Oven.

2.1 Funzjonijiet Ewlenin

This appliance offers 8 primary functions and several auxiliary functions:

• Quick Steaming: For rapid steaming, preserving food flavor and nutrients.
• Ħami: Traditional oven baking for various dishes.
• Qali bl-Ajru: Achieves crispy results with minimal oil.
• Fwar: Standard steaming for vegetables, fish, etc.
• Jogurt: Fermentation function for homemade yogurt.
• Sterilizzazzjoni: For sterilizing kitchen utensils.
• Tidwib: Defrosting frozen foods.
• Warm Preservation: Keeps cooked food warm.

Auxiliary functions include descaling, reheating, and fermentation.

Figure 2.2: Visual representation of the 8-in-1 multifunctional capabilities.

2.2 Komponenti u Aċċessorji

The oven features a spacious 38L capacity, suitable for 3-9 people. It includes intelligent M-tube interactive heating for even heat distribution and a 360° rotating spit for hot air cycle roasting.

Figure 2.3: Dimensions and standard accessories included with the appliance.

Standard accessories include:

• Qoffa tal-Fry
• Grill
• Oven Pan/Oil Pan
• Trej Steamer
• Instructions/Recipes Manual
• Ingwanta tal-Forn
• Qafas ta 'Appoġġ
• Sett tal-furketta

3. Setup u Installazzjoni

3.1 Disimballaġġ

• Neħħi l-apparat bir-reqqa mill-imballaġġ tiegħu.
• Remove all packaging materials, including internal packing and protective films.
• Check that all accessories listed in Section 2.2 are present and undamaged.

3.2 Tqegħid

• Place the oven on a stable, flat, and heat-resistant surface.
• Ensure there is adequate space (at least 10 cm) around the appliance for proper ventilation. Do not place it directly against a wall or under cabinets that may be damaged by heat or steam.
• Keep the appliance away from water sources and direct sunlight.

3.3 Tindif Inizjali

• Qabel l-ewwel użu, imsaħ il-barra tal-forn b'karta adamp drapp.
• Wash all removable accessories (trays, racks, baskets) with warm, soapy water. Rinse thoroughly and dry completely.
• Run a short steam cycle (e.g., 10 minutes at 100°C) with an empty oven to remove any manufacturing odors. Ensure the water tank is filled.

4. Istruzzjonijiet Operattivi

The Joydeem JD-S40T features a touch control panel for easy operation. Familiarize yourself with the icons and functions before use.

4.1 Operazzjoni Ġenerali

• Ipplaggja l-apparat fi żbokk tal-elettriku ertjat.
• The control panel will illuminate. Use the touch controls to select functions, adjust temperature, and set time.
• Ensure the water tank is filled for all steam-related functions.

4.2 Funzjonijiet tat-tisjir

The oven offers various cooking modes to suit your needs:

• Pure Steaming: Ideal for delicate foods like fish and vegetables. Steam is generated from the back for even cooking.

• Top-side Steam-Baking: Combines steam with top heating for moist interiors and crispy tops.
• Back-side Steam-Baking: Utilizes steam with rear heating for thorough and even cooking.
• Back-side Hot Wind Roasting: Circulates hot air from the back for uniform roasting, perfect for poultry.

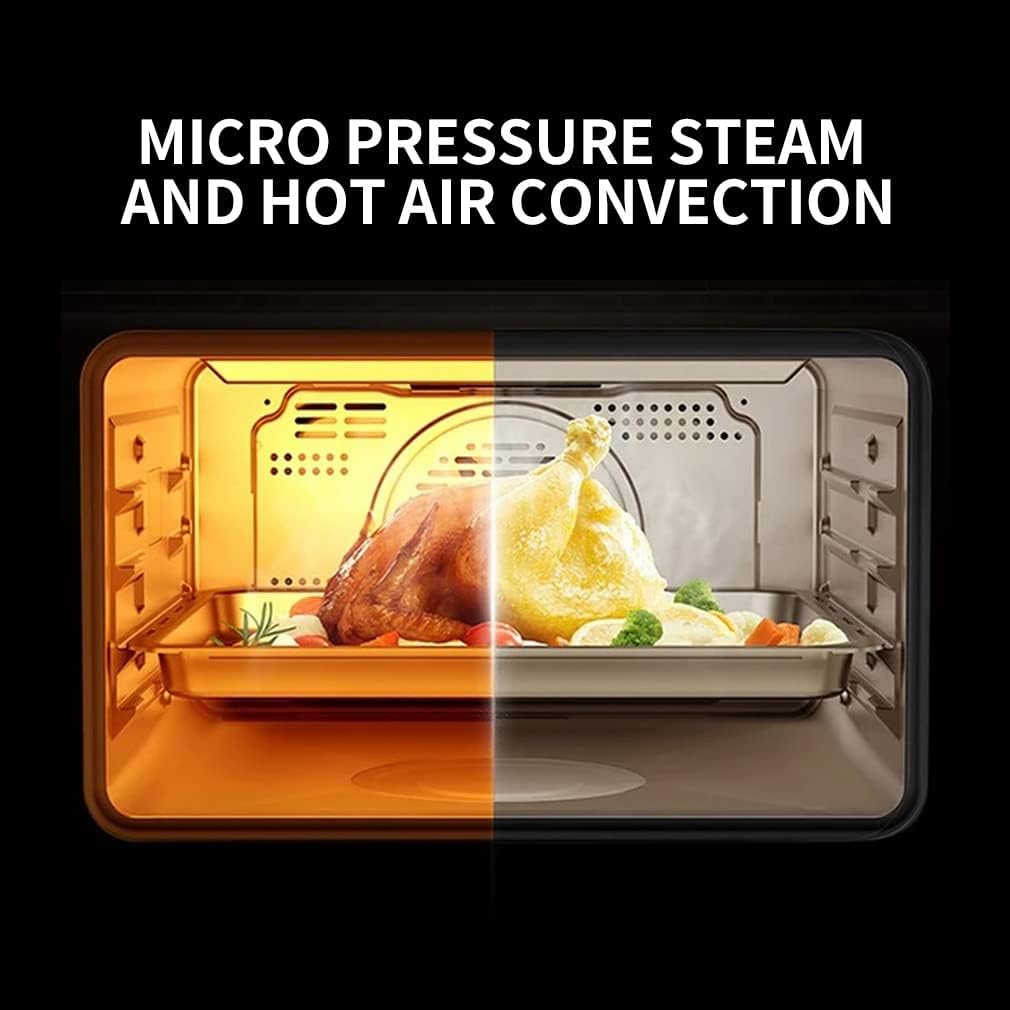

Figure 4.1: Illustration of micro pressure steam and hot air convection for optimal cooking.

• Top-side Quick Roasting: Intense top heat for quick browning and grilling.
• 360° Rotatable Roasting: Ideal for whole chickens or roasts, ensuring even cooking and browning on all sides.

4.3 Menus issettjati minn qabel

The oven comes with 50 programmable preset menus, allowing for easy cooking of various cuisines. Simply select the desired menu, and the oven will automatically set the cooking time and temperature.

Figure 4.2: The control panel displaying the selection for 50 pre-set menus.

4.4 Eżample Recipe: Cantonese Grilled Lamb Chops

This recipe demonstrates the use of the oven's roasting functions.

For detailed steps and other recipes, refer to the included Instructions/Recipes Manual.

5. Manutenzjoni u Tindif

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Joydeem oven.

5.1 Tindif ta 'Kuljum

• Dejjem aqla l-apparat u ħallih jiksaħ kompletament qabel ma tnaddaf.
• Imsaħ l-uċuħ ta 'ġewwa u ta' barra b'artab, damp drapp. Għal tbajja’ iebsa, uża deterġent ħafif.
• Clean the water tank and drip tray after each use, especially after steam functions, to prevent mineral buildup.
• Wash all removable accessories with warm, soapy water and dry thoroughly.

5.2 Tneħħija tal-Ġebla

Over time, mineral deposits from water can accumulate inside the steam system. The oven has a dedicated descaling function to address this.

• Refer to the Instructions/Recipes Manual for specific descaling instructions and recommended descaling solutions.
• Perform descaling regularly, depending on the hardness of your water and frequency of steam use.

6 Issolvi l-problemi

If you encounter any issues with your appliance, refer to the table below for common problems and their solutions. If the problem persists, contact customer support.

7. Speċifikazzjonijiet

Detailed technical specifications for the Joydeem JD-S40T.

8. Garanzija u Appoġġ

Joydeem provides a limited warranty for this product. Please refer to the warranty card included in your packaging for specific terms and conditions, including coverage duration and limitations.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Joydeem customer service through the contact information provided in your product documentation or on the official Joydeem websit.

When contacting support, please have your model number (JD-S40T) and purchase information readily available.
