Manwal tal-Utent tat-Tajmer tal-Ilma Diġitali

Introduzzjoni

This manual provides comprehensive instructions for the setup, operation, and maintenance of your johgee Digital Water Timer. Please read this manual carefully before use to ensure proper function and longevity of the device.

The johgee Digital Water Timer is designed to automate your watering needs with its dual independent outlets, programmable schedules, rain delay function, and manual watering mode. Its IP54 waterproof rating ensures durability for outdoor use.

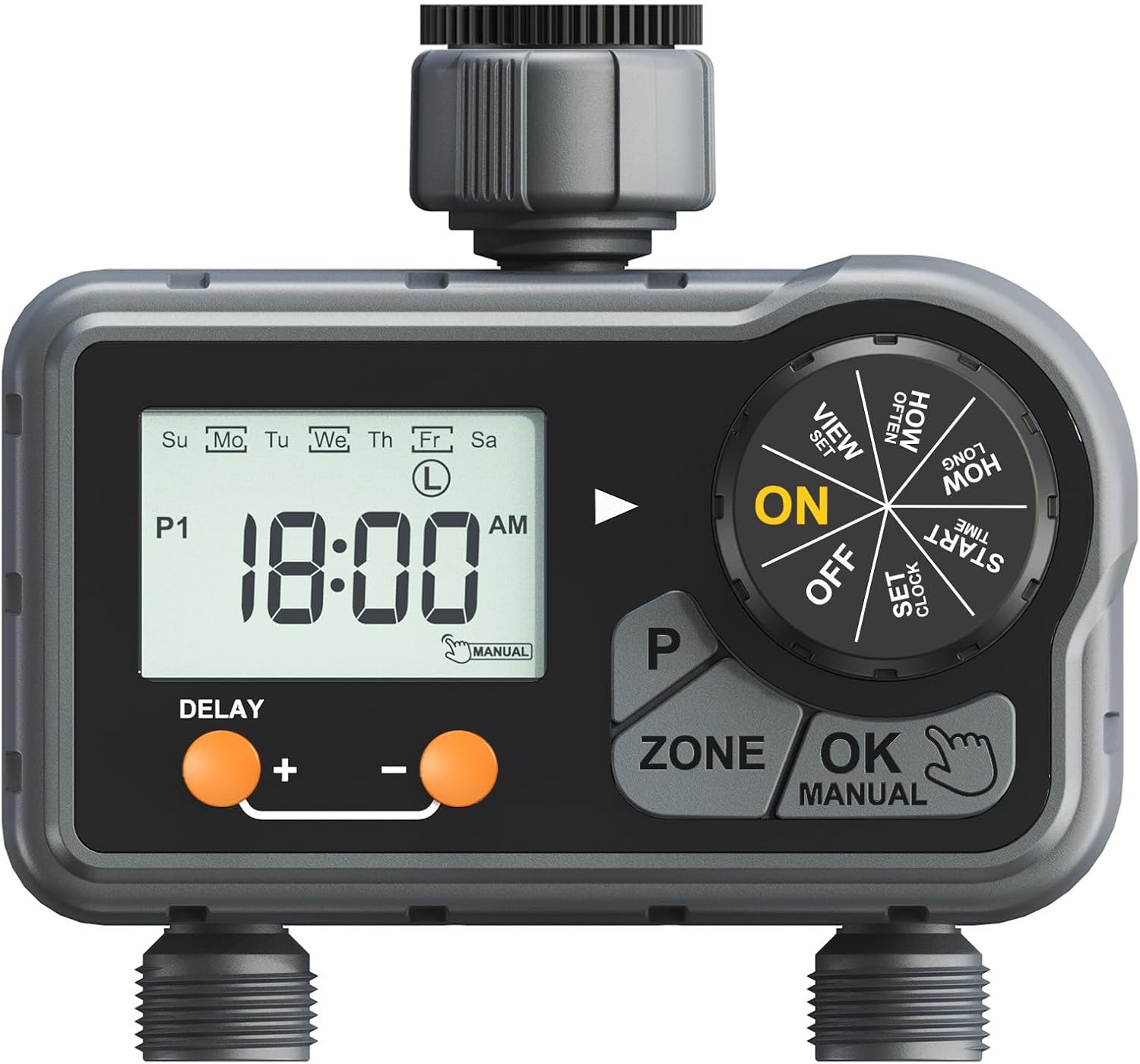

Immaġni: Quddiem view of the johgee Digital Water Timer, showcasing its large LCD display, control dial, and two independent outlets. The device is grey and black with orange buttons.

Komponenti tal-Prodott

Image: Labeled diagram of the water timer, indicating the filter, hose tap connection, P button, dial, OK/Manual button, Zone button, Delay buttons, and the two Zone outlets.

Familiarize yourself with the main components of your water timer:

• Konnessjoni tal-vit tal-pajp: Connects the timer to your outdoor faucet.
• Iffiltra: Prevents debris from entering the timer.
• Skrin LCD kbir: Displays time, program settings, and status.
• Ċempel: Used to navigate through settings (VIEW, HOW OFTEN, HOW LONG, START TIME, SET CLOCK, ON, OFF).
• Buttuna P: Program button, likely for cycling through programs.
• ZONE Button: Selects between Zone 1 and Zone 2.
• Buttuna OK/MANWAL: Confirms selections and activates manual watering.
• Dewmien / Buttuna +: Adjusts delay time or increases values.
• - Button: Decreases values.
• Zone 1 & Zone 2 Outlets: Independent outlets for connecting hoses.

Setup Istruzzjonijiet

1. Installazzjoni tal-batterija:

   The timer requires 2 AAA alkaline batteries (not included). Locate the battery compartment on the back of the device. Open the compartment, insert the batteries, ensuring correct polarity (+/-), and close the compartment securely. The battery life is approximately half a year.

2. Connecting to Faucet:

   Screw the hose tap connection of the timer onto your outdoor faucet. Ensure the connection is tight to prevent leaks. The timer is designed for 3/4" or 1" BSP or NH thread taps.



   Image: The water timer attached to an outdoor faucet, highlighting its IP54 waterproof design and the ability for 360-degree rotation adjustment for optimal positioning.

3. Manek tal-Konnessjoni:

   Attach your garden hoses to the Zone 1 and Zone 2 outlets at the bottom of the timer. Ensure these connections are also secure.

Istruzzjonijiet Operattivi

L-issettjar tal-Arloġġ

1. Dawwar l-arloġġ għal SSET L-ARLOĠĠ.
2. Uża l- + u - buttuni biex tissettja l-ħin kurrenti.
3. Agħfas OK/MANWAL biex tikkonferma.

Programming Watering Schedules (3 Programs per Outlet)

Each of the two independent outlets (Zone 1 and Zone 2) can be programmed with up to three distinct watering schedules.

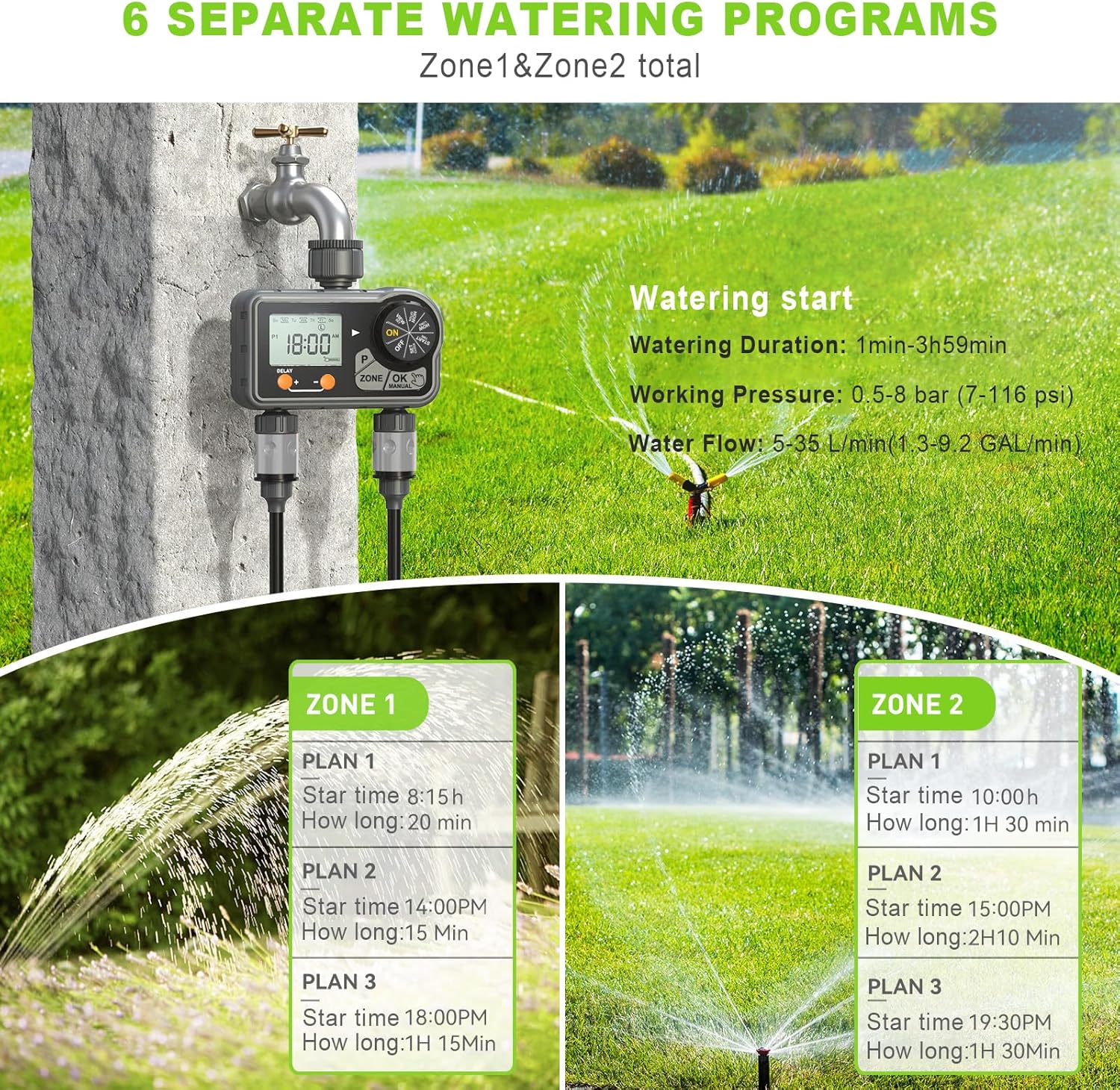

Image: An illustration demonstrating how Zone 1 and Zone 2 can each have three independent watering plans, totaling six programs. Each plan includes a start time and duration.

1. Agħżel Żona: Agħfas il- ŻONA button to switch between Zone 1 and Zone 2. The selected zone will be indicated on the LCD.
2. Issettja l-Ħin tal-Bidu:
   • Dawwar l-arloġġ għal ĦIN BIDU.
   • Użu + u - to set the desired start time for the program.
   • Agħfas OK/MANWAL biex tikkonferma.
3. Set Watering Duration:
   • Dawwar l-arloġġ għal KEMM DWAR.
   • Użu + u - to set the watering duration (1 minute to 3 hours 59 minutes).
   • Agħfas OK/MANWAL biex tikkonferma.
4. Set Watering Frequency:
   • Dawwar l-arloġġ għal KEMM TA 'Spiss.
   • Użu + u - to select the frequency: every 2 days, every 6 days, or specific days of the week (Monday to Sunday).
   • Agħfas OK/MANWAL biex tikkonferma.
5. Set Additional Programs: To set the second or third program for the same zone, press the P button to cycle to the next program (P1, P2, P3) and repeat steps 2-4.

Image: An illustration demonstrating the independent operation of Zone 1 (left) and Zone 2 (right), showing that they can run simultaneously or separately without interference.

Funzjoni Dewmien tax-Xita

The rain delay function allows you to pause your watering schedule for a set period without losing your programmed settings. This is useful during periods of natural rainfall.

1. Ensure the dial is in the ON pożizzjoni.
2. Agħfas il- DEWMIEN/+ buttuna.
3. Uża l- + u - buttons to select the delay duration: 24 hours, 48 hours, or 72 hours.
4. Agħfas OK/MANWAL to activate the rain delay. The timer will resume its schedule automatically after the delay period.

Image: A visual representation of the rain delay feature, showing the timer pausing watering for 24, 48, or 72 hours, with various garden scenes indicating its application.

Tisqija manwali

You can initiate manual watering at any time without affecting your programmed schedules.

1. Ensure the dial is in the ON pożizzjoni.
2. Agħfas il- OK/MANWAL buttuna.
3. Uża l- + u - buttuni biex tissettja t-tul ta' tisqija manwali mixtieq (minn 1 sa 59 minuta).
4. Agħfas OK/MANWAL again to start manual watering. The timer will stop automatically after the set duration.

Image: A person demonstrating the manual irrigation feature, holding a hose nozzle while the timer's display shows the manual watering duration. This mode does not interfere with automatic programs.

Turning Off the Timer

To stop all watering, turn the dial to the OFF pożizzjoni.

Manutenzjoni

• Sostituzzjoni tal-batterija: Replace batteries when the low battery indicator appears on the LCD, or approximately every six months.
• Tindif tal-filtru: Periodically check and clean the filter located at the hose tap connection to prevent blockages and ensure optimal water flow.
• Winterization: Before freezing temperatures, disconnect the timer from the faucet and hoses. Drain any remaining water and store the timer indoors in a dry, frost-free location.
• Tindif Ġenerali: Wipe the exterior of the timer with a damp drapp. Tużax prodotti tat-tindif li joborxu jew tgħaddasx l-unità fl-ilma.

Issolvi l-problemi

Speċifikazzjonijiet

Garanzija u Appoġġ

This product is covered by a standard manufacturer's warranty. For specific warranty details, please refer to the product packaging or contact the retailer where the product was purchased.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding parts, please contact johgee customer service through their official channels or the platform where you purchased the product.

Jekk jogħġbok żomm dan il-manwal għal referenza futura.
