MARKLIFE P12 Portable Bluetooth Label Maker User Manual

1. Introduzzjoni

The MARKLIFE P12 is a compact and portable Bluetooth label maker designed for efficient and convenient labeling in various environments, including home, office, and retail. Utilizing advanced thermal printing technology, it eliminates the need for ink or toner, providing clear, durable, and cost-effective labels. Its seamless Bluetooth connectivity allows for easy operation via a smartphone application, offering extensive customization options for text, fonts, and graphics.

Figure 1.1: MARKLIFE P12 Portable Bluetooth Label Maker. This compact device allows for easy label creation and printing directly from your smartphone.

2. Karatteristiċi tal-prodott

• Disinn portabbli: Ultra-compact and lightweight (3.4 x 2.8 x 1.3 inches), making it easy to carry and use anywhere.
• Konnettività Bluetooth: Connects wirelessly to your smartphone for convenient label design and printing.
• Teknoloġija tal-Istampar Termali: No ink, toner, or ribbon required, reducing operational costs and environmental impact.
• Ħajja twila tal-batterija: Equipped with a 1200 mAh lithium battery, providing up to 5 hours of continuous printing on a full charge.
• Adjustable Print Length: Supports both continuous and gap label paper, allowing for custom label lengths with an integrated cutter. Maximum print width is 12mm.
• Versatile App (Marklife APP): Offers guest mode (no registration needed), memory function for custom templates, and extensive customization options for text size, font, alignment, bolding, and line spacing.
• Tikketti Durabbli: Labels are waterproof, oil-resistant, tear-resistant, and leave no residue upon removal. Printed text can last up to 3 years.

Figure 2.1: Key features of the MARKLIFE P12, highlighting its compact size, built-in cutter, and thermal inkless printing technology.

3. Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-kontenut tal-pakkett meta tiftaħ il-kaxxa biex tiżgura li l-oġġetti kollha huma preżenti:

• MARKLIFE P12 Label Maker
• Cable tal-Iċċarġjar tal-USB
• 1 Roll of 15mm x 4.3m Label Paper
• Manwal għall-Utent

Figure 3.1: Standard package contents for the MARKLIFE P12 Label Maker.

4. Prodott Aktarview

Familiarize yourself with the different parts of your MARKLIFE P12 label maker:

Figura 4.1: Aktarview of the MARKLIFE P12 Mini Handheld Labeling Machine, illustrating its design and key functional areas.

• Buttuna tal-Enerġija/Dawl Indikatur: Turns the device on/off and indicates status.
• Slott tal-Ħruġ tat-Tikketta: Fejn joħorġu tikketti stampati.
• Cutter Button: Used to manually cut the label paper.
• Kompartiment tal-Karta: Houses the label paper roll.
• Port tal-Iċċarġjar USB-C: Għall-iċċarġjar tal-apparat.

5. Gwida ta' Setup

5.1 Iċċarġjar tal-Apparat

Before first use, fully charge the label maker. Connect the provided USB charging cable to the device's USB-C port and a compatible USB power adapter (not included). The indicator light will show charging status (e.g., red for charging, green for fully charged).

Figure 5.1: Charging the MARKLIFE P12. Ensure the device is fully charged before initial use for optimal performance.

5.2 Installazzjoni tal-App

The MARKLIFE P12 operates via a dedicated smartphone application. Fittex għal "Marklife" in your device's app store (App Store for iOS or Google Play Store for Android) and install it. Ensure your smartphone's Bluetooth is enabled.

5.3 Tagħbija tal-Karta tat-Tikketti

1. Open the paper compartment cover of the label maker.
2. Insert the label paper roll into the compartment, ensuring the printing side faces upwards and the leading edge extends slightly out of the slot.
3. Agħlaq l-għatu sew sakemm jikklikkja f'postu.

Figure 5.2: Loading label paper into the MARKLIFE P12. Proper paper alignment is crucial for clear prints.

6. Istruzzjonijiet Operattivi

6.1 Konnessjoni permezz tal-Bluetooth

1. Turn on the MARKLIFE P12 by pressing and holding the power button until the indicator light illuminates.
2. Open the Marklife APP on your smartphone.
3. The app will automatically search for available devices. Select "P12" from the list to connect. The indicator light on the device will change (e.g., from blinking to solid blue) once connected.

6.2 Using the Marklife APP

The Marklife APP provides a user-friendly interface for designing and managing your labels.

• Editjar tat-Test: Enter your desired text. Customize font, size, bolding, alignment, and line spacing.
• Templates & Graphics: Access a wide range of pre-designed templates, symbols, and borders to enhance your labels.
• Funzjoni tal-memorja: Save frequently used label designs for quick reprinting.
• Modalità Mistieden: Create and print labels without needing to register or log in.

Figure 6.1: The Marklife APP interface, offering various customization tools for label design.

Figure 6.2: The Marklife APP provides over 600 combinations of templates, symbols, frames, and fonts for diverse label creation.

6.3 Stampar ta' Tikketti

Once your label design is complete in the app, tap the "Print" button. The label maker will print your design. The P12 supports two printing modes:

• Continuous Paper Printing: For labels of any custom length.
• Gap Paper Printing: For pre-cut labels with fixed lengths.

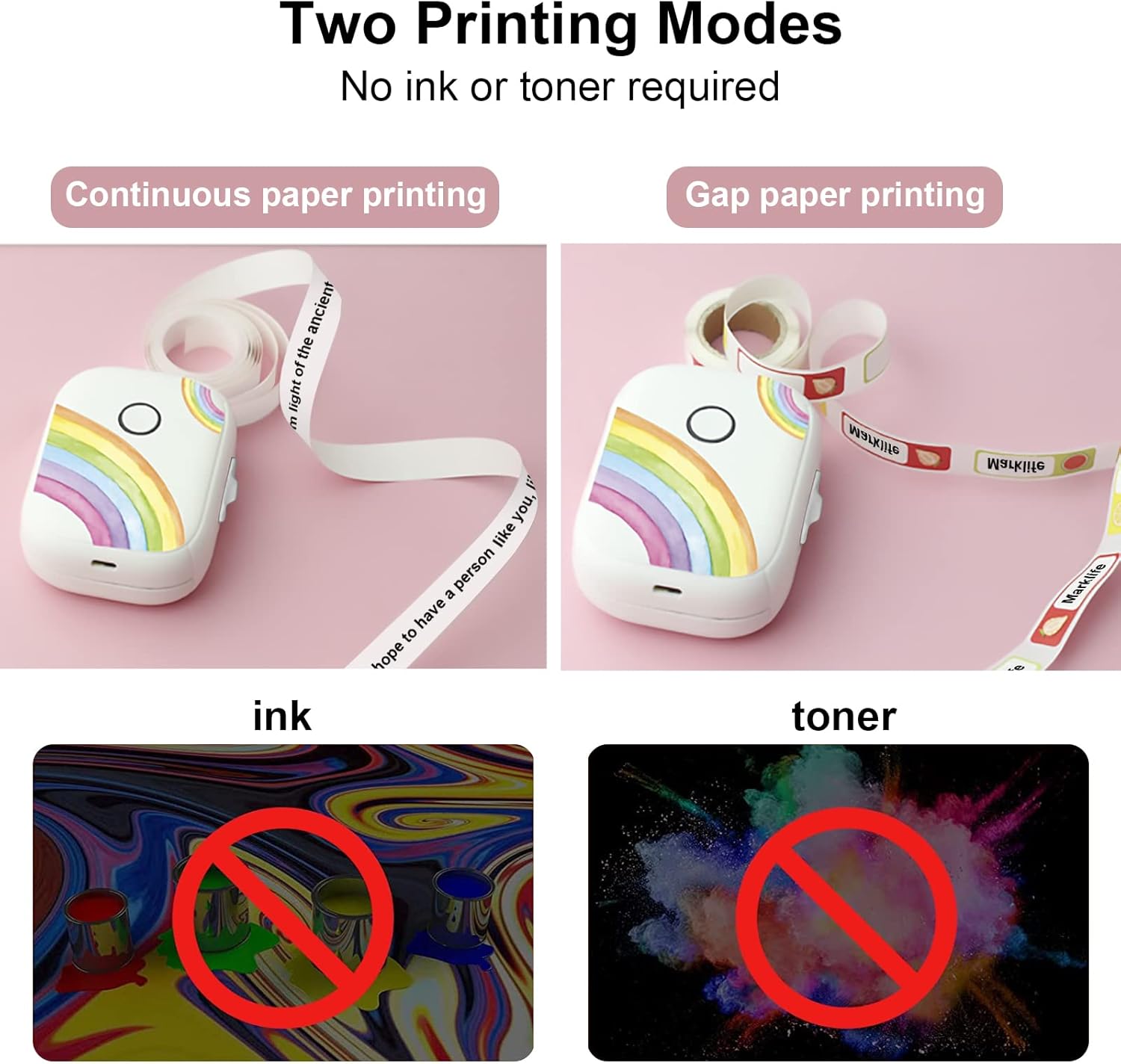

Figure 6.3: The P12 supports both continuous and gap paper printing modes, offering flexibility for various labeling needs.

6.4 Cutting Labels

After printing, use the integrated cutter to neatly separate your label from the roll. Press the cutter button firmly to achieve a clean cut.

7. Manutenzjoni

• Tindif: Use a soft, dry cloth to wipe the exterior of the label maker. Do not use abrasive cleaners or solvents.
• Kura tar-Ras tal-Istampar: If print quality degrades, gently clean the thermal print head with an alcohol swab. Ensure the device is off and cool before cleaning.
• Ħażna: Aħżen il-magna tat-tikketti f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

10. Garanzija u Appoġġ

For warranty information and technical support, please refer to the contact details provided on the product packaging or the official MARKLIFE websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal kwalunkwe talba ta' garanzija.
