Introduzzjoni
This manual provides instructions for the setup, operation, and maintenance of your RCA RCDC45 Alarm Clock Caddy Charging Station. Please read this manual thoroughly before using the device to ensure proper functionality and safety. This device combines an alarm clock with a convenient storage caddy and USB charging capabilities.
Informazzjoni Importanti dwar is-Sigurtà
- Ensure the device is connected to an AC power outlet with the correct voltage.
- Dan il-prodott huwa ddisinjat għall-użu fuq ġewwa biss.
- Tesponix l-apparat għall-ilma, umdità, jew temperaturi estremi.
- Tippruvax tiżżarma jew timmodifika l-apparat. Irreferi kull servizz lil persunal kwalifikat.
- Żomm l-apparat 'il bogħod minn sorsi ta' sħana bħal radjaturi, reġistri tas-sħana, stufi, jew apparat ieħor (inkluż amplifiers) li jipproduċu sħana.
Kontenut tal-Pakkett
- RCA RCDC45 Alarm Clock Caddy Charging Station
- Adapter tal-Qawwa AC
- Batterija CR2032 (għal backup)
Karatteristiċi tal-Prodott
- 1-inch tall / 3.25-inch diagonal red LED display with 4-level brightness control.
- Integrated small device and item organizer with a soft, non-scratch interior floor.
- USB charging port (5V/2A) for compatible devices.
- Alarm clock with 3 separate alarms.
- Displays indoor temperature in either Fahrenheit (°F) or Celsius (°C).
- Battery backup option (CR2032 battery included) to retain time settings during power outages.
Prodott Overview
Familiarize yourself with the various components of your alarm clock caddy.
Figura 1: Quddiem View. This image displays the front of the RCA RCDC45 Alarm Clock Caddy, featuring its prominent red LED digital display showing the time 6:18. The device is black with a smooth finish.
Figura 2: Wara View and Controls. The back of the unit features the USB charging port on the left, followed by three control buttons: 'L isfel, UP, u SET. These buttons are used for adjusting time, alarms, and other settings.
Figure 3: Storage Caddy in Use. This image illustrates the integrated storage caddy, shown holding a remote control, a pair of eyeglasses, and two pens. The caddy provides a convenient space for organizing small items.
Figure 4: Labeled Features. This diagram highlights the key features of the device, including the large dimmable display, the storage space, the USB charging port, and indicates its dual alarm capability.
Setup
- Qabbad l-Enerġija AC: Plug the provided AC power adapter into the DC IN jack on the back of the alarm clock, then plug the adapter into a standard wall outlet. The display will light up.
- Install Backup Battery: Open the battery compartment on the bottom of the unit. Insert the CR2032 battery (included) with the correct polarity (+/-). This battery retains time settings during a power outage, though the display will not be active and USB charging will not function without AC power.
Istruzzjonijiet Operattivi
L-issettjar tal-Ħin
- Agħfas u żomm il- SET button on the back of the unit for approximately 3 seconds until the hour digits begin to flash.
- Uża l- UP or 'L isfel buttons to adjust the hour. Pay attention to the AM/PM indicator if present.
- Agħfas il- SET button again to confirm the hour and move to the minute setting. The minute digits will flash.
- Uża l- UP or 'L isfel buttuni biex jaġġustaw il-minuti.
- Agħfas il- SET button one more time to confirm the minutes and exit time setting mode.
Setting Alarms (Alarm 1, Alarm 2, Alarm 3)
This device supports up to three independent alarms.
- Agħfas ripetutament il- SET button (do not hold) until 'AL1' (Alarm 1) appears on the display and the hour digits flash.
- Uża l- UP or 'L isfel buttuni biex tissettja s-siegħa tal-allarm mixtieqa.
- Agħfas SET to confirm the hour and move to the minute setting.
- Uża l- UP or 'L isfel buttuni biex tissettja l-minuti tal-allarm mixtieqa.
- Agħfas SET to confirm the minutes. The display will show 'OFF' or 'ON'. Use UP or 'L isfel to toggle the alarm ON or OFF.
- Agħfas SET to save Alarm 1 settings.
- Repeat steps 1-6 for 'AL2' (Alarm 2) and 'AL3' (Alarm 3) by pressing SET until the respective alarm indicator appears.
- To stop a sounding alarm, press any button. The alarm will reset for the next day.
L-aġġustament tal-luminożità tal-wiri
The display has 4 levels of brightness.
- While the clock is displaying the time, repeatedly press the 'L isfel button to cycle through the 4 brightness levels (High, Medium, Low, Off). Select your preferred brightness.
Temperature Display (°F/°C)
The device displays the indoor temperature.
- Biex taqleb bejn Fahrenheit (°F) u Celsius (°C), agħfas il-buttuna UP button while the clock is displaying the time.
Iċċarġjar USB
The integrated USB port allows you to charge compatible devices.
- Locate the USB charging port on the back of the unit.
- Connect your device's USB charging cable to the port.
- Connect the other end of the cable to your device. Charging will begin automatically.

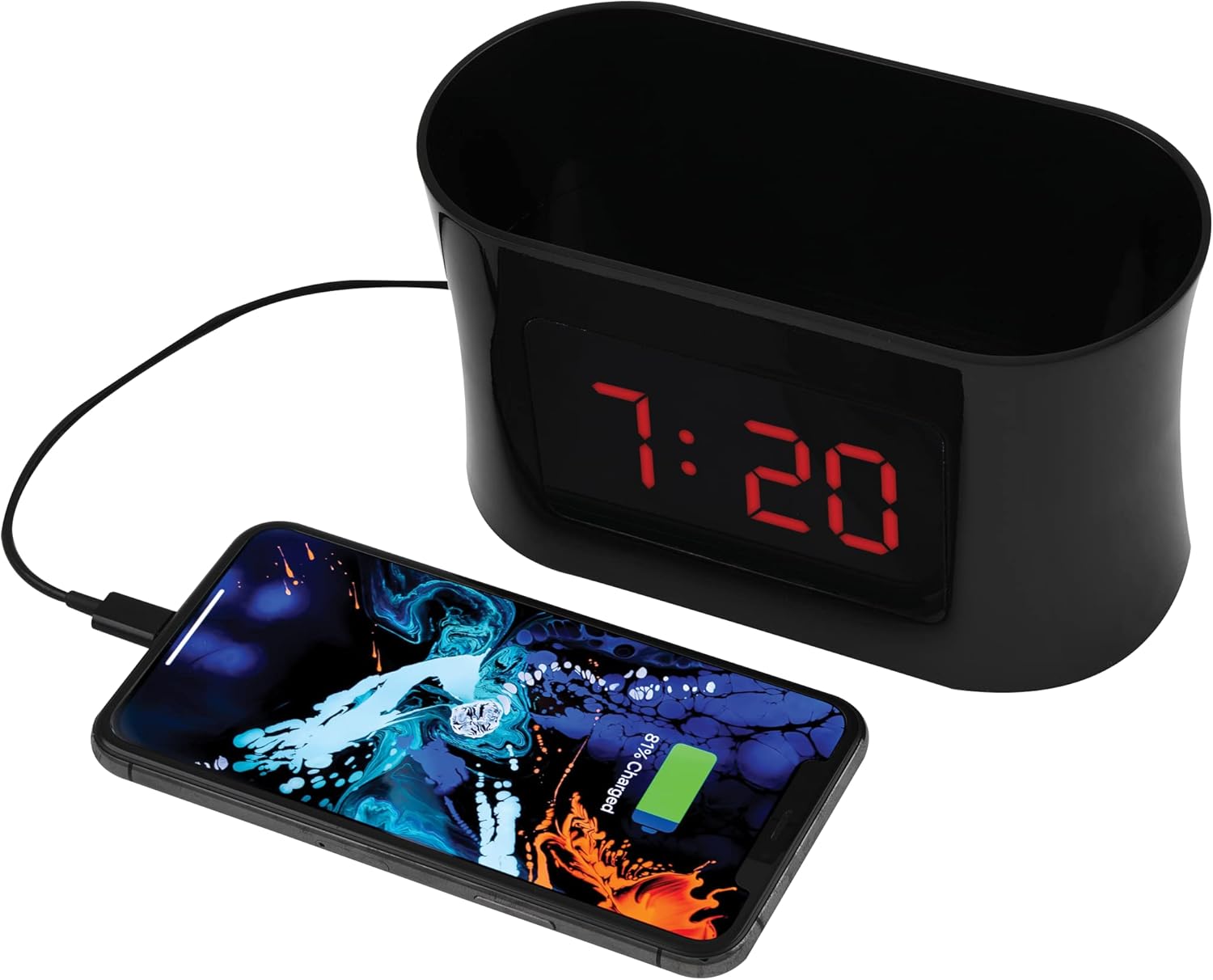

Figure 5: USB Charging. This image shows a smartphone connected to the USB port of the alarm clock caddy, illustrating its charging capability.
Using the Storage Caddy
The top compartment serves as a convenient organizer for small items.
- Place items such as remote controls, eyeglasses, pens, or other small personal devices into the caddy.
- The interior floor is designed with a soft, non-scratch material to protect your belongings.
Manutenzjoni
Kura u Tindif
- Aqla 'l-apparat mill-iżbokk tad-dawl qabel it-tindif.
- Imsaħ l-uċuħ ta’ barra b’ċarruta ratba u niexfa.
- Tużax prodotti tat-tindif, xama', jew solventi li joborxu għax jistgħu jagħmlu ħsara lill-finitura.
- Ensure no liquids enter the device's openings.
Issolvi l-problemi
Refer to the table below for solutions to common issues.
| Problema | Soluzzjoni |
|---|---|
| Display is blank during a power outage. | The battery backup retains time settings but does not power the display or USB charging port. These functions resume when AC power is restored. |
| Difficulty setting time or alarms. | Ensure you are pressing and holding the SET button for 3 seconds to enter time setting mode, or pressing it repeatedly to cycle through alarm settings. Use UP/'L isfel buttons to adjust values. Refer to the 'Operating Instructions' section for detailed steps. |
| L-iċċarġjar tal-USB mhux qed jaħdem. | Verify the AC power adapter is securely plugged into both the clock and a working wall outlet. Ensure your device's charging cable is fully inserted into both the clock's USB port and your device. Confirm your device is compatible with 5V/2A charging. |
| Temperature display is incorrect or not showing. | Ensure the device is in a stable indoor environment. If the issue persists, try unplugging and re-plugging the AC adapter to reset the unit. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | RCA |
| Mudell | RCDC45 |
| Tip ta 'Wiri | LED Diġitali (Aħmar) |
| Daqs tal-Wiri | 1-inch tall / 3.25-inch diagonal |
| Kontroll tal-luminożità | 4 livelli |
| Port tal-Iċċarġjar tal-USB | 5V/2A |
| Allarmi | 3 separate alarms |
| Wiri tat-Temperatura | Indoor (°F/°C) |
| Sors tal-Enerġija | Mħaddem bl-AC |
| Backup tal-batterija | CR2032 (inkluż) |
| Kulur | Iswed |
| Manifattur | Voxx International, Inc |
Figura 6: Dimensjonijiet tal-Prodott. This image provides the approximate dimensions of the alarm clock caddy, indicating a length of 15.9 cm and a height of 9 cm.
Garanzija u Appoġġ
This RCA product is covered by a limited manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact RCA customer support.
For technical assistance or customer service inquiries, please visit the official RCA website or contact their support line. Contact details are typically found on the product packaging or the manufacturer's websit.
