Manwal tal-Utent tad-Dawl ta' Quddiem tar-Roti Riċarġjabbli Moon Rigel

Introduzzjoni

Thank you for choosing the Moon Rigel Rechargeable Bicycle Headlight. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new headlight. Please read this manual thoroughly before use to ensure optimal performance and safety.

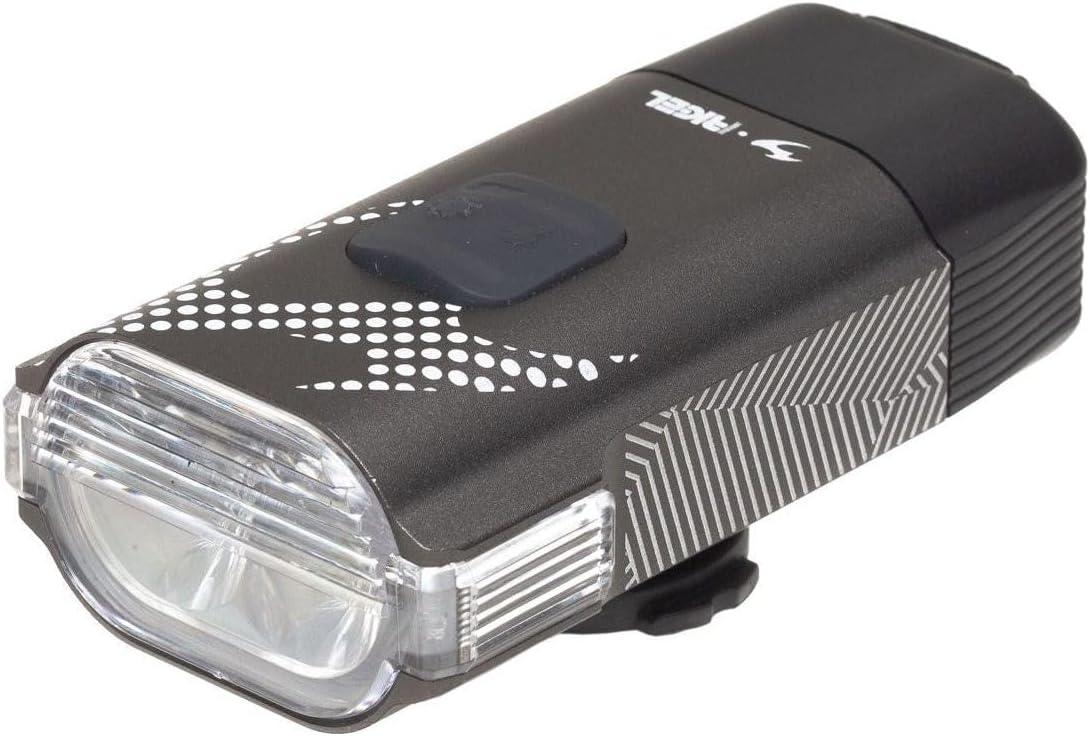

Image: The Moon Rigel Rechargeable Bicycle Headlight, showcasing id-disinn kompatt tiegħu u l-lenti ta' quddiem.

Kontenut tal-Pakkett

Jekk jogħġbok iċċekkja l-pakkett għall-oġġetti li ġejjin:

Moon Rigel Headlight Unit
Handlebar Mount (Garmin Style Quick Release)
Cable tal-Iċċarġjar tal-USB tat-Tip-Ċ
Manwal għall-Utent (dan id-dokument)
Optional: USB Type-C Remote Control (if included with your specific model)

Setup

1. Immuntar tad-Dawl ta' Quddiem

Identify a suitable position on your bicycle's handlebar. Ensure the light beam will not be obstructed.
Attach the quick-release handlebar mount to your handlebar. Secure it firmly using the provided strap or screw mechanism.
Slide the Moon Rigel Headlight onto the mount until it clicks securely into place. The anti-glare rotating lens allows for inverted mounting if preferred.

Moon Rigel Headlight mounted on a bicycle handlebar

Image: The Moon Rigel Headlight securely mounted on a bicycle handlebar, demonstrating its quick-release attachment.

2. Iċċarġjar tal-batterija

The Moon Rigel headlight is equipped with a rechargeable battery. Fully charge the battery before first use.

Locate the USB Type-C charging port on the headlight.
Connect the provided USB Type-C cable to the headlight and plug the other end into a USB power source (e.g., computer, wall adapter).
The LED indicator will show the charging status. A full charge typically takes approximately 3 hours. The system includes an automatic cut-off when fully charged.
Ladarba tkun iċċarġjata kompletament, skonnettja l-kejbil tal-iċċarġjar.

Ġenb view of Moon Rigel Headlight showing charging port area

Immaġni: Ġenb view of the Moon Rigel Headlight, highlighting the location of the USB Type-C charging port and the main control button.

Istruzzjonijiet Operattivi

Qawwa mixgħul/mitfi

Biex tixgħel id-dawl ON: Press and hold the main power button for approximately 1 second.
Biex tixgħel id-dawl OFF: Press and hold the main power button for approximately 1 second.

Modi li jinbidlu

The Moon Rigel headlight features 7 different lighting modes, including a variable light system.

While the light is ON, short press the main power button to cycle through the available lighting modes.
The light has a mode memory function, which means it will turn on in the last used mode.

Sistema Lock

To prevent accidental activation during transport or storage, the light features a lock system.

Biex LOCK: With the light OFF, press and hold the main power button for 3 seconds until the LED indicator flashes.
Biex NISSOKKA: With the light LOCKED, press and hold the main power button for 3 seconds until the LED indicator flashes.

Indikatur tal-batterija

The integrated Matrix LED display provides a low battery indicator to inform you when charging is needed.

Refer to the LED display for current battery level.
When the battery is low, the indicator will alert you, prompting a recharge.

Manutenzjoni

Tindif: Wipe the light body and lens with a soft, damp drapp. Tużax tindif jew solventi li joborxu.
Ħażna: If storing the light for an extended period, charge the battery to approximately 50% and store in a cool, dry place. Recharge every 3-6 months to maintain battery health.
Reżistenza għall-Ilma: The light is IPX7 water-resistant, meaning it can withstand immersion in water up to 1 meter for 30 minutes. However, avoid prolonged submersion and ensure the USB port cover is securely closed.
Protezzjoni mis-sħana żejda: The light features an overheat protection system and a heat sink cooling system. If the light becomes too hot, it may automatically reduce its output to prevent damage.

Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
Id-dawl ma jixgħelx.	Il-batterija hija eżawrita. Light is in lock mode.	Iċċarġja l-batterija. Unlock the light by holding the power button for 3 seconds.
L-output tad-dawl huwa baxx.	Batterija baxxa. Protezzjoni kontra s-sħana żejda attivata.	Iċċarġja mill-ġdid il-batterija. Allow the light to cool down.
Id-dawl ma jiċċarġjax.	Kejbil jew sors tal-enerġija difettuż. Ostruzzjoni fil-port tal-iċċarġjar.	Try a different USB Type-C cable and power source. Iċċekkja l-port tal-iċċarġjar għal debris.
Mount is not secure.	Mount not tightened properly. Incorrect mount size.	Ensure the mount is firmly secured to the handlebar. Verify mount compatibility with your handlebar diameter.

Speċifikazzjonijiet

Brand	Qamar
Numru tal-Mudell	MN90110410101
Luminożità	700 Lumens (Mass)
Sors tal-Enerġija	Li jaħdem bil-batterija (rikarikabbli)
Ħin tal-Iċċarġjar	Appross. 3 sigħat
Klassifikazzjoni tar-Reżistenza għall-Ilma	IPX7 (Li ma jgħaddix ilma minnha)
Materjal	CNC Aluminum Alloy Body, Plastic
Tip ta 'Immuntar	Handlebar Mount (Garmin Style Quick Release)
Numru ta' Settings	7 (Variable Light System)
Karatteristiċi Speċjali	Matrix LED Display, Low Battery Indicator, Precision Optical Lens, Overheat Protection, Heat Sink Cooling System, Mode Memory, Lock System, Anti-Glare Rotating Lens
Dimensjonijiet (Pakkett)	20 x 15 x 4 ċm
Piż (Prodott)	200 grams (approximate, based on package weight)

Garanzija u Appoġġ

For warranty information and customer support, please refer to the official Moon webis-sit jew ikkuntattja lill-bejjiegħ tiegħek. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.

Għal aktar assistenza, tista' wkoll tirreferi għall-paġna tal-prodott fuq Amazon: Moon Rigel on Amazon.com.be
